AtlasIED WPD-MIX42RT Decor Wall Plate Input Selector With Volume Control

The AtlasIED WPD-MIX42RT is a decor-style wall plate designed specifically as a remote control interface for the TSD-MIX42RT mic/line mixer. It fits a standard single-gang electrical box, making it straightforward to integrate into installed audio systems in commercial spaces, hospitality environments, and institutional AV deployments where a clean, low-profile control surface is required at the listener level.

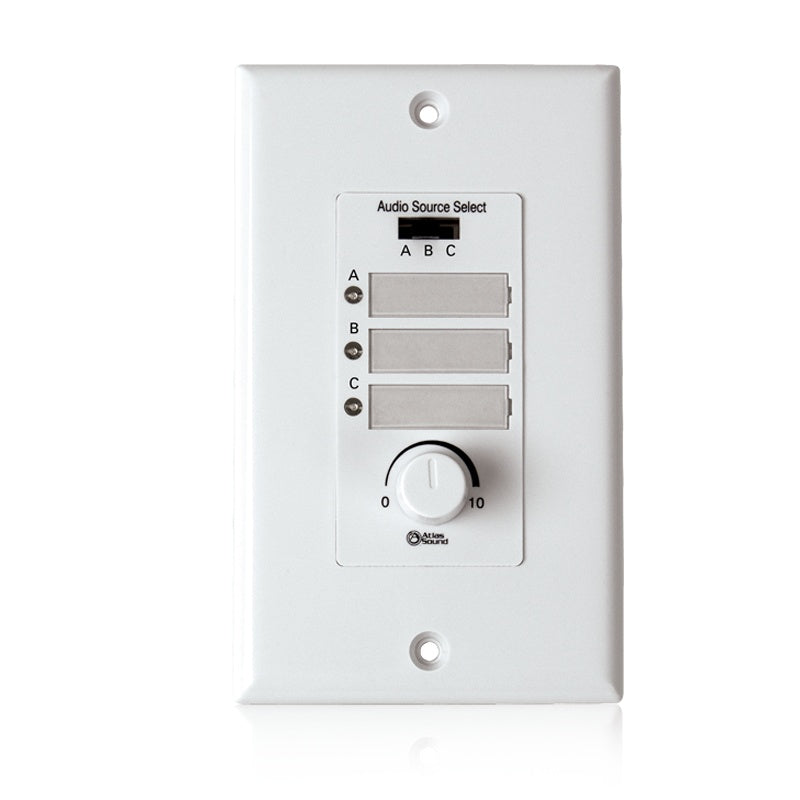

System integrators working with paging and background music systems will find this plate especially practical. An audio source slide selector lets users switch inputs on the TSD-MIX42RT directly from the wall, while the onboard 10kΩ potentiometer gives local volume control without requiring access to the head unit. A red LED system status indicator confirms which source is active, reducing support calls in staffed environments. When connected alongside the Jukebox Override, any page triggered through the system automatically overrides the selected background source so announcements cut through clearly.

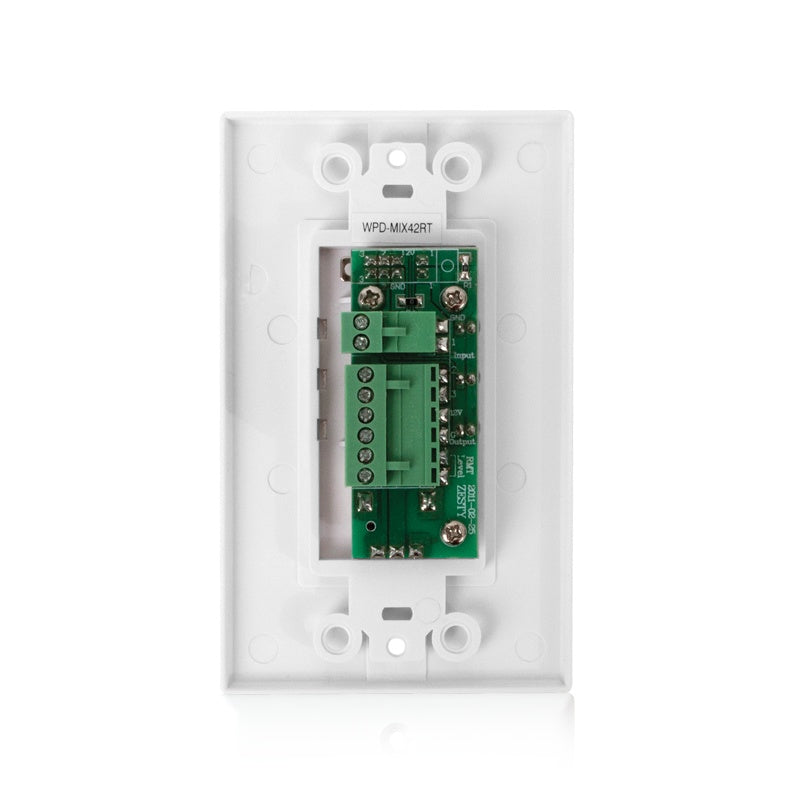

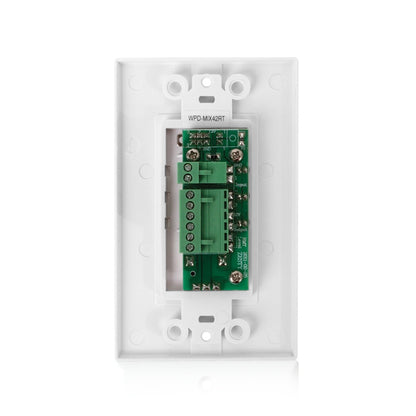

Connectivity is handled through an 8-conductor interface using one 4-position removable Phoenix connector and dual 2-position Phoenix-style connectors, keeping the wiring organized and serviceable. A label guard is included so installed zones can be clearly marked for end-user operation. The slim profile and standard decor form factor blend into commercial wall finishes without drawing attention to the control surface.
