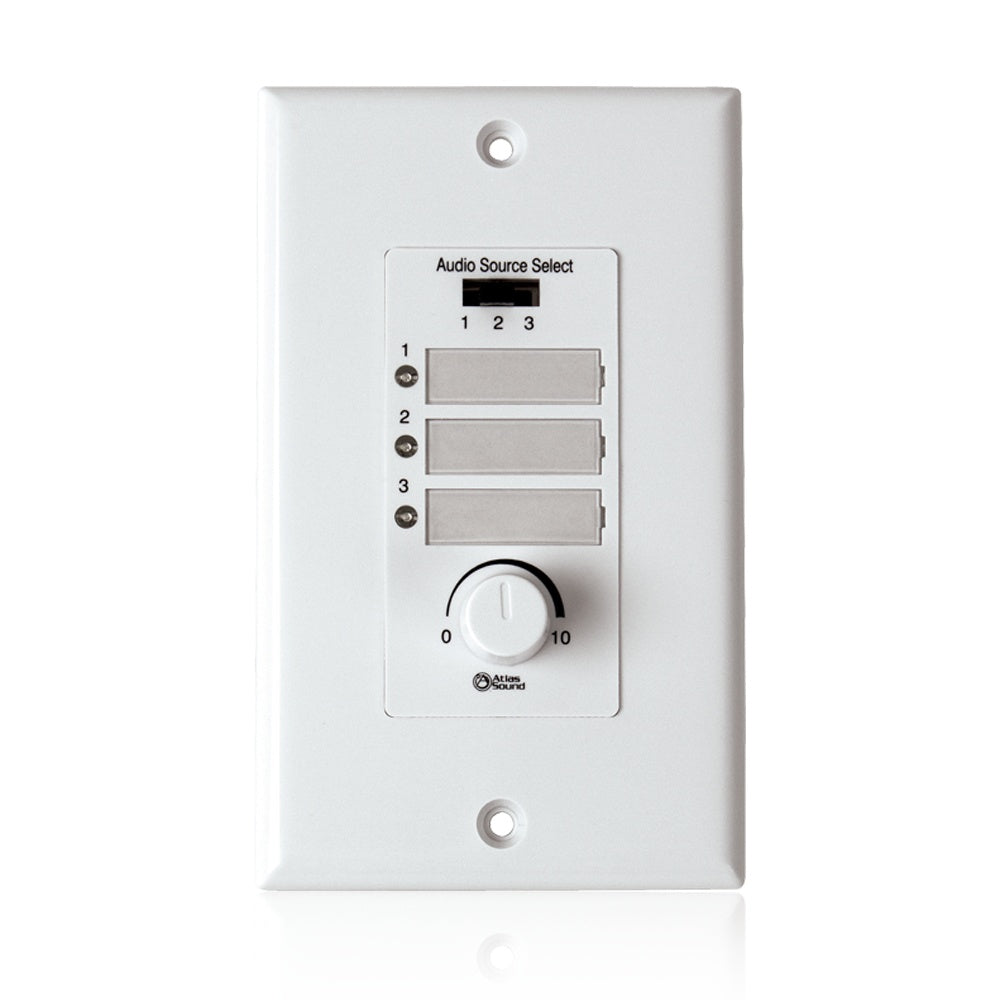

AtlasIED WPD-RISRL Decor Wall Plate Remote Input Select Switch With Volume
AtlasIED WPD-RISRL Decor Wall Plate Remote Input Select Switch With Volume
SoundPro Item: 20775 | Part Number: WPD-RISRL
Usually ships in 5-7 business days
- Remote Input Selection For AAPHD Amplifiers Keeps Rack Locked And Secured
- Slide Switch Provides Direct Source Selection Between Three Inputs
- Onboard Potentiometer Delivers Independent Per-Source Volume Adjustment
- Red LED Status Indicator Confirms Active Source Without Rack Access
- Removable Phoenix Connectors Simplify Field Termination And Serviceability
- Label Guard Allows Clear Source Identification For End-User Operation
- Decor Style Faceplate Fits Standard Single-Gang Electrical Box
The AtlasIED WPD-RISRL is engineered specifically for installed audio environments where the equipment rack must remain locked and secured while still allowing front-of-room or zone-level control. It is designed for use with the AA50PHD, AA100PHD, AA200PHD, and AA400PHD mixer amplifiers, enabling remote control of the RIS (Remote Input Selection) feature from a standard single-gang wall box location.
For AV integrators and sound system designers working in corporate boardrooms, houses of worship, educational facilities, or multi-zone commercial installs, the WPD-RISRL provides a clean, user-accessible control point without exposing rack equipment. The slide selector allows staff to switch between inputs 2, 3, and 4, while the onboard potentiometer handles source-level adjustment independently of the amplifier chassis.
The decor-style faceplate blends into professional installation environments, and the included label guard allows input sources to be clearly identified for end-user operation. The 8-conductor interface uses a single 4-position removable Phoenix connector and dual 2-position Phoenix-style connectors, making field termination straightforward. An LED status indicator confirms which source is active, reducing troubleshooting time during events or presentations.
Specifications
