ATLONA AT-HD-SC-500 Three-Input Scaler For Hdmi And Vga Signals
ATLONA AT-HD-SC-500 Three-Input Scaler For Hdmi And Vga Signals
SoundPro Item: 60009 | Part Number: AT-HD-SC-500
Regular price
$450.00
Regular price
$450.00
Sale price
$450.00
Unit price
per
MSRP: $450.00
| MAP: $450.00
Usually ships in 5-7 business days
- 3Ã-1 switcher with two HDMI® inputs and one VGA input
- HD video scaler with HDMI output and input resolution control
- Automatic input selection and automatic display control
- Front panel input selection, display on/off, and volume control
- TCP/IP and RS-232 control
- Audio de-embedding
- On-screen display with front panel menu controls
- Eliminates need for complex control system in AV systems. Enables display and volume control. CEC enables control of low-cost consumer displays.
- Digital inputs to support up to two HDMI sources or DisplayPort and DVI sources with appropriate adapters
- Ideal for a variety of digital sources including laptops, PCs, and cameras
- Accepts RGBHV signals using common adaptors and break out cables
- Provides input options for legacy analog sources
- Flexible control options for compatibility with third-party control systems. RS-232 controlled from HDBaseT™ connection
- Reduces integration time and costs
- Overrides automatic input selection when two active sources are present
- Simple manual control allows presenter to maintain control of the image on screen
- Remotely controls display power state; provides alternate ‘Display Mute' mode
- Eliminates need for manual operation of display or use of IR remote control
- Adjusts level of both embedded and de-embedded audio; provides ‘Mute' mode
- Simplifies audio level settings for best sound

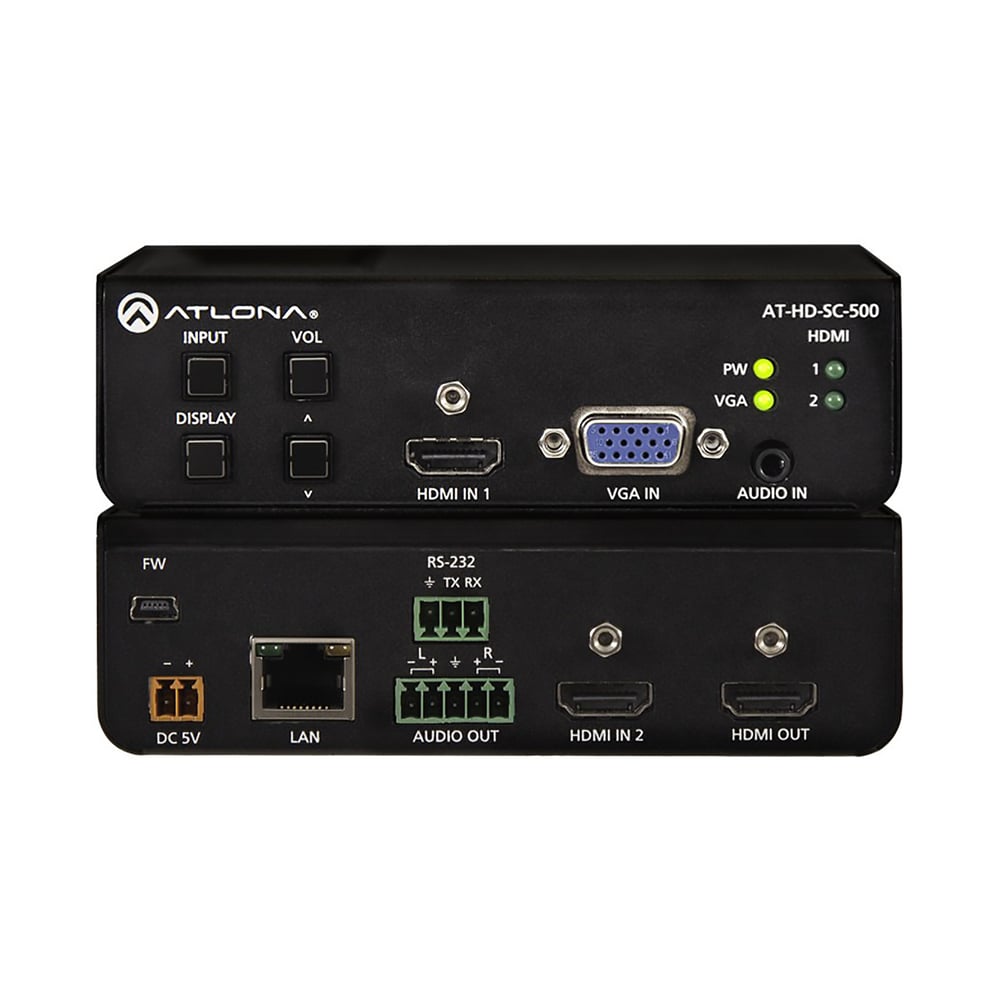

The Atlona AT-HD-SC-500 is a scaler with built-in 3x1 switcher for HDMI and VGA signals. It features two HDMI inputs and a VGA input with 3.5mm audio connector. The scaler is designed to take video signals from switchers, PCs or laptops and scale them to an HDMI output at a wide-range of HDTV and PC resolutions, up to 1080p/60Hz and WUXGA (1920x1200). For ease of operation, the AT-HD-SC-500 features auto-switching for active input selection when sources are connected or if there is a change in source power status. Input selection can also be controlled from the front panel, RS-232, or TCP/IP commands. Set-up is performed using Atlona's webGUI or OSD. Set-up options include variable preferred input resolutions, output resolution, plus control of brightness, contrast, saturation, hue and sharpness. The AT-HD-SC-500 is ideal for applications where multiple signals with different resolutions must be optimized for a display.The AT-HD-SC-500 combines a scaler with multiple inputs and auto-switching capabilities for use in a small system with HDMI and VGA sources, and audio features including analog de-embedding, volume control, and equalization.
- Scales output video signals up to 1080p/60Hz and 1920x1200; Choose preferred scaler input resolution from 800x600 to 1920x1200
- Assures compatibility of VGA and HDMI sources with the display
- Features two HDMI inputs plus a VGA input with 3.5mm audio connector
- Allows advanced HDMI display devices to be used with legacy VGA sources
- Flexible control options for compatibility with 3rd- party control systems
- Reduces integration time and costs
- Selects active input when sources are connected or if there is a change in source power status
- Eliminates need for complex control system in small AV systems
- Overrides auto-switching when two active sources are present
- Simple manual control allows presenter to maintain control of the image on screen
- Adjusts level of both embedded and de-embedded audio; provides 'Mute' mode
- Simplifies audio level settings for best sound
Specifications
'General Information
Manufacturer
Atlona Technologies
Manufacturer Part Number
AT-HD-SC-500
Brand Name
Atlona
Product Model
HD-SC-500
Product Name
Three-Input HD Video Scaler for HDMI and VGA Signals
Product Type
Audio/Video Switchbox
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
3
Device Supported
Notebook
Display
TV
DVR
Camera
A/V Receiver
Projector
Computer
Number of Displays Supported
1
Video
Graphics Modes
WUXGA
Maximum Video Resolution
1920 x 1200
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
VGA In
Yes
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
1
Number of USB Ports
1
Number of HDMI Inputs
2
Number of HDMI Outputs
1
Number of VGA Inputs
1
Media & Performance
Maximum Operating Distance
30 ft
Physical Characteristics
Form Factor
Surface-mountable
Under Table
Wall Mountable
Miscellaneous
Package Contents
Three-Input HD Video Scaler for HDMI and VGA Signals User Guide Power Supply Detachable Power Cable Captive Screw Connectors Mounting Brackets
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
10 Year
