ATLONA AT-HDR-CAT-2 4K/Hdr Hdmi 2.0B Hdbaset Hdmi 1 X 2 Distribution Amplifier
ATLONA AT-HDR-CAT-2 4K/Hdr Hdmi 2.0B Hdbaset Hdmi 1 X 2 Distribution Amplifier
SoundPro Item: 138602 | Part Number: AT-HDR-CAT-2
Usually ships in 5-7 business days
- Maximum Video Resolution: 4096 x 2160
- HDMI In: Yes
- HDMI Out: Yes
- Network (RJ-45): Yes
- USB: Yes
- Number of HDMI Inputs: 1
- Number of HDMI Outputs: 1
- Number of Network (RJ-45) Ports: 3
- Maximum Operating Distance: 131.23 ft
- Input Voltage: 120 V AC
- Input Voltage: 230 V AC
- Environmentally Friendly: Yes
- Environmental Certification: RoHS

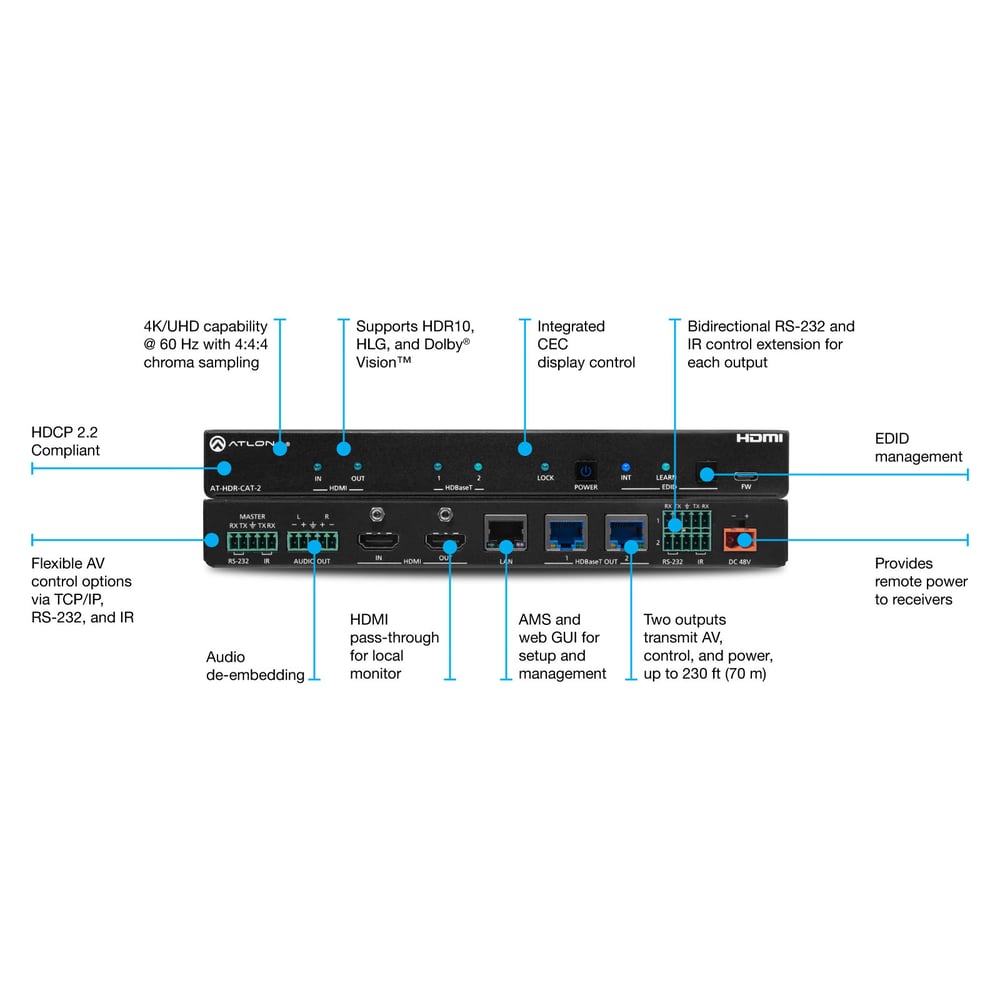

- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Manages EDID communications with the source through a display's EDID or internally stored EDID
- Intuitive GUI-based configuration using integrated web server
- Flexible control options via TCP/IP, RS-232, and IR with Atlona Velocity or third-party control systems
- Easy to configure and manage with Velocity Device Manager

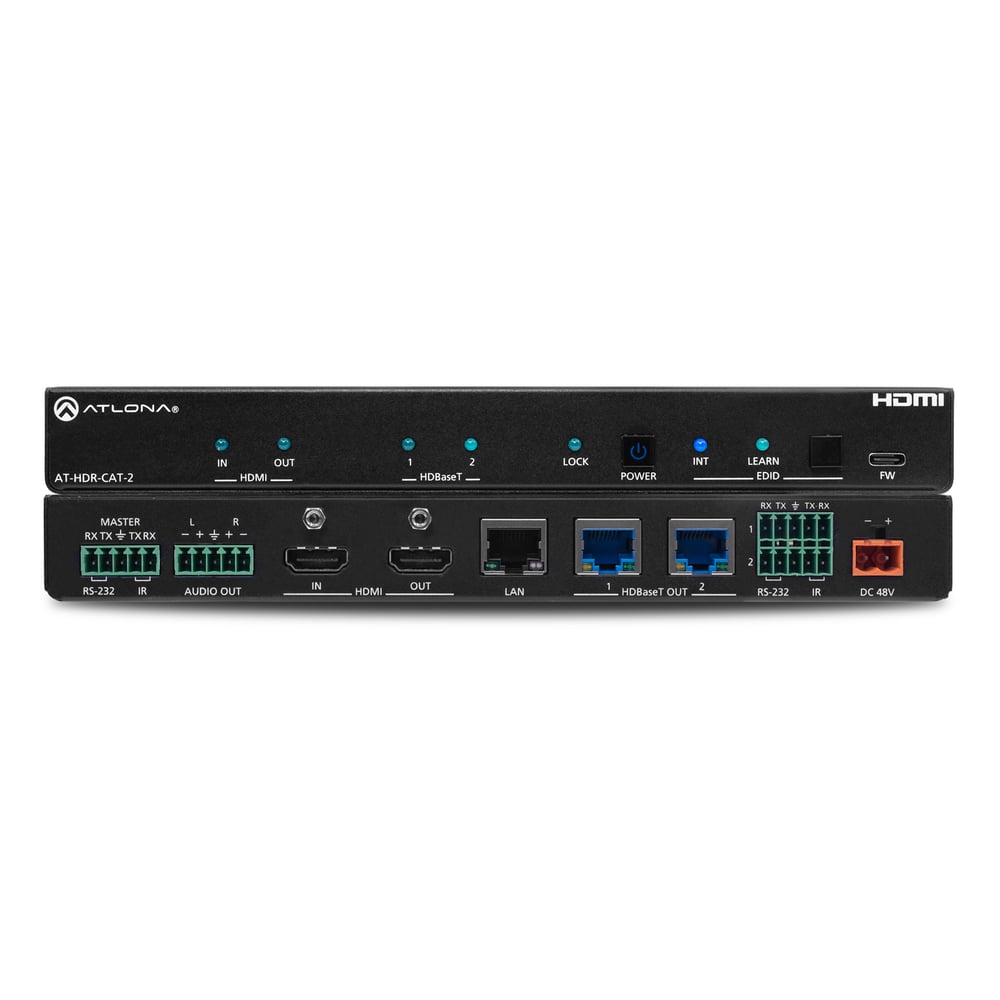

- Front panel includes LEDs for power, HDBaseT link, and HDMI signal status information as well as buttons for power and EDID control
- Compatible with the AT-HDR-EX-70C-RX receiver for 4K/60 4:4:4 HDR and AT-UHD-EX receivers for 4K/60 4:2:0
The Atlona AT-HDR-CAT-2 is a high dynamic range (HDR) distribution amplifier with one HDMI input and two HDBaseT outputs. Each output transmits 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus support for HDR formats, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The HDR-CAT-2 features sophisticated integration capabilities designed for commercial AV distribution applications including HDMI pass-through, audio de-embedding, EDID management, CEC display control, RS-232 and IR control extension, remote power for receivers, and HDBaseT link testing. It offers compatibility with any TCP/IP or RS-232 control system and is housed in a low-profile enclosure with external universal power supply. The HDR-CAT-2 is ideal for sending HDR and 4K/60 4:4:4 content to AT-HDR-EX-70C-RX receivers. The HDR-CAT-2 is part of a family of 4K HDR HDMI to HDBaseT distribution amplifiers that also includes the HDR-CAT-4 four output, HDR-CAT-8 eight output, and HDR-CAT-4ED four output extended distance models.
