ATLONA AT-HDR-EX-70C-RX Hdbaset 4K Hdmi Receiver
ATLONA AT-HDR-EX-70C-RX Hdbaset 4K Hdmi Receiver
SoundPro Item: 139907 | Part Number: AT-HDR-EX-70C-RX
Usually ships in 5-7 business days
- Connectivity Technology: Wired
- Number of Output Devices Supported: 1
- Maximum Operating Distance: 229.66 ft
- Graphics Modes: 4K UHD
- Maximum Video Resolution: 4096 x 2160
- Network (RJ-45): Yes
- HDMI Out: Yes
- USB: Yes
- Number of Network (RJ-45) Ports: 1
- Number of USB Ports: 1
- Number of HDMI Outputs: 1
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 7
- Power over Ethernet (PoE): Yes
- Receiver Height: 1.02"
- Receiver Width: 4.29"
- Receiver Depth: 5"
- Receiver Weight (Approximate): 13.60 oz
- Application/Usage: Projector
Introduction

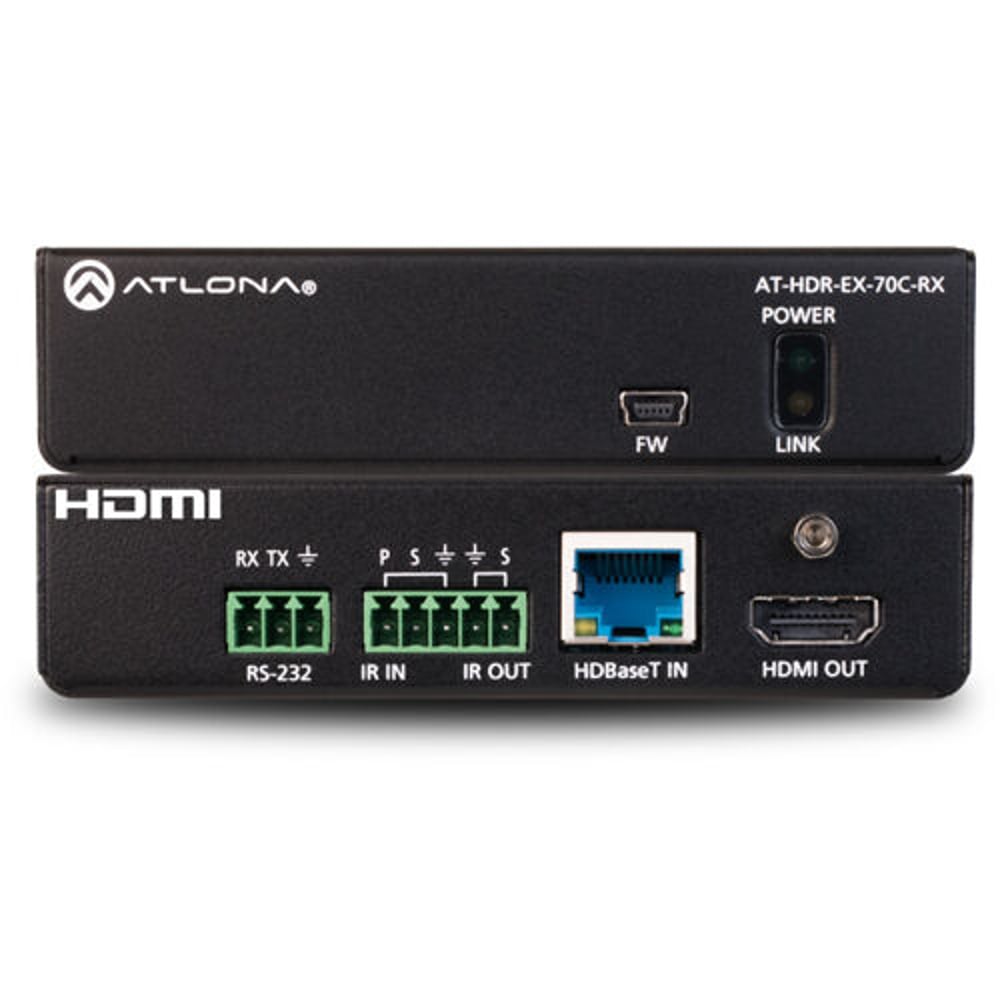

The Atlona AT-HDR-EX-70C-RX is a HDBaseT™ to HDMI® receiver for 4K and high dynamic range (HDR) content. It supports extension of 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling plus HDR data, multi-channel audio, control signals, and power up to 130 ft. (40 m) or 1080p up to 230 ft. (70 m) over Category 6/6A cable. The AT-HDREX-70C-RX is ideal for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers for passing 4K HDR signals to a display. A compact enclosure and remote power supplied by the transmitter means the receiver can be conveniently mounted in furniture, behind a display, or above a projector.

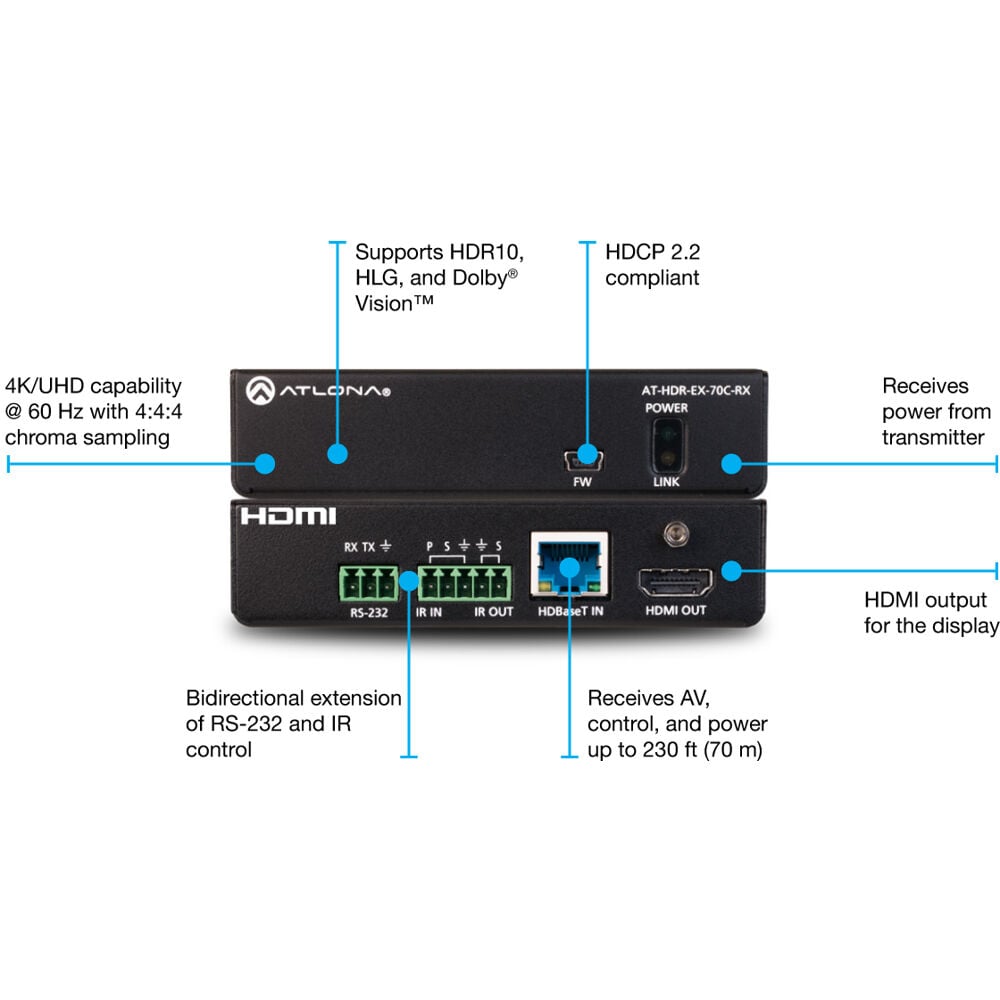

Key Features
- HDBaseT receiver for use with the AT-HDR-CAT-2, AT-HDR-CAT-4, and AT-HDR-CAT-8 distribution amplifiers
- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling
- Supports HDR10, HLG, and Dolby® Vision™ HDR formats
- Features visually lossless compression with no latency to enable HDR and 4K/60 4:4:4 video signal extension over HDBaseT
- HDBaseT input receives HDMI, control signals, and power up to 130 feet (40 meters) for 4K HDR or 230 feet (70 meters) for 1080p with Category 6/6A
- Extends bidirectional RS-232 and IR control signals over HDBaseT
- Remotely powered by the AT-HDR-CAT distribution amplifiers over HDBaseT
- Compliant with HDCP 2.2, the latest specification for passing protected content between devices
- Multi-channel audio pass-through
- Front panel Power and Link status LEDs
- Front panel USB port for firmware updates
- Rear panel connections simplify wire management and save installation time
- Compact enclosure can be mounted in furniture, behind a display, or above a projector
