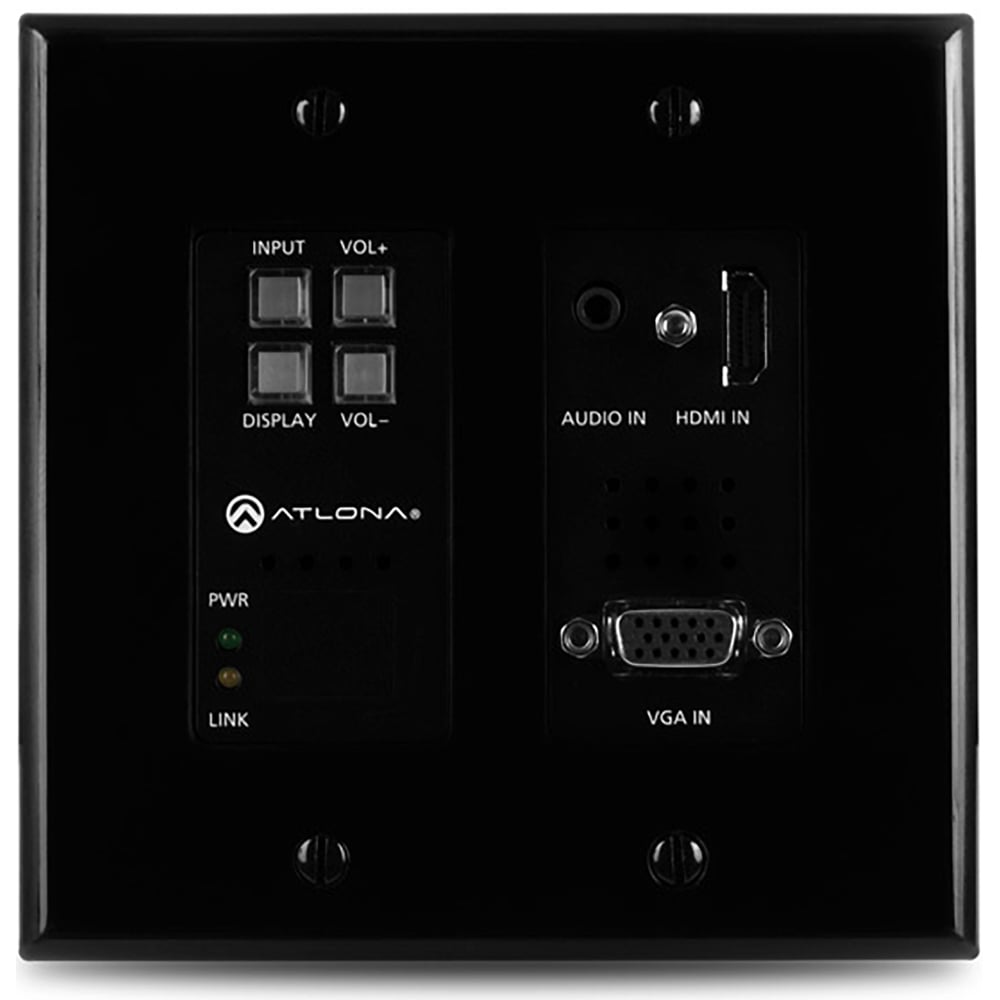

ATLONA AT-HDVS-200-TX-WP-BLK Two-Input Wall Plate Switcher For Hdmi And Vga Sources (Black)
ATLONA AT-HDVS-200-TX-WP-BLK Two-Input Wall Plate Switcher For Hdmi And Vga Sources (Black)
SoundPro Item: 60019 | Part Number: AT-HDVS-200-TX-WP-BLK
Usually ships in 5-7 business days
- US two-gang enclosure for Decora-style wallplate openings
- 2Ã-1 HDBaseT switcher
- Remotely powered via PoE (Power over Ethernet)
- Automatic display control
- Automatic input selection using hot plug detect and video detection technology
- TCP/IP and RS-232 control of switcher
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- Extended distance HDBaseT extension
- EDID management
- HDCP management
Atlona HDVS Series
The AT-HDVS-200-TX-WP is part of the Atlona HDVS Series of HDBaseT extenders with AV switching and scaling, plus automatic display control and automatic input selection. See below for a complete listing of transmitters and receivers.
HDVS Series HDBaseT Extenders with AV Switching and Scaling
Product Compatibility
The AT-HDVS-200-TX-WP is compatible with the AT-HDVS-200-RX receiver and HD scaler, and can also provide remote 4K/UHD input switching for Atlona HDBaseT-equipped switchers and matrix switchers. Additionally, the AT-HDVS-200-TX-WP is ideal for 4K/UHD extension to the AT-UHD-EX-100CE-RX-PSE receiver - available together as the 4K-HDVS-WP-EXT kit.
See below for a complete listing of compatible products.
Atlona Product Compatibility Table
The Atlona AT-HDVS-200-TX-WP is a 2x1 switcher and HDBaseT transmitter with an HDMI input plus a VGA input with audio. The HDVS-200-TX-WP features a US two-gang, Decora-style wallplate form factor. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio, control, and Ethernet can be transmitted up to 330 feet (100 meters). The two-channel audio input can be assigned to either video input and embedded for HDBaseT transmission. The HDVS-200-TX-WP is designed for use with the AT-HDVS-200-RX receiver and HD scaler, but can also be used with the AT-UHD-EX-100CE-RX-PSE receiver for 4K/UHD extension, as well as Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the HDVS-200-RX or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).
All-in-One Switcher, Controller, and Extender
The HDVS-200-TX-WP combines the benefits of auto-switching and integrated display control, and the advantages of HDBaseT signal transmission. It enables input selection, volume, and display on/off control from the front panel or external RS-232 or TCP/IP commands. The HDVS-200-TX-WP incorporates many popular integration convenience features while delivering excellent value for classrooms, huddle rooms, and meeting spaces.
Automatic Display Control
The HDVS-200-TX-WP provides control to a display through TCP/IP, RS-232, or CEC*, without the need for a separate control system. This simplifies system design and integration while reducing costs. With automatic display control, the HDVS-200-TX-WP can trigger a display to power on automatically whenever a laptop or other device is connected. At the end of the presentation, when the presenter disconnects the laptop, the HDVS-200-TX-WP forces the display to power off. Ease of presenter interaction with the system, and the savings incurred by automatic display shutdown provide a significant return on investment. The HDVS-200-TX-WP display control capability can also be triggered by an external control system.
A power button on the front panel can be used for manual on/off control of either the HDVS-200-TX-WP or the display. Front panel volume controls are also available to control the display's internal audio, or another device with volume control, such as a DSP or another switcher.
Specifications
