ATLONA AT-HDVS-210H-TX-WP Single Gang Dual Hdmi Wall Transmitter

ATLONA AT-HDVS-210H-TX-WP Single Gang Dual Hdmi Wall Transmitter

SoundPro Item: 60020 | Part Number: AT-HDVS-210H-TX-WP

$958.00
$958.00 $958.00
Your Price Sold out
MSRP: $958.00 | MAP: $958.00

Usually ships in 5-7 business days

  • US one-gang enclosure for Decora®-style wallplate openings - interchangeable black or white trim kits
  • 2Ã-1 HDBaseTTM switcher with HDMI® inputs
  • Ideal for the AT-HDVS-200-RX scaling receiver, AT-UHD-EX-100CE-RX-PSE receiver, and Atlona HDBaseT-equipped switchers
  • HDBaseT transmitter for AV, power, and control up to 330 feet (100 meters)
  • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling (with the AT-UHD-EX-100CE-RX-PSE)
  • Remotely powered via PoE (Power over Ethernet)
  • Automatic input selection and automatic display control
  • TCP/IP and RS-232 control
Log in or register for YOUR best price

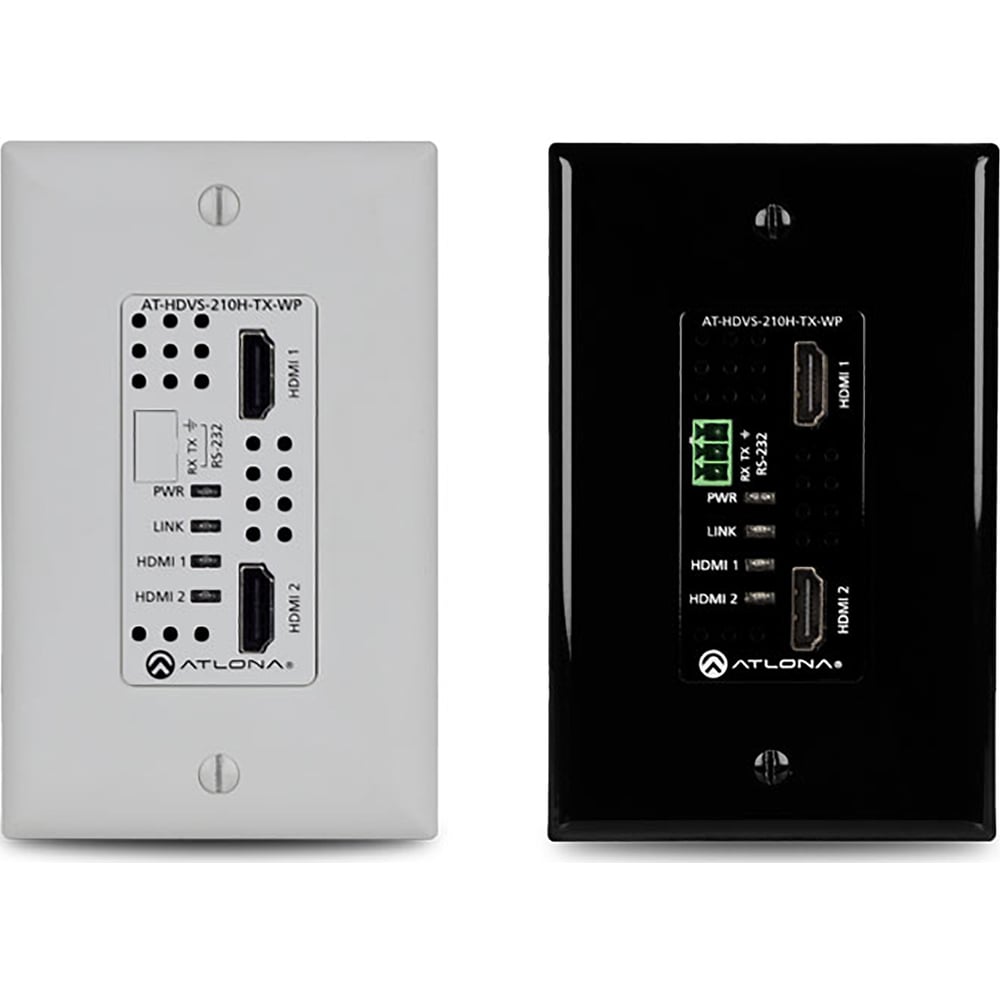

The Atlona AT-HDVS-210H-TX-WP is a 2x1 switcher and HDBaseT transmitter with two HDMI inputs. It features a US one-gang, Decora-style wallplate form factor, and includes interchangeable black and white wallplates and faceplates. Video signals up to 4K/UHD @ 60 Hz with 4:2:0 chroma subsampling, plus embedded audio and control can be transmitted up to 330 feet (100 meters). The HDVS-210H-TX-WP is HDCP 2.2 compliant. It is designed for use with select HDVS Series receivers and scalers, as well as the AT-UHD-EX-100CE-RX-PSE receiver, and Atlona switchers and matrix switchers with HDBaseT inputs. This transmitter can serve as an integral component of a fully automated AV system, with the convenience of automatic input selection and display control. It is remotely powered by the UHD-EX-100CE-RX-PSE or other Atlona HDBaseT-equipped devices through Power over Ethernet (PoE).

Complete system applications

The HDVS-210H-TX-WP and a compatible HDBaseT receiver provide a compact, yet comprehensive and cost-effective integration solution.

Larger system applications

The HDVS-210H-TX-WP is ideal for extending AV connectivity from a central equipment rack to lecterns as well as remote wall and floor box locations, where presenters can easily access the system.

View full details

Specifications

'General Information
Manufacturer
Atlona Technologies
Manufacturer Part Number
AT-HDVS-210H-TX-WP
Brand Name
Atlona
Product Series
HDVS-200
Product Model
AT-HDVS-210H-TX-WP
Product Name
4K/UHD Two-Input Wallplate Switcher for HDMI with HDBaseT Output
Product Type
Audio/Video Switchbox
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
2
Device Supported
Blu-ray Disc Player
Computer
Display
Number of Displays Supported
1
Video
Graphics Modes
4K
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
HDMI In
Yes
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
1
Number of HDMI Inputs
2
Media & Performance
Media Type Supported
Twisted Pair
Maximum Operating Distance
328.08 ft
Physical Characteristics
Form Factor
Wall Plate
Warranty
Limited Warranty
10 Year
