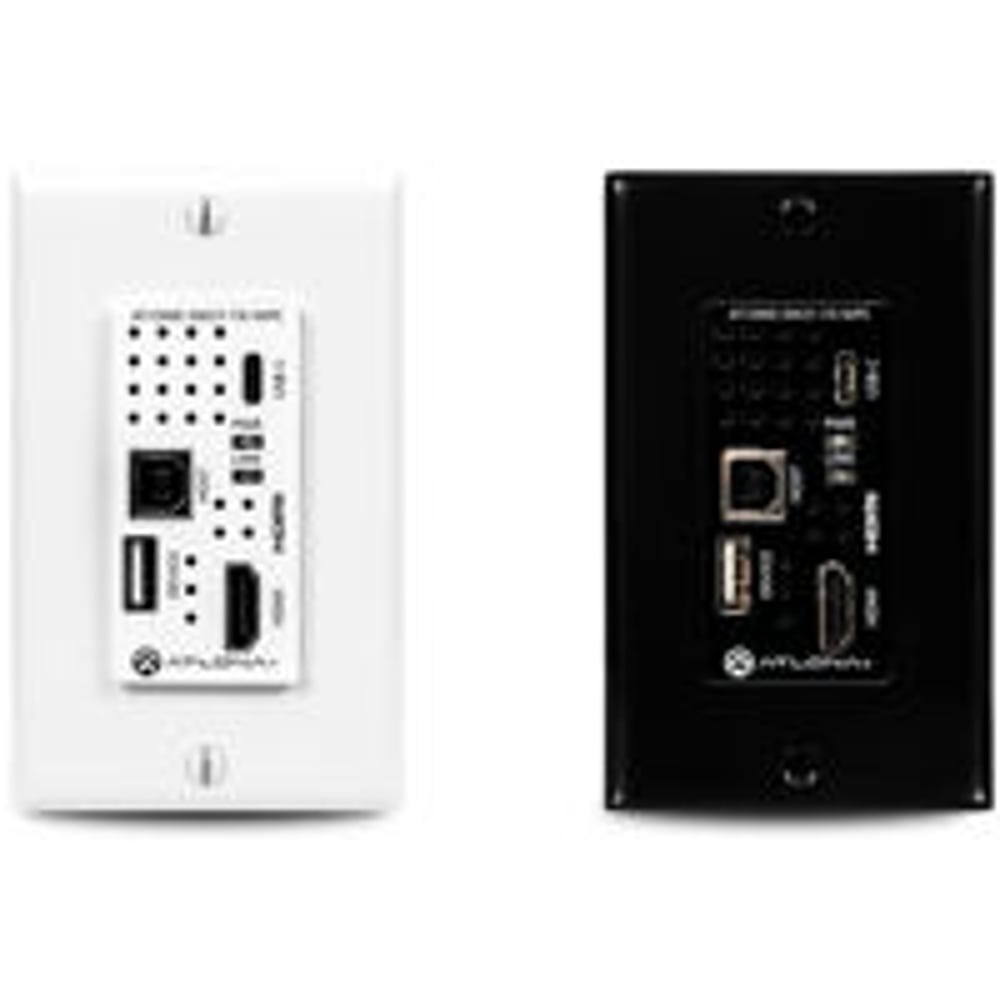

ATLONA AT-OME-SW21-TX-WPC Single Gang Tx Wall Plate With Usb-C And Hdmi Supporting Usb Data
ATLONA AT-OME-SW21-TX-WPC Single Gang Tx Wall Plate With Usb-C And Hdmi Supporting Usb Data
SoundPro Item: 128956 | Part Number: AT-OME-SW21-TX-WPC
Usually ships in 5-7 business days

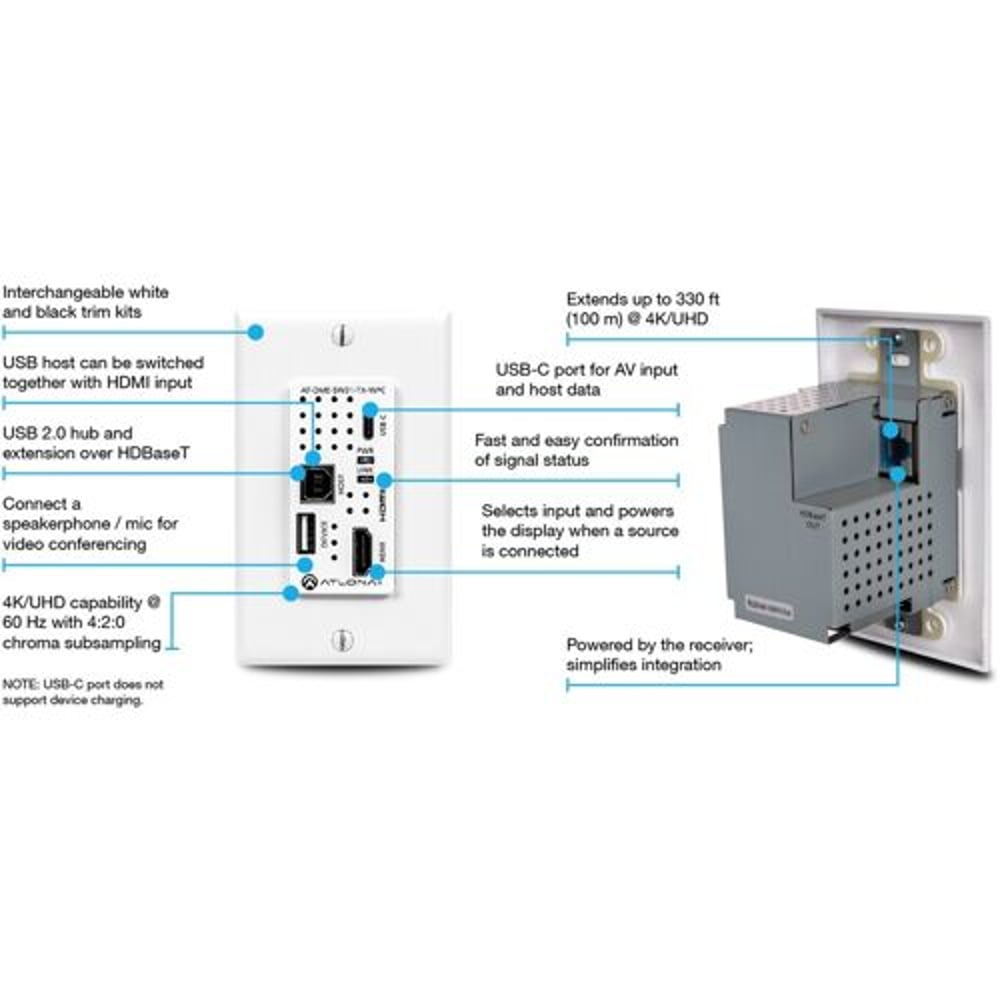

- 2Ã-1 HDBaseTTM switcher with HDMI® and USB-C inputs
- HDBaseT transmitter for AV and USB (host and peripheral)
- USB 2.0 interfacing and extension up to 330 feet (100 meters)
- US one-gang enclosure for wallplate openings - interchangeable black or white trim kits
- 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
- HDCP 2.2 compliant
- Remote powering over HDBaseT
- USB: Yes
- Number of Network (RJ-45) Ports: 1
- Number of USB Ports: 3
- Number of HDMI Inputs: 1
- Media Type Supported: Twisted Pair
- Transmitter Height: 4.06"
- Transmitter Width: 1.77"
- Transmitter Depth: 2.64"
- Form Factor: Wall Plate
- Transmitter Weight (Approximate): 11.99 oz
Wallplate switcher and extender for HDMI and USB-C l Made for meeting spaces.
The OME-SW21-TX-WPC can be discreetly installed into a table box, hidden away from view, while providing the convenience of connecting a speakerphone and a laptop for video conferencing.
Great for classrooms too.
The wallplate enclosure allows flush mounting onto an instructor's desk or lectern. HDBaseT extension links with a receiver that's connected into a display and camera - for hybrid and distance learning applications.
Connect and present (or video conference).
Just connect into the switcher and you're good to go. Watch the display automatically fire up with your content visible on-screen. With a single USB-C connection, you'll simultaneously deliver AV and interface with video conferencing peripherals.
Additional Features
The Atlona AT-OME-SW21-TX-WPC is a wallplate switcher for HDMI and USB-C, and an HDBaseT transmitter for video and USB over distances up to 330 feet (100 meters). The OME-SW21-TX-WPC is part of the Omega™ Series of integration products for modern AV communications and collaboration.
Installs discreetly
The wallplate form factor allows low-profile visibility on a wall, in a table or floor box, or on a lectern. White and black trim kits are included for your convenience.
Remote device powering
This transmitter is powered remotely by the receiver over the HDBaseT cable link. This greatly simplifies installation at a meeting table or other location, by avoiding the need for a power outlet.
HDBaseT link testing
The OME-SW21-TX-WPC is equipped to let you quickly validate or troubleshoot integrity of the HDBaseT twisted pair link. You can get detailed test reporting through PC software.
AV and USB host switching
Auto-switching is available for the HDMI and USB-C AV inputs, as well as USB-C and USB type B host interfaces. Configuration options are available for switching them together or independently.
Specifications
