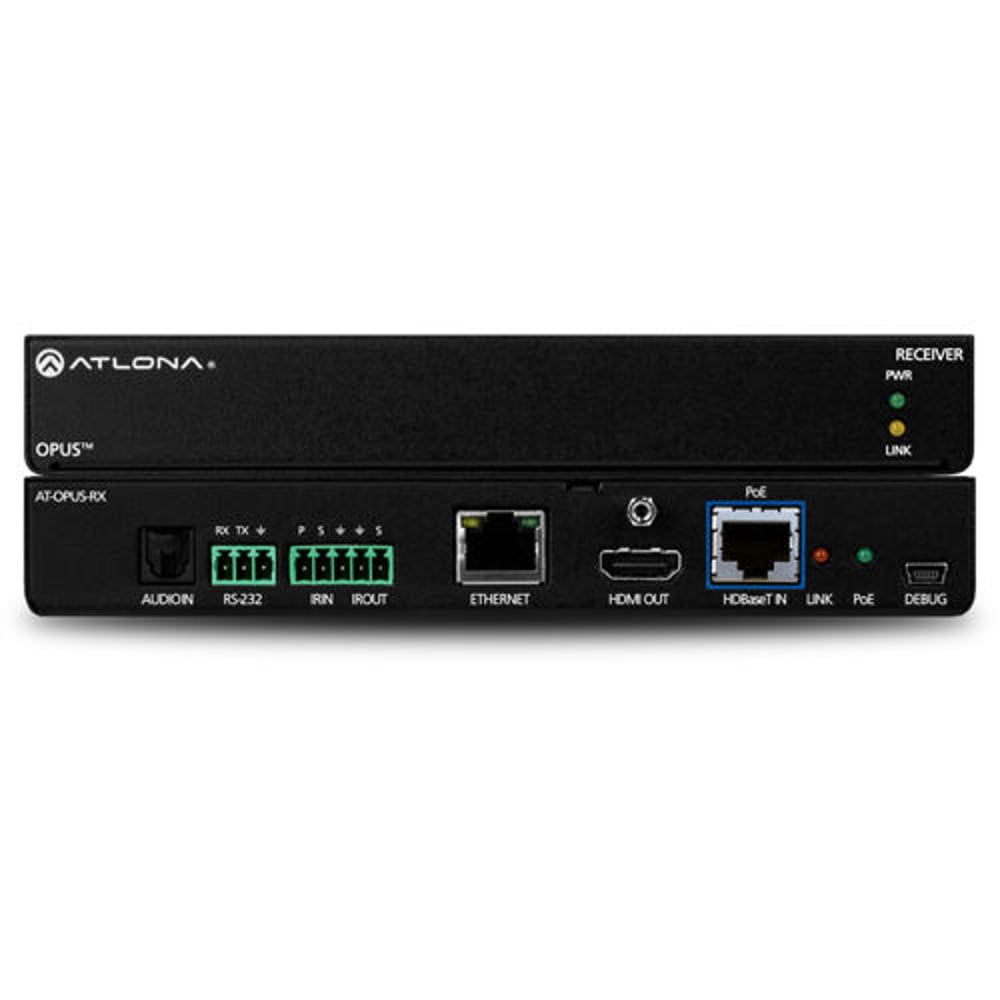

ATLONA AT-OPUS-RX Ultra High Data Rate Extender Receiver W/Ir, Rs232, Ethernet
ATLONA AT-OPUS-RX Ultra High Data Rate Extender Receiver W/Ir, Rs232, Ethernet
SoundPro Item: 60192 | Part Number: AT-OPUS-RX
Regular price
$176.00
Regular price
$176.00
Sale price
$176.00
Unit price
per
| MAP: $176.00
Usually ships in 5-7 business days

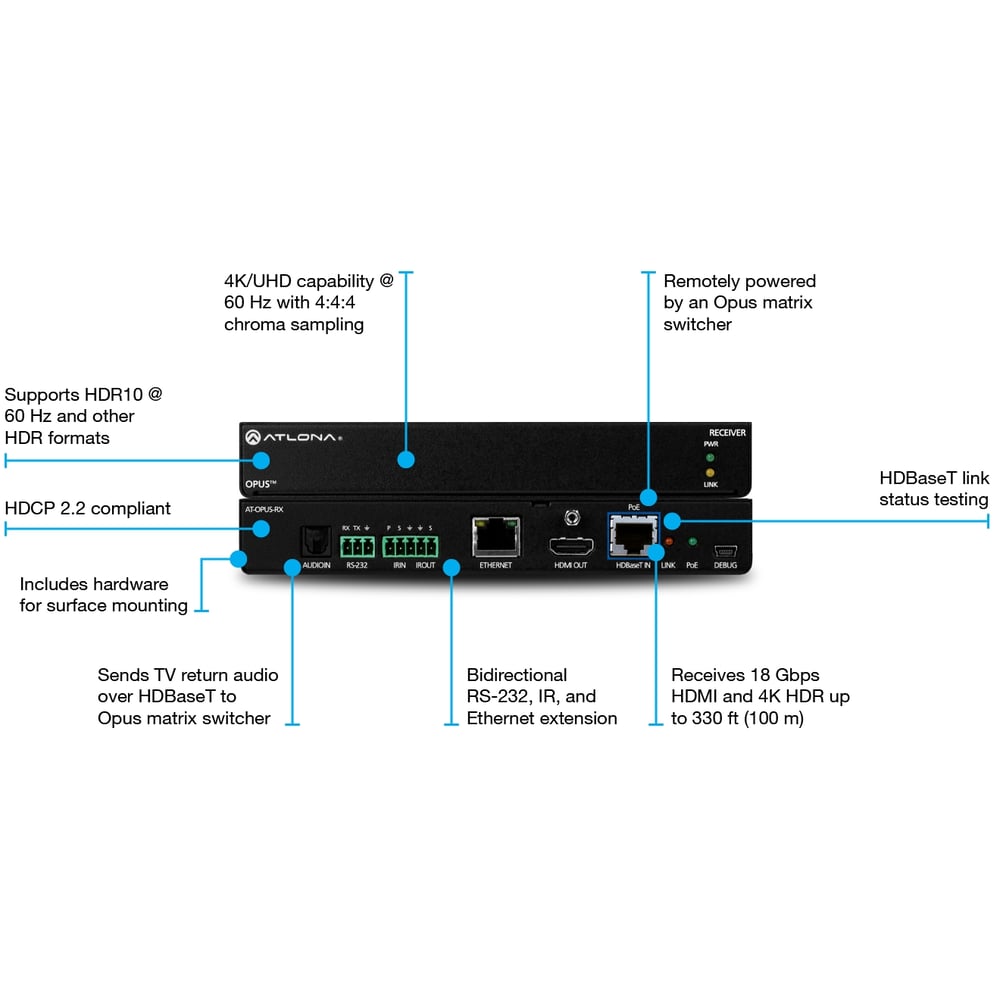

- 4K/UHD capability @ 60 Hz with 4:4:4 chroma sampling, plus support for HDR formats
- HDCP 2.2 compliant
- HDBaseTTM receiver for HDMI®, Ethernet, power, and control up to 330 feet (100 meters)
- Remotely powered by OpusTM matrix switcher via PoE (Power over Ethernet)
- Extends RS-232, IR, and Ethernet control signals over HDBaseT
- Delivers return audio from a TV via dedicated HDBaseT audio return path
- HDBaseT link status testing
- USB: Yes
- Number of Network (RJ-45) Ports: 2
- Number of USB Ports: 1
- Number of HDMI Outputs: 1
- Media Type Supported: Twisted Pair
- Twisted Pair Cable Standard: Category 7
- Receiver Height: 1.02"
- Receiver Width: 6.86"
- Receiver Depth: 3.51"
- Form Factor: Rack-mountable
- Form Factor: Surface-mountable
- Receiver Weight (Approximate): 15.84 oz
The Atlona AT-OPUS-RX is an HDBaseT receiver for high dynamic range (HDR) formats, designed for use with the Opus™ Series of HDMI to HDBaseT matrix switchers. The OPUS-RX is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It receives HDMI, Ethernet pass-through, and bidirectional IR and RS-232 control signals up to 330 feet (100 meters) over CAT6a/7 cable. Visually lossless VESA Display Stream Compression (DSC) enables HDR and 4K/60 4:4:4 video signal extension over HDBaseT with no latency. For additional integration convenience, the receiver is remotely powered by an Opus Series matrix switcher through Power over Ethernet (PoE). The OPUS-RX can transmit digital audio from a television back to an AV receiver through a dedicated HDBaseT audio return path to the matrix switcher.
- An Opus system of matrix switchers and OPUS-RX receivers is ideal as the AV distribution centerpiece for whole-house video and audio.
- Opus systems are also ideal for a variety of light commercial, education, and corporate applications requiring compatibility with new and forthcoming devices for 4K presentations.
- Ideal for with new and emerging 4K/UHD and HDR-capable sources and displays. Supports HDR10 @ 60 Hz and Dolby Vision @ 30 Hz, as well as HLG.
- Fully supports video resolutions, audio formats, and color space formats in the HDMI 2.0b specification.
- Adheres to latest specification for High-bandwidth Digital Content Protection.
- Allows protected content stream to pass between authenticated devices.
- Receives HDMI up to 330 feet (100 meters) @ 4K HDR using CAT6a/7 cable.
- Uses easy-to-integrate category cable for low-cost, reliable system installation.
- Power for receiver is supplied by an Opus Series matrix switcher over HDBaseT.
- Allows convenient receiver installation at a display or projector without the need for local AC power.
- Bidirectional extension of RS-232, IR, and Ethernet control signals.
- Streamlines integration of control for displays.
- Enables HDBaseT transmission of HDMI up to 18 Gbps using extremely light video compression.
- Innovative signal extension solution delivers very high, pristine image quality.
- Provides a return audio pathway from a television, via TOSLINK digital audio interface, back to the Opus matrix switcher over HDBaseT.
- Easy and convenient integration of television audio for over-the-air broadcasts, OTT (over-the-top) media services, and more.
- Continuously monitors integrity of the HDBaseT cable link between the Opus matrix switcher and receiver. Web GUI provides real-time link status, plus detailed HDBaseT and HDMI signal information.
- Quick, easy verification or troubleshooting of RJ-45 termination or twisted pair cable quality.
Specifications
'General Information
Manufacturer
Atlona Technologies
Manufacturer Part Number
AT-OPUS-RX
Brand Name
Atlona
Product Model
OPUS-RX
Product Name
4K HDR HDMI Over 100 M HDBaseT RX for Opus Series Matrix Switchers
Product Type
Video Extender Receiver
Technical Information
Connectivity Technology
Wired
Number of Output Devices Supported
1
Maximum Operating Distance
328.08 ft
Video
Graphics Modes
4K
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
Network (RJ-45)
Yes
HDMI Out
Yes
USB
Yes
Serial Port
Yes
Number of Network (RJ-45) Ports
2
Number of USB Ports
1
Number of HDMI Outputs
1
Media & Performance
Media Type Supported
Twisted Pair
Twisted Pair Cable Standard
Category 7
Physical Characteristics
Receiver Height
1.02"
Receiver Width
6.86"
Receiver Depth
3.51"
Form Factor
Rack-mountable
Surface-mountable
Receiver Weight (Approximate)
15.84 oz
Miscellaneous
Package Contents
4K HDR HDMI Over 100 M HDBaseT RX for Opus Series Matrix Switchers Installation Guide Surface Mounting Hardware IR Emitter
Warranty
Limited Warranty
10 Year
