ATLONA AT-UHD-CLSO-601 4K/Uhd 6 Input Multi-Format Switcher With Mirrored Hdmi And Hdbaset Out

ATLONA AT-UHD-CLSO-601 4K/Uhd 6 Input Multi-Format Switcher With Mirrored Hdmi And Hdbaset Out

SoundPro Item: 60386 | Part Number: AT-UHD-CLSO-601

$2,140.00
$2,140.00 $2,140.00
Your Price Sold out
| MAP: $2,140.00

Usually ships in 5-7 business days

  • Connectivity Technology: Cable
  • Number of Input Devices Supported: 6
  • Device Supported: Display
  • Device Supported: Blu-ray Disc Player
  • Device Supported: Projector
  • Device Supported: Set-top Box
  • Device Supported: Computer
  • Device Supported: Camera
  • Number of Displays Supported: 2
  • Graphics Modes: 4K
  • Maximum Video Resolution: 4096 x 2160
  • HDMI In: Yes
  • HDMI Out: Yes
  • VGA In: Yes
  • Connectivity (RJ-45): Yes
  • Number of Connectivity (RJ-45) Ports: 2
  • Number of USB Ports: 1
  • Number of HDMI Inputs: 4
  • Number of HDMI Outputs: 1
Log in or register for YOUR best price

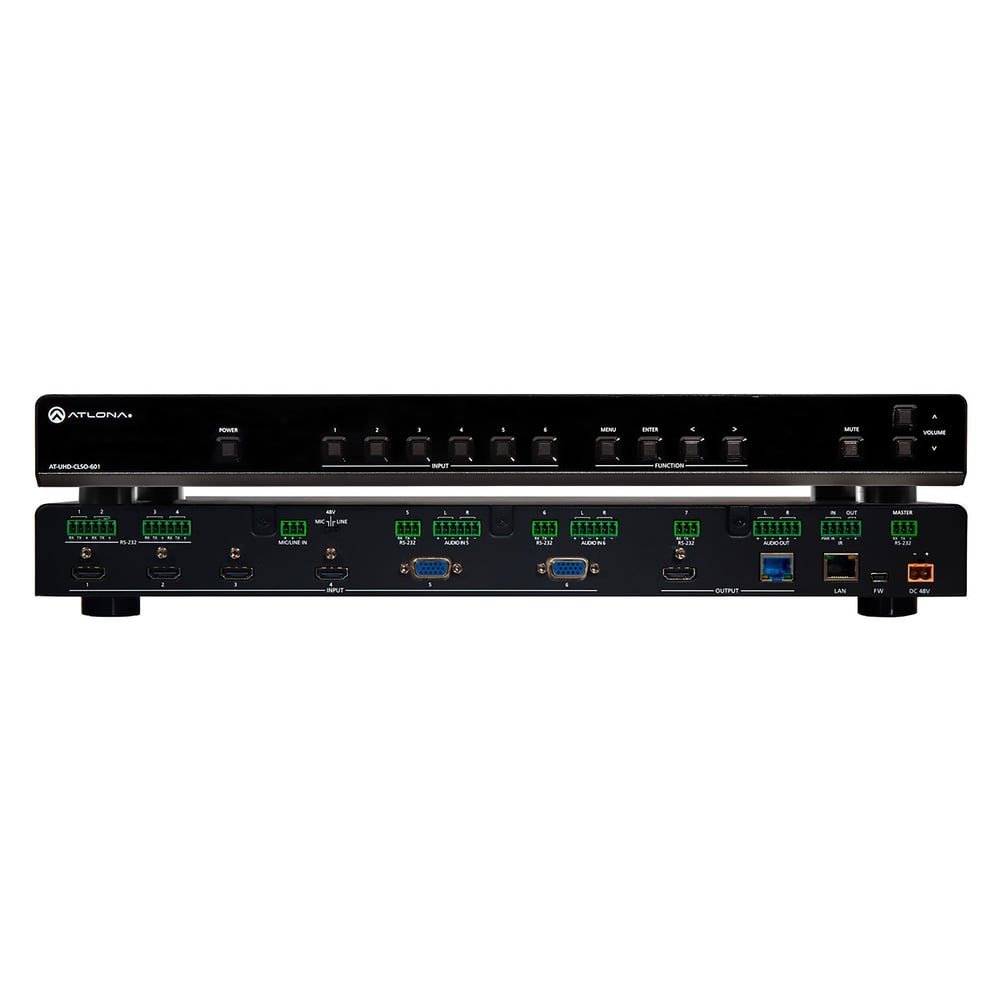

The Atlona AT-UHD-CLSO-601 is an advanced six-input, multi-format switcher with built-in 4K scaling and mirrored HDBaseT and HDMI outputs. It simplifies classroom and small office system integration by providing four HDMI and two multifunction analog inputs, to enable the use of both new and legacy sources with HDMI displays.

The AT-UHD-CLSO-601 can be the central component of an automated AV system. Automatic display control turns on the display automatically whenever a source is connected. When the source is removed, the display is turned off. Volume is controlled by using the front panel buttons. Automatic input selection on the AT-UHD-CLSO-601 works by sensing the presence of any video signal. With automatic input selection, manual control systems can be eliminated.

The AT-UHD-CLSO-601 combines the benefits of a switcher and the advantages of Ethernet enabled HDBaseT signal transmission over a single cable. The switcher enables input selection from the front panel, RS-232, or TCP/IP commands. Configuration, maintenance and updates are performed using Atlona's WebGUI, AMS IP management system, or OSD. Set-up options include HDCP status, variable preferred input resolutions, output resolution, plus control of brightness, contrast, saturation, hue and sharpness. The AT-UHD-CLSO-601 is ideal for applications where multiple signals with different resolutions must be optimized for a display. Professional audio features such as a microphone input with 48-volt phantom power and ducking are also included, allowing the switcher to address a wide array of AV switching and processing needs often encountered in classrooms, conference rooms, boardrooms, training rooms and other presentation settings. In addition to automated input selection, the switcher can be controlled via the Atlona AT-ANC-108D 8-Button Network Control Panel.

Automatic Display Control

Offering first-of-its-kind display capabilities, the AT-UHD-CLSO-601 allows display control using CEC, TCP/IP or RS-232 signals. This means that many more types of displays can be controlled, costs are reduced, and that wiring is simplified. In a commercial setting, when a switcher is integrated with a display, the AT-UHD-CLSO-601 forces the display to power on automatically when a laptop is connected. At the end of the presentation, when the presenter disconnects the laptop, the AT-UHD-CLSO-601 forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.

View full details

Specifications

'General Information
Manufacturer
Atlona Technologies
Manufacturer Part Number
AT-UHD-CLSO-601
Brand Name
Atlona
Product Model
AT-UHD-CLSO-601
Product Name
4K/UHD Multi-Format Switcher with PoE and Automatic Display Control
Product Type
Audio/Video Switchbox
Additional Product Specifications
Full Product Specifications
Click to view
Technical Information
Connectivity Technology
Cable
Number of Input Devices Supported
6
Device Supported
Display
Blu-ray Disc Player
Projector
Set-top Box
Computer
Camera
Number of Displays Supported
2
Video
Graphics Modes
4K
Maximum Video Resolution
4096 x 2160
Interfaces/Ports
HDMI In
Yes
HDMI Out
Yes
VGA In
Yes
Connectivity (RJ-45)
Yes
Number of Connectivity (RJ-45) Ports
2
Number of USB Ports
1
Number of HDMI Inputs
4
Number of HDMI Outputs
1
Number of VGA Inputs
2
Media & Performance
Maximum Operating Distance
328.08 ft
Physical Characteristics
Form Factor
Rack-mountable
Miscellaneous
Package Contents
4K/UHD Multi-Format Switcher with PoE and Automatic Display Control User Guide Desktop Power Supply Detachable Power Cable IR Hand Held Remote Control Rack Mount Bracket Kit
Environmentally Friendly
Yes
Environmental Certification
RoHS
Warranty
Limited Warranty
10 Year
