ATLONA AT-UHD-SW-5000ED 4K/Uhd 5 Input Hdmi Switcher - 3 Hdmi, 2 Hdbaset In - Hdbaset/Hdmi Out
ATLONA AT-UHD-SW-5000ED 4K/Uhd 5 Input Hdmi Switcher - 3 Hdmi, 2 Hdbaset In - Hdbaset/Hdmi Out
SoundPro Item: 60440 | Part Number: AT-UHD-SW-5000ED
Usually ships in 5-7 business days
- Connectivity Technology: Cable
- Number of Input Devices Supported: 5
- Device Supported: Display
- Device Supported: Projector
- Device Supported: Speaker
- Device Supported: Computer
- Device Supported: Blu-ray Disc Player
- Device Supported: Camera
- Number of Displays Supported: 1
- Graphics Modes: 4K
- Maximum Video Resolution: 4096 x 2160
- HDMI In: Yes
- HDMI Out: Yes
- Connectivity (RJ-45): Yes
- Number of Connectivity (RJ-45) Ports: 4
- Number of USB Ports: 1
- Number of HDMI Inputs: 3
- Number of HDMI Outputs: 1
- Maximum Operating Distance: 328.08 ft

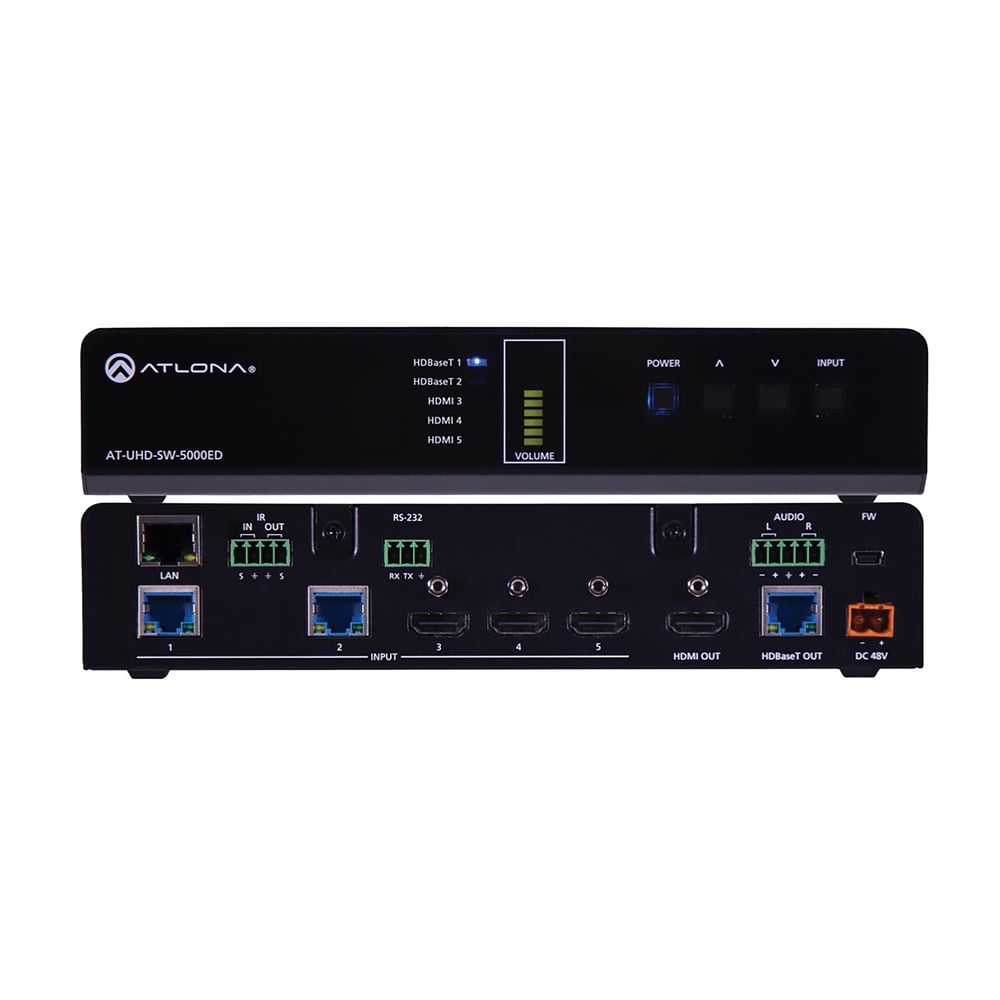

The Atlona AT-UHD-SW-5000ED is a 5 x 1 switcher with two HDBaseT inputs, three HDMI inputs, mirrored HDMI and HDBaseT outputs, balanced audio outputs, automatic input selection, and automatic display control capability. The HDBaseT inputs match perfectly with the HDVS-200-TX modules to enable VGA and HDMI sources to be easily integrated into a system. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; (10.2 Gbps). It transmits AV signals along with Ethernet, power, and control over a single cable to displays up to 328 feet (100 meters) from the switcher. Control options include automatic input selection, front-panel buttons, and compatibility with IR, RS-232, or TCP/IP-based control systems. Displays are automatically turned on and off using CEC, IP, or RS-232.
The AT-UHD-SW-5000ED enables two HDVS transmitters to be used in a single system. With Ethernet enabled HDBaseT transmission to the HDVS transmitters and the receiver control, setup and maintenance is simplified. Automatic input selection and display control simplify the system, reducing cost, reducing setup time and resulting in a better end user experience.
Automatic Display Control
Offering first-of-its-kind display capabilities, the AT-UHD-SW-5000ED allows display control using CEC, TCP/IP or RS-232 signals. This means that many more types of displays can be controlled, costs are reduced, and that wiring is simplified. In a commercial setting, when a switcher is integrated with a display, the AT-UHD-SW-5000ED forces the display to power on automatically when a laptop is connected. At the end of the presentation, when the presenter disconnects the laptop, the AT-UHD-SW-5000ED forces the display to power off. Ease of presenter interaction with the system and the savings incurred by auto-display shutdown provide a significant return on investment.
Specifications
