Atomos ATOMSHB005 Shinobi 7 II HDR On-Camera Monitor

Atomos ATOMSHB005 Shinobi 7 II HDR On-Camera Monitor

SoundPro Item: 209024 | Part Number: ATOMSHB005

$499.00
$499.00 $499.00
Your Price Sold out
MSRP: $499.00 | MAP: $499.00

Usually ships in 5-7 business days

  • 2800-Nit Calibrated HDR Panel For Accurate Monitoring In Bright Environments
  • Multi-Scope Display Shows Waveform, Vectorscope, Histogram, And Image Together

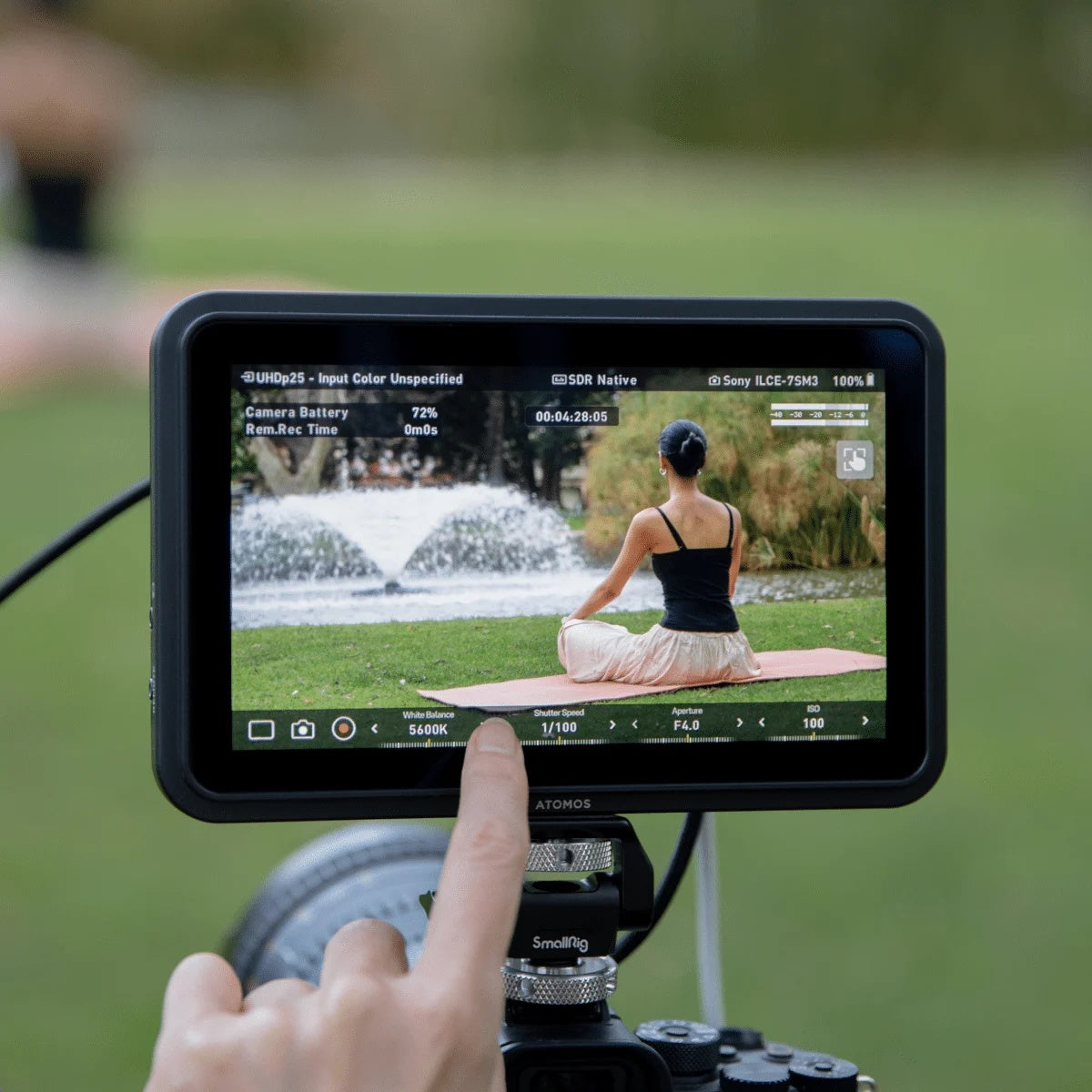

  • USB-C Camera Control Supports White Balance, Aperture, ISO, And Touch-To-Focus
  • EL Zone, ARRI, And Atomos False Color Modes Cover Multiple Exposure Workflows
  • On-Device Calibration Via Calibrite Probe Requires No Computer Or External Software
  • 3D LUT Support With Loop-Out For Use As Program Or Preview Display
  • Flexible Power Via NP-F Battery, USB-C PD, Or Optional Battery Eliminator
Log in or register for YOUR best price

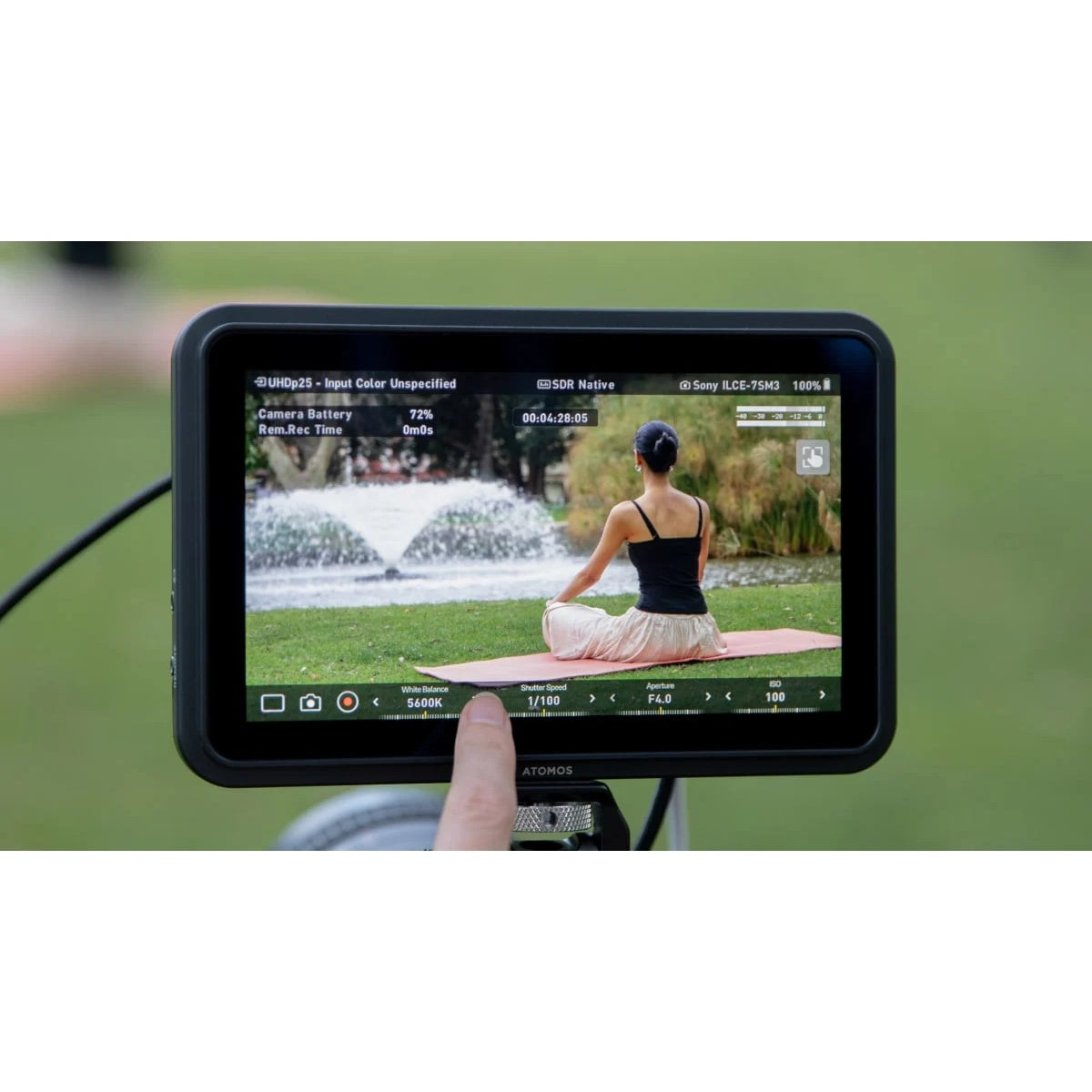

The Atomos ATOMSHB005 Shinobi 7 II is built for directors, focus pullers, and video engineers who need a precision monitoring solution on set or in the field. Its 2800-nit calibrated HDR panel cuts through ambient light in outdoor and studio environments alike, delivering accurate signal evaluation at up to 4Kp30 via HDMI. The integrated USB-C camera control interface lets operators adjust white balance, shutter speed, aperture, ISO, and focus directly from the monitor, eliminating the need for a separate control surface when working with supported Canon, Fujifilm, Nikon, Panasonic, Sony, and Z CAM bodies.

For signal analysis, the Shinobi 7 II provides a multi-scope display that renders waveform, vectorscope, RGB parade, and histogram simultaneously alongside the image. EL Zone, ARRI false color, and Atomos false color modes give exposure specialists the flexibility to work in their preferred system. Built-in 3D LUT support with loop-out capability makes it a natural fit as a program or preview display for video switchers. On-device calibration via a directly connected Calibrite probe removes any dependency on a workstation, which matters on location or in a compact broadcast workflow.

The ABS polycarbonate body with passive heat sink keeps the unit lightweight without sacrificing durability. Flexible power options covering NP-F battery, USB-C PD, and an optional battery eliminator for D-Tap ensure the Shinobi 7 II fits into virtually any rig or production setup. Integrated 10GbE Ethernet over RJ45 extends network connectivity for facilities requiring remote control or monitoring infrastructure.

View full details

Specifications

Display
Size
7 inch
Resolution
1920 x 1080
Aspect Ratio
16:9
Brightness
2800 nits, calibrated peak brightness
Backlight Type
Edge-lit
Color Gamut
Rec.709
Monitoring Modes
SDR Native / HDR HLG / HDR PQ / 709 LUT / User LUT
HDR Output Conversion
No
Color Pipeline
Gamma
Sony SLog / SLog2 / SLog3 / HLG, Canon C-Log / C-Log2 / C-Log3, ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600, Panasonic V-Log / HLG, JVC J-Log, Red RedLogFilm / Log3G10 / Log3G12, FujiFilm F-Log, PQ (HDR10), HLG, Nikon N-Log
Gamut
BT.2020, DCI P3, DCI-P3 D65, Rec709, Sony S-Gamut / S-Gamut3 / S-Gamut3.cine, Canon Cinema DCI P3 / DCI P3plus / Rec.709, Panasonic V Gamut, ARRI Alexa Wide Gamut, JVC LS300, RED DragonColor / DragonColor2 / RedColor2 / RedColor3 / RedColor4 / RedWideGamut
3D LUT Format
.Cube (17 and 33 points supported)
3D LUT Downstream
Loop out
3D LUT 50/50
Yes

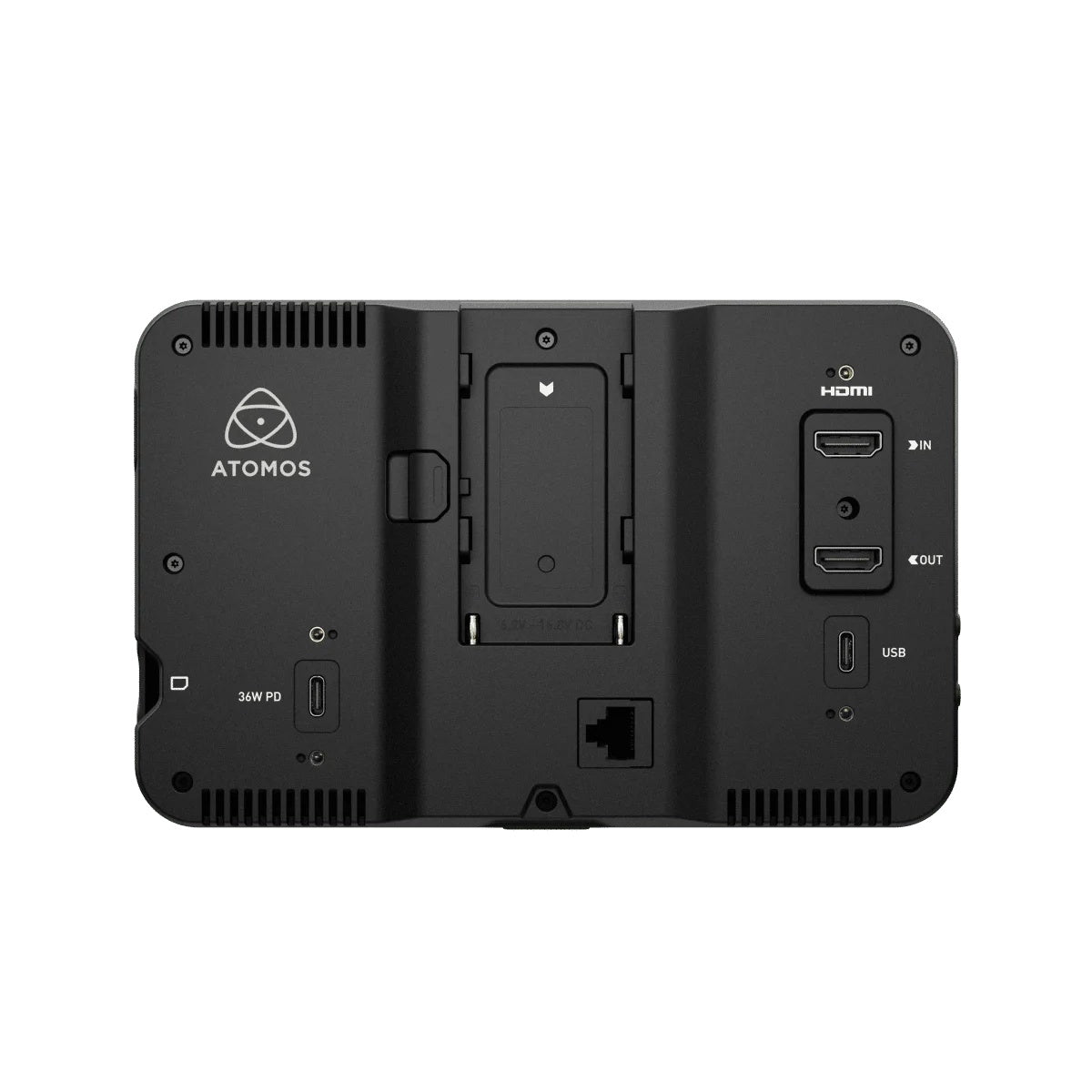

Connectivity
HDMI Input
1 x HDMI 2.0 (locking port)
HDMI Output
1 x HDMI 2.0 (locking port)
USB Input
1 x USB-C 2.0/3.0
USB Output
2 x USB-C 2.0/3.0
Ethernet
10GbE over RJ45
USB Network
1 x USB-C 3.0
LANC
Yes
Analog Audio In
3.5mm headphone jack, 2-channel
Headphone Out
3.5mm headphone jack, 2-channel
HDMI Audio
8-channel, 24-bit
Serial
2.5mm jack
Video
Bit Depth
8/10-bit
Chroma Subsampling
4:2:2
4K UHD Frame Rates
23.98/24/25/29.9/30
2K DCI (2048 x 1080)
Yes
1080p Frame Rates
23.98/24/25/29.9/30/50/59.94/60
1080 PsF
Converted to P and looped out PsF
1080i
50/59.94/60i
720p
50/59.94/60p
Power
Input Voltage
6.2V - 16.8V
Operating Power
5.8V - 7.2V
Continuous Power
Via NP-F battery or USB-C PD
DC In Connector
Via Battery Eliminator (optional)
D-Tap Power
Up to 13W
USB PD In
45W capable, power supply required
USB PD Out
Up to 13W
On-Screen Monitoring Tools
MultiScope Analysis
Image, WFM, vector, histogram
Waveform
3 sizes, adjustable opacity and brightness
Histogram
3 sizes, adjustable opacity and brightness
RGB Parade
3 sizes, adjustable opacity and brightness
Vectorscope
1 size, adjustable opacity and brightness
Focus Peaking
4 modes (color, black and white, outline, edge sharpening) with adjustable color and intensity
Atomosfalse Color
Yes
ARRI False Color
Yes
EL Zone False Color
Yes
Zebra
Adjustable threshold 50% to 105%
Isolate Color Channel
Blue Only
Zoom
1x (1:1 pixel mapping for 4K), 2x, 4x
Cine Frame Guides
2.41, 2.35, 1.91, 1.9, 1.85, 16:9
Social Frame Guides
9:16, 4:5, 2:3, 1:1, 5:4, 4:3, 3:2
Safe Areas
SMPTE 93% and 90%
Grid Markers
9 grid
Anamorphic Desqueeze
2x, 1.8x, 1.79x, 1.65x, 1.6x, 1.5x, 1.33x, 1.25x
Display Flip
Horizontal and vertical
Timecode
Embedded
HDMI (display only)
Time Of Day
Yes
Reference / Genlock Input
No
LTC
No
Construction
Body Material
ABS polycarbonate
Cooling
Passive heat sink
Mount Points
1 x anti-rotation 1/4-inch / 3/8-inch top and bottom
Calibration
On-Device Calibration
Yes, via Calibrite probe connected to USB-C (no PC required)
PC/Mac Calibration
Atomos Calibrator with Calibrite ColorChecker Display Pro and ColorChecker Display Plus
Environmental
Ambient Operating Temperature
Up to 40 degrees Celsius
Dimensions
Product Width
7.4"
Product Height
4.72"
Product Depth
0.91"
Product Dimensions (W x H x D)
188 mm x 120 mm x 23 mm
Product Weight
0.884 lbs (401 g, excluding battery)
Supported Media

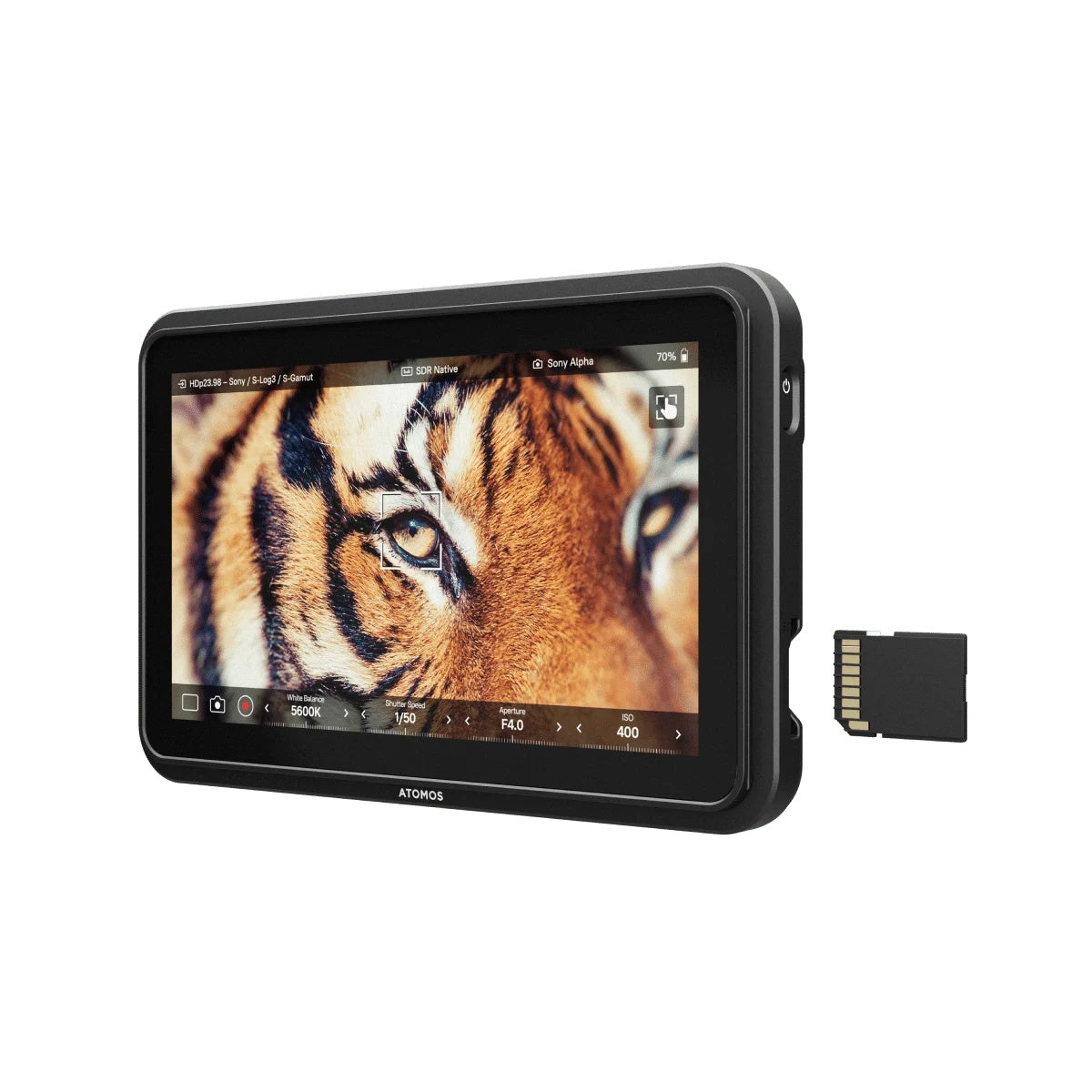

SD Card
Firmware updates and LUT uploads
File System
FAT32, NTFS
Included Items
In The Box
Shinobi 7 II monitor, USB-C cable (1m), Quick Start Guide
Warranty
Standard Warranty
1 year; extended to 2 years on product registration
Shipping
Package Dimensions (W x H x D)
234 mm x 171 mm x 60 mm
Package Width
9.21"
Package Height
6.73"
Package Depth
2.36"
Package Weight
1.65 lbs (750 g)
Identifiers
UPC
814164023474
EAN
0814164023474
