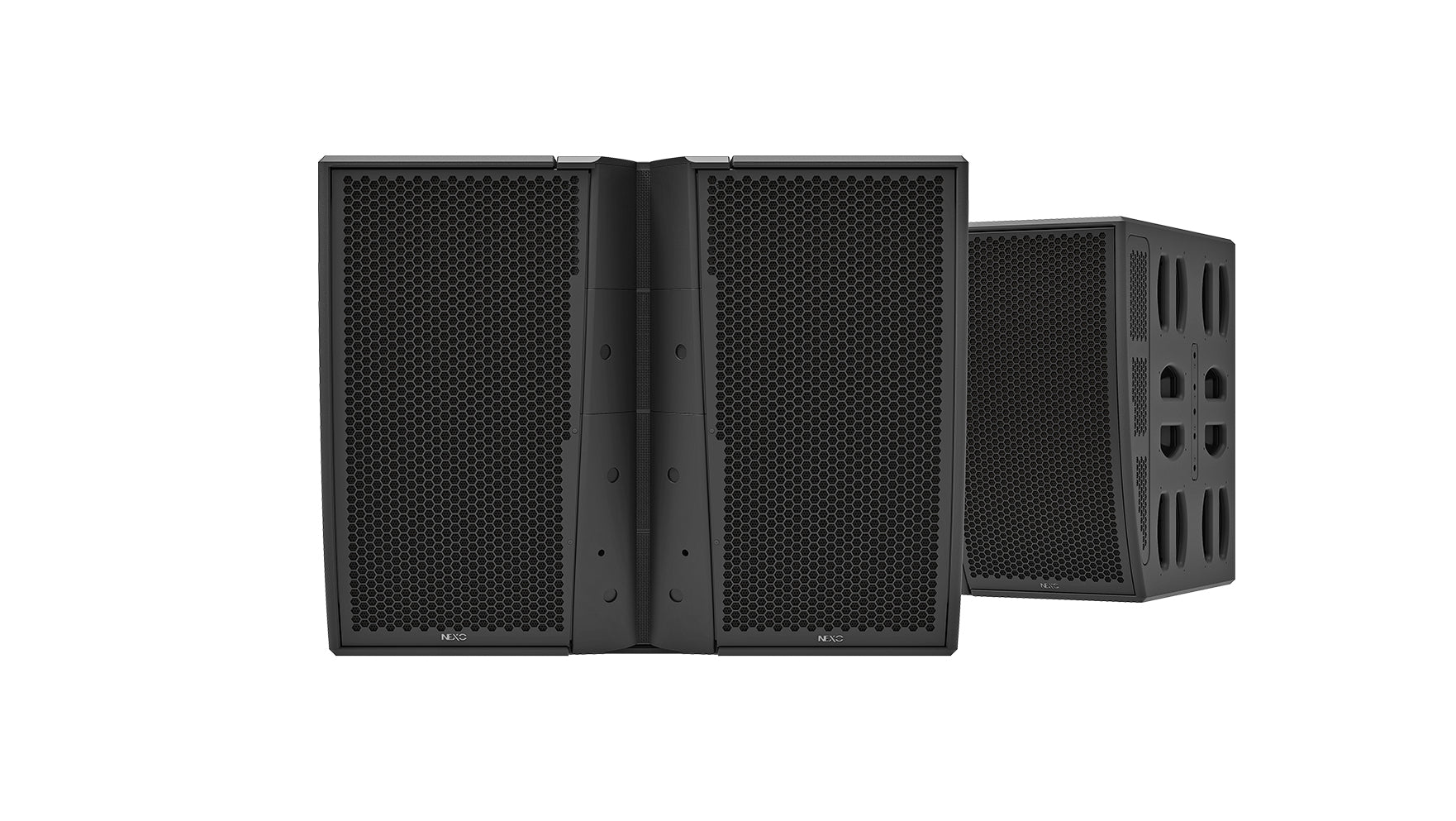

Nexo M210 High Performance Loudspeaker

Nexo M210 High Performance Loudspeaker

SoundPro Item: 151335 | Part Number: M210

Pricing available upon request

Pricing available upon request

Your Price Sold out

Usually ships in 5-7 business days

  • Extremely Powerful (148 dB peak) main module of the Alpha+ system
  • Lightweight (53 kg / 117 lbs) design using custom made 15 mm bent plywood of Birch and Poplar
  • Unique articulated HF waveguide to adjust vertical directivity
  • Continuously changing horizontal directivity from 120° (bottom) to 60° (top), tunable with optional magnetic flanges
  • Mid-frequency horn ensure maximum radiating surface and high efficiency
Log in or register for YOUR best price

The two-way M210 active Main module uses two lightweight pure MF neodymium 10" drivers horn loaded, and coaxially mounted with four 3" neodymium compression drivers mounted on an innovative articulated waveguide. Using a custom made 15 mm plywood cabinet of Birch and Poplar with a rounded shape to prevent damage in the corners, the M210 weighs in at 53kg/117lbs and achieves a peak SPL of 148dB. The mid-frequency horn ensures maximum radiating surface and high efficiency unique articulated HF waveguide is used to adjust vertical directivity. Continuously changing horizontal directivity from 120° (bottom) to 60° (top) is tuneable with optional magnetic flanges.

View full details

Specifications

With NEXO Processing
Frequency Response @-6 dB
160 Hz to 20 kHz
Peak SPL@1m
148 dB Peak
Operating Voltage
45 Vrms (150 Vpeak)
Crossover Frequency
500 Hz to 1500 Hz overlap, optimized with proprietary software NEXO Polar Combiner
Vertical Dispersion
Adjustable (-20°/+20° Default mode) or (-20°/+0° Long Throw mode)
Horizontal Dispersion
120° (Bottom) to 60° (Top) continuously
Nominal Impedance
4 Ohms + 4 Ohms
MF Components
2 x High-efficiency pure medium neodymium 10” 8 Ohms
HF Components
4 x Neodymium 3“ voice coil 1.4” throat driver on a BEA/FEA optimized Wavesource
Connectors
2 x NL4, 4 poles connectors
Rigging points
2 x universal accessory fit (on each side) + 1 x universal accessory fit on the back
Material
Custom made bent plywood of baltic birch and poplar
Finish
Black or White structural paint
Front Finish
Magnelis® Steel front grille
Height x Width x Depth
598mm x 755mm x 632 mm (23.5” x 29.7” x 24.9”)
Weight: Net
53 kg (117 lbs)
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
System Operation
Recommended powering solution
NXAMP4x4mk2 Powered TDcontroller: Up to 2 x M210 (MF/HF) on 2 x channels
Optional powering solution
NXAMP4x1mk2 Powered TDcontroller (Bridged): Up to 2 x M210 (MF/HF) per amplifier
NXAMP4x2mk2 Powered TDcontroller: 1 x M210 (MF/HF) on 2 x channels
