Specifications
Frequency Response @-6 dB
50 Hz to 150 Hz
Sensitivity 1W@1m
95 dB
Peak SPL@1m
122 dB
Available Crossover Frequencies
50 - 120 Hz, 50 - 150 Hz
Nominal Impedance
8 Ohms
Recommended Power
300 to 500 Watts / 8 Ohms
Component
1 x 8” 8 Ohms long excursion Neodymium driver

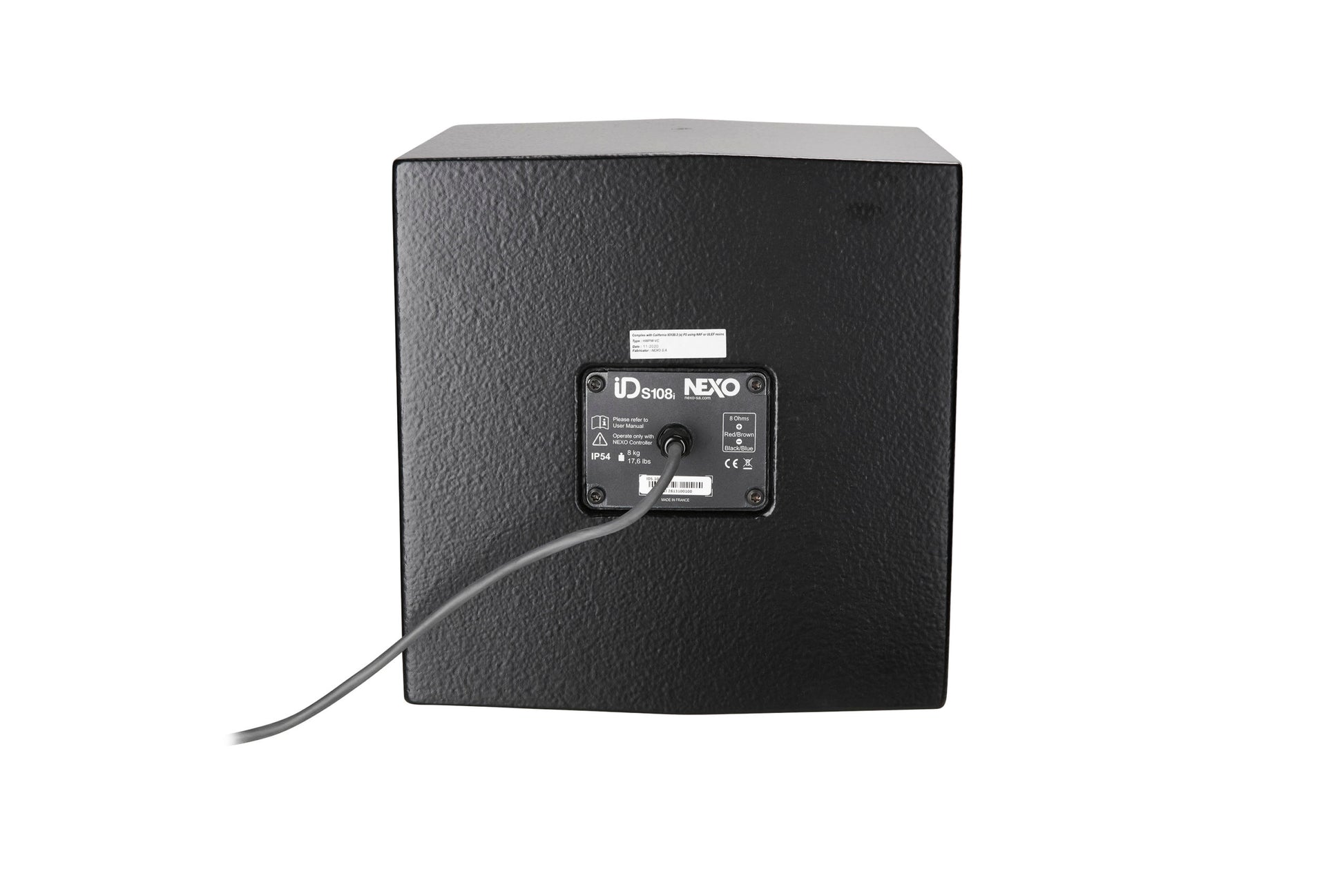

Connectors
1 x Cable gland with 2 cores cables
Rigging points
2x M10 Threaded inserts + 2 x M6 threaded inserts
Construction
Baltic Birch Plywood
Finish
Black or White structural paint
Front Finish
UV Resistant acoustic fabric fitted Magnelis® front grill
Operating temperature range
0°C - 40 °C (32° F - 104° F)
Storage temperature range
-20 °C - 60 °C (-4 ° F - 140° F)
Height x Width x Depth
305mm x 307mm x 305mm (12.0” x 12.1” x 12.0”)
Weight: Net
8 kg / 17.6 lbs
System Operation
Recommended powering solution
DTDcontroller + DTDAMP4x0.7 : up to 2 x IDS108 per channel
Optional powering solution
DTDcontroller + DTDAMP4x1.3 : up to 2 x IDS108 per channel
NXAMP4x1mk2 Powered TDcontroller: up to 3 x IDS108 per channel
NXAMP4x2mk2 Powered TDcontroller: up to 4 x IDS108 per channel
NXAMP4x4mk2 Powered TDcontroller: up to 4 x IDS108 per channel
