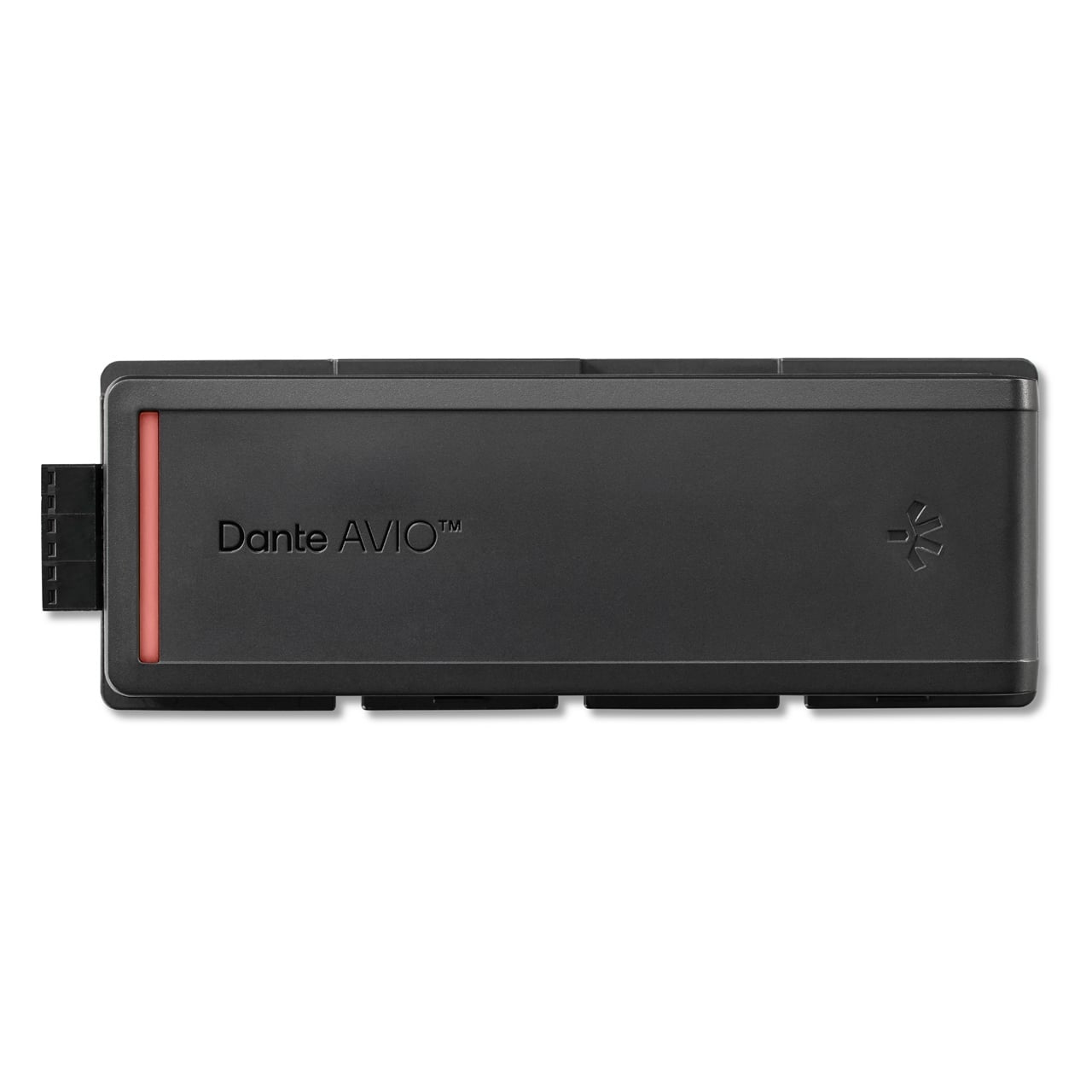

Audinate AVIO-A-2OUT-EB Dante AVIO Install 2-Channel Analog Output Adapter

Audinate AVIO-A-2OUT-EB Dante AVIO Install 2-Channel Analog Output Adapter

SoundPro Item: 147947 | Part Number: AVIO-A-2OUT-EB

$220.00
$259.00 $220.00
Your Price Sold out
MSRP: $259.00 | MAP: $220.00

In stock and ready to ship

  • Dante AVIO for Installers – Purpose-built for seamless integration in Pro AV installations.

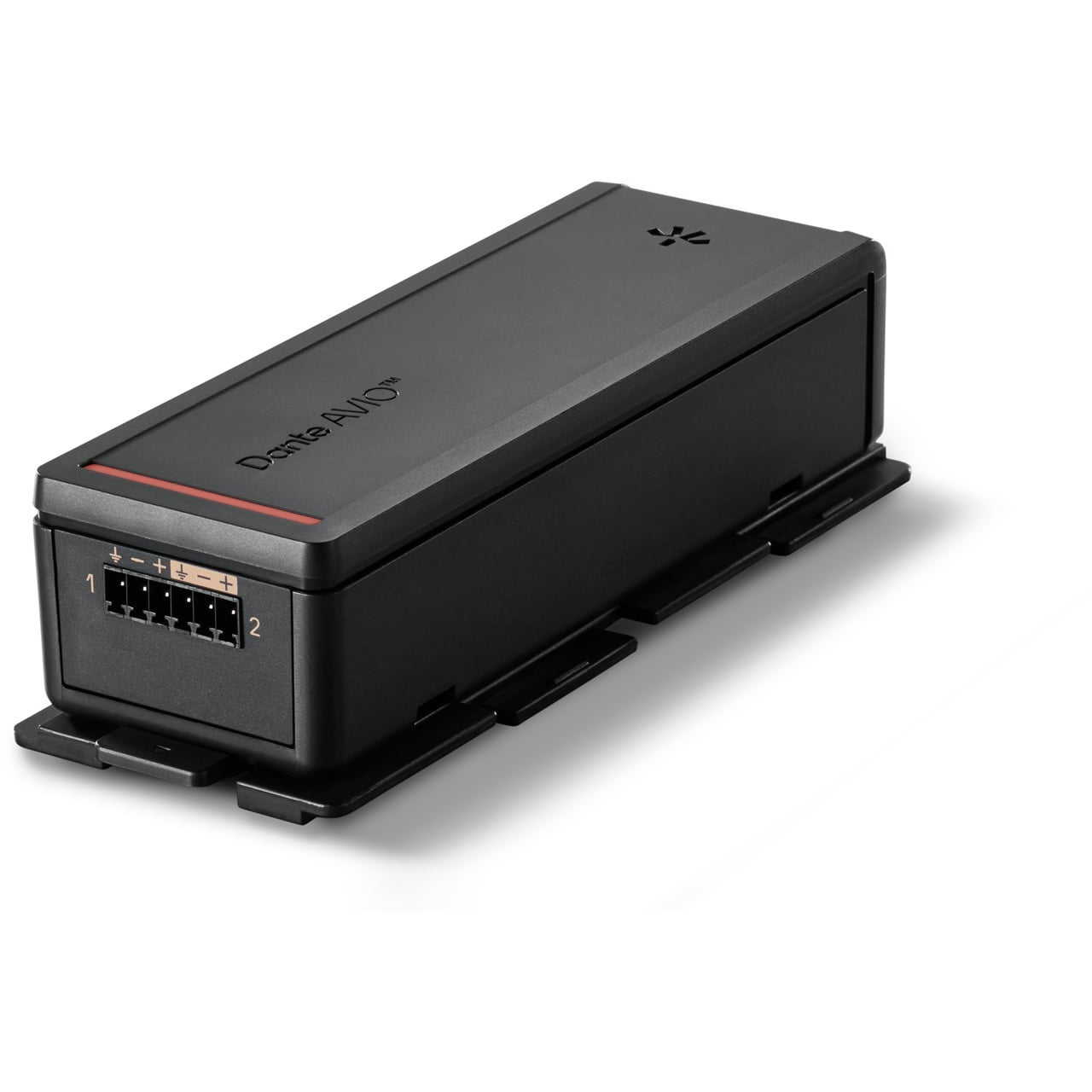

  • Euroblock Terminals – Secure connections designed for installed analog audio equipment.

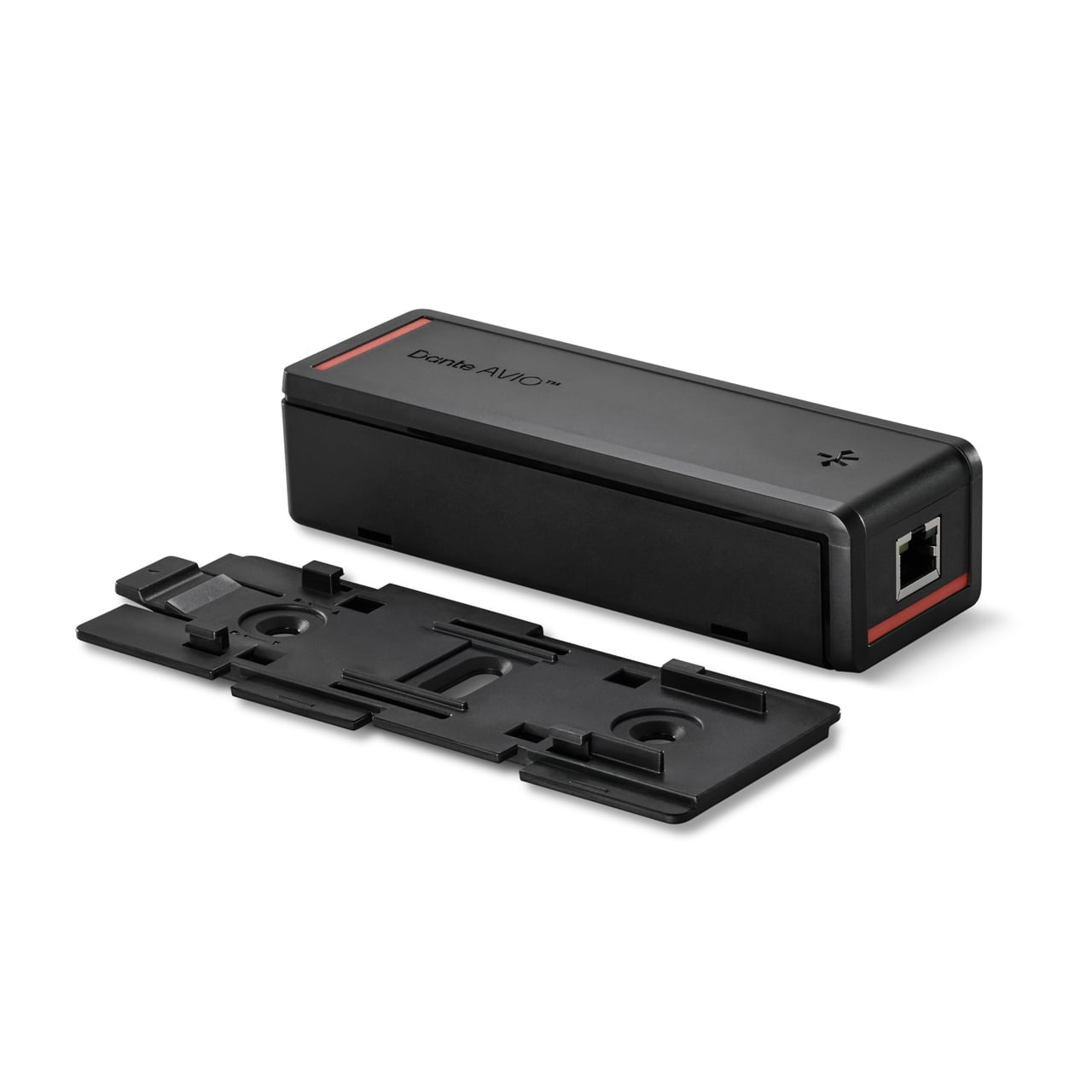

  • Dante AVIO ClickGrid System – Snap multiple adapters together for organized mounting.
  • Mounting Bracket Included – Supports clean rack or surface installations.

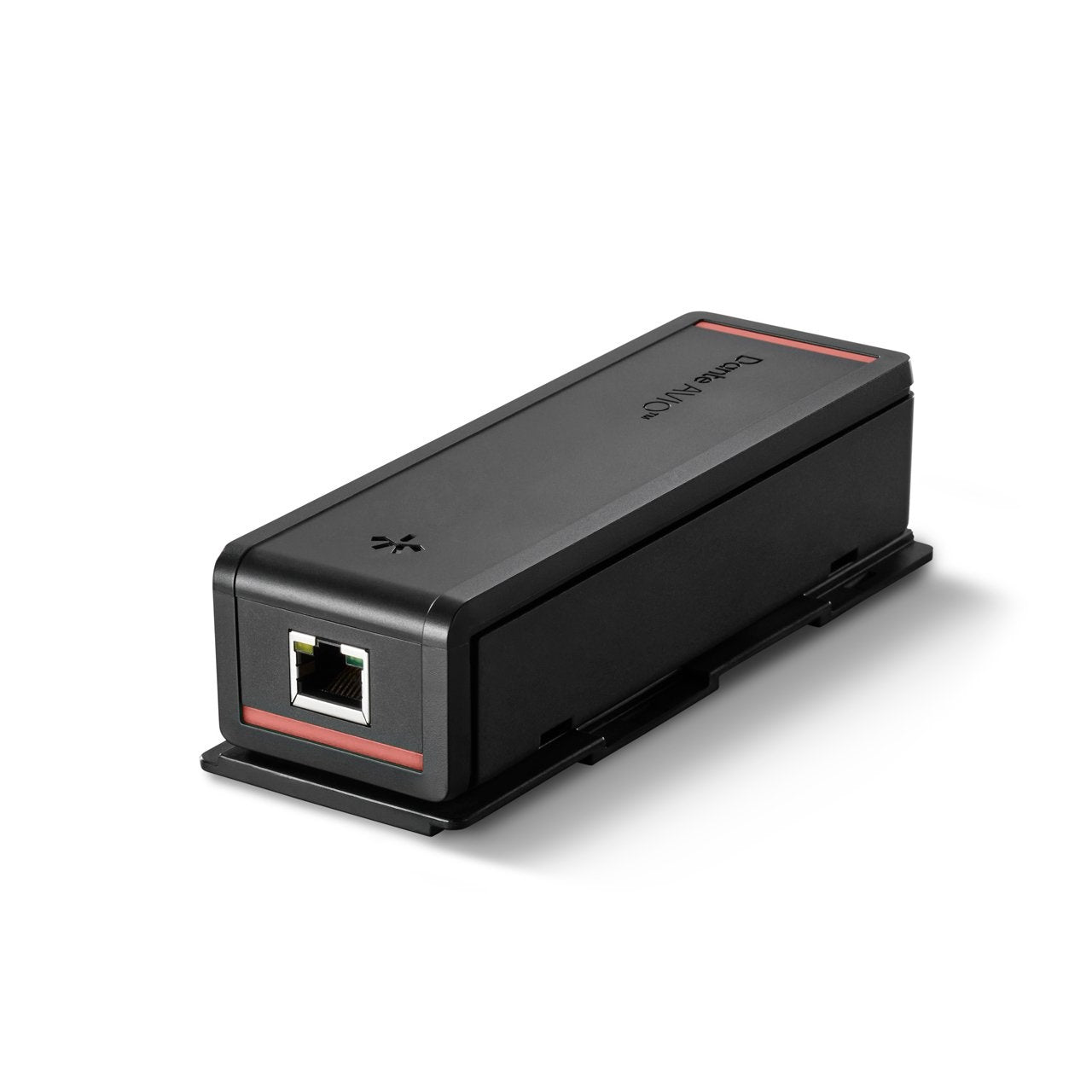

  • PoE Powered – Simplifies installation with single-cable power and network connectivity.
  • Superior Audio Performance – Delivers bit-perfect audio with ultra-low latency and sample-accurate synchronization.
Log in or register for YOUR best price

The Audinate AVIO-A-2OUT-EB Dante AVIO Install adapter connects analog audio equipment to any Dante-enabled network, providing reliable interoperability, scalability, and performance for professional AV systems. Powered via PoE and automatically discovered on the network, the compact adapter delivers bit-perfect audio, ultra-low latency, and sample-accurate synchronization.

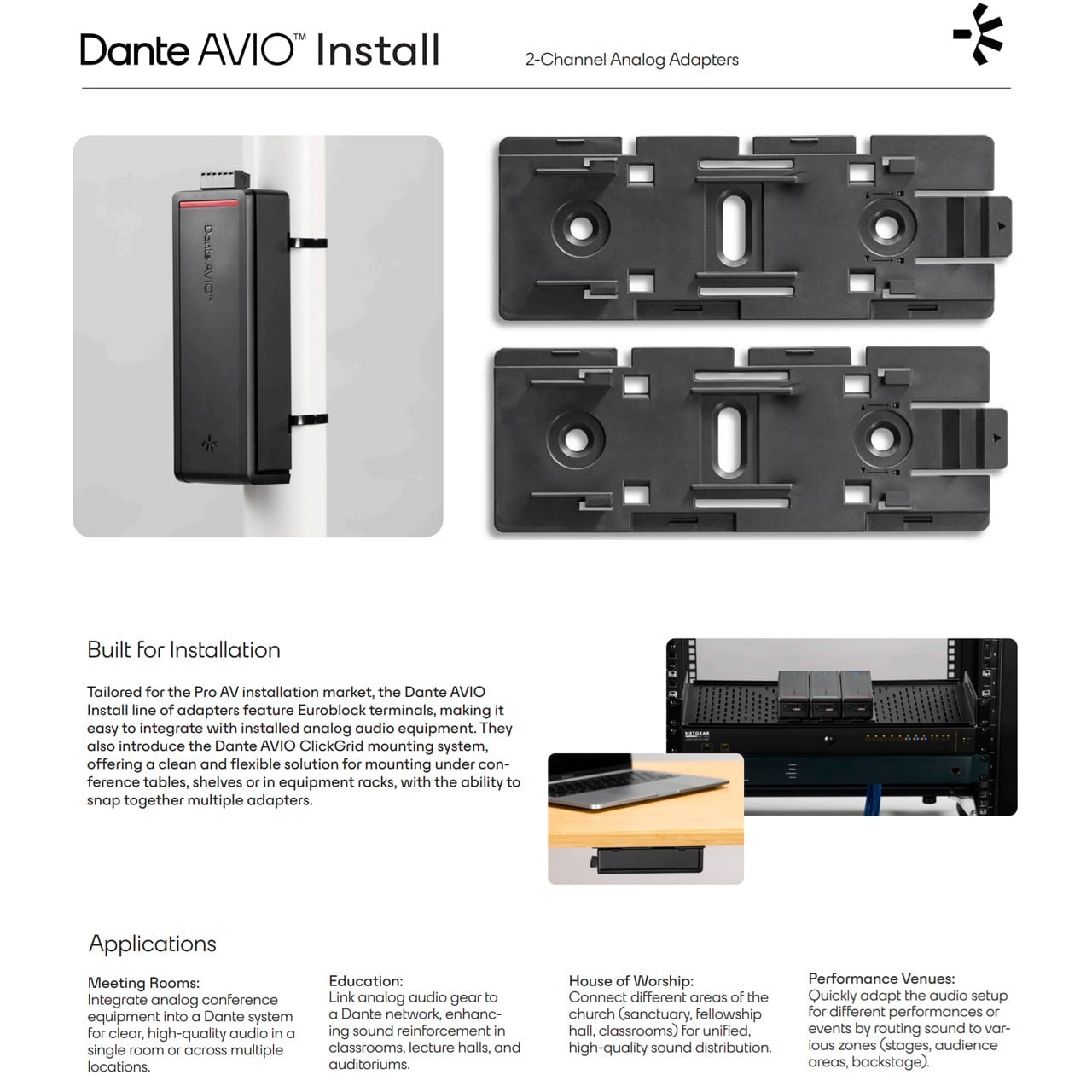

Designed for Pro AV installations, the adapter features Euroblock terminals for secure connections and the Dante AVIO ClickGrid mounting system, allowing multiple units to snap together for clean installations under tables, shelves, or in equipment racks. Configuration and routing are handled through Dante Controller, with advanced management available through Dante Domain Manager or Dante Director.

View full details

Specifications

AUDIO
Connector Type
6-pin Euroblock terminal, 3.5mm pitch
Max Signal Level (Balanced)
+4 dBu; 0 dBu; 0 dBV; −10 dBV
Frequency Response
20 Hz – 20 kHz (−/+0.2 dB)
Impedance
150 kΩ balanced; 75 kΩ unbalanced
DIGITAL AUDIO
Sample Rates
44.1 kHz; 48 kHz; 88.2 kHz; 96 kHz
Bit Depth
16-bit; 24-bit; 32-bit PCM
Dante Device Latency
1 ms; 2 ms; 5 ms
POWER
Power
Class 1 802.3af PoE
Power Consumption
<2 W
ENVIRONMENTAL
Operating Temperature
14°F – 113°F (−10°C – 45°C)
MOUNTING
Mounting Options
Mounting bracket (included)
INCLUDED ITEMS
Adapter
Audinate AVIO-A-2OUT-EB 2-Channel Dante AVIO Install Analog Output Adapter
Mounting
ClickGrid mounting bracket
