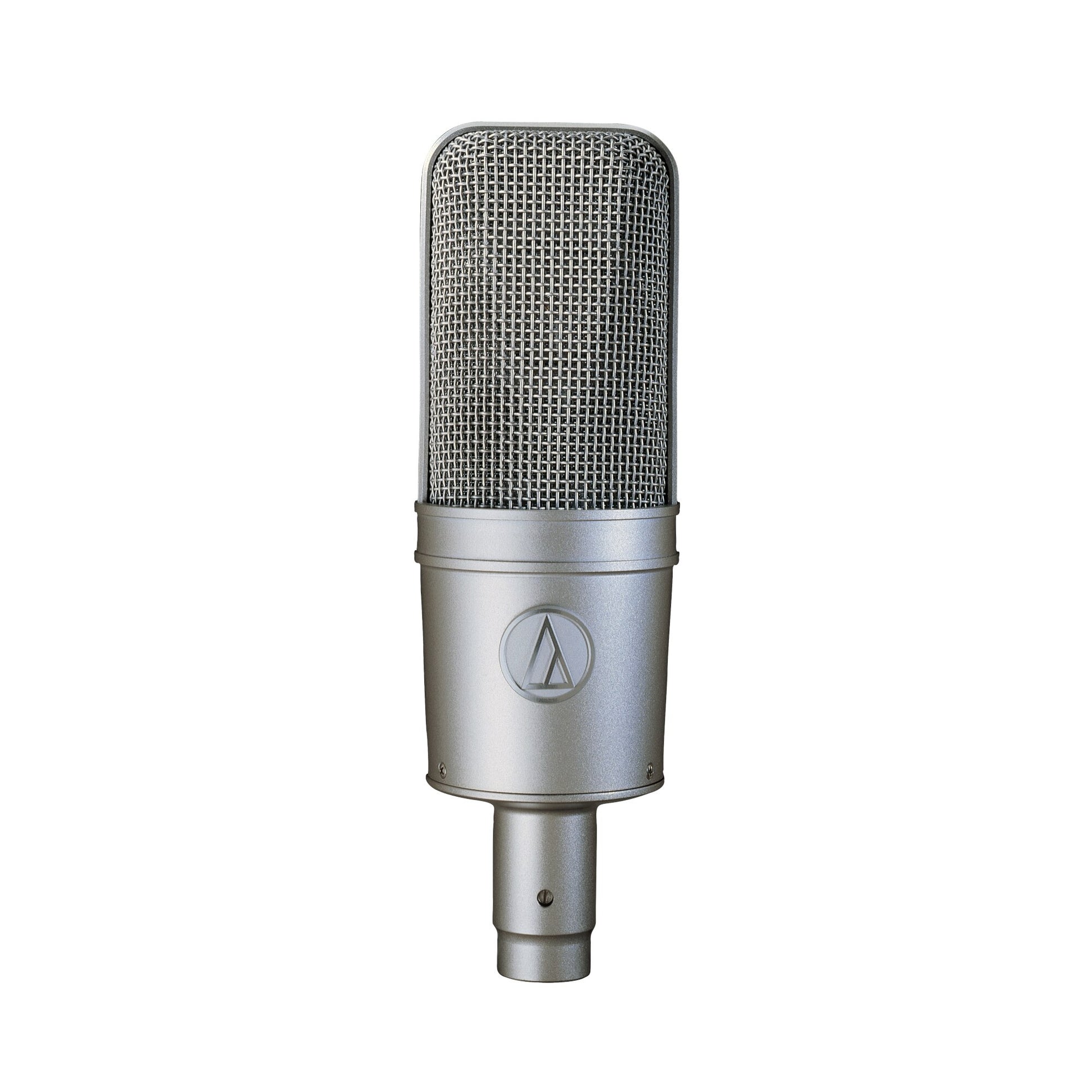

Audio-Technica AT4047/SV Cardioid Condenser Microphone
Audio-Technica AT4047/SV Cardioid Condenser Microphone
SoundPro Item: 58415 | Part Number: AT4047/SV
Usually ships in 5-7 business days
- Designed for critical studio, live sound and broadcast applications
- Transformer-coupled output and specially-tuned element provide sonic characteristics reminiscent of early F.E.T. studio microphone designs
- Exceptionally low self-noise, wide dynamic range and high SPL capability
- Dual-diaphragm capsule design maintains precise polar pattern definition across the full frequency range of the microphone
- Precision-machined, nickel-plated brass, acoustic element baffle provides enhanced element stability and optimal sensitivity
- Vintage silver-matte finish on microphone and shock mount
- Open acoustical environment of the symmetrical housing assembly minimizes unwanted internal reflections
- State-of-the-art surface-mount electronics ensure compliance with A-T's stringent consistency and reliability standards
- Switchable 80 Hz hi-pass filter and 10 dB pad
- Custom shock mount provides superior isolation
The AT4047/SV Cardioid Condenser Microphone from Audio Technica delivers a rich, vintage sound for F.E.T. (non-tube) microphones in an advanced, technologically up-to-date build. This modern mic gets its classic sound from a transformer-coupled output and a specially-tuned element. The retro effect is rounded out by a vintage-style look complete with a silver-matte finish on the mic and its included shock mount.
Boasting a wide dynamic range, exceptionally low self-noise, and high SPL capability, the AT4047/SV’s dual-diaphragm capsule precisely maintains its cardioid polar pattern across the full frequency range. A precision-engineered acoustic element baffle of nickel-plated brass helps enhance the element’s stability and increase sound sensitivity, while the microphone’s open acoustical environment and symmetrical housing assembly minimize unwanted internal reflections. Also featured in this mic are a switchable 80 Hz high-pass filter and a 10 dB pad.
Versatile and reliable, this studio mic is great for a wide variety of uses, including vocals, strings, acoustic guitar, instrument ensembles, small choral groups, and voiceovers. It is also a great miking choice for broadcast and other live sound applications. The AT4047/SV comes with a custom AT8449a/SV shock mount for 5/8"-27 threaded stands—allowing for even better sound isolation—as well as a microphone dust cover for safe storage and a protective carrying case for secure transport. As with all Audio-Technica microphones, every AT4047/SV features innovative surface-mount electronics that meet stringent standards of consistency and reliability.

- Transducer TypeDC Bias Condenser
- Polar PatternCardioid
- Frequency Response20 Hz - 18 kHz
- Output Impedance250 ohms
- Sensitivity-35 dBV/Pa (17.7 mV)
- Maximum Input Sound Level
- 149 dB SPL, 1 kHz at 1% T.H.D.
- 159 dB SPL, with 10 dB pad (nominal) Noise 9 dB SPL
- Dynamic Range140 dB, 1 kHz at Max SPL
- Signal-to-Noise Ratio85 dB, 1 kHz at 1 Pa
- Phantom Power Requirements48V DC, 3.0 mA typica
- Low Frequency Roll Off80 Hz, 12 dB/octave
- Switches
- Flat, roll-off
- 10 dB pad (nominal)
- Connector3-Pin XLRM
- Dimensions6.69" long, 2.10" maximum body diameter
- Weight14.5 oz (410 g)
