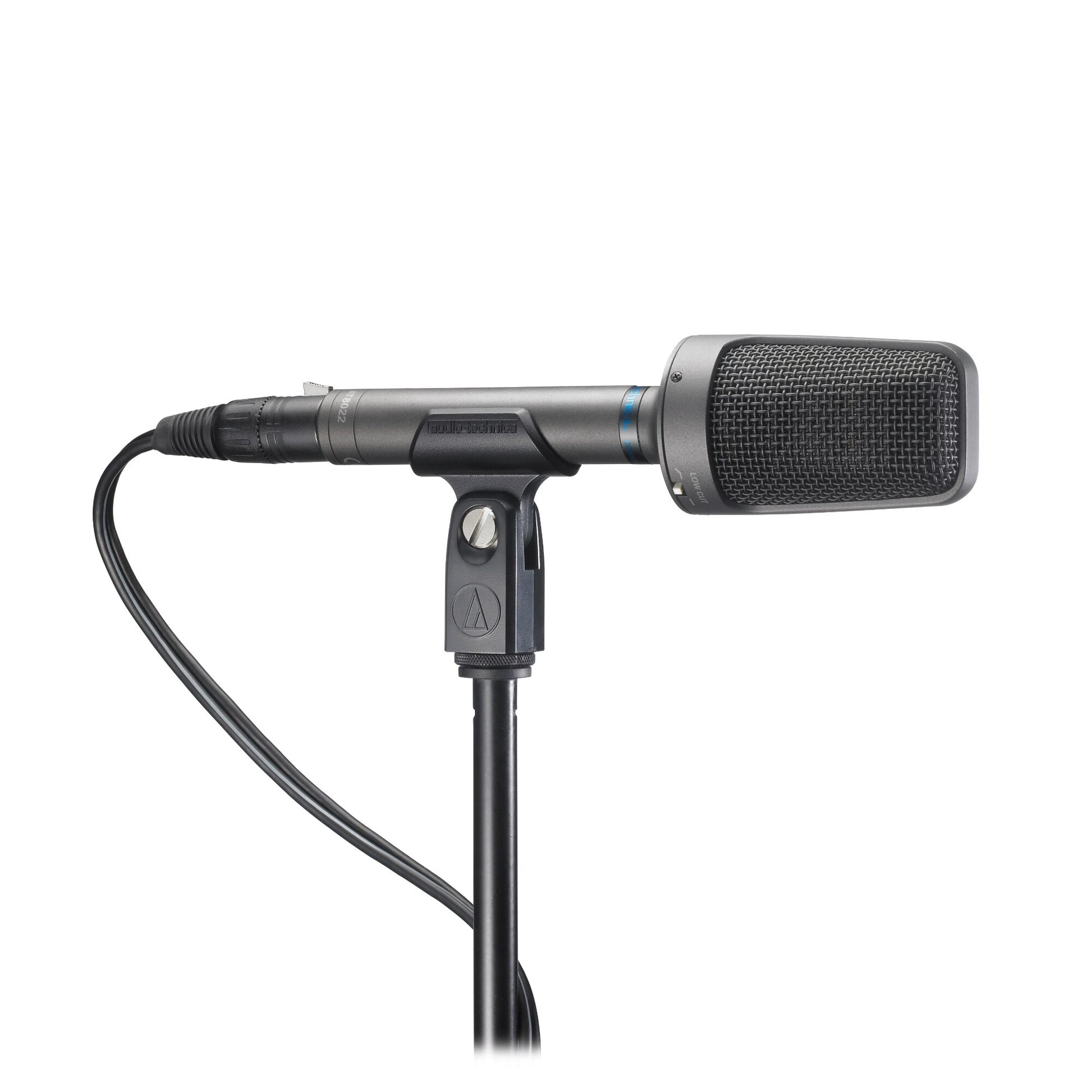

Audio-Technica AT8022 X/Y Stereo Microphone

Audio-Technica AT8022 X/Y Stereo Microphone

SoundPro Item: 59596 | Part Number: AT8022

$439.00
$691.00 $439.00
Your Price Sold out
MSRP: $691.00 | MAP: $439.00

Usually ships in 5-7 business days

  • Innovative capsule configuration produces accurate stereo image in smaller housing
  • Compact, lightweight design
  • Ideal for use with handheld digital recording devices
  • Operates on battery or phantom power-for use with pro or consumer equipment
  • Switchable low-frequency roll-off
  • RoHS-compliant - free from all substances specified in the EU directive on the reduction of hazardous substances (RoHS)
Log in or register for YOUR best price

The AT8022 X/Y Stereo Microphone from Audio-Technica delivers pristine sound quality in a compact, lightweight design that optimizes its portability and versatility. This mic’s coincident capsule configuration is small enough to fit into its low-profile housing, all while accurately producing an X/Y stereo image. Whether you’re at home, in the studio, or out in the field, this mic is a great stereo recording tool that is ideal for interviews, camera-mounted video applications, handheld digital recording devices, and so much more!

Operating on battery or phantom power, the AT8022 comes with two cables for optimal compatibility with both pro and consumer gear. One cable is an unbalanced 0.6 m (2 foot) long stereo cable, while the other is a balanced, 2 m (6.5 foot) long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at the output end. Also included with the AT8022 is a custom AT8405a stand clamp for 5/8"-27 threaded stands that help isolate from background noise, a windscreen to protect against wind and vocal pops, a battery, and an S12 soft protective pouch for safe transport and storage.

View full details

Specifications

Dimensions
Dimensions
7.32 inches (186 mm) long, 1.87 inches (47.6 mm) head diameter, 0.83 inch (21 mm) maximum body diameter
Electrical
Phantom
250 ohms
Battery
300 ohms
Maximum Input Sound Level Phantom
128 dB SPL, 1 kHz at 1% T.H.D.
Dynamic Range Phantom
109 dB, 1 kHz at Max SPL
Phantom Power Requirements
11-52V DC, 2 mA typical (each channel)
Battery Current/Life
0.7 mA / 700 hours typical (alkaline)
Audio
Polar Pattern
X/Y Stereo
Frequency Response
20 Hz - 15 kHz
Sensitivity
-38 dBV/Pa (12.5 mV)
Signal-to-Noise Ratio
75 dB, 1 kHz at 1 Pa
Connectivity
Connector
5-Pin XLRM
Shipping
Weight
8.7 oz (247 g)
General
Transducer Type
Condenser
Low Frequency Roll Off
80 Hz, 18 dB/octave
Channel Balance
<2.5 dB
Switches
Battery On/Off; Flat, roll-off
Balanced
2.0 m (6.5') long, 8 conductor, shielded, vinyl-jacketed stereo cable with 5-pin XLRF-type connector at microphone end and two 3-pin XLRM-type connectors at output end
Unbalanced
0.6 m (2.0') long stereo cable
Power
Battery Type
1.5V AA/UM3
