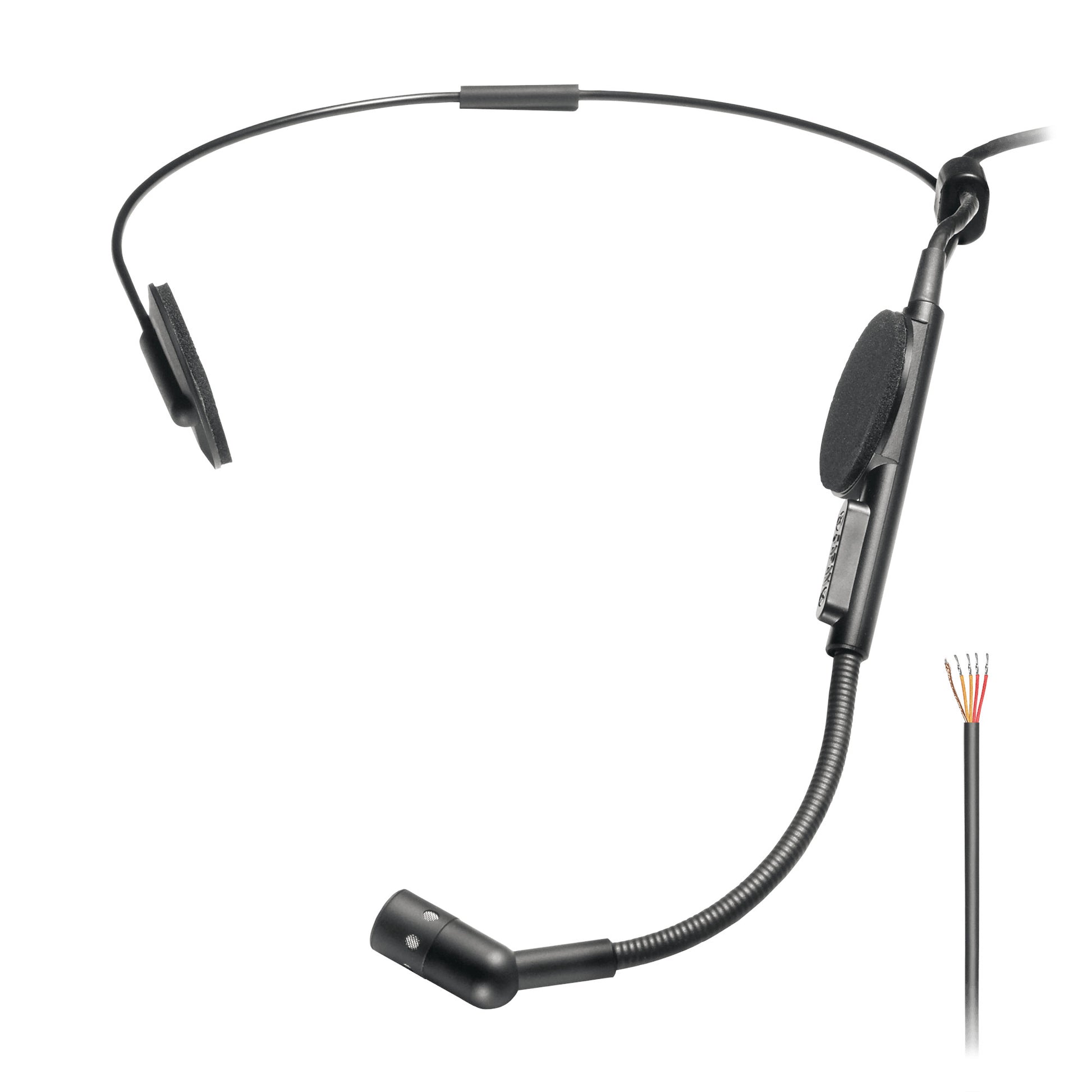

Audio Technica ATM73 Cardioid Condenser Headworn Microphone | Model: ATM73AC

Audio Technica ATM73 Cardioid Condenser Headworn Microphone | Model: ATM73AC

SoundPro Item: 65467 | Part Number: ATM73AC

Regular price $164.00
Regular price $230.00 Sale price $164.00
Your Price Sold out
MSRP: $230.00 | MAP: $164.00

Usually ships in 5-7 business days

  • Comfortable, unobtrusive headband design with side-of-mouth pickup
  • Belt-mounted power module operates on battery or phantom power
  • Cardioid polar pattern improves isolation of desired sound source
  • Ideal for drummers, keyboard players or anyone requiring hands-free operation

The ATM73 cardioid condenser headworn microphone features a comfortable, unobtrusive headband design with side-of-mouth pickup. Ideal for drummers, keyboard players, or anyone requiring hands-free operation. Available in different cable terminations.

Available Configurations

  • ATM73AC: 55" permanently attached miniature cable (unterminated)
  • ATM73CH: 55" permanently attached miniature cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters
  • ATM73CW: 55" permanently attached miniature cable terminated with a locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters
View full details

Specifications

Dimensions
Microphone Diameter
0.39"
Electrical
Phantom
-55dB (1.7mV) re 1V at 1 Pa
Battery
-56dB (1.5mV) re 1V at 1 Pa
Phantom Power Requirements
11-52V DC, 2mA typical
Element Power Requirements
1.5-9V DC (0.5mA current consumption typical at 1.5V DC)
Battery Current/Life
0.4mA / 1200 hours typical (alkaline)
Audio
Polar Pattern
Cardioid
Frequency Response
40 Hz - 15 kHz
Signal-to-Noise Ratio
59dB, 1kHz at 1 Pa
Microphone
1.1 oz
Connectivity
Power Module Output Connector
integral 3-pin XLRM-type
General
Transducer Type
Condenser
Low Frequency Roll-Off
80Hz, 18dB/octave (power module)
Switch
off, on-flat, on-roll-off (power module)
Power Module
4.9 oz
Power Module (HxWxD)
3.31" x 2.48" x 0.87"
Headset
6.49" nominal at widest point, 2.64" flexible boom
Power
Battery Type
1.5V AA/UM3
