Audio-Technica ATW-1421 System 20 PRO Dual Body-Pack System

Audio-Technica ATW-1421 System 20 PRO Dual Body-Pack System

SoundPro Item: 145049 | Part Number: ATW-1421

Regular price $1,049.00
Regular price $1,049.00 Sale price $1,049.00
Your Price Sold out
MSRP: $1,049.00 | MAP: $1,049.00

Usually ships in 5-7 business days

  • Digital 24-bit/48 kHz wireless operation for ultimate sound quality and dependable performance
  • Plug-and-play operation in the 2.4 GHz range - completely free from TV interference
  • User can switch between Standard mode (10 channels) and HD mode (20 channels) to minimize latency or maximize channel count, respectively
  • Receiver units can be docked in the chassis or mounted remotely (up to 328 feet away) via
  • Ethernet cable for added versatility
  • Up to five chassis can be linked and used simultaneously
  • Each receiver channel can be paired with up to four transmitters, allowing users to instantly switch between different transmitter configurations
  • Chassis’ System ID Display shows RF signal level, system ID, transmitter battery level, and system link status
  • Each half-rack receiver chassis comes with a short and a long rack ear, and two long ears can be combined as a joining plate to secure two chassis in a full rack space
  • Compatible with Audio-Technica’s Wireless Manager software for centralized management of system settings and operations
  • Auto-lock function prevents unintended operations like turning off the power or displaying the channel select screen
  • AES128 encryption for security
  • Compatible with Syslog protocol
  • Ability to configure, monitor, and save device settings as projects in Wireless Manager
  • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
  • Water- and sweat-resistant cW-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cW-style locking 4-pin connector
  • Charging terminals on body-pack and handheld transmitters work with ATW-CHG3/ATW-CHG3a and ATW-CHG3N/ATW-CHG3Na charging docks to recharge NiMH batteries
  • Supports mixed output for situations with limited input channels

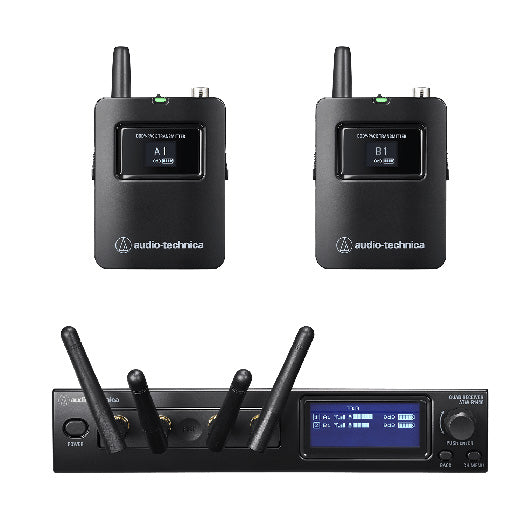

The Audio-Technica ATW-1421 System 20 PRO includes one ATW-R1440 4-channel receiver and two ATW-T1401 body-pack transmitters.

View full details
  • Operating Frequencies2,402~2,480MHz
  • Dynamic Range120dB (A-weighted), typical
  • Total Harmonic Distortion< 0.05%, typical
  • Maximum Simultaneous Use (recommended)
    • Standard: 10 channels
    • HD mode: 20 channels
    • (It depends on the region and environment.)
  • System Frequency Response20 to 20,000Hz (Varies depending on the microphone to be installed.)
  • Delay
    • Standard: 2.8ms
    • HD mode: 6.7ms
  • Audio Sampling Rate
    • Standard: 24bit/48kHz
    • HD mode: 24bit/48kHz
  • Encryption MethodAES128
