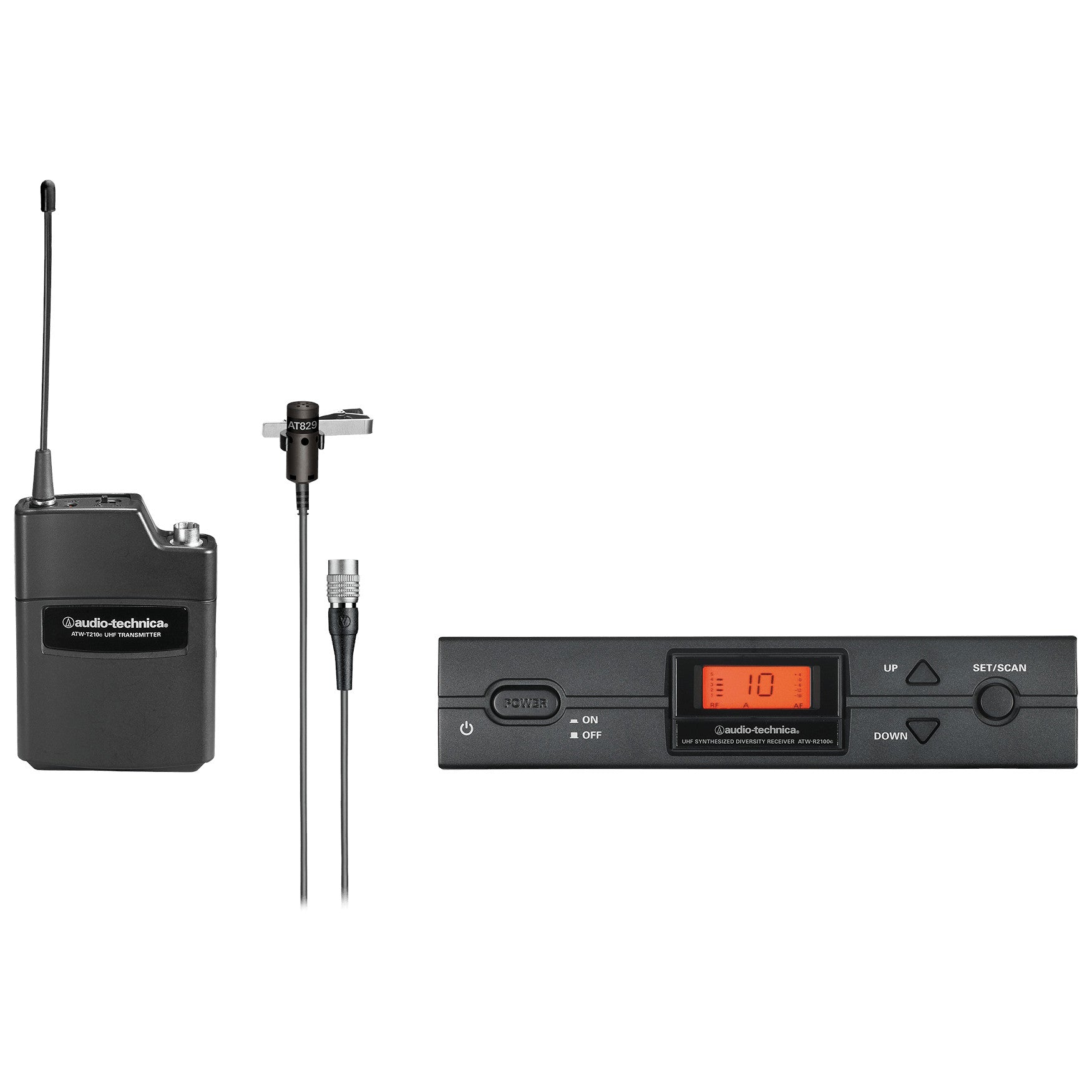

Dimensions
Dimensions
232 mm (9.13") long, 48 mm (1.89") diameter
Weight
Net Weight
252 g (8.9 oz), without batteries
Electrical
Battery Life High
7 hours (alkaline)Low: 9 hours (alkaline)Depending on battery type and use pattern
Power Requirements
12-18V DC, 500 mA
Audio
Microphone Element
Dynamic cardioid
RF Sensitivity
20 dBuV at 60 dB S/N ratio (50 ohms termination)
Maximum Output Level
XLR, balanced: +9 dBV, ¼" (6.3 mm), unbalanced: +4 dBV
Audio Output Attenuator (ATTN)
Balanced Audio Output Attenuator: Two position switch: 0 / -12 dB
Connectivity
RF Power Output High
30 mWLow: 10 mW (switchable), at 50 ohms
RF Power Output
High: 30 mW, Low: 10 mW (switchable), at 50 ohms
Input Connections Four-pin Locking ConnectorPin 1
GNDPin 2: INST INPUTPin 3: MIC INPUTPin 4: DC BIAS +9V
Included Items
Receiver
Antenna Input BNC-type, 50 ohmsBias voltage 12V DC, 60 mA, each
Shipping
Weight
1 kg (35.3 oz), without accessories
General
Operating Frequencies Band I
487.125 to 506.500 MHz
System
Modulation Mode FM, Maximum Deviation ±40 kHz, Frequency Response 100 Hz to 15 kHz (+1 dB, -3 dB), Operating Range 100 m (300'), typical (Open range environment with no interfering signals.), Total Harmonic Distortion < 1% (at 1 kHz, ±20 kHz deviation), Operating Temperature Range 5ºC to 45ºC (41ºF to 113ºF)Battery and LCD performance may be reduced at very low temperatures.
Series (original) Components
ATW-R2100 receiverATW-T210 body-pack transmitterATW-T220 cardioid dynamic microphone/transmitterCONSUMER
ALERT
Most users do not need a license to operate this wireless microphone system. Nevertheless, operating this microphone system without a license is subject to certain restrictions: the system may not cause harmful interference; it must operate at a low power level (not in excess of 50 milliwatts); and it has no protection from interference received from any other device. Purchasers should also be aware that the FCC is currently evaluating use of wireless microphone systems, and these rules are subject to change. For more information, call the FCC at 1-888-CALL-FCC (TTY: 1-888-TELL-FCC) or visit the FCC’s wireless microphone website at www.fcc.gov/cgb/wirelessmicrophones.
Spurious Emissions
Following federal and national regulations
Handheld Transmitter
Battery Type Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)Recharging power for NiMH batteries (with ATW-CHG2)U.S./Canada/Latin America: 3.2 V DC, 230 mA x2Other world areas: 3.2 V DC, 320 mA x2
Bodypack
Battery Type Two 1.5V AA alkaline (not included) or two 1.2V AA NiMH (not included)Recharging power for NiMH batteries (with ATW-CHG2)U.S./Canada/Latin America: 3.2 V DC, 230 mA x2Other world areas: 3.2 V DC, 320 mA x2
Receiving System
True diversity
Image Rejection
60 dB nominal, 55 dB minimum
RF
Number of Channels
10 total
