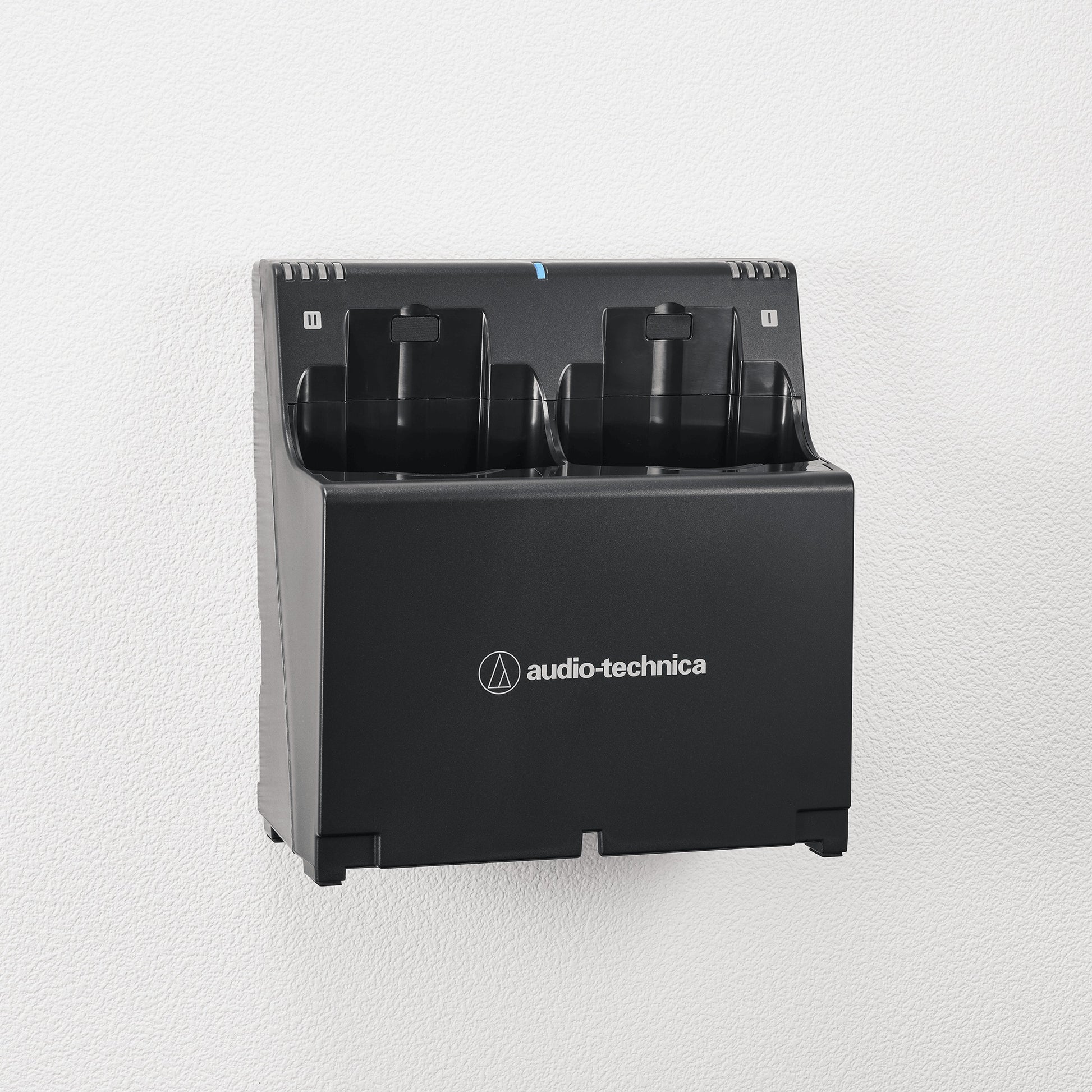

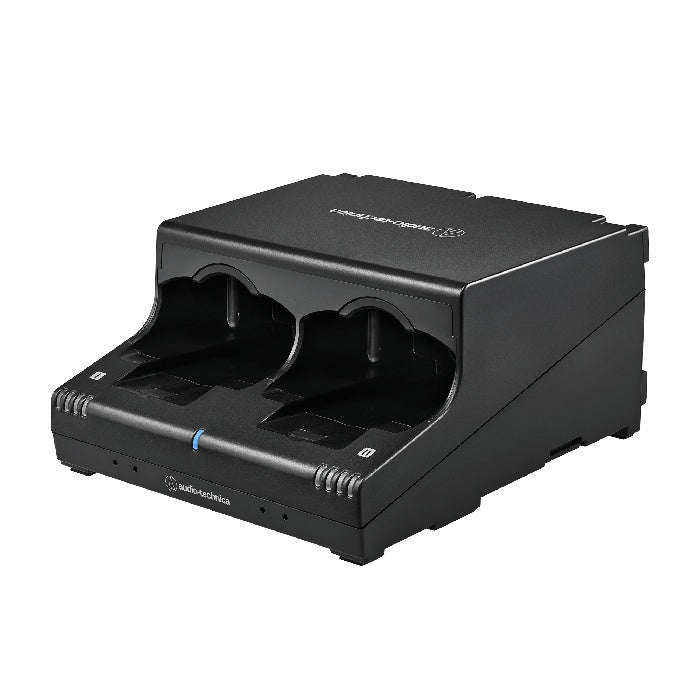

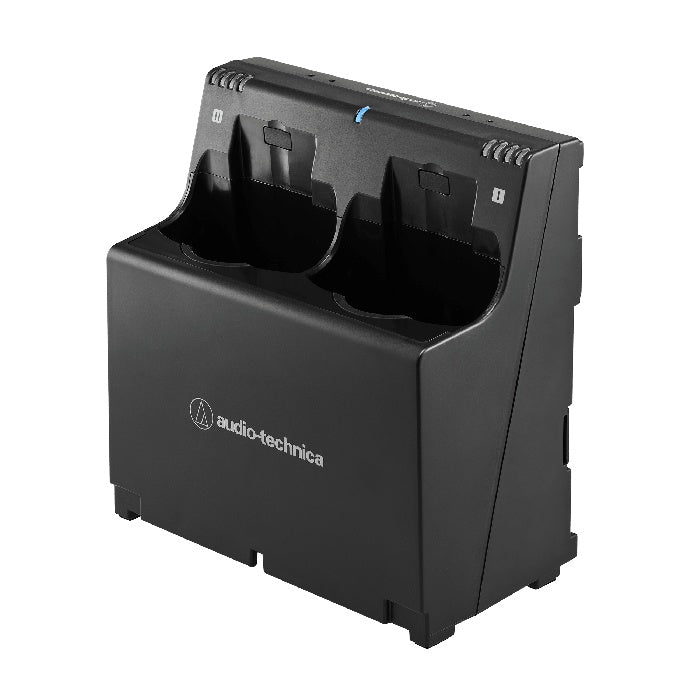

Audio-Technica D50 Battery Charger Two-Bay Station | With Rack Tray

Audio-Technica D50 Battery Charger Two-Bay Station | With Rack Tray

SoundPro Item: 206956 | Part Number: ATW-CHG6/8620

$748.00
$880.00 $748.00
Your Price Sold out
MSRP: $880.00 | MAP: $748.00

Usually ships in 5-7 business days

  • Linkable Architecture Supports Up To Four Stations On Single Power Source
  • PoE+ Compatibility Enables Network-Powered Operation Without Dedicated AC Adapters
  • Dual LED And Wireless Manager Monitoring For Local And Remote Status Visibility
  • Integrated Lavalier Mic Hangers Keep Accessories Organized Adjacent To Transmitters
  • Firmware Update Capability While Docked Eliminates Removal During Maintenance
  • Flexible Mounting Options Allow Vertical Or Horizontal Wall And Rack Installation
Log in or register for YOUR best price

Designed for production teams managing Audio-Technica D50 wireless systems, this charging station provides dedicated power for up to two transmitters per unit with the flexibility to link multiple stations for larger deployments. Four stations can be daisy-chained using Cat5e cable and powered by a single AC adapter, while PoE+ support enables up to three linked units for streamlined integration into existing network infrastructure.

The station supports firmware updates while transmitters remain docked, eliminating the need to remove units mid-workflow. Real-time battery level and charging status appear on front-panel LED indicators and can be monitored remotely through Audio-Technica Wireless Manager software for centralized oversight across multiple systems. Mounting flexibility allows vertical or horizontal installation on walls, racks, or other surfaces to fit available workspace.

Two integrated lavalier microphone hangers provide organized storage adjacent to body-pack transmitters, reducing pre-show setup time and keeping accessories within reach during live production and installation environments where rapid deployment is critical.

View full details

Specifications

Power
Power Supply
12 V DC, 3.0 A
Charging
Charging Output (AC Adapter, 1-4 Transmitters)
5 V 1.1 A
Charging Output (AC Adapter, 5-6 Transmitters)
5 V 0.8 A
Charging Output (AC Adapter, 7-8 Transmitters)
5 V 0.5 A
Charging Output (PoE+, 1-2 Transmitters)
5 V 1.1 A
Charging Output (PoE+, 3-6 Transmitters)
5 V 0.5 A
Charging Output (Energy-Saving Mode)
12 V 0.2 A
Charging Time (AC Adapter, LI-220, 1-4 TX)
Approx. 2 hours 30 minutes
Charging Time (AC Adapter, LI-220, 5-6 TX)
Approx. 3 hours 10 minutes
Charging Time (AC Adapter, LI-220, 7-8 TX)
Approx. 5 hours
Charging Time (AC Adapter, LI-320, 1-4 TX)
Approx. 3 hours 50 minutes
Charging Time (AC Adapter, LI-320, 5-6 TX)
Approx. 5 hours
Charging Time (AC Adapter, LI-320, 7-8 TX)
Approx. 7 hours 10 minutes
Charging Time (PoE+, LI-220, 1-2 TX)
Approx. 2 hours 30 minutes
Charging Time (PoE+, LI-220, 3-6 TX)
Approx. 5 hours
Charging Time (PoE+, LI-320, 1-2 TX)
Approx. 3 hours 50 minutes
Charging Time (PoE+, LI-320, 3-6 TX)
Approx. 7 hours 10 minutes
Charging Time (Energy-Saving Mode, LI-220)
Approx. 5 hours
Charging Time (Energy-Saving Mode, LI-320)
Approx. 7 hours 10 minutes
Electrical
Maximum Power Consumption (AC Adapter, 2 TX)
15 W (51 Btu/h)
Maximum Power Consumption (PoE+, 2 TX)
16 W (55 Btu/h)
Connectivity
Network
100 Mbps
Environmental
Operating Temperature Range
0°C to 40°C (32°F to 104°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Cooling Method
Fan-assisted air cooling
Airflow Direction
Front intake / Rear exhaust
Dimensions
Dimensions
5.7" x 3.1" x 6.1" (W x D x H)
Weight
Weight
24 oz
Included Items
Included Accessories
Link cable (short), Link cable (long), Link plate, Link plate screws, Microphone holder, AT8620 rack-mount tray
