Audio-Technica D50 Wireless System Half-Rack Receiver | 2-Channel | 1 Body-Pack + 1 Handheld | Combo

Audio-Technica D50 Wireless System Half-Rack Receiver | 2-Channel | 1 Body-Pack + 1 Handheld | Combo

SoundPro Item: 206964 | Part Number: ATW-D50-DRX-BH

$2,429.00
$2,857.65 $2,429.00
Your Price Sold out
MSRP: $2,857.65 | MAP: $2,429.00

Usually ships in 5-7 business days

  • Audio-Technica LINK Network Integration Enables Centralized System Management And Remote Configuration
  • Switchable Diversity Architecture Provides MRC Robust Mode For High-Interference Environments
  • Dual-Mode Frequency Planning Supports Standard Or HD Modulation Density
  • Onboard DSP Processing Includes Parametric EQ And Dynamics Per Channel
  • AES256 Encryption Ensures Secure Transmission For Confidential Applications
  • PoE+ Redundant Power Input Maintains Operation During AC Interruptions
  • Spectrum Analyzer And Walk Test Tools Simplify Multi-System RF Coordination
Log in or register for YOUR best price

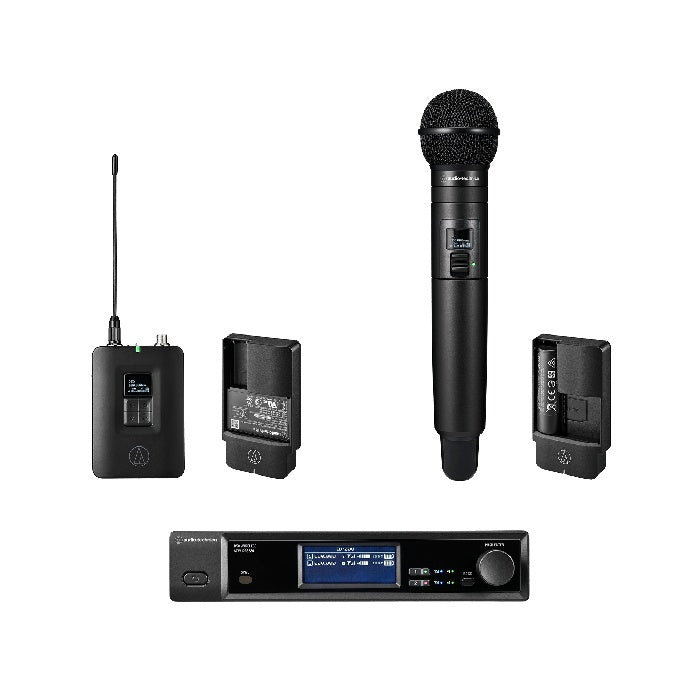

The Audio-Technica D50 Wireless System delivers professional RF performance for installed sound, live production, and corporate AV applications requiring secure, interference-resistant wireless transmission. The ATW-DR3220LK half-rack receiver features switchable diversity architecture—Normal mode for typical installations, Robust MRC mode when operating in RF-congested venues or multi-system deployments. Full tuning bandwidth spans the UHD broadcast range with selectable Standard or HD modulation modes, allowing integrators to deploy higher channel density when spectrum is constrained. Onboard DSP includes four-band parametric EQ, compressor, and high-pass filtering per channel, eliminating the need for external processing in many applications.

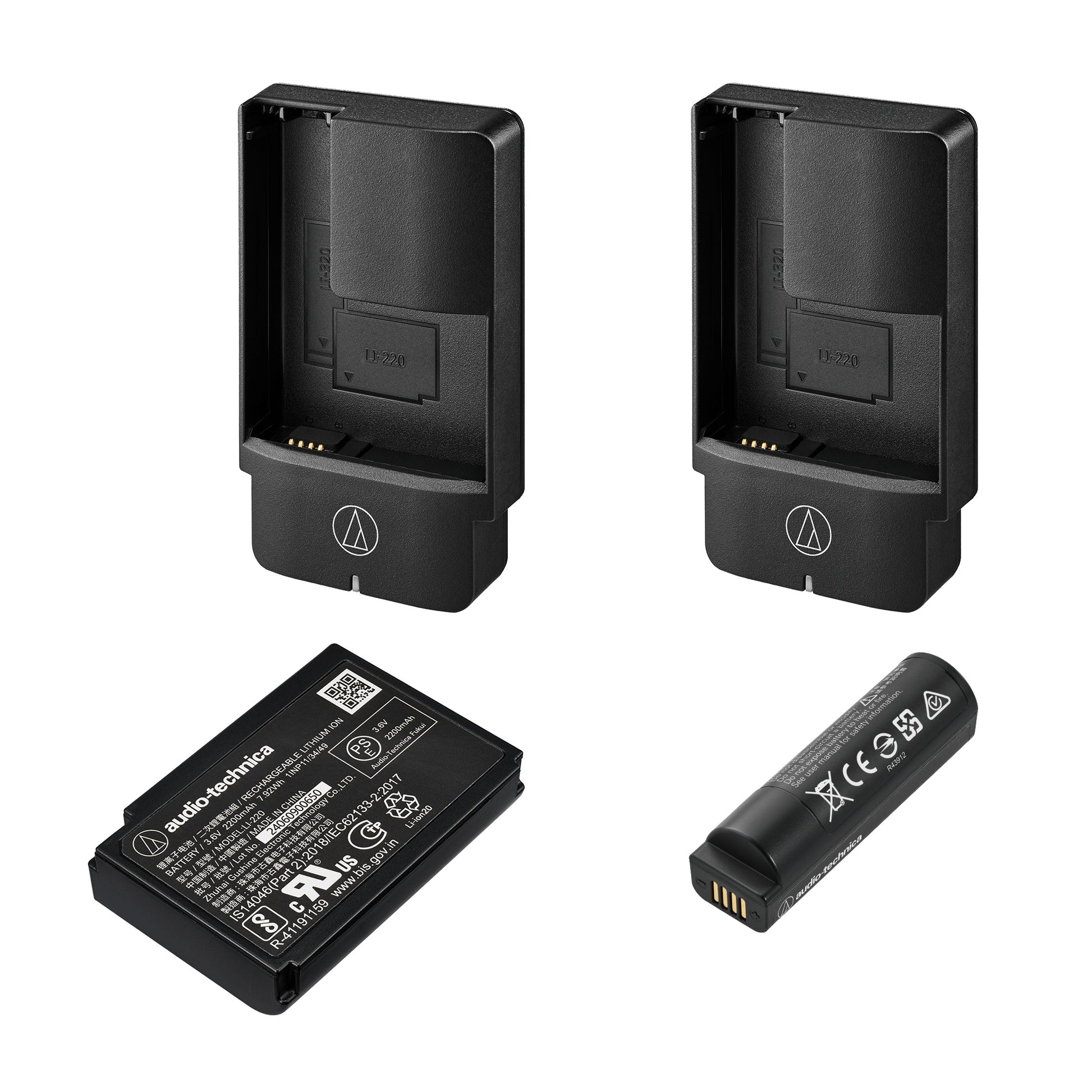

Dual power inputs accept standard AC or IEEE 802.3at PoE+, with automatic failover ensuring continuous operation during utility interruptions or rack power loss. Network connectivity enables centralized monitoring and configuration through Wireless Manager software, including advanced walk testing, multipoint receiver handoff, and spectrum analysis tools that simplify coordination across multi-room installations. The ATW-DT3201 body-pack transmitters feature locking cH-style four-pin connectors compatible with lavalier, headworn, and instrument cables, plus a SideTrack function for discrete IFB communication. Custom lithium-ion cells provide extended runtime, with included ATW-CHGA6 chargers supporting field-swappable battery operation.

TAA compliance and RED cybersecurity certification address procurement requirements for government and EU installations. Front-panel spectrum display and IR sync streamline frequency coordination without external tools, while included rack ears support both half-rack and joined full-rack configurations in standard 19-inch equipment racks.

View full details

Specifications

Audio
Frequency Response
20 to 20,000 Hz
Dynamic Range (Body-Pack Mic Input)
120 dB, A-weighted
Dynamic Range (Body-Pack Instrument Input)
109 dB, A-weighted
Dynamic Range (Handheld)
120 dB, A-weighted
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
Audio Sampling Rate
48 kHz
Delay (Standard Mode)
2.1 ms
Delay (HD Mode)
3.3 ms
Performance
Operating Frequencies
DF2: 470.125 to 607.875 MHz
Modulation Mode (Standard)
8-PSK
Modulation Mode (HD)
16QAM
Occupied Bandwidth (Standard)
192 kHz
Occupied Bandwidth (HD)
96 kHz
Operating Range
328'
Maximum Simultaneous Use
17 channels per 6 MHz
Image Rejection
70 dB
RF Sensitivity
-98 dBm (10⁻⁵ BER)
RF Output Power (Standard)
20 mW, 10 mW, 1 mW
RF Output Power (HD Mode)
1 mW
Electrical
Power Supply (Receiver AC)
100 to 240 V AC 50/60 Hz
Power Supply (Receiver PoE+)
IEEE 802.3at Class 4
Maximum Power Consumption (AC Adapter)
13 W (44 Btu/h)
Maximum Power Consumption (PoE+)
14 W (48 Btu/h)
Maximum Output Level
+18 dBV
Antenna Power
12 V DC, 150 mA x2
Connectivity
Antenna Input
BNC, 50 ohms
Network (IP Control)
100 Mbps
Network (Audio-Technica Link)
100 Mbps
Body-Pack Input Connection
Four-pin locking connector (cH-style)
Handheld Microphone Capsule
Interchangeable (ATW-C510 cardioid dynamic included)
Construction
Receiving System (Normal Mode)
Antenna Combining Diversity
Receiving System (Robust Mode)
MRC True Diversity
Encryption System
AES256
High-Pass Filter
120 Hz, 12 dB/octave
Cooling Method
Fan-assisted air cooling
Airflow Direction
Front intake, rear exhaust
Dimensions
Receiver Dimensions
8.3" x 11" x 1.7" (W x D x H)
Body-Pack Dimensions
2.2" x 3.1" x 0.94" (W x D x H)
Handheld Dimensions (Without Capsule)
7.2" x 1.5" diameter
Handheld Dimensions (With ATW-C510)
10" x 2.1" diameter
Weight
Receiver Weight
4.6 lbs
Body-Pack Weight (With Battery)
6.1 oz
Handheld Weight (Without Capsule)
8.6 oz
Handheld Weight (With ATW-C510)
13 oz
Environmental
Operating Temperature Range (Receiver)
23°F to 104°F
Storage Temperature Range (Receiver)
-4°F to 131°F
Operating Temperature Range (Transmitters)
23°F to 113°F
Storage Temperature Range (Transmitters)
-4°F to 131°F
Certifications
Compliance
TAA (U.S.), RED Cybersecurity (EU)
Shipping
Package Weight
11.68 lbs
Package Dimensions
16.75" x 14.63" x 9.5"
