Audio-Technica D50 Body-Pack Transmitter Digital UHF | No | Yes

Audio-Technica D50 Body-Pack Transmitter Digital UHF | No | Yes

SoundPro Item: 206970 | Part Number: ATW-DT3201DF2C

$624.00
$734.12 $624.00
Your Price Sold out
MSRP: $734.12 | MAP: $624.00

Usually ships in 5-7 business days

  • Rugged cH-Style Four-Pin Locking Connector Ensures Secure Attachment For Lavalier And Headworn Microphones
  • SideTrack Function Provides Instant Switching Between Microphone And Instrument Input Signals
  • IR Sync Capability Streamlines Frequency Coordination With Compatible Receivers
  • Seven Physical Color Ring Indicators And Matching LED Simplify Multi-Channel Identification
  • External Mute Switch And OLED Display Enable Real-Time Control Without Menu Navigation
  • AES256 Encryption Protects Transmitted Audio From Unauthorized Interception
Log in or register for YOUR best price

Designed for live sound engineers and rental companies demanding reliable wireless transmission with integrated encryption. The D50 body-pack operates within the DF2 frequency range and supports both standard 8-PSK and HD 16QAM modulation modes. IR sync streamlines frequency coordination across multiple units while the SideTrack function allows instant switching between mic and instrument inputs. All-metal construction withstands the rigors of tour-grade use while seven physical color rings and matching LED indicators simplify channel identification in multi-transmitter environments.

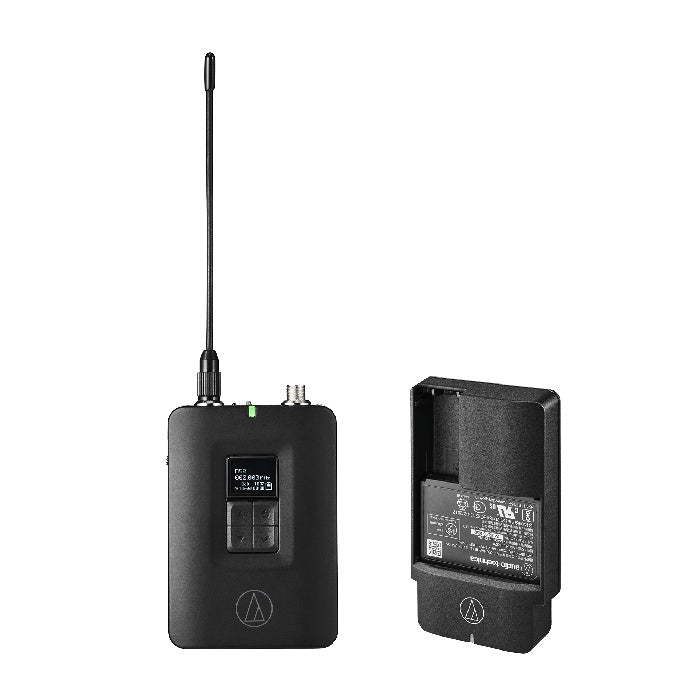

This bundle includes the ATW-CHGA6 charger provides USB Type-C powered charging for the LI-220 battery independent of the transmitter, ideal for productions requiring rapid battery swaps.

Four-pin locking cH-style connector accommodates lavalier, headworn, and instrument cables with screw-down retention. External mute switch and OLED display enable real-time control without menu diving. Operates up to 17 simultaneous channels within a 6 MHz block when deployed with compatible ATW-DR3240DAN or ATW-DR3220LK receivers.

View full details

Specifications

Audio
Frequency Response
20 to 20,000 Hz
Dynamic Range (Mic Input)
120 dB, A-weighted
Dynamic Range (Inst. Input)
109 dB, A-weighted
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
Audio Sampling Rate
48 kHz
RF Performance
Operating Frequencies
DF2: 470.125 to 607.875 MHz
Modulation Mode
Standard: 8-PSK, HD mode: 16QAM
Occupied Bandwidth
Standard: 192 kHz, HD mode: 96 kHz
RF Output Power
Standard: 20 mW, 10 mW, 1 mW, HD mode: 1 mW
Operating Range
328'
Maximum Simultaneous Use
17 channels / 6 MHz
Delay
Standard: 2.1 ms, HD mode: 3.3 ms
Encryption
AES256
Connectivity
Input Connection
Four pin locking connector (Pin 1: GND, Pin 2: INST. INPUT, Pin 3: MIC INPUT, Pin 4: DC BIAS +10V)
Construction
High-Pass Filter
120 Hz, 12 dB/octave
Power
Battery Type
Lithium-ion battery LI-220 (included)
Battery Life
12 hours (10 mW)
Environmental
Operating Temperature Range
-5°C to +45°C (23°F to 113°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Dimensions
Dimensions
2.2" x 3.1" x 0.94" (W x D x H)
Weight (With Battery)
6.1 oz
Shipping
Package Weight
0.997 lbs
Package Dimensions
9.6" x 4.8" x 2.7"
Included Items
Included Accessories
ATW-DT3201 Body-pack transmitter, ATW-CHGA6 battery charger, LI-220 rechargeable lithium-ion battery, ATW-TI10 color ring indicator kit, Pouch
