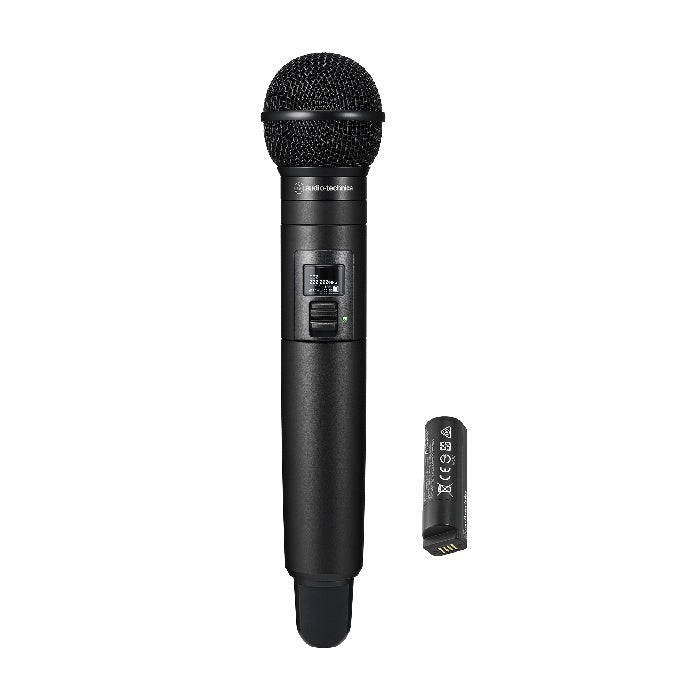

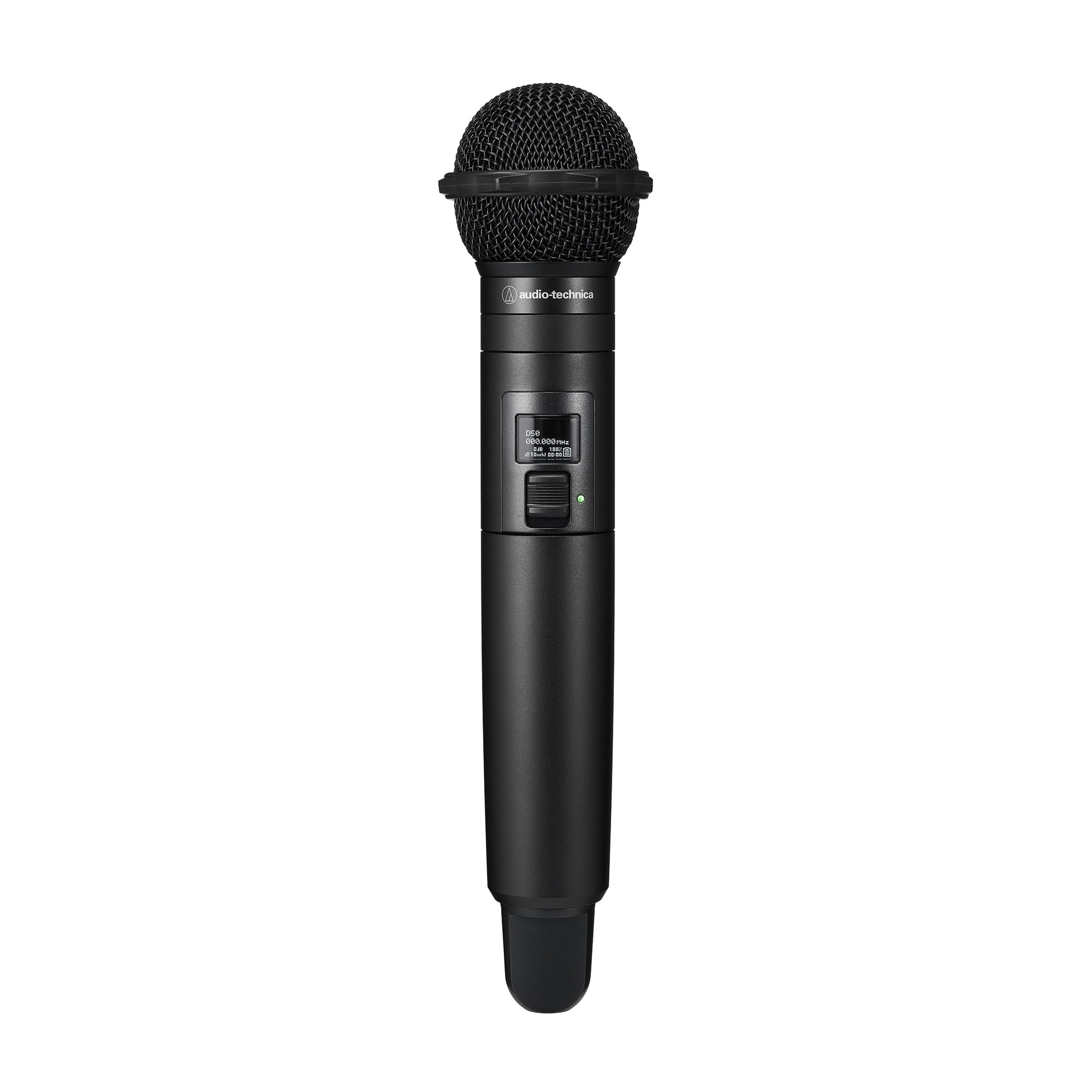

Audio-Technica D50 Handheld Transmitter Digital UHF Wireless | C510 Cardioid Dynamic | No

Audio-Technica D50 Handheld Transmitter Digital UHF Wireless | C510 Cardioid Dynamic | No

SoundPro Item: 206971 | Part Number: ATW-DT3202/C510DF2

$631.00
$742.35 $631.00
Your Price Sold out
MSRP: $742.35 | MAP: $631.00

Usually ships in 5-7 business days

  • AES256 Encryption Protects Audio From Interception In Crowded RF Environments
  • Interchangeable Capsule System Supports Multiple Voicing Options Without Transmitter Replacement
  • Dual Modulation Modes Enable Trade-Off Between Channel Density And Frequency Extension
  • IR Sync Functionality Eliminates Manual Frequency Entry And Reduces Setup Time
  • Programmable Mute Switch Integrates With Existing Cue And Talkback Workflows
  • Seven-Color LED And Physical Ring System Simplifies Multichannel Identification
  • All-Metal Housing Delivers Tour-Grade Durability For Permanent And Mobile Deployments
Log in or register for YOUR best price

The Audio-Technica D50 Handheld Transmitter is built for live production and fixed installation environments where RF security, battery life, and capsule flexibility are non-negotiable. With AES256 encryption, your audio remains secure even in dense wireless environments. The lithium-ion battery delivers industry-leading runtime, and the transmitter body accepts Audio-Technica's full catalog of interchangeable capsules—from dynamic to condenser—so you can tailor voicing to the application without replacing the entire transmitter.

The platform operates in the UHF spectrum with dual modulation modes: standard 8-PSK for maximum channel count, or HD 16QAM for extended frequency response. External controls, an OLED display, and a seven-color LED/ring system streamline multichannel setup and identification during showtime. IR sync eliminates manual frequency entry, and the programmable mute switch integrates with existing cue workflows. All-metal construction ensures durability across touring and permanent install scenarios.

View full details

Specifications

Audio
Frequency Response
20 Hz to 20 kHz
Dynamic Range
120 dB, A-weighted, typical
Total Harmonic Distortion
0.1% or less (at 1 kHz, -20 dBFS)
High-Pass Filter
120 Hz, 12 dB/octave
RF
Operating Frequencies
470.125 to 607.875 MHz
Modulation Mode
Standard: 8-PSK / HD mode: 16QAM
Occupied Bandwidth
Standard: 192 kHz / HD mode: 96 kHz
RF Output Power
Standard: 20 mW, 10 mW, 1 mW / HD mode: 1 mW
Operating Range
328'
Encryption
AES256
Performance
Maximum Simultaneous Use
17 channels / 6 MHz
Delay
Standard: 2.1 ms typ. / HD mode: 3.3 ms typ.
Audio Sampling Rate
48 kHz
Power
Battery Type
Lithium-ion LI-320
Battery Life
17.5 hours (at 10 mW)
Construction
Microphone Capsule
ATW-C510 cardioid dynamic
Material
All-metal
Dimensions
Dimensions (Without Capsule)
7.2" × 1.5" in diameter
Dimensions (With C510 Capsule)
10" × 2.1" in diameter
Weight
Weight (Without Capsule)
8.6 oz
Weight (With C510 Capsule)
13 oz
Environmental
Operating Temperature Range
-5°C to +45°C (23°F to 113°F)
Storage Temperature Range
-20°C to 55°C (-4°F to 131°F)
Shipping
Package Weight
1.49 lbs
Package Dimensions
13.86" x 4.92" x 2.68"
