Specifications
Audio
Element
Fixed-charge back plate, permanently polarized condenser
Polar Pattern
Cardioid
Acceptance Angle
120°
Frequency Response
30-20,000 Hz
Open Circuit Sensitivity
-40 dB (10.0 mV) re 1V at 1 Pa
Impedance
130 ohms
Maximum Input Sound Level
140 dB SPL
Dynamic Range
112 dB
Signal-to-Noise Ratio
66 dB
Electrical
Phantom Power Requirements
11-52V DC
Current Consumption
6.7 mA
Switches
LED Color
Dimensions

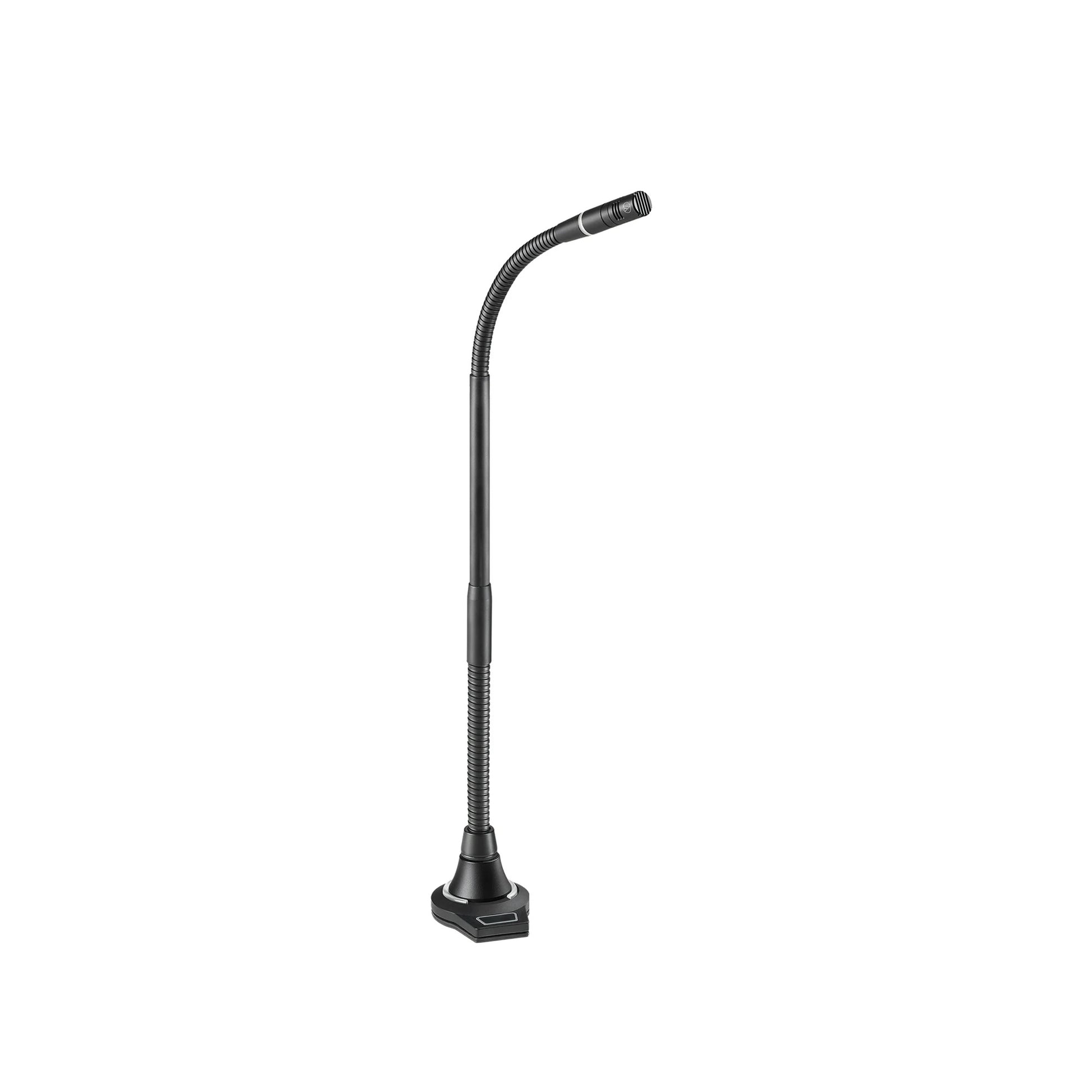

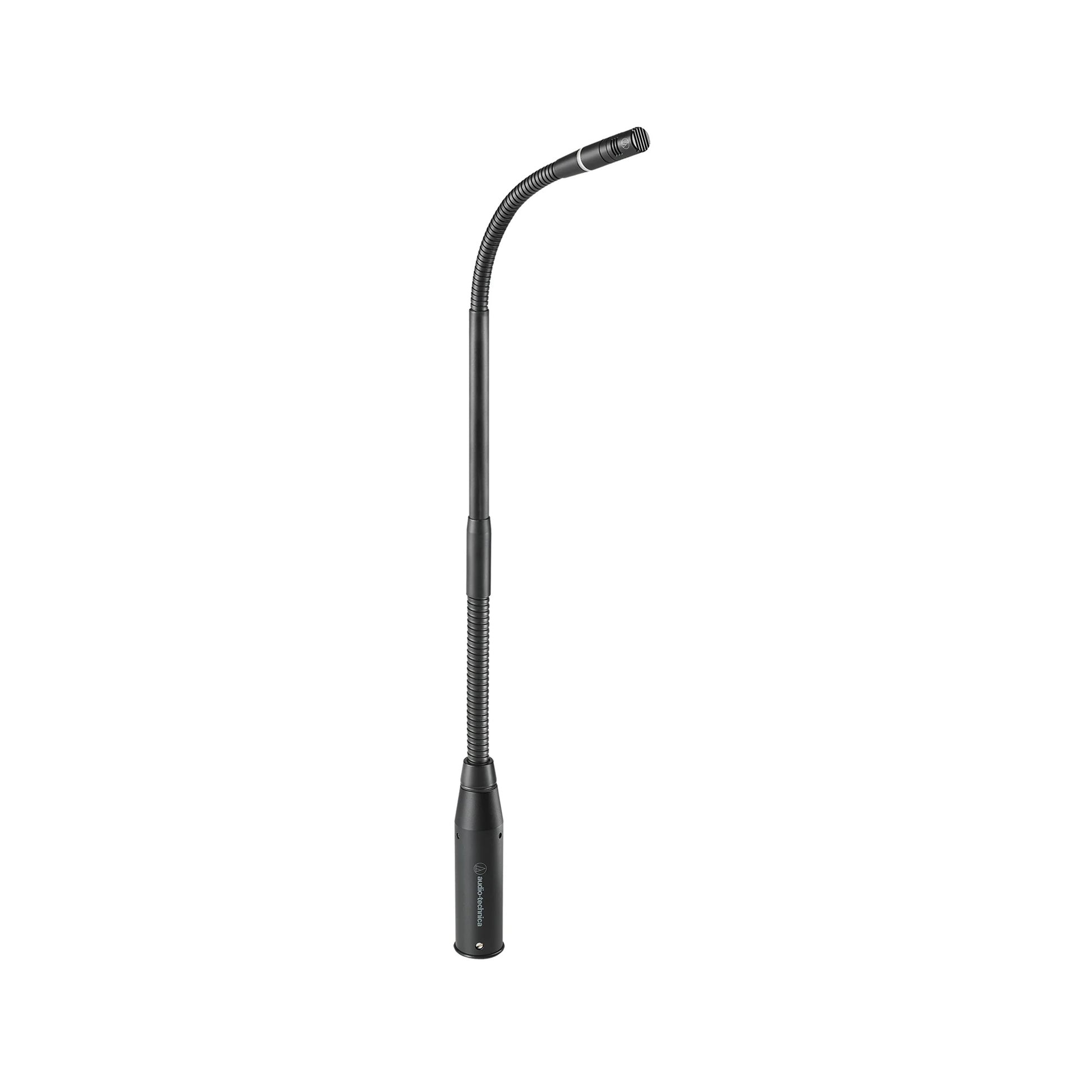

Gooseneck Length
12.08"
Overall Assembled Dimensions
20.2 mm (0.80") dia x 381.0 mm (15.00") height
Weight
Weight
131.0 g (4.6 oz)
Connectivity

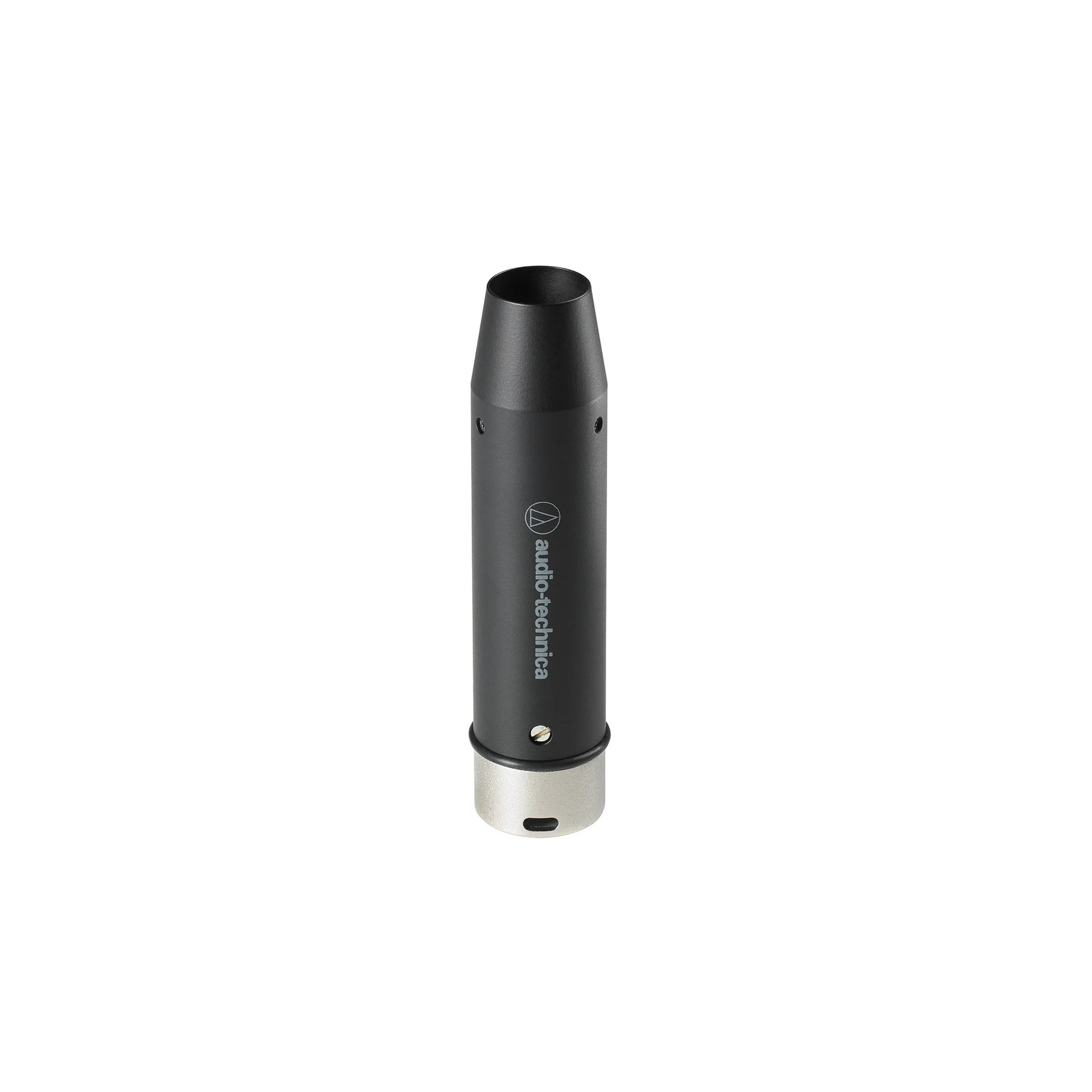

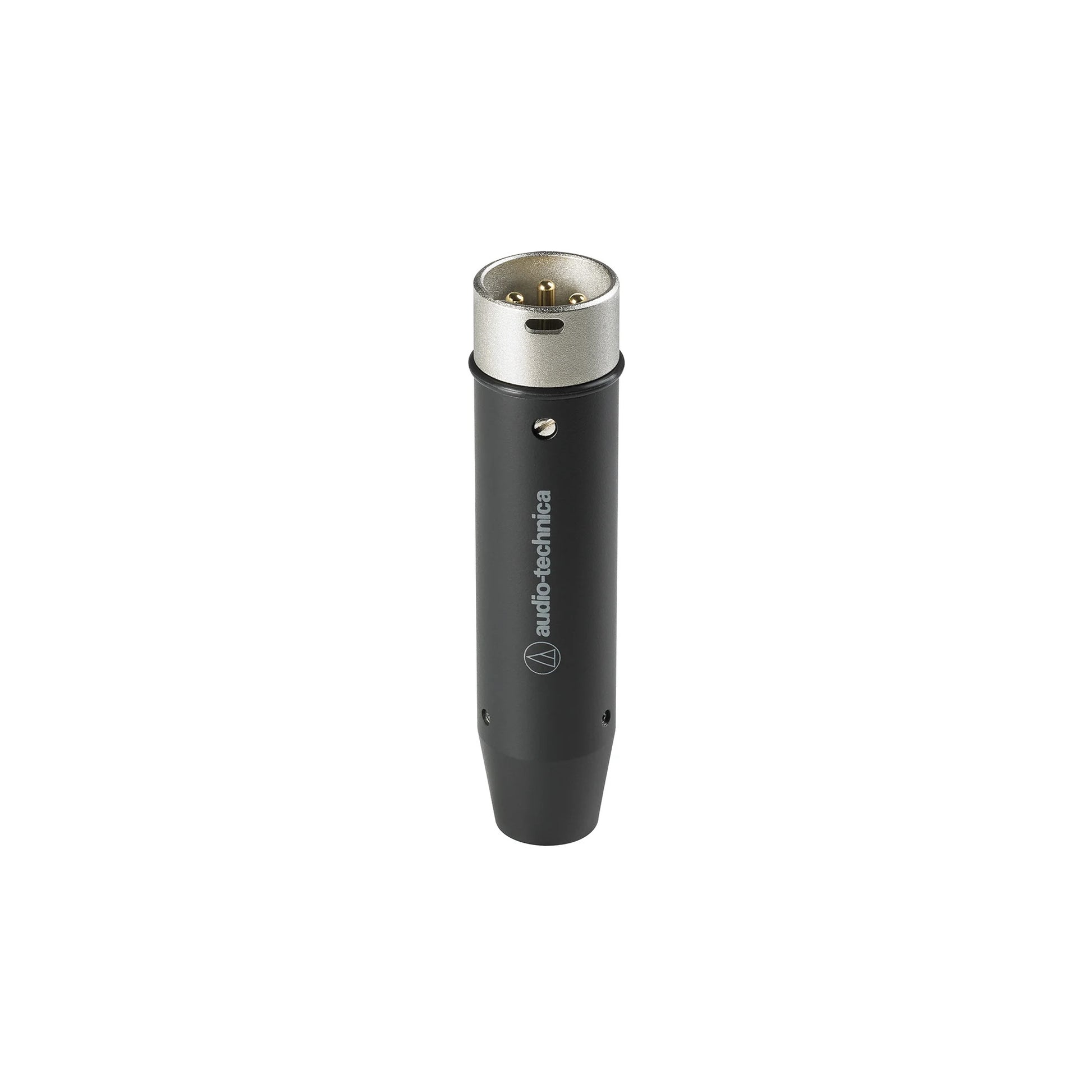

Output Connector
Integral 3-pin XLRM-type
Compatibility
Optional Interchangeable Elements
ESE-Ca cardioid (120°); ESE-Ha hypercardioid (100°); ESE-MLa MicroLine (90°); ESE-Oa omnidirectional (360°)
Included Items
Accessories Included
AT8109a foam windscreen; AT8474 universal isolation mount; AT8473 quick mount stand adapter; 5/8"-17 to 3/8"-16 threaded adapter; set screw (M2 x 2); hex wrench
Identifiers
Audio-Technica Case Style
M43
