Specifications
Audio
Element Type
Fixed-charge back plate, permanently polarized condenser
Polar Pattern
MicroLine (Line + Gradient)
Acceptance Angle
90°
Frequency Response
30-20,000 Hz
Open Circuit Sensitivity
-35 dB (17.7 mV) re 1V at 1 Pa
Impedance
130 ohms
Maximum Input Sound Level
137 dB SPL
Dynamic Range
114 dB
Signal-to-Noise Ratio
71 dB
Electrical
Phantom Power Requirements
11-52V DC
Current Consumption
6.7 mA
Controls
Switches
LED Color
Dimensions

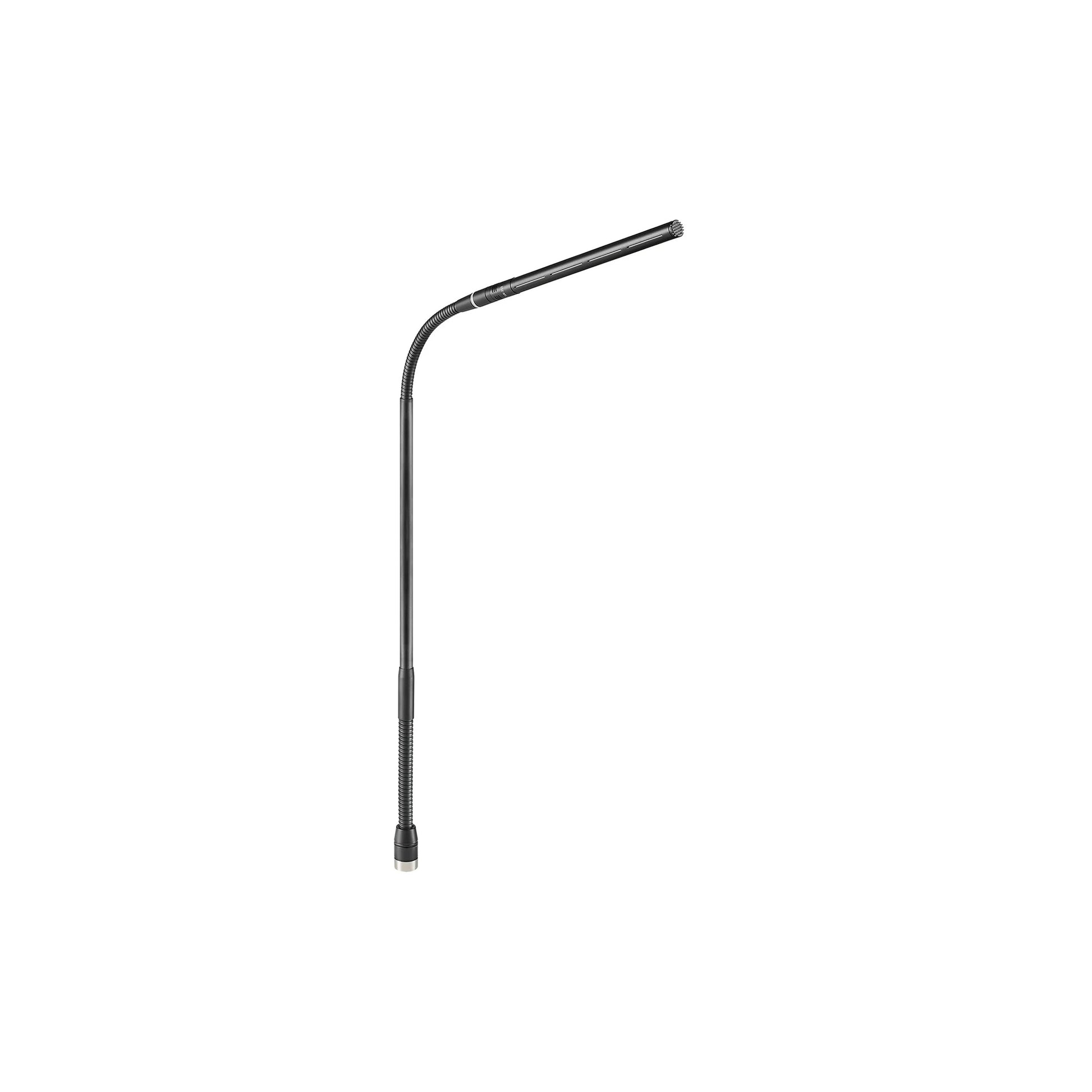

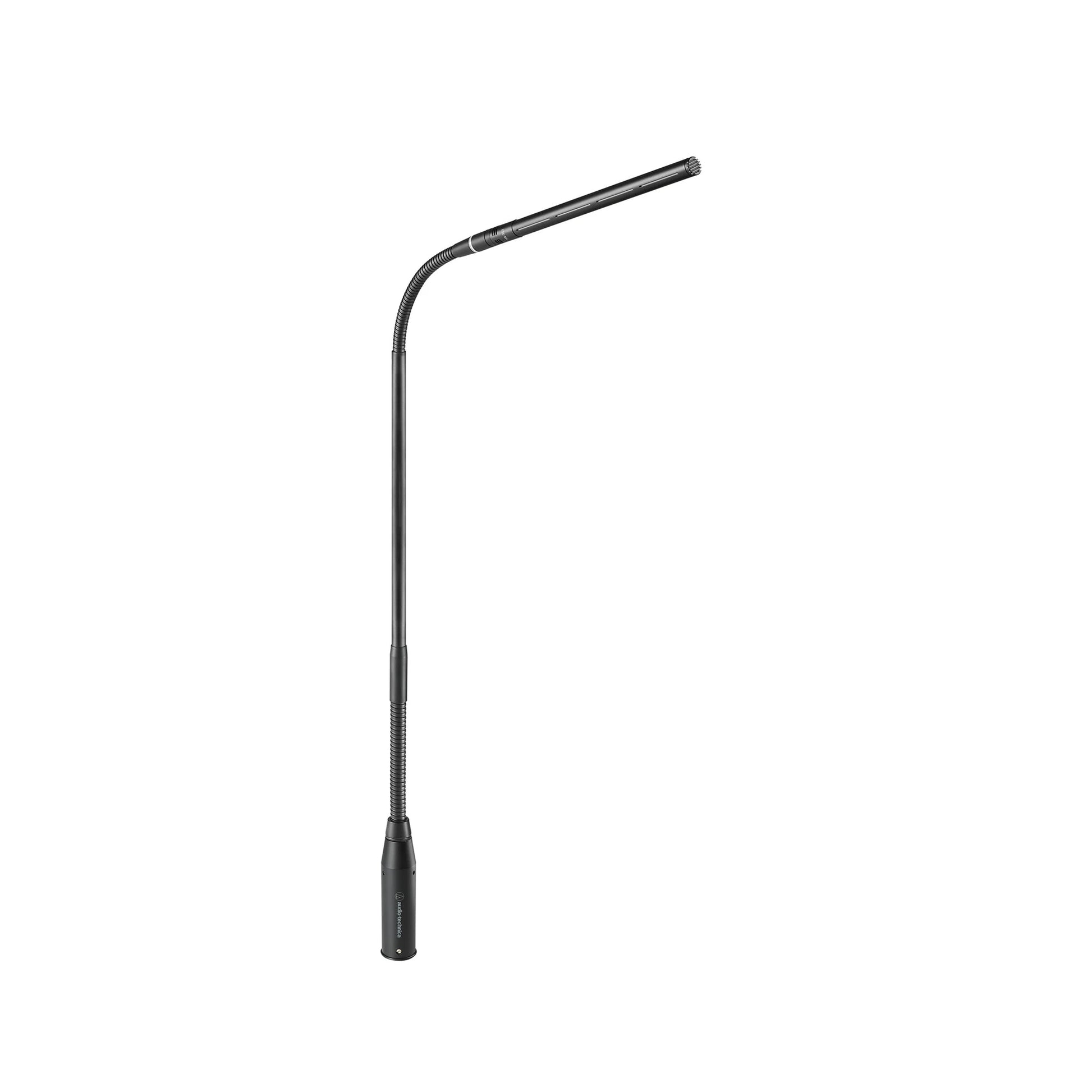

Gooseneck Length
15.08"
Overall Assembled Diameter
20.2 mm (0.80")
Overall Assembled Height
576.2 mm (22.69")
Weight
Unit Weight
140.2 g (4.9 oz)
Connectivity
Output Connector

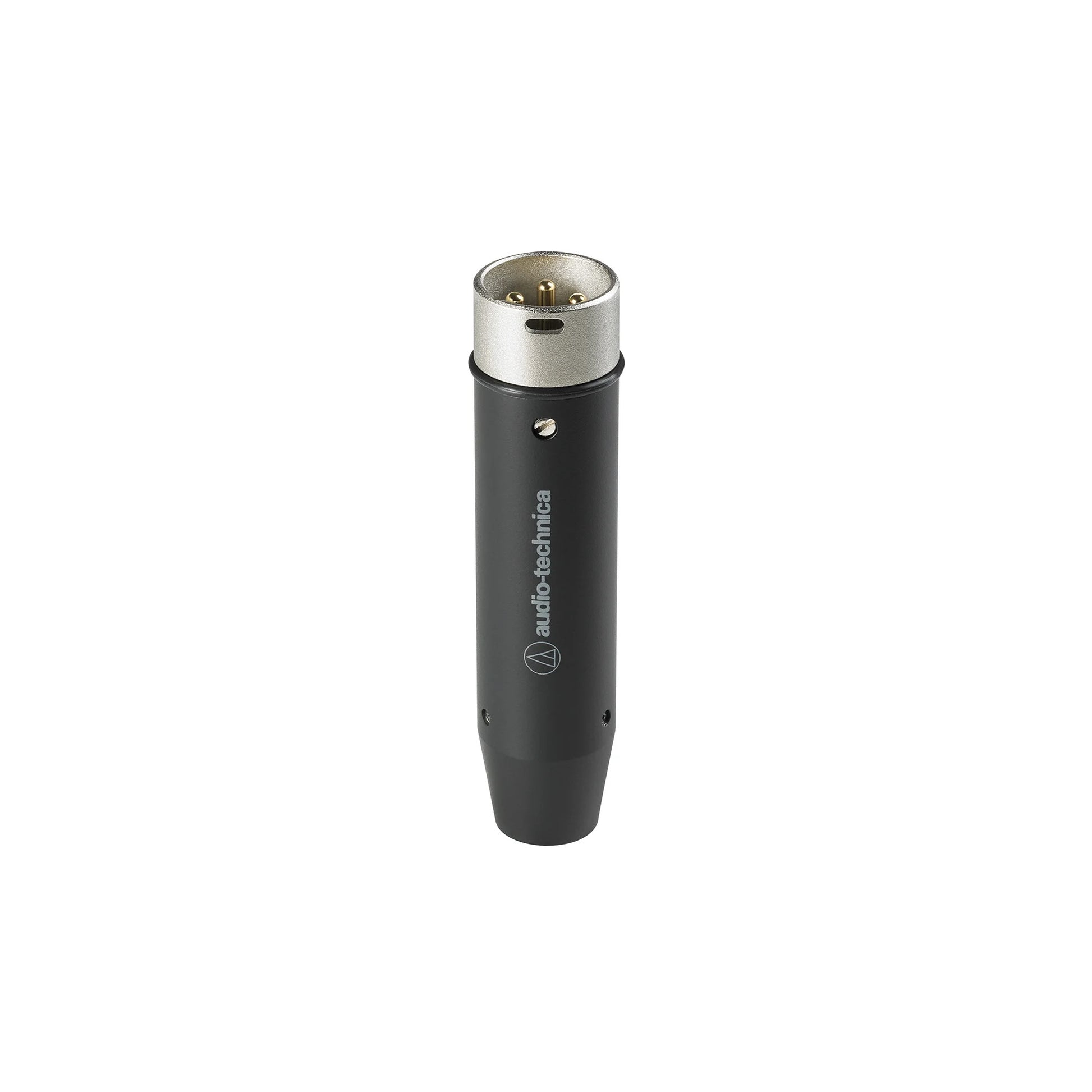

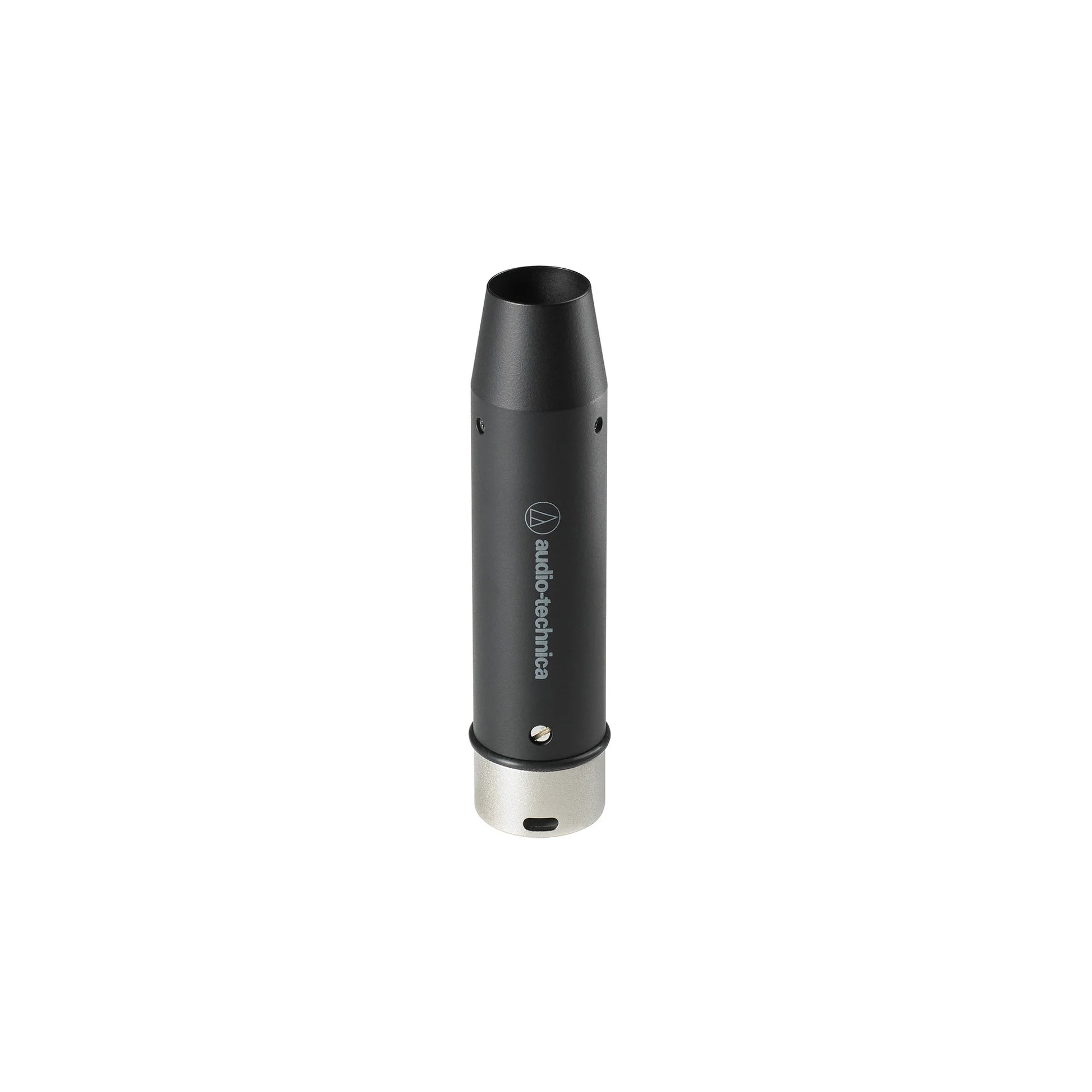

Integral 3-pin XLRM-type
Compatibility
Optional Interchangeable Elements
ESE-Ca cardioid (120°); ESE-Ha hypercardioid (100°); ESE-MLa MicroLine (90°); ESE-Oa omnidirectional (360°)
Included Items
Foam Windscreen
AT8109a
Universal Isolation Mount
AT8474
Quick Mount Stand Adapter
AT8473
Threaded Adapter
5/8"-17 to 3/8"-16
Hardware
Set screw (M2 x 2); hex wrench
Identifiers
Audio-Technica Case Style
M43
