Specifications
Certifications
TAA Compliant
Yes
Audio
Element
Fixed-charge back plate, permanently polarized condenser
Polar Pattern
MicroLine (Line + Gradient)
Acceptance Angle
90°
Frequency Response
30-20,000 Hz
Open Circuit Sensitivity
-35 dB (17.7 mV) re 1V at 1 Pa
Impedance
130 ohms
Maximum Input Sound Level
137 dB SPL
Dynamic Range
114 dB
Signal-to-Noise Ratio
71 dB
Electrical
Phantom Power Requirements
11-52V DC
Current Consumption
6.7 mA
Controls
Switches
LED Color
Dimensions

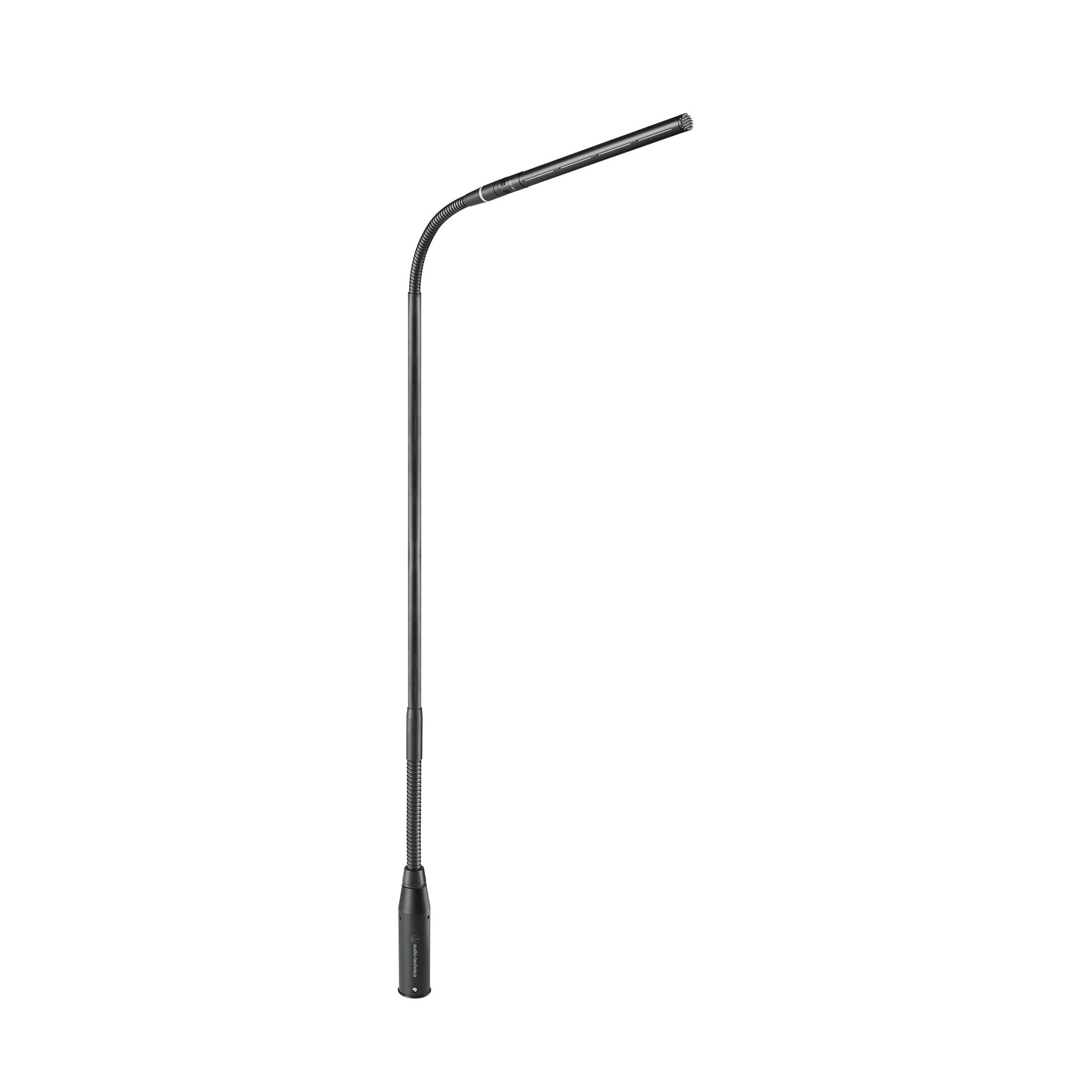

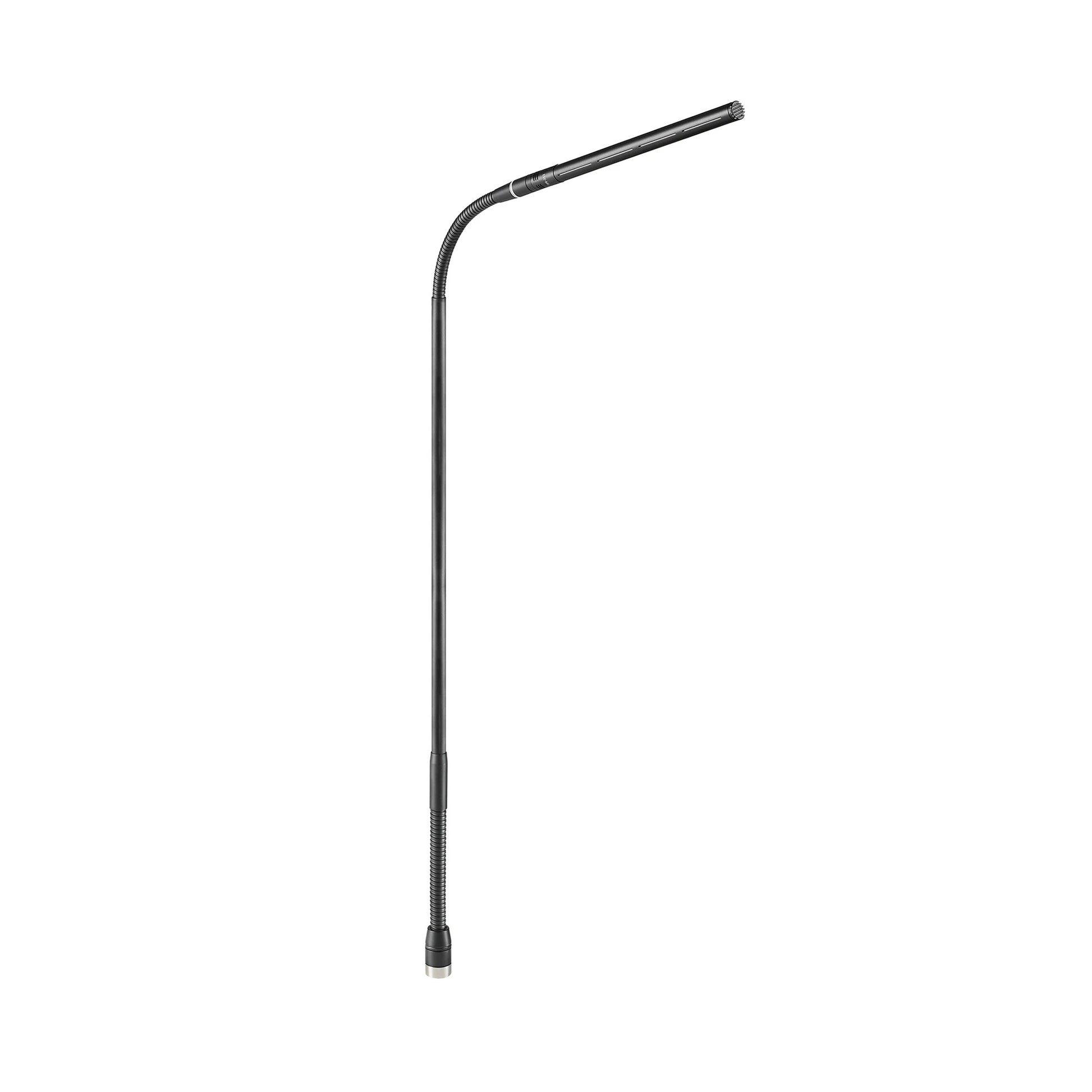

Gooseneck Length
18.08"
Overall Assembled Dimensions
20.2 mm (0.80") dia x 652.4 mm (25.69") height
Weight
Weight
145.2 g (5.1 oz)
Connectivity

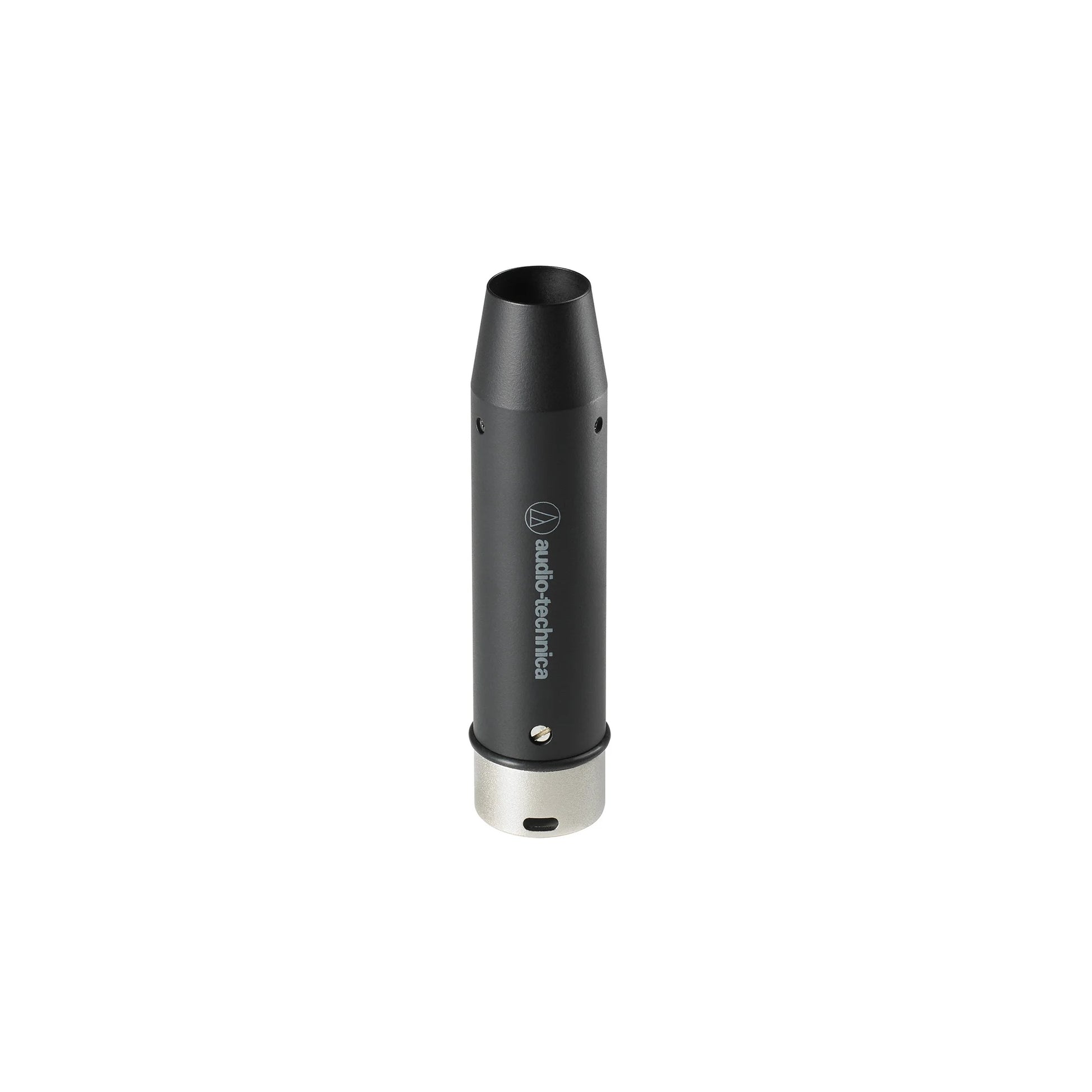

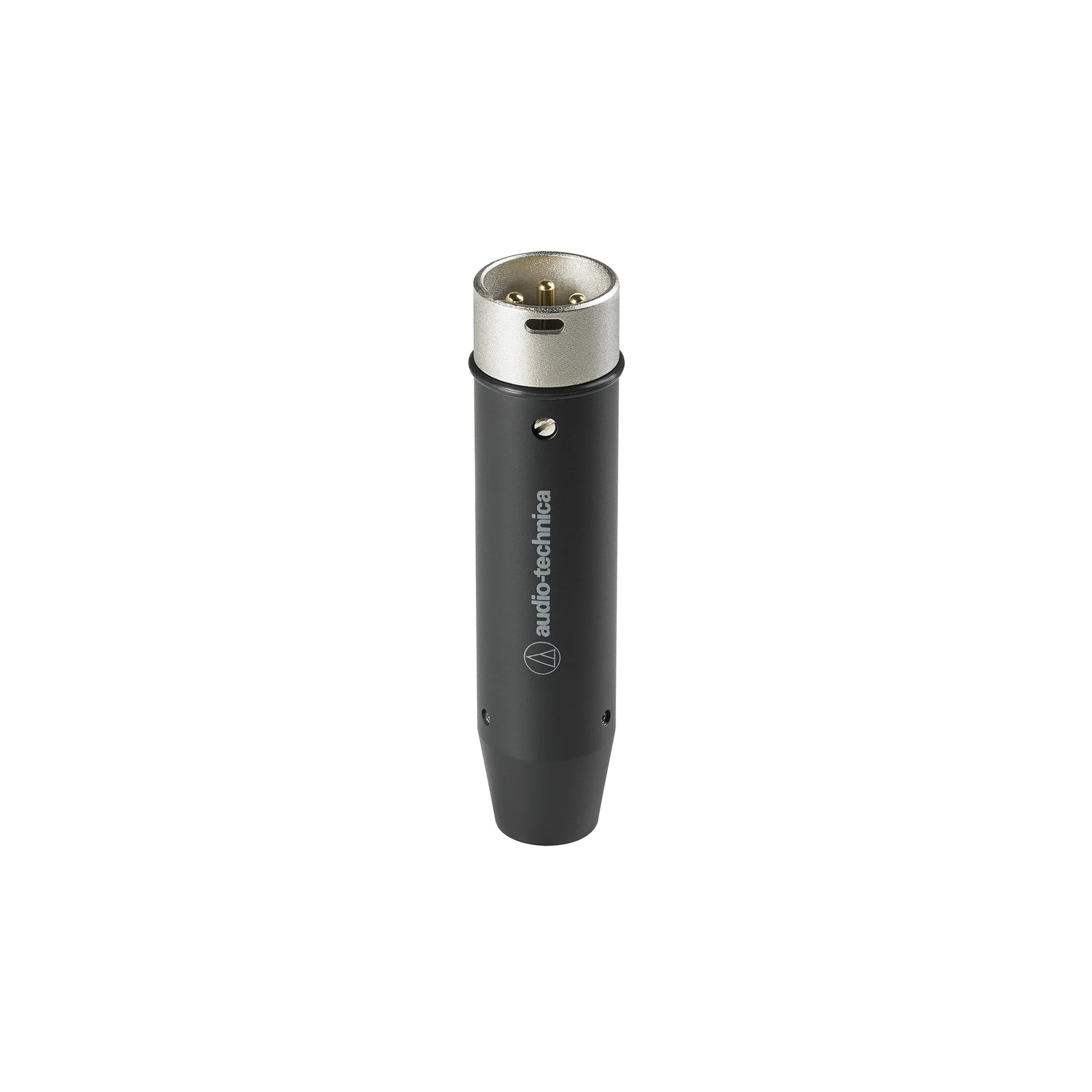

Output Connector
Integral 3-pin XLRM-type
Included Items
Foam Windscreen
AT8109a
Universal Isolation Mount
AT8474
Quick Mount Stand Adapter
AT8473
Threaded Adapter
5/8"-17 to 3/8"-16
Set Screw
M2 x 2
Hex Wrench
Included
Compatibility
Optional Interchangeable Elements
ESE-Ca cardioid (120°); ESE-Ha hypercardioid (100°); ESE-MLa MicroLine (90°); ESE-Oa omnidirectional (360°)
Audio-Technica Case Style
M43
