• Audio-Technica U841R Omnidirectional Condenser Boundary Microphone
1 1

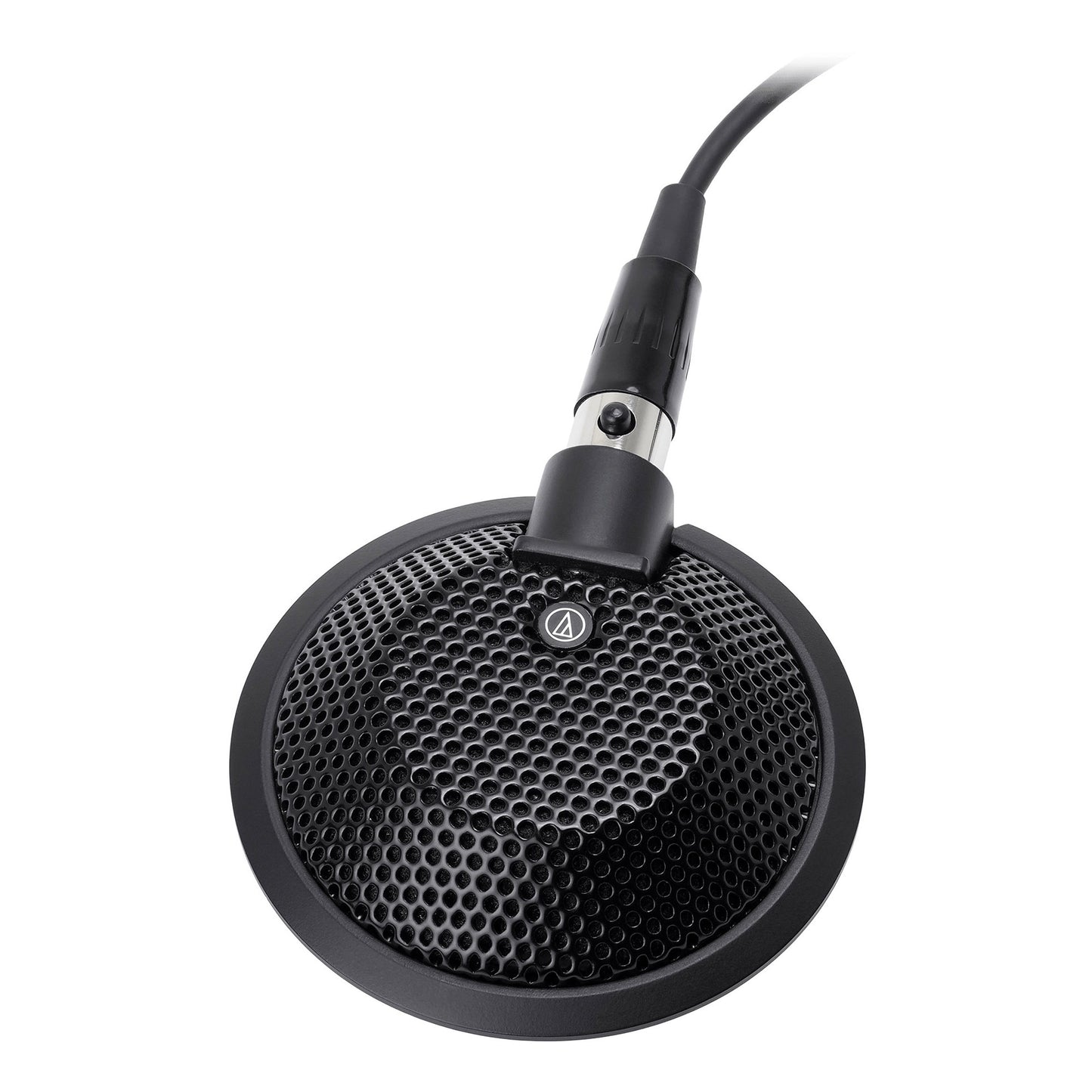

Audio-Technica U841R Omni Condenser Boundary Microphone

Audio-Technica U841R Omni Condenser Boundary Microphone

SoundPro Item: 67880 | Part Number: U841R

$239.00
$359.00 $239.00
Your Price Sold out
MSRP: $359.00 | MAP: $239.00

Usually ships in 5-7 business days

  • Designed for surface-mount applications where highly intelligible sound quality is required
  • Small-diameter omnidirectional capsule near boundary eliminates phase distortion and delivers clear, high-output performance
  • Superior off-axis rejection for maximum gain before feedback
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Heavy die-cast case and non-slip silicon foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
Log in or register for YOUR best price

The U841R delivers exceptionally intelligible audio reproduction in a super-compact, low-profile design. Equipped with UniGuard® RFI-shielding technology, this omnidirectional condenser boundary microphone is designed for clear, highly intelligible sound quality in surface-mount applications. The phantom-powered U841R is equipped with self-contained electronics, eliminating the need for an external power module.

View full details

Specifications

Dimensions
Dimensions
65 mm (2.56") diameter, 15.1 mm (0.59") height
Electrical
Phantom Power Requirements
11-52V DC, 2 mA typical
Audio
Polar Pattern
Omnidirectional in hemisphere above mounting surface
Frequency Response
40 Hz - 20 kHz
Output Impedance
200 ohms
Sensitivity
-35 dBV/Pa (17.7 mV)
Signal-to-Noise Ratio
69 dB, 1 kHz at 1 Pa
Connectivity
Maximum Input Sound Level
130 dB, 1 kHz at 1% T.H.D.
Connector
TB3M
Construction
Cable
7.6 m (25 feet) long, 3.2 mm (0.13") diameter, 2-conductor, shielded cable with TA3F-type and XLRM-type connectors
Shipping
Weight
84 g (3 oz)
General
Transducer Type
Condenser
Dynamic Range
105 dB, 1 kHz at Max SPL
