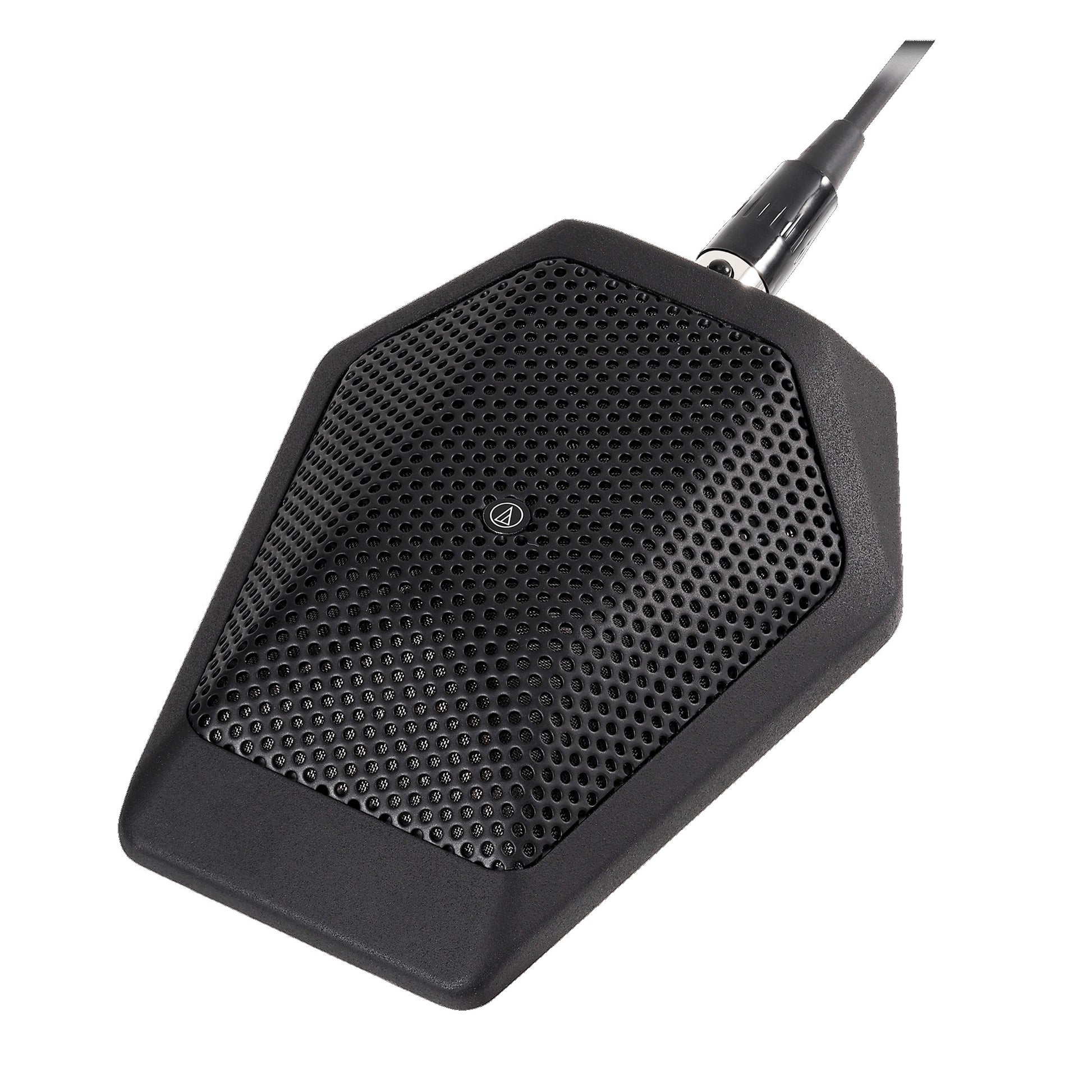

Audio-Technica U851RB Condenser Boundary Microphone | Model: U851RBO

Audio-Technica U851RB Condenser Boundary Microphone | Model: U851RBO

SoundPro Item: 42213 | Part Number: U851RBO

Regular price $259.00
Regular price $389.00 Sale price $259.00
Your Price Sold out
MSRP: $389.00 | MAP: $259.00

Usually ships in 5-7 business days

  • Designed for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing and other demanding sound pickup situations
  • Superior off-axis rejection for maximum gain before feedback
  • PivotPoint® rotating output connector allows cable to exit from either the rear or the bottom of the microphone
  • Small-diameter UniPoint® element near boundary eliminates phase distortion and delivers clear, high-output performance
  • Available interchangeable elements permit angle of acceptance from 100° to 360°
  • UniGuard® RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI)
  • Self-contained electronics eliminate need for external power module
  • Heavy die-cast case and non-slip silicone foam bottom pads minimize coupling of surface vibration to the microphone
  • Low-profile design with low-reflectance finish for minimum visibility
  • Threaded inserts on bottom of microphone allow it to be mounted with screws for increased security

Microphone Configurations

  • U851Rb: cardioid polar pattern (120° acceptance angle), black finish
  • U851RWb: cardioid polar pattern (120° acceptance angle), white finish
  • U851RbO: omnidirectional polar pattern (360° acceptance angle), black finish

The Audio-Technica U851RB Condenser Boundary Microphone is available in different colors and polar patterns. Each option has a 25.0' (7.6 m) cable with TA3F connector at the microphone and XLRM output connector.

The phantom-powered U851Rb condenser boundary microphone offers outstanding speech intelligibility and transparent sound quality for surface-mount applications such as high-quality sound reinforcement, professional recording, television, conferencing, and other demanding sound pickup situations. The microphone is equipped with a PivotPoint® rotating output connector, UniSteep® filter, and UniGuard® RFI-shielding technology. With a heavy die-cast case and silicon foam bottom pads to minimize coupling of surface vibration to the microphone, the U851Rb is equipped with self-contained electronics, eliminating the need for an external power module. Threaded inserts on the bottom of the microphone allow it to be mounted with screws for increased security.

View full details

Specifications

Dimensions
Dimensions
0.91" (23 mm) H x 3.3" (83.9 mm) W x 4.25" (108 mm) D
Electrical
Phantom Power Requirements
11-52V DC, 4.4 mA
Audio
Polar Patterns
Cardioid and Omnidirectional
Frequency Response
20 Hz - 20 kHz
Output Impedance
50 ohms
Open Circuit Sensitivity
-34 dB (19.9 mV) re 1V at 1 Pa
Signal-to-Noise Ratio
68 dB, 1 kHz at 1 Pa, A-weighted
Connectivity
Maximum Input Sound Level
134 dB SPL, 1 kHz at 1% T.H.D.
Output Connector
Microphone: TB3M-type Cable: 3-pin XLRM-type
Construction
Cable
25 feet (7.6 m) long, 0.13" (3.2 mm) diameter, 2-conductor, shielded cable with TA3F and XLRM connectors
Shipping
Weight
253 g (8.9 oz)
General
Transducer Type
Condenser
Low Frequency Roll Off
80 Hz, 18 dB/octave
Dynamic Range
108 dB, 1 kHz at Max SPL
Switches
Flat, roll-off
