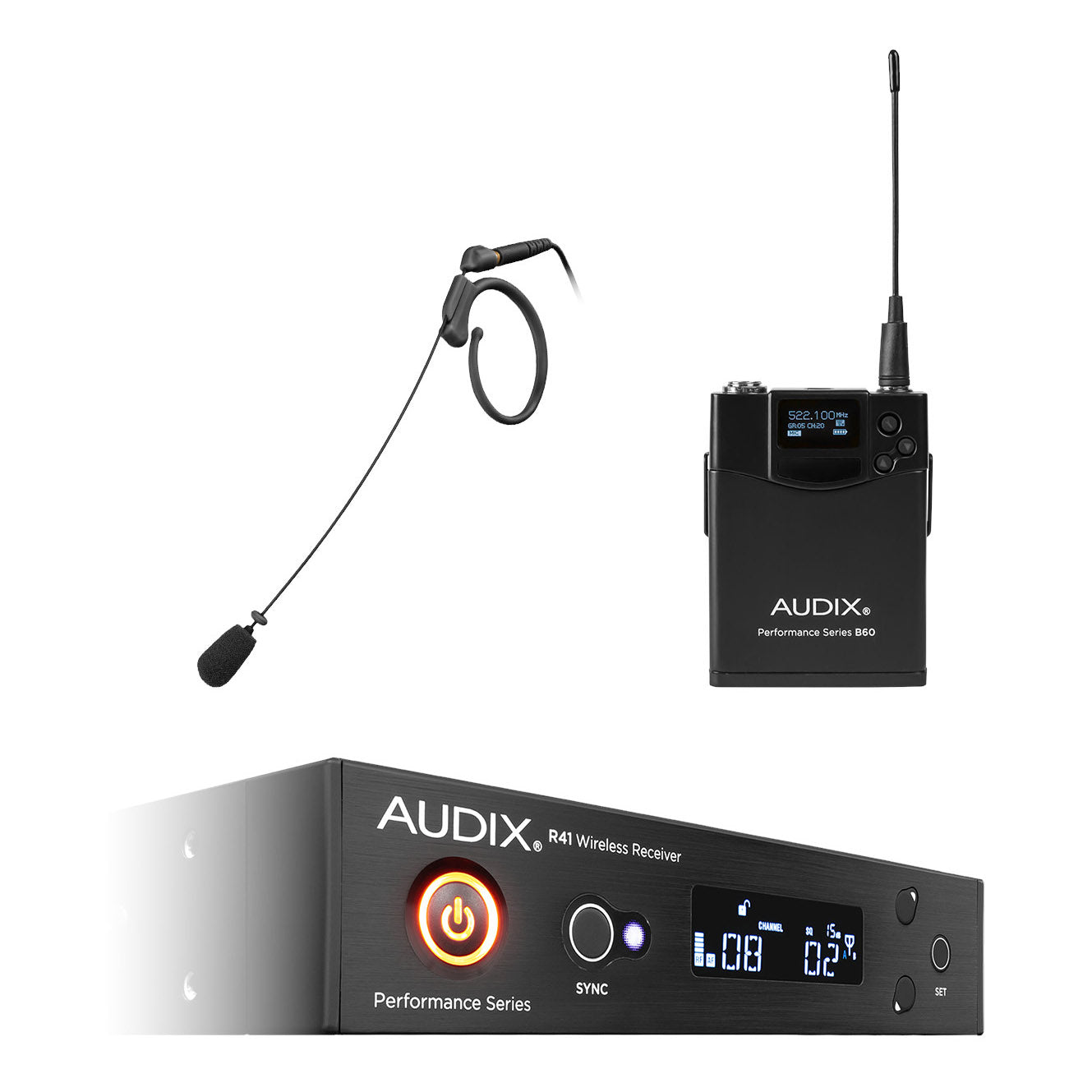

Audix AP41 HT7 Wireless Headworn Microphone System | Frequency: A (522-554 MHz), Color: Black
Audix AP41 HT7 Wireless Headworn Microphone System | Frequency: A (522-554 MHz), Color: Black
SoundPro Item: 28400 | Part Number: AP41HT7A
Usually ships in 5-7 business days
- 32 MHz Wide spectrum receiver
- 106 Pre-coordinated frequencies on the receiver for quick, easy, and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
- 64 MHz Wide spectrum transmitter
- Transmitter can run for up to 14 hours on AA batteries
Headset is available in black and beige.
The Audix AP41 HT7 Wireless Headworn Microphone System features the HT7 single ear miniaturized head-worn condenser microphone.
The HT7 is a professional single ear head-worn condenser microphone designed for stage, presentation, and broadcast applications. With a miniaturized element of only 3mm, the HT7 is the smallest microphone in the Audix lineup. The omnidirectional HT7 features a comfortable earpiece that can be worn around the left or right ear and a durable adjustable length boom arm.
- R41 Receiver
- Frequency Range
- A: 522MHz- 554MHz
- B: 554MHz - 586MHz
- Bandwidth: 32MHz
- Compatible Systems: up to 16 systems
- Switchable Frequencies: 106 pre-coordinated frequencies
- Frequency Response: 45Hz - 18,000Hz
- Compander System: 2:1
- Pilot Tone: 32kHz
- Receiving System: single tuner, antenna diversity
- Signal-to-Noise Ratio: 105dB at 30kHz deviation (A-weighted)
- THD: ≤0.7% (33 kHz deviation at 1 kHz
- Sensitivity: 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
- Audio Output (Level=6)
- Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dbv @ 25 kHz deviation, 10 ohm load
- Output Connectors: 1/4", XLR
- Audio Level Adjustment: -12 to +9 in 3dB steps
- Range: 300 ft (91 m)
- Power Supply: 100 - 240 V / 50 - 60 Hz, 12 V DC, 1A
- Dimensions (WxDxH): 8.07" x 8.11" x 1.73"
- Weight: 1.92 pounds
- B60
- RF Power Output: 10 mW, 30 mW
- Frequency Bandwidth: 64 MHz
- Gain Controls: 0dB, -6dB, -12dB, -24dB
- Input Connector: 3 pin mini-XLR
- Batteries Included: 2 AA 1.5 V
- Current Consumption: 110 mA typical
- Battery Life: approx. 14 hours
- Input Impedance
- Mic: 10kΩ
- Line: 1MΩ
- Max. SPL: approx. 128 - 140 dB (depending on microphone)
- Dimensions (WxLxD): 2.6" x 3.5" x 0.67"
- Weight: 3 oz (without batteries)
