Audix DN4 Dante Aes67 Interface For 4 Single Element
Audix DN4 Dante Aes67 Interface For 4 Single Element
SoundPro Item: 46194 | Part Number: DN4
Usually ships in 5-7 business days
- Height: 1.1"
- Width: 8"
- Depth: 4.9"
- Weight (Approximate): 1.41 lb
- Application/Usage: Meeting Room
- Application/Usage: Convention Center
- Application/Usage: Education
- Application/Usage: House of Worship
- Compatibility: Audix: DN43 M70WD M55WD
- DN43
- M70WD
- M55WD
- Environmentally Friendly: Yes
- Environmental Certification: RoHS
- Environmental Certification: WEEE
- Country of Origin: United States
- Meeting rooms
- Convention centers
- Educational facilities
- Houses of worship

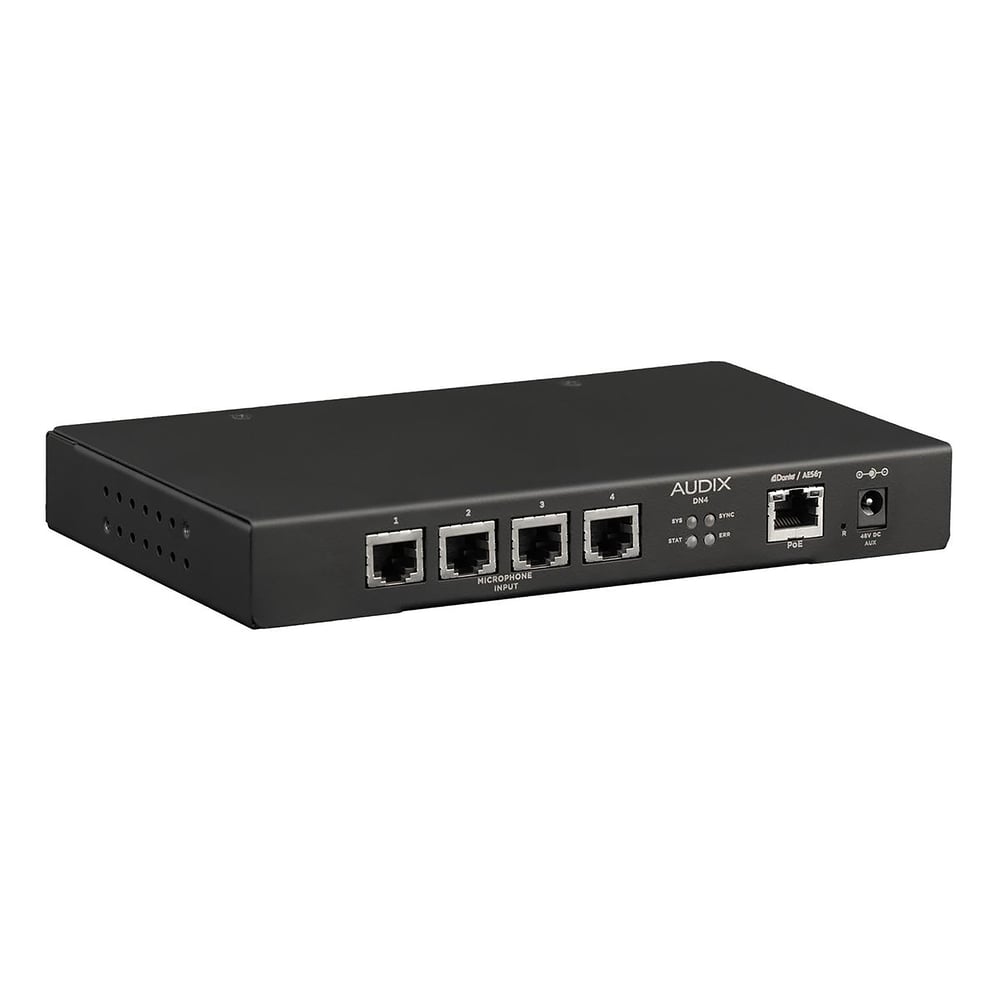

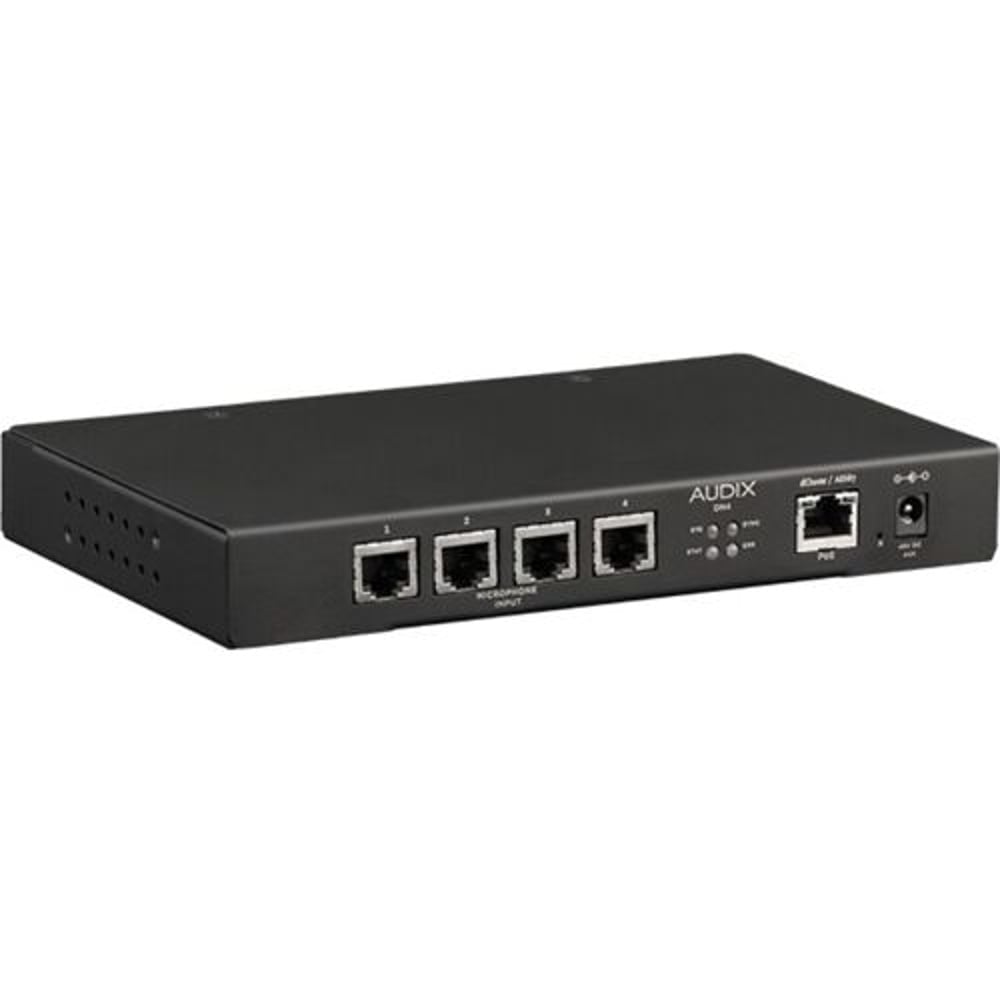

The DN4 microphone interface is a key part of the Audix Dante | AES67 Integrated Microphone System, the fast, trouble-free way to stream Audix audio performance through Ethernet networks. High-quality audio and all microphone functions - including on-off contact closure and LED status indicators - are available through a single CAT5 - CAT7 cable with RJ45 connections at both interface and microphone. This simple configuration eliminates wiring errors, accelerates installation, and reduces cost. The DN4 features four inputs for Audix RJ45-equipped, single-element microphones and two 5V logic outputs per port, with source/sink capability for LEDs that are controlled by network-connected DSPs and one logic input per port for buttons. Low-pass and high-pass filter settings are available on each audio channel, as are eight selectable gain levels, with all settings configurable via software.
