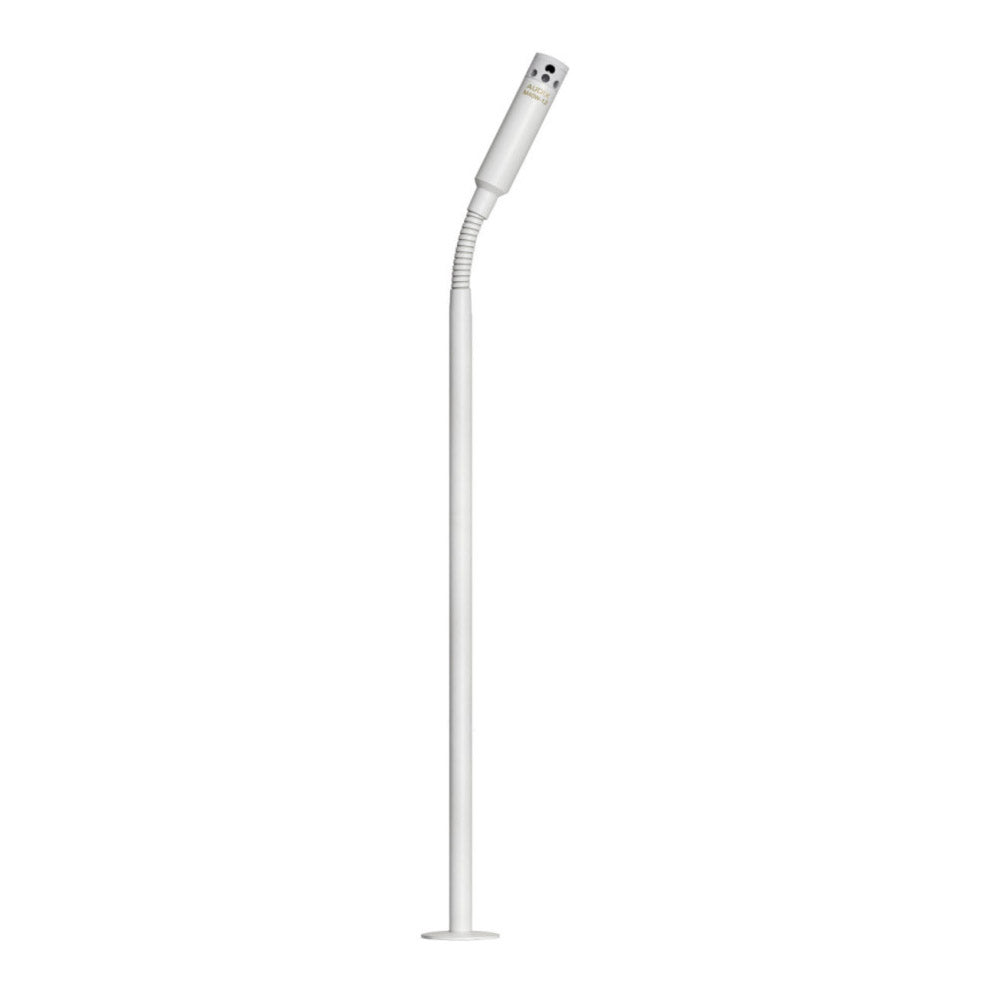

• Audix M40 Miniature Condenser Ceiling Microphone
1 1

Audix M40 Miniature Condenser Ceiling Microphone | Model: M40W12HC

Audix M40 Miniature Condenser Ceiling Microphone | Model: M40W12HC

SoundPro Item: 73336 | Part Number: M40W12HC

$490.00
$588.00 $490.00
Your Price Sold out
MSRP: $588.00 | MAP: $490.00

Usually ships in 5-7 business days

  • Optimized for voice recognition
  • Immunity from RF interference
  • Point and shoot directivity
  • Integrated preamp circuitry
  • 12mm gold vapor diaphragm
  • Extremely low noise, high sensitivity
  • 3 Year Warranty
Log in or register for YOUR best price

The M40 is a miniaturized condenser microphone with a fully integrated preamp designed with very high sensitivity for distance miking. The primary applications for the ceiling-mounted M40 include Video & Teleconferencing (VTC), distance learning, hospital rooms, surveillance, and ambient room miking.

The M40 ceiling microphone has complete immunity from RF interference caused by cell phones and GSM devices. The M40, which comes with a cardioid capsule, is also available with hypercardioid or shotgun capsules, allowing for the microphone to be used in a wide variety of applications.

The M40 installed ceiling microphone is easy to install requiring only that a 5/8 inch hole be drilled in the ceiling with no additional tools required. The cable assembly is equipped with a terminal block connector. For installations where a plenum-rated cable is to be used, a UL-rated metal plenum junction box is available.

M40 Models

  • M40W12: cardioid capsule, 12" gooseneck
  • M40W6: cardioid capsule, 6" gooseneck
  • M40W12HC: hypercardioid capsule, 12" gooseneck
  • M40W6HC: hypercardioid capsule, 6" gooseneck
  • M40W12S: shotgun capsule, 12" gooseneck
  • M40W6S: shotgun capsule, 6" gooseneck
View full details

Specifications

Electrical
Power Requirements
18 - 52 V phantom
Audio
Polar Patterns
Cardioid (M40W12, M40W6), Hypercardioid (M40W12HC, M40W6HC), Shotgun (M40W12S, M40W6S)
Frequency Response
60 Hz - 10 kHz
Output Impedance
150 Ω
Sensitivity
37 mV / Pa @ 1k
Max SPL
≥130 dB (@ .5% THD)
Connectivity
Connector
terminal block connector
Construction
Construction
copper and steel powder coat
Shipping
Weight
0.7 oz (20 g)
Identifiers
Length
2.1"
General
Transducer Type
Condenser
Equivalent Noise Level
22 dB (A-weighted)
Dynamic Range
108 dB
