Specifications

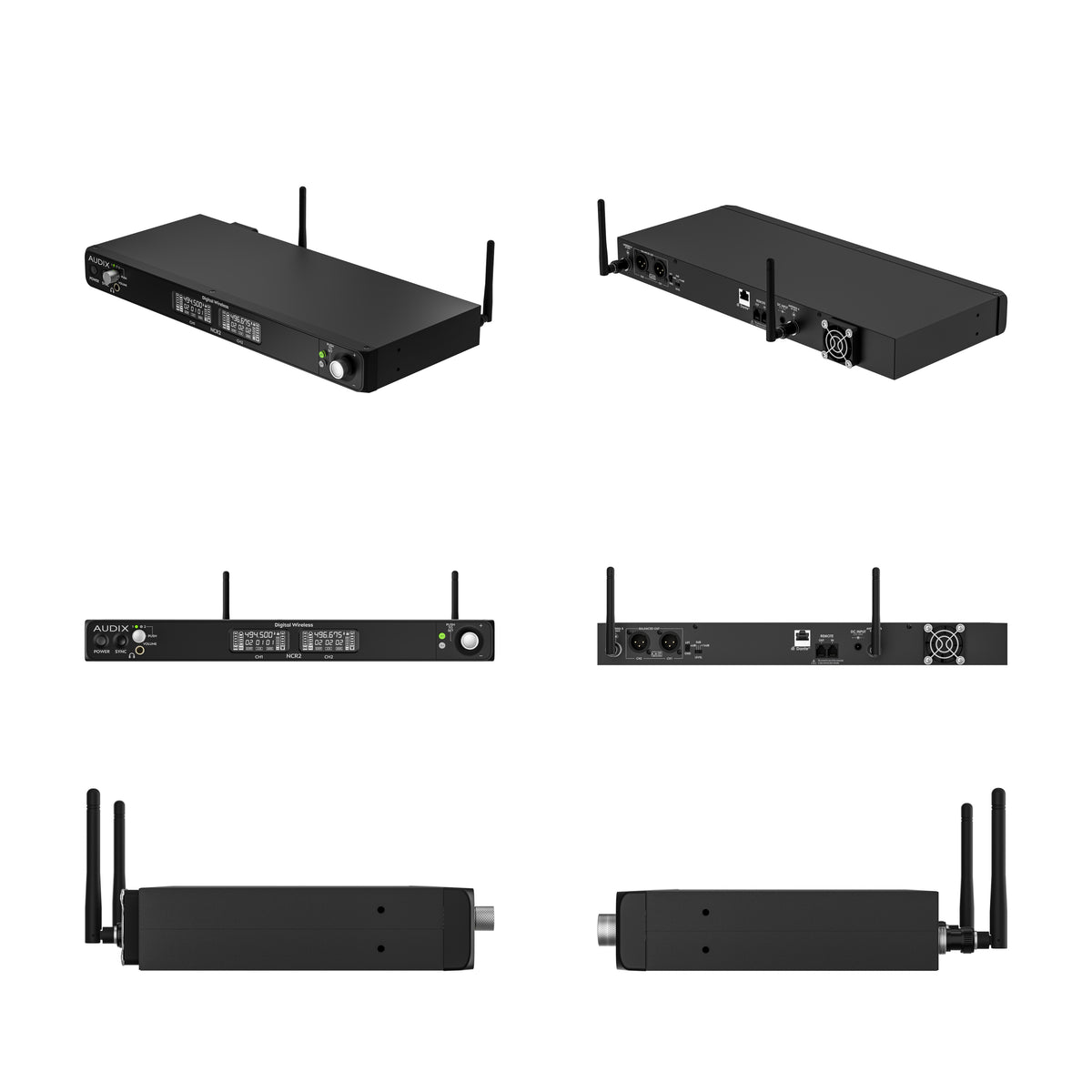

Receiver (NCR2)
RF Frequency Range
UHF 494-542 MHz (country dependent)
RF Bandwidth
48 MHz
Encryption
AES 256-bit
Frequency Response
20 Hz-20 kHz (< -2 dB)
Latency
< 3 ms
Audio Processing
44.1 kHz / 24-bit
Dynamic Range
> 110 dBA
Receiving Mode
Digital Diversity
Sensitivity
85 dBm
Spurious Rejection
> 80 dB
Antenna Type
1/4-wave
Antenna Connector
BNC Female, Detachable, 50 Ohm
XLR Output Impedance
600 Ohm
XLR Output Level
+18 dBV
Output Level Switch
-6 dB, 0 dB, +16 dB
Ground Lift Switch
Yes
Networking
Dante/AES67 via RJ45; RJ11 x 2 for PC software control
Power Requirements
12 VDC @ 300 mA
Chassis
1U (19")
Display
LCD
Weight
Approx. 2.0 kg / 4.5 lbs (without antennas)
Dimensions (W x H x D)
419 x 44 x 216 mm
Materials / Finish
Steel / Black Finish

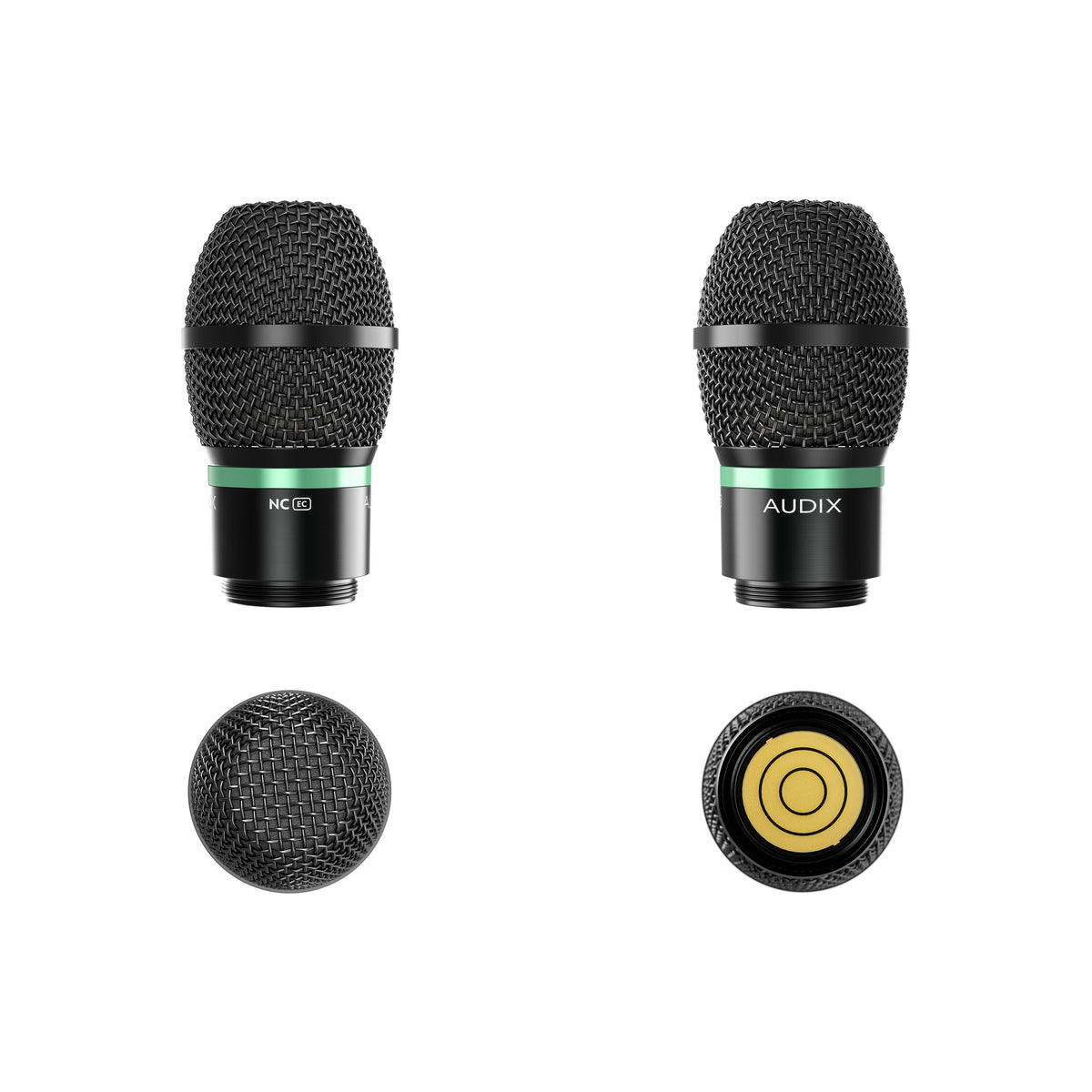

Capsule (NCEC)
Transducer Type
Dynamic
Polar Pattern
Cardioid
Capsule Technology
VLM
Frequency Response (-6 dB)
50 Hz - 14 kHz
Capsule Impedance
280 Ohms
Sensitivity
1.5 mVrms / Pa @ 1 kHz / @ 0.25 m
Off-Axis Rejection
> 25 dB
Maximum SPL
144 dB SPL
Connector
1/4-28 UN thread pitch, S-Type
Materials / Finish
Aluminum / Black Finish
Weight
188 grams
Height
88.5 mm

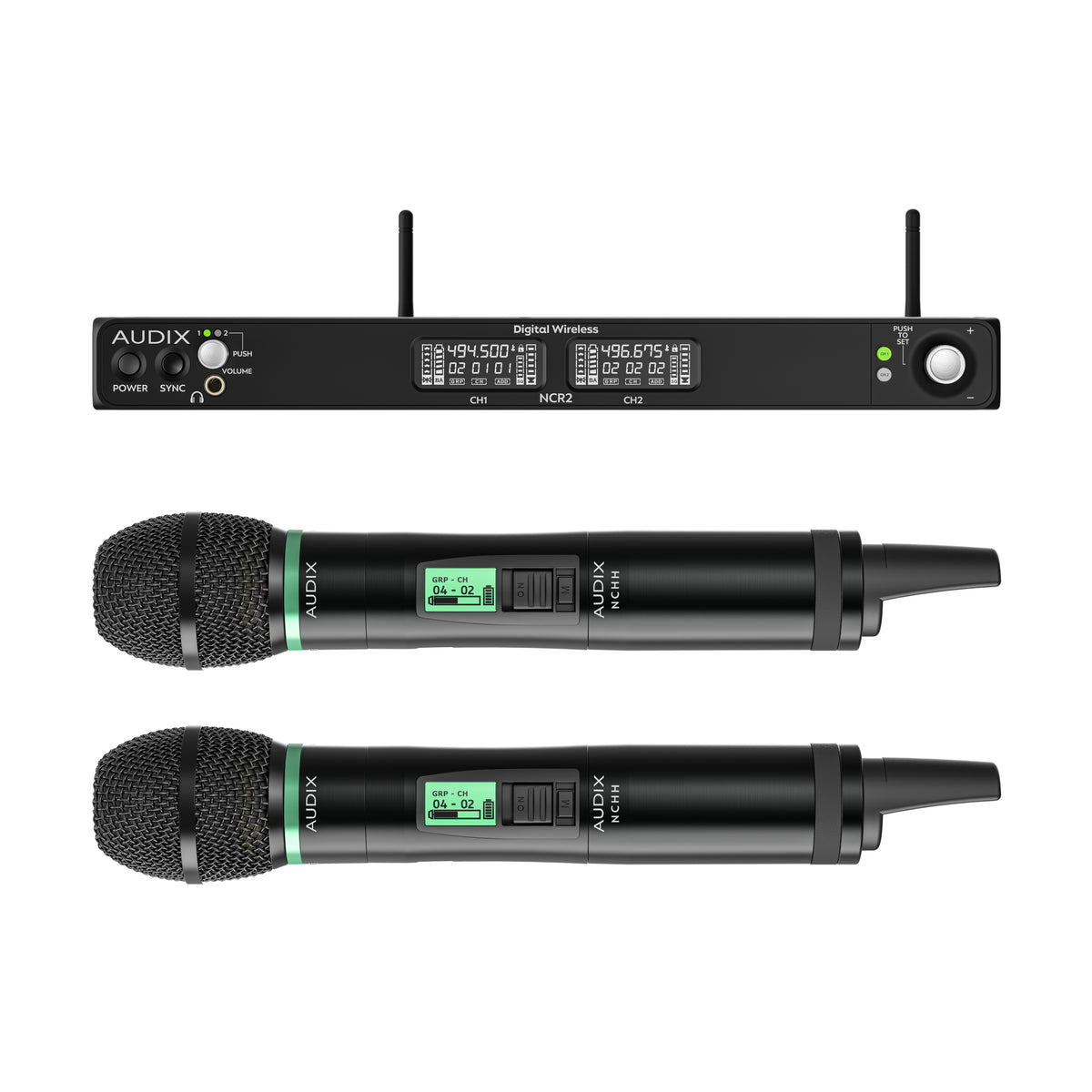

Included Items
Receiver
NCR2 Novacore Dual-Channel Digital Receiver (x1)
Transmitter

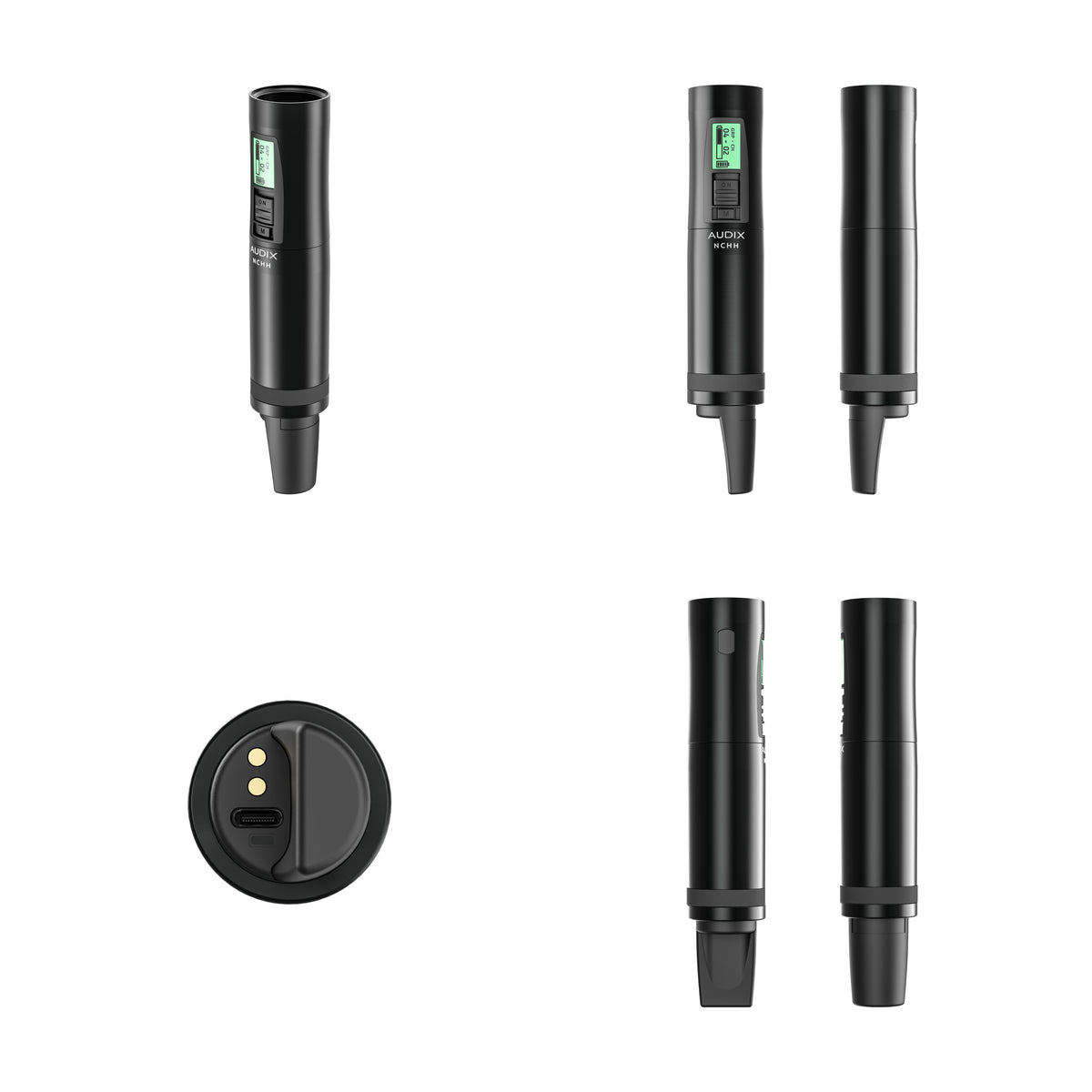

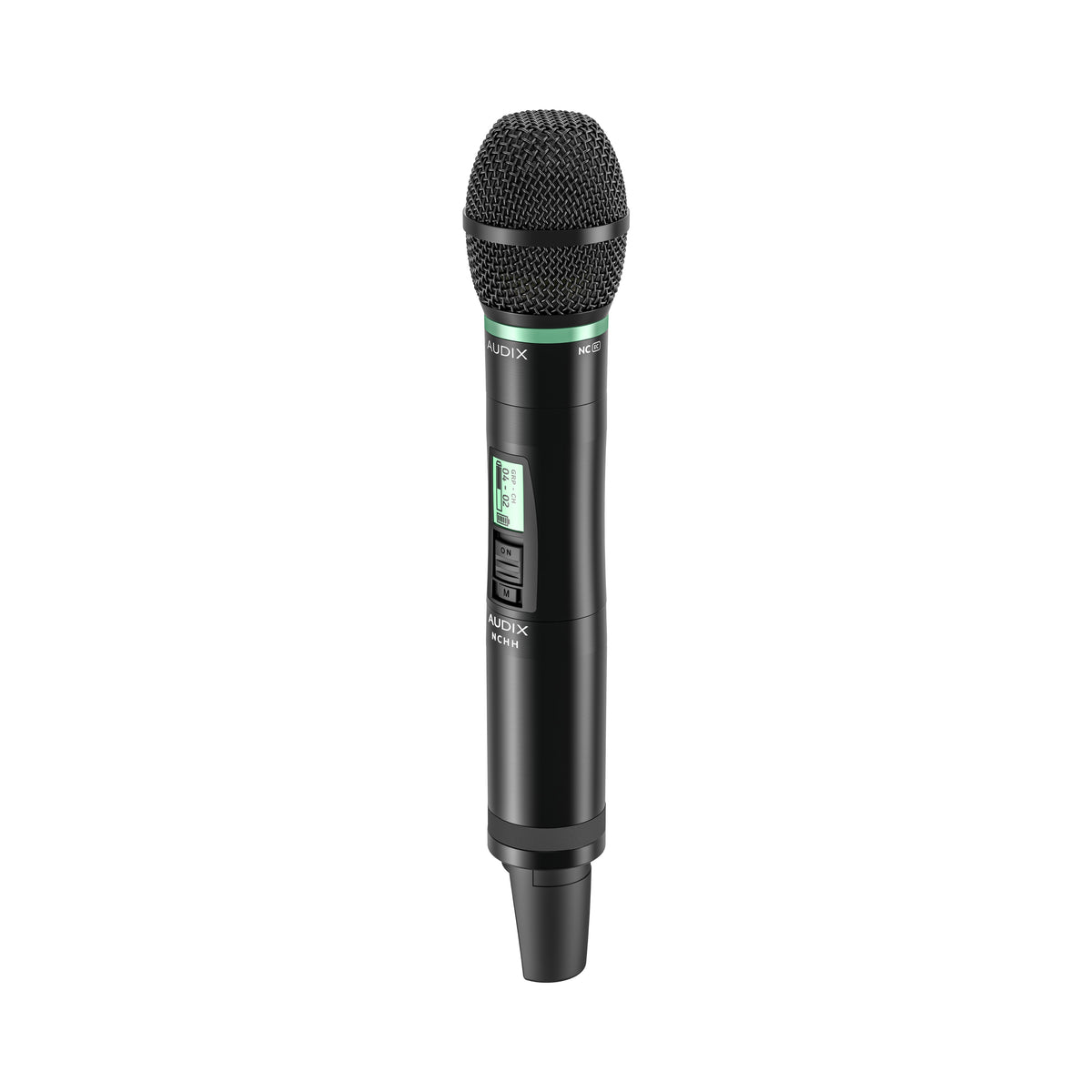

NCHH Novacore UHF Digital Handheld Transmitter Body (x2)
Capsule
NCEC Novacore Extended Cardioid Wireless Capsule (x2)
Antennas
BNC Detachable Antennas (x2)
Power Supply

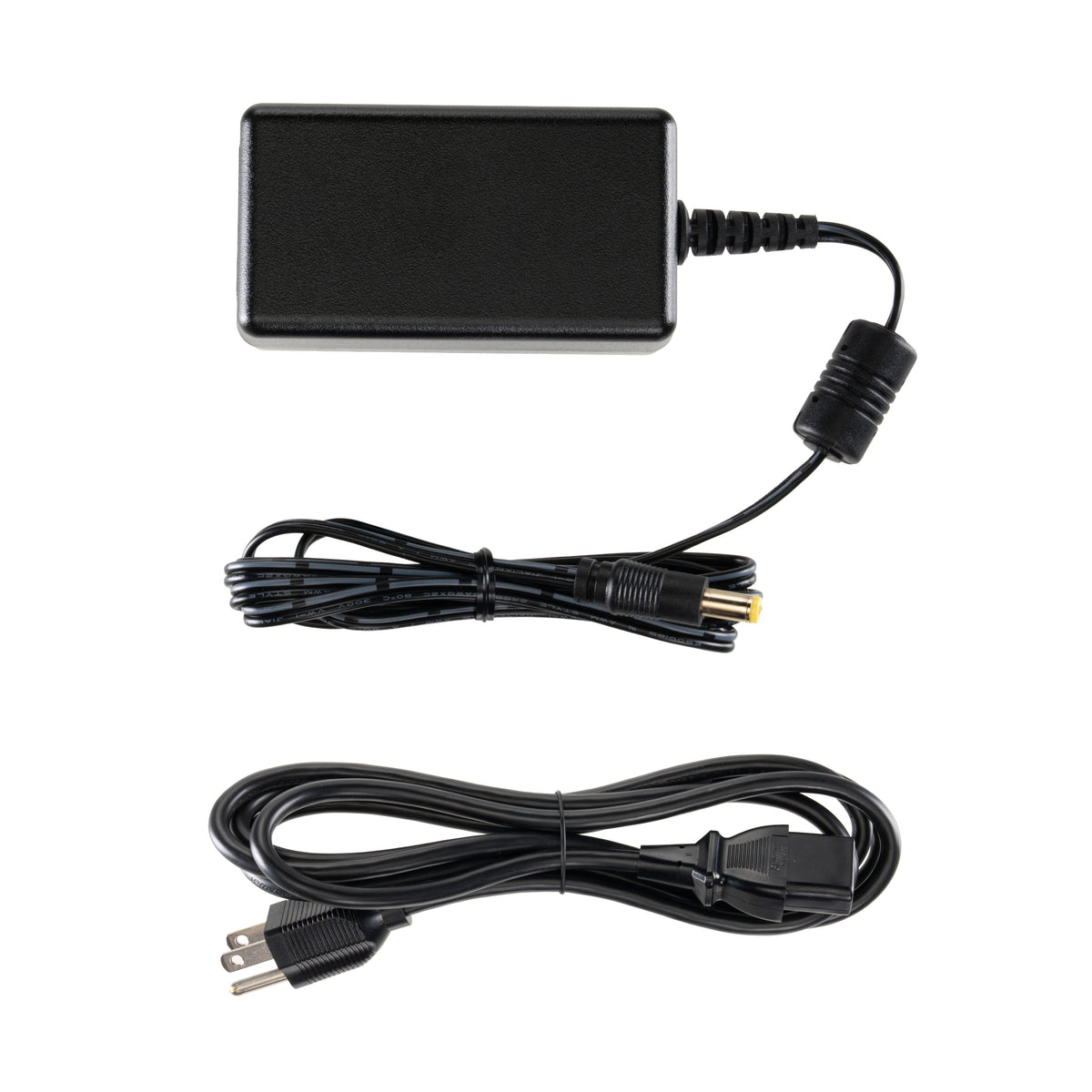

PS12V 12 VDC External Power Supply (100-240 VAC / 50-60 Hz)
Charging Cable
NCCC 20" USB-A to USB-C Charging Cable (x1)
