Specifications
Audio
Audio Control
Variable gain: -12 dB to +18 dB in 6 dB steps; low cut; limiter; phase invert
Mic Input Connector
3-Pin male mini connector (TA3M)
Mic Input Configuration
Unbalanced
Mic Input Impedance
1 MΩ
Maximum Input Level
1725 mVrms (@ 1% THD)
Remote Mute Control Input
3.5 mm TRS
RF Performance
RF Frequency Range
UHF 494-542 MHz (country dependent)
RF Bandwidth
48 MHz
RF Output Power
1 mW / 10 mW switchable
Antenna Type
1/4-wave whip; fixed
Occupied Bandwidth
< 200 kHz
Modulation Type
AUDIX Proprietary Digital
Certifications
Encryption
AES 256-bit
Display and Controls
Display

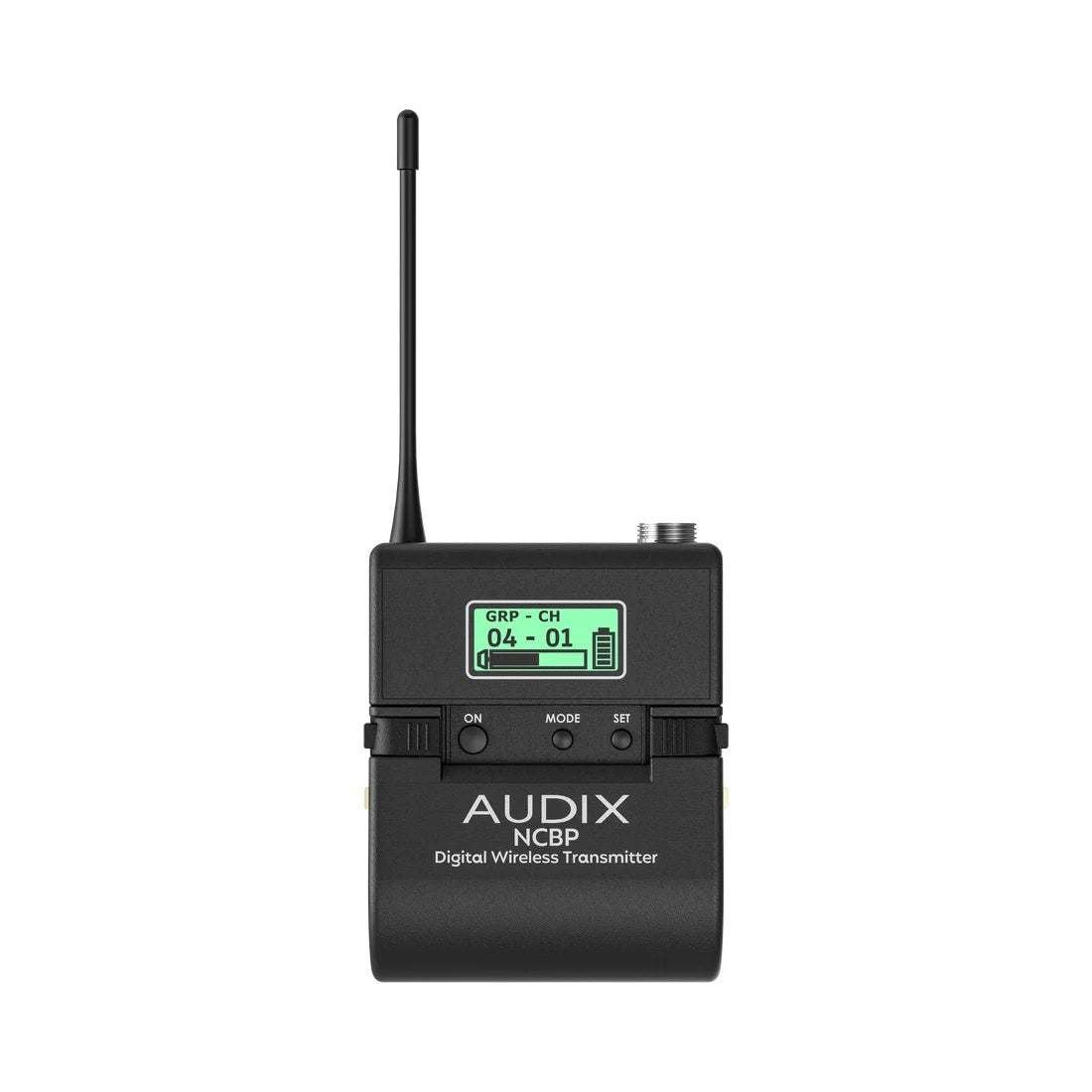

LCD: Displays GRP-CH, battery status, RF signal strength, and settings menu
Control Interface
Sync sensor, ON button, MUTE button, MODE button, SET button
Power
Power Requirements
1 NCLB Li-ion battery (1500mAh) or 2 AA alkaline batteries
Battery Charging
AUDIX NCC1 or NCC2 charging station, or USB-C
Dimensions
Width
2.36"
Height
3.15"
Depth
0.98"
Weight
Product Weight
0.21 lbs (no battery)
Construction
Materials / Finish
ABS Plastic / Aluminum / Black Finish
Included Items
Transmitter
NCBP Novacore UHF Digital Bodypack Transmitter
Belt Clip
NCBC Belt Clip

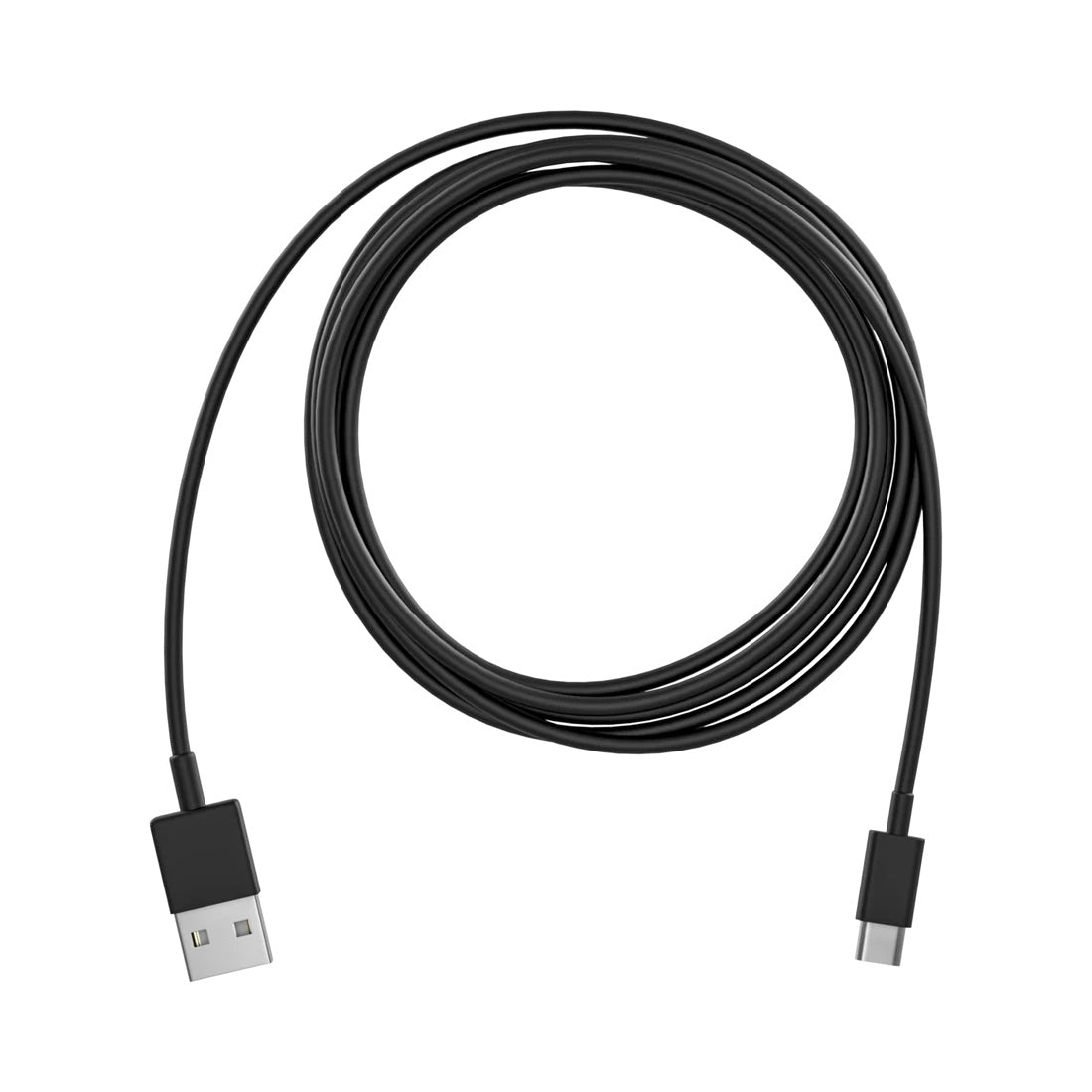

Charging Cable
NCCC 20" USB-A to USB-C Charging Cable
