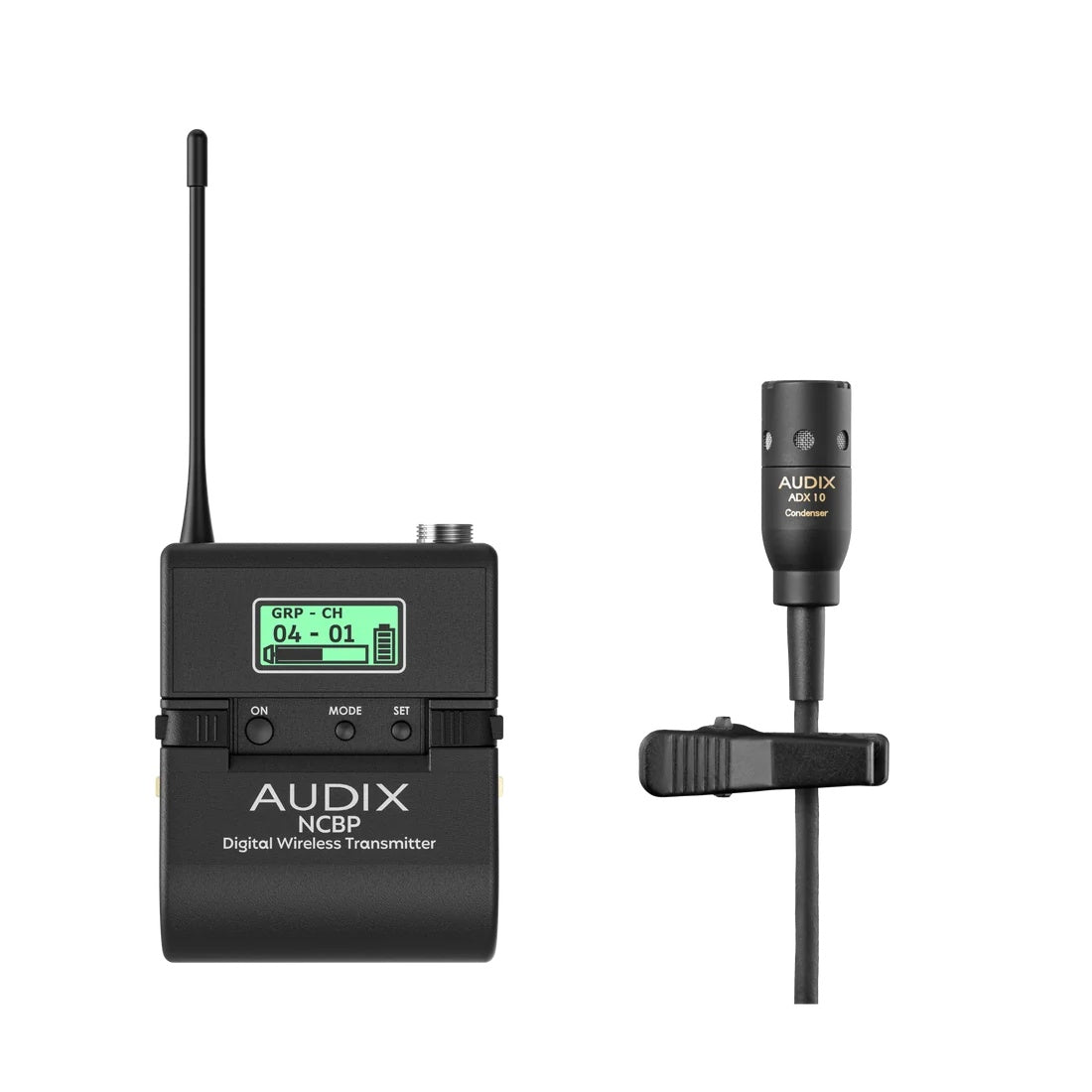

• NCBPADX10 in-the-box view with NCBP bodypack transmitter showing GRP-CH display and ADX10 condenser lavalier mic, Audix

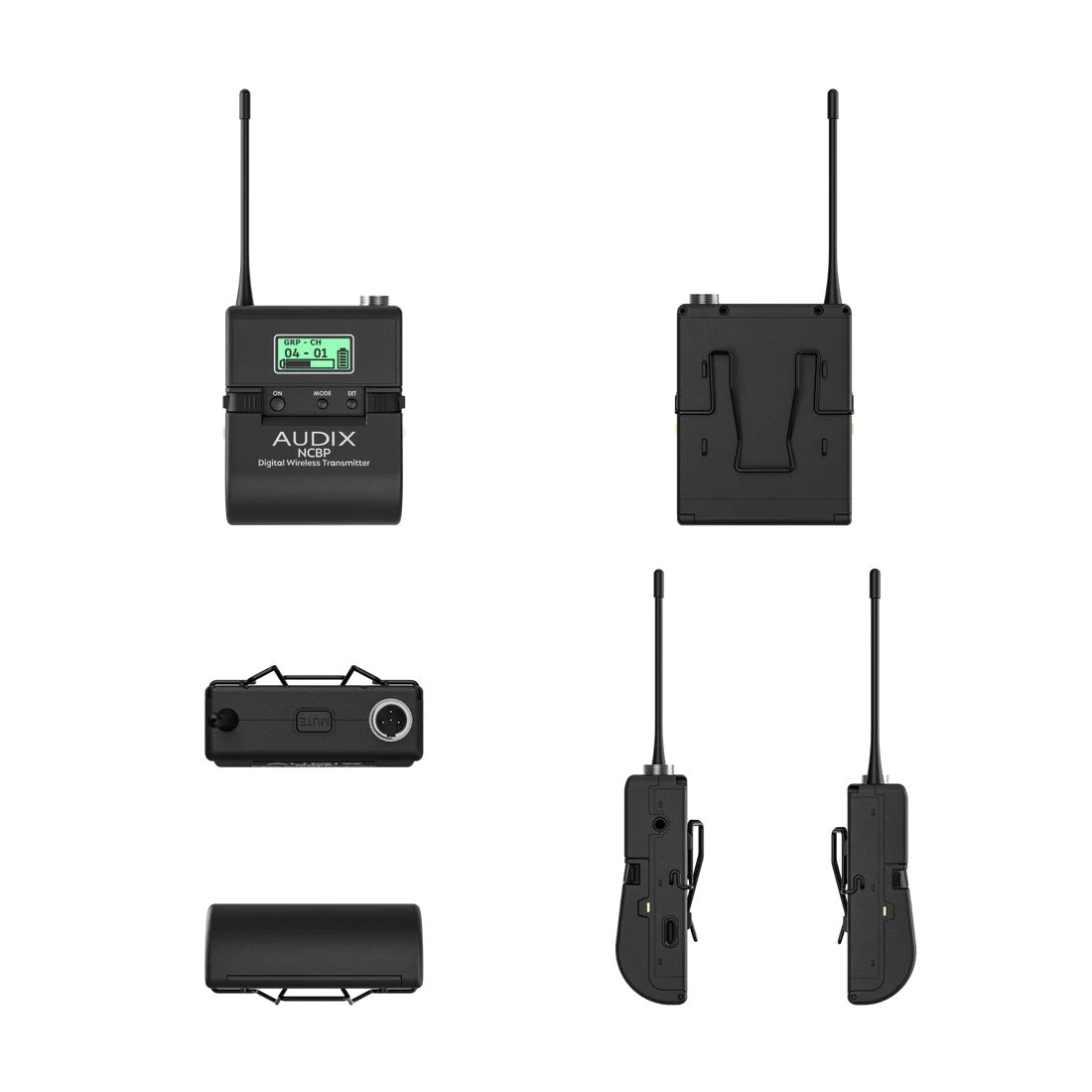

  • NCBP Novacore digital bodypack transmitter multi-view showing front LCD with ON/MODE/SET buttons, rear belt clip, TA4F input, MUTE switch and battery, Audix

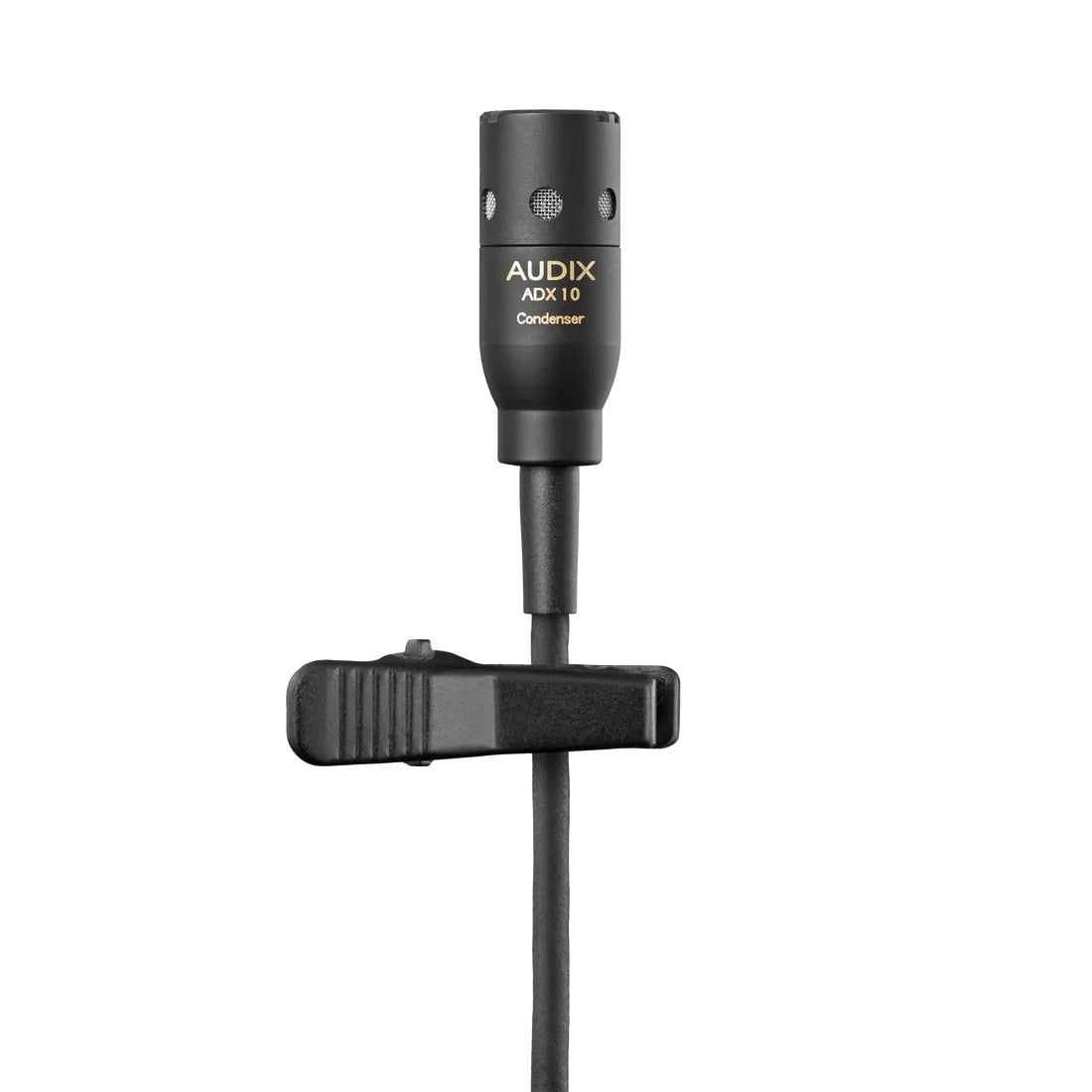

  • ADX10 condenser lavalier microphone front view with side-address grille ports and tie clip on cable, Audix

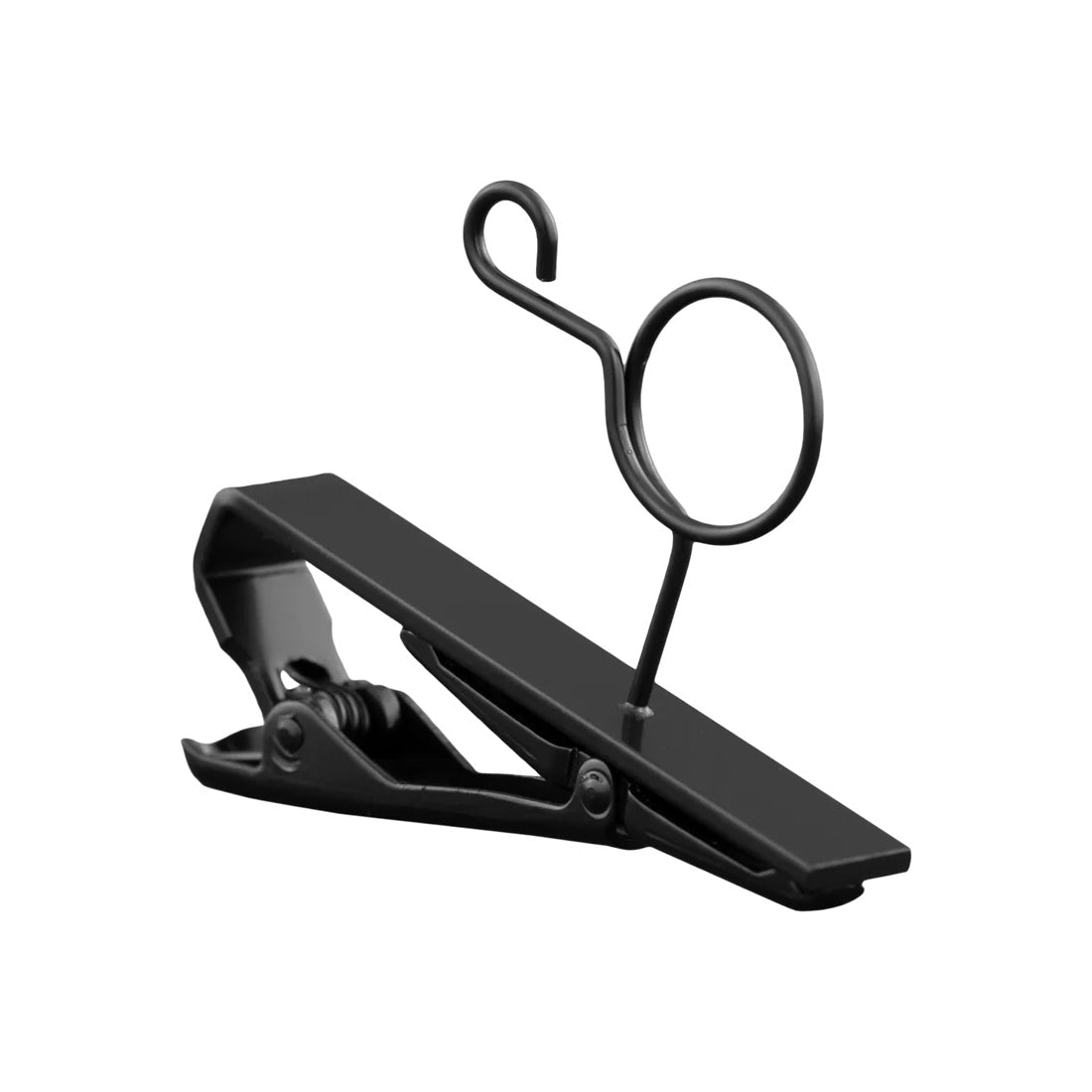

  • Included black lavalier tie clip accessory with wire cable loop, Audix

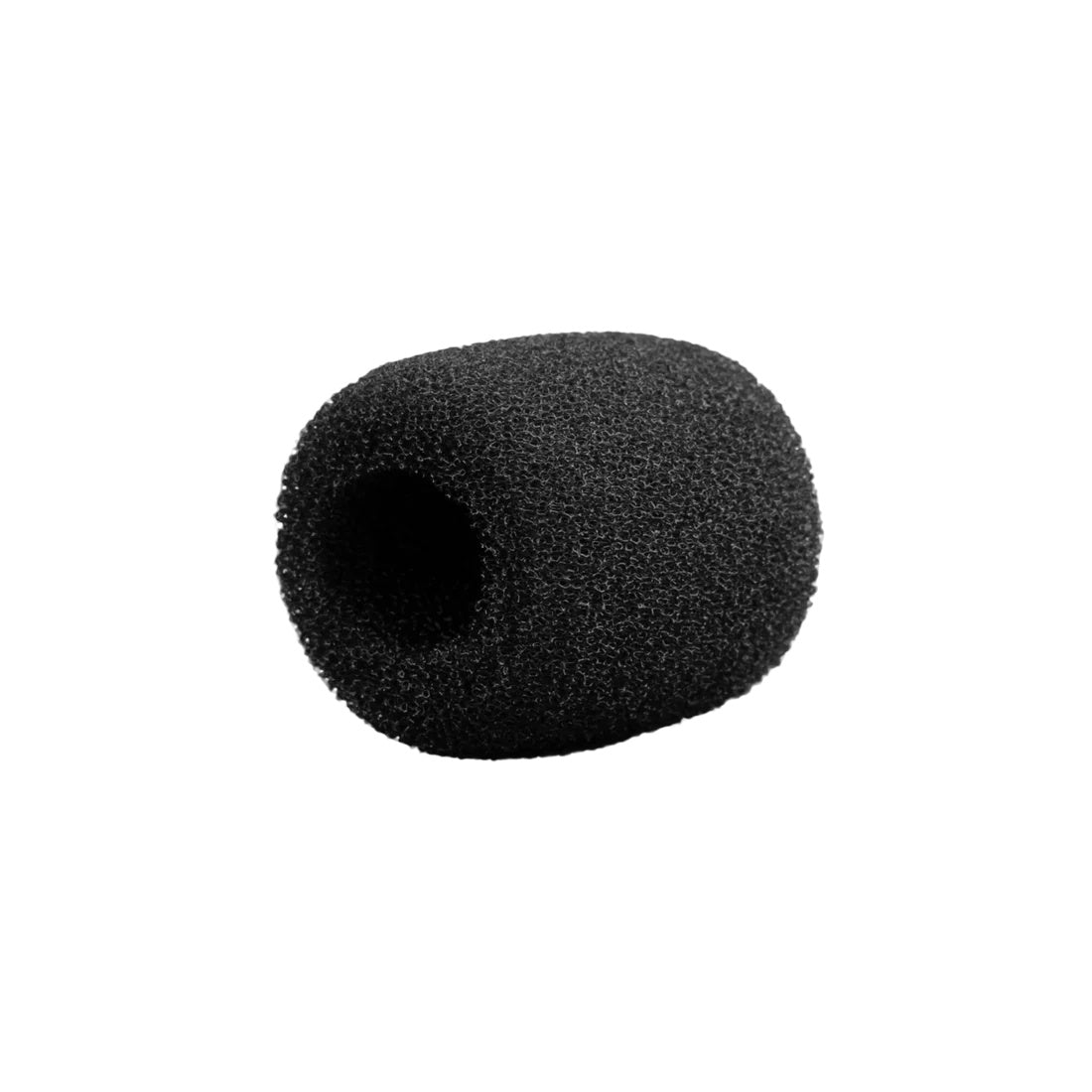

  • Black foam windscreen for ADX10 lavalier microphone, accessory detail, Audix

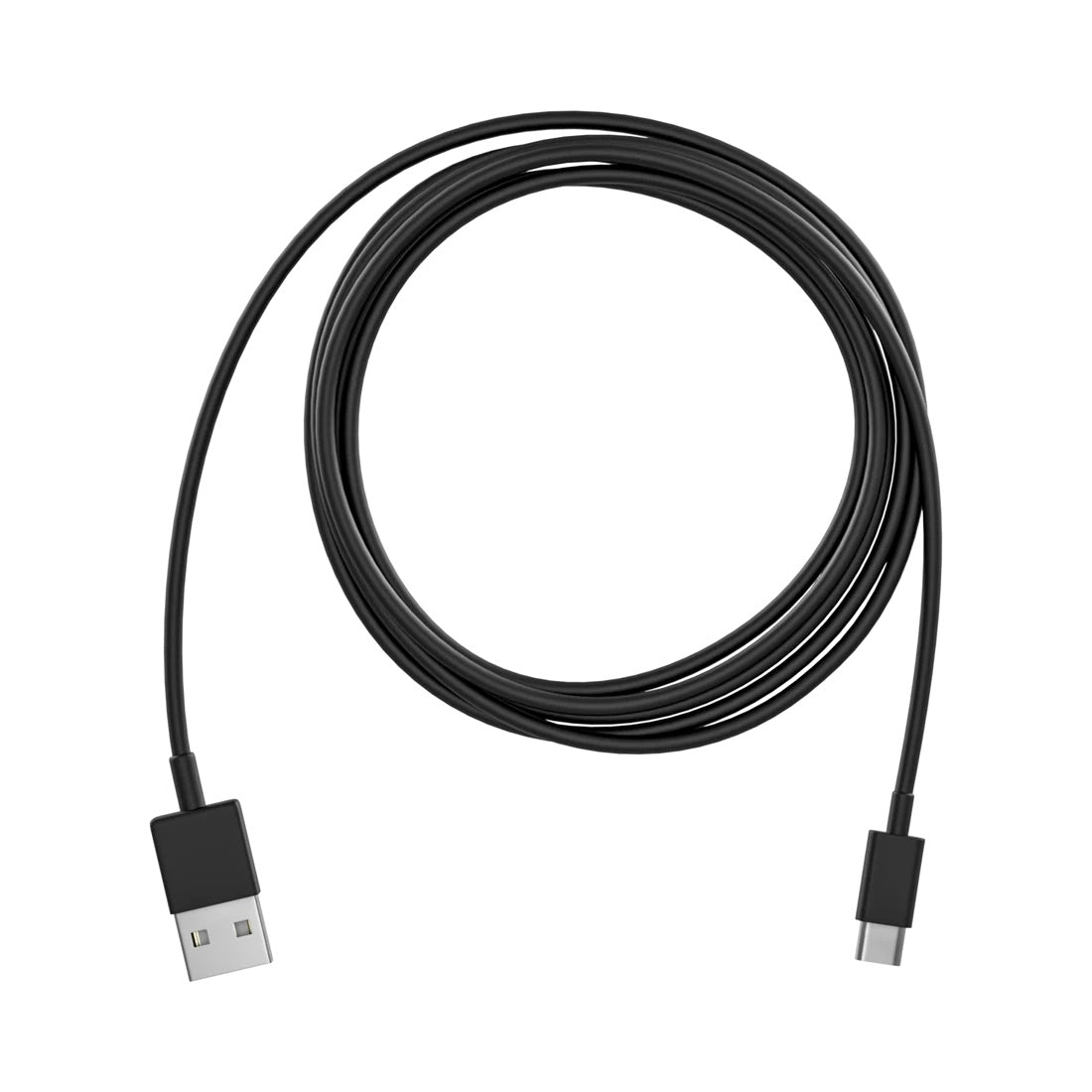

  • Coiled USB-A to USB-C charging cable supplied with the NCBP bodypack transmitter, Audix
1 6

Audix NCBPADX10 Novacore Digital Bodypack Transmitter With ADX10

Audix NCBPADX10 Novacore Digital Bodypack Transmitter With ADX10

SoundPro Item: 204542 | Part Number: NCBPADX10

$419.00
$503.00 $419.00
Your Price Sold out
MSRP: $503.00 | MAP: $419.00

Usually ships in 5-7 business days

  • AES-256 Encrypted UHF Transmission For Secure Wireless Audio In Sensitive Environments
  • One-Touch IR Sync Pairs Transmitter To Any Novacore Receiver For Fast Deployment
  • Variable Input Gain Allows Source-Level Signal Optimization Before The Console
  • Dedicated Remote Mute Input Supports Podium Or Front-Of-House Hardwired Mute Control
  • USB-C Charging Built Into Transmitter Body For Convenient Between-Event Power
  • TA3F-Compatible Mic Input Allows Substitution Of Other Audix Or Third-Party Lavaliers
  • ADX10 Cardioid Capsule Provides Strong Off-Axis Rejection For Feedback-Prone Venues
Log in or register for YOUR best price

The Audix NCBPADX10 is a matched wireless lavalier system built for audio professionals who need a discreet, deployment-ready solution without sourcing transmitter and microphone separately. The Novacore NCBP digital bodypack delivers AES-256 encrypted UHF transmission with less than 3 ms latency across a 48 MHz tuning range, making it viable for demanding environments where RF congestion and signal security are real concerns. One-touch IR sync pairs the transmitter to any Novacore receiver quickly, reducing setup time at install or during a touring changeover.

The included ADX10 cardioid lavalier condenser is a proven choice for houses of worship, theatrical productions, and broadcast applications where the microphone must remain out of sight while maintaining natural vocal reproduction. Its miniature capsule and strong off-axis rejection reduce feedback risk in reflective acoustic environments and on open stages. Variable input gain at the transmitter lets the engineer optimize the ADX10's signal at the source rather than compensating downstream at the console.

For installed and rental AV applications, the NCBP's dedicated 3.5 mm remote mute input supports podium-mounted or front-of-house mute switching without requiring wireless control infrastructure. The transmitter accepts any microphone terminated with a TA3F connector, giving integrators flexibility to substitute other Audix lavalier or headset models as applications expand. USB-C charging and compatibility with both AA alkaline and rechargeable lithium-ion batteries keep the system operational across back-to-back events or long production days.

Downloads

View full details

Specifications

Transmitter (NCBP)
RF Frequency Range
494-542 MHz (UHF, country dependent)
RF Bandwidth
48 MHz
Encryption
AES 256-bit
Modulation Type
Audix Proprietary Digital
Occupied Bandwidth
< 200 kHz
RF Output Power
1 mW / 10 mW switchable
Antenna Type
1/4-wave whip, fixed
Latency
< 3 ms
Audio Control
Variable gain: -12 dB to +18 dB in 6 dB steps; low cut; limiter; phase invert
Mic Input Connector
3-Pin male mini connector (TA3M)
Mic Input Configuration
Unbalanced
Mic Input Impedance
1 MOhm
Maximum Input Level
1725 mVrms (@ 1% THD)
Compatible Mic Connectors
TA3F (Pin 2 Hot)
Remote Mute Input
3.5 mm TRS
Display
LCD: GRP-CH, battery status, RF signal strength, settings menu
Controls
Sync sensor, ON, MUTE, MODE, SET buttons
Power Requirements
1x NCLB Li-ion (1500 mAh) or 2x AA alkaline
Battery Runtime
9+ hours
Battery Charging
Audix NCC1 or NCC2 charging station, or USB-C
Materials
ABS Plastic / Aluminum / Black Finish
Transmitter Dimensions and Weight
Dimensions (W x H x D)
66 x 80 x 25 mm
Weight (no battery)
0.21 lbs
Microphone (ADX10)
Transducer Type
Pre-Polarized Condenser
Polar Pattern
Cardioid
Frequency Response
50 Hz - 18 kHz
Output Impedance
800 ohms
Sensitivity
5 mV/Pa @ 1k
Equivalent Noise Level
< 29 dB (A-weighted)
Signal to Noise Ratio
> 65 dB
Maximum SPL
>= 120 dB
Power Requirements
9-52 V phantom
Connector
Shielded 3 ft cable terminating to miniature 3-pin female XLR
Polarity
Positive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3
Materials
Machined Brass / Black Finish
Weight
21 g / 0.74 oz
Length
25 mm / 0.98 in
Included Items
Transmitter
NCBP Novacore UHF Digital Bodypack Transmitter
Microphone
ADX10 Cardioid Lavalier Condenser Microphone
Belt Clip
NCBC
Charging Cable
NCCC 20 in USB-A to USB-C
