Specifications
Audio
Transducer Type
Dynamic
Capsule Technology
VLM
Frequency Response
50 Hz - 14 kHz (-6dB)
Polar Pattern
Cardioid
Capsule Impedance
280 Ohms
Sensitivity
1.5 mVrms / Pa @ 1 kHz / @ 0.25 m
Off-Axis Rejection
> 25 dB
Maximum SPL
144 dB SPL
Power Requirements
None
Polarity

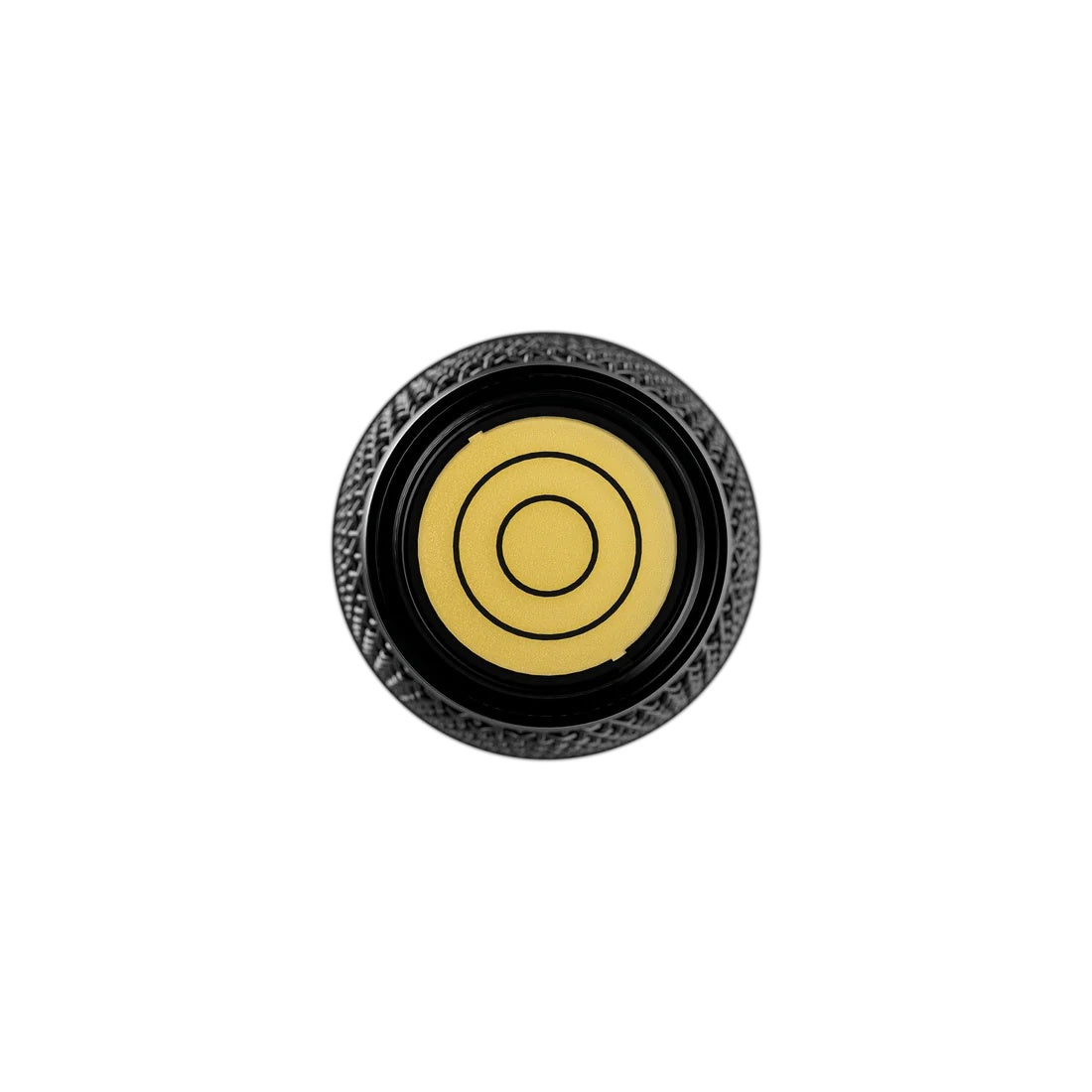

Positive pressure on diaphragm produces positive voltage on center ring pad relative to outer ring pad
Connectivity
Connector
1/4-28 UN thread pitch, S-Type
Construction
Materials / Finish
Aluminum / Black Finish
Dimensions
Height
88.5 mm
Product Width
1.98"
Product Height
3.48"
Weight
Capsule Weight
188 grams
Product Weight
0.41 lbs
Identifiers
Included Item

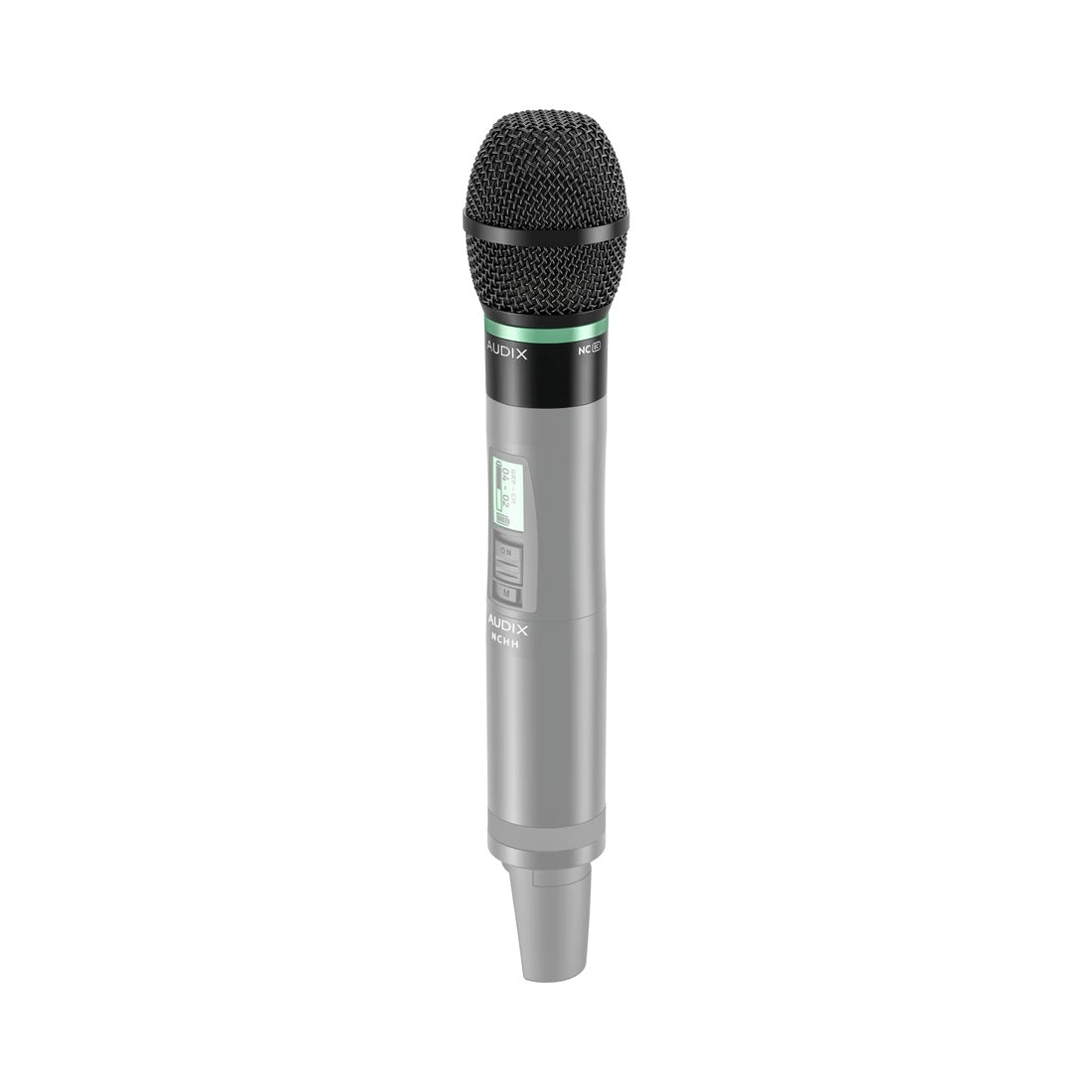

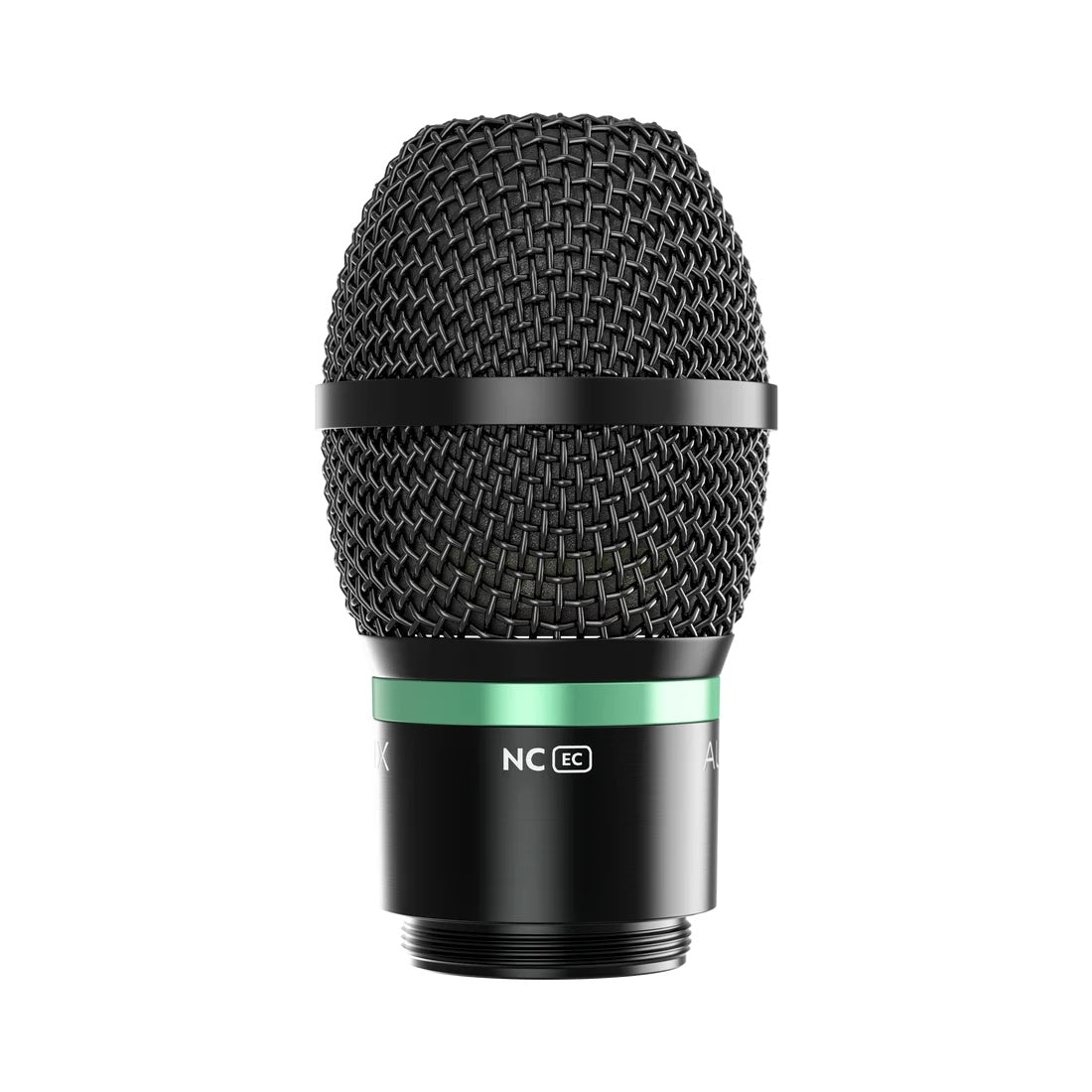

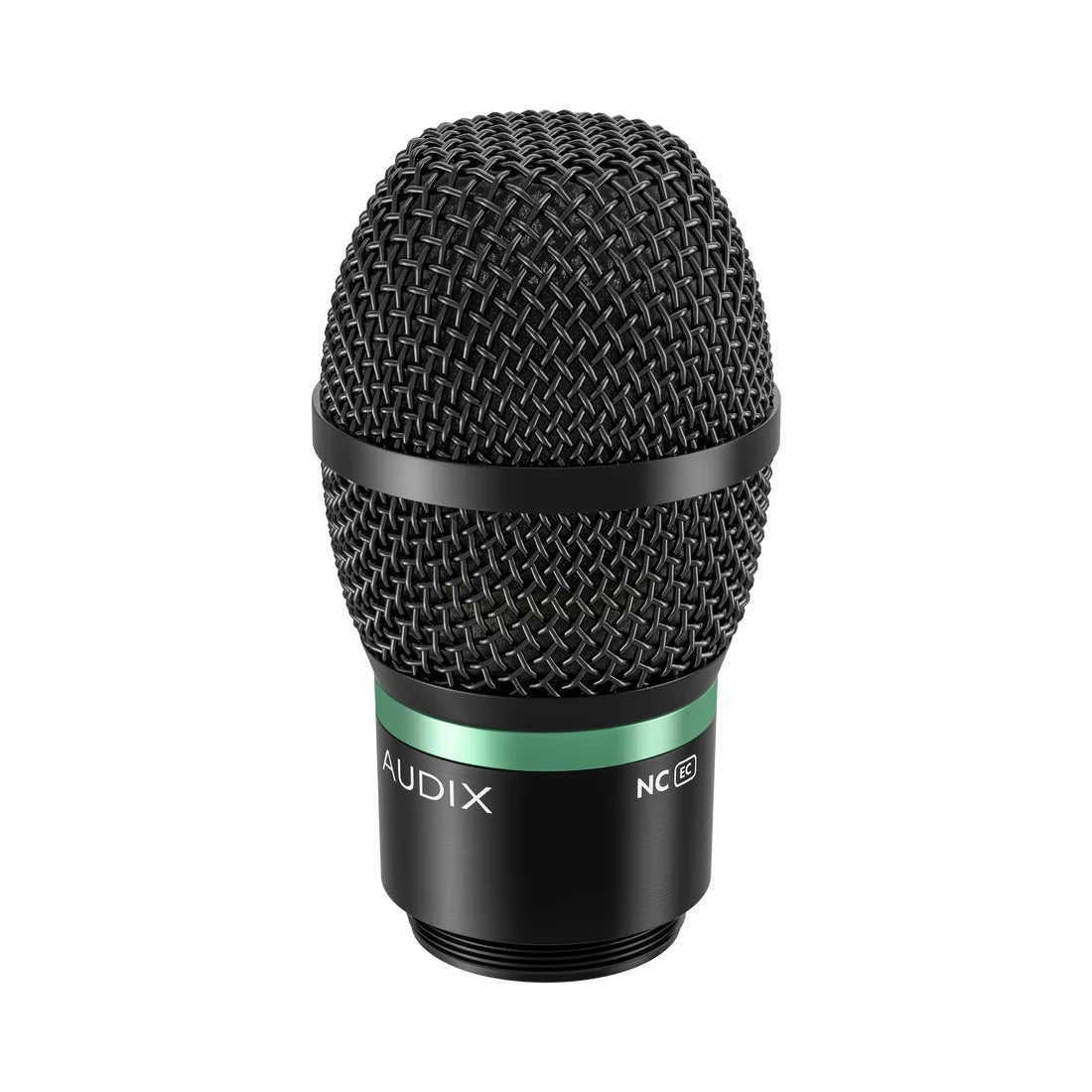

NCEC Novacore Extended Cardioid Wireless Capsule
