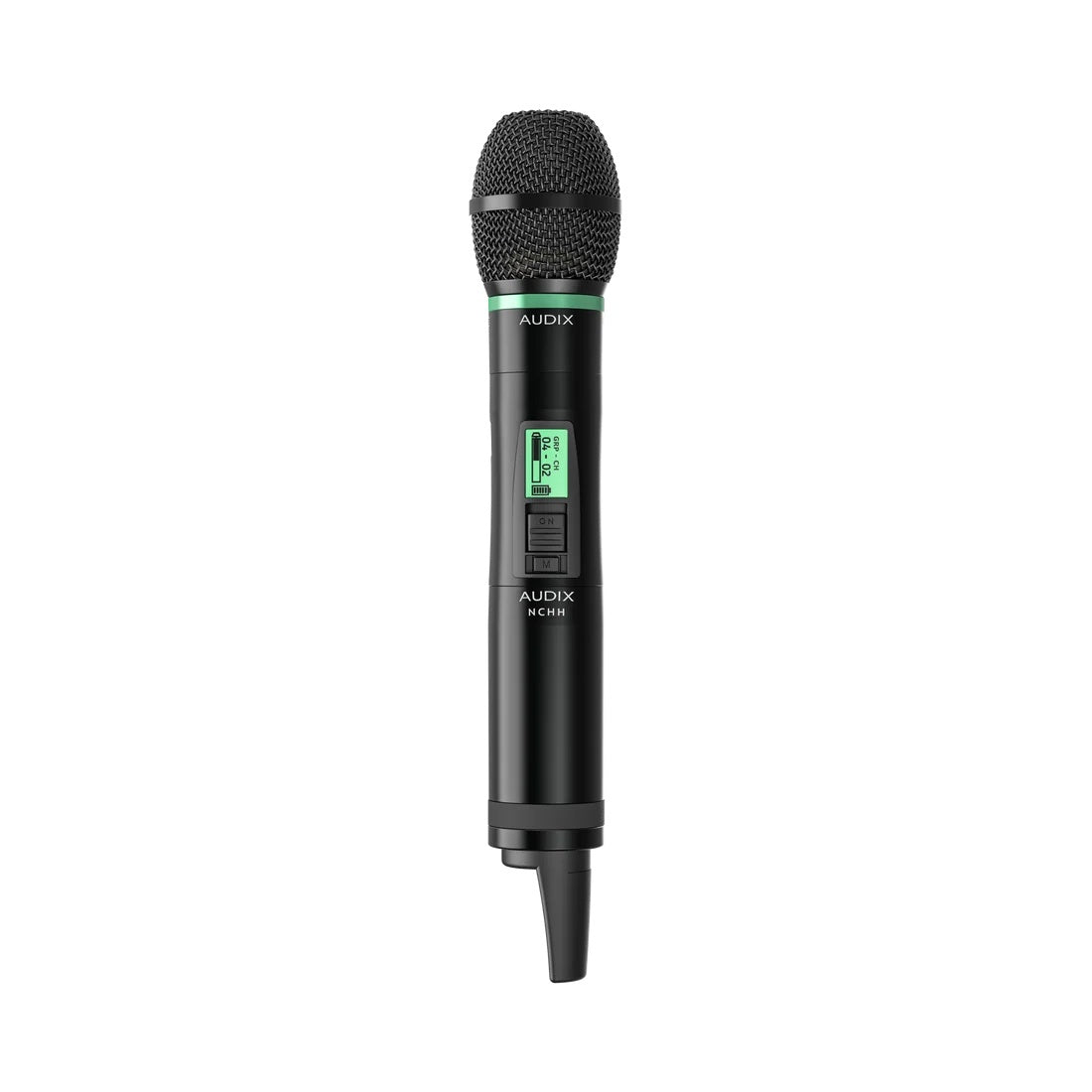

• NCHHEC Novacore digital handheld transmitter front view with NCEC capsule, green accent ring and backlit LCD showing group and channel, Audix

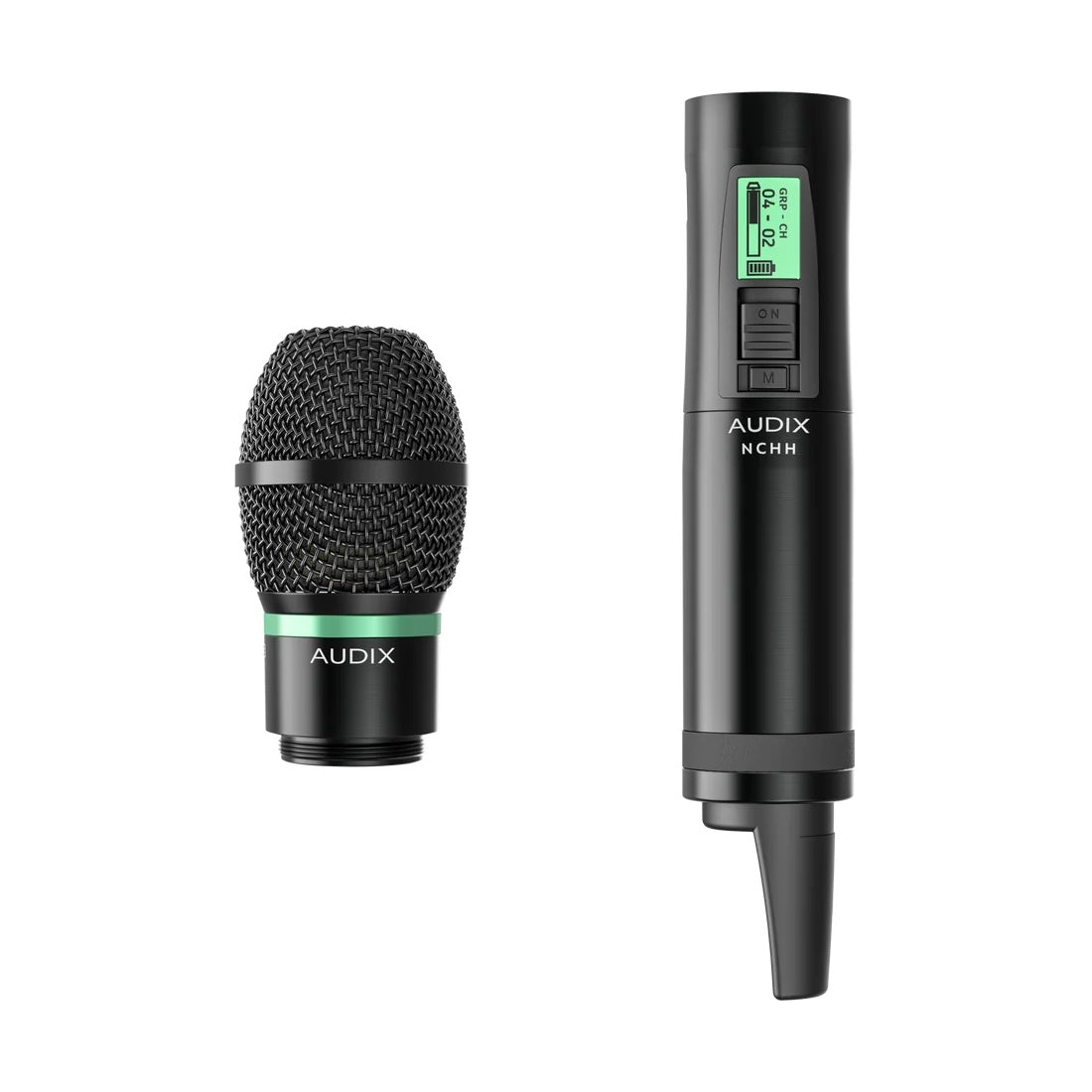

  • NCHHEC kit contents showing NCEC condenser capsule detached beside NCHH handheld transmitter body, Audix

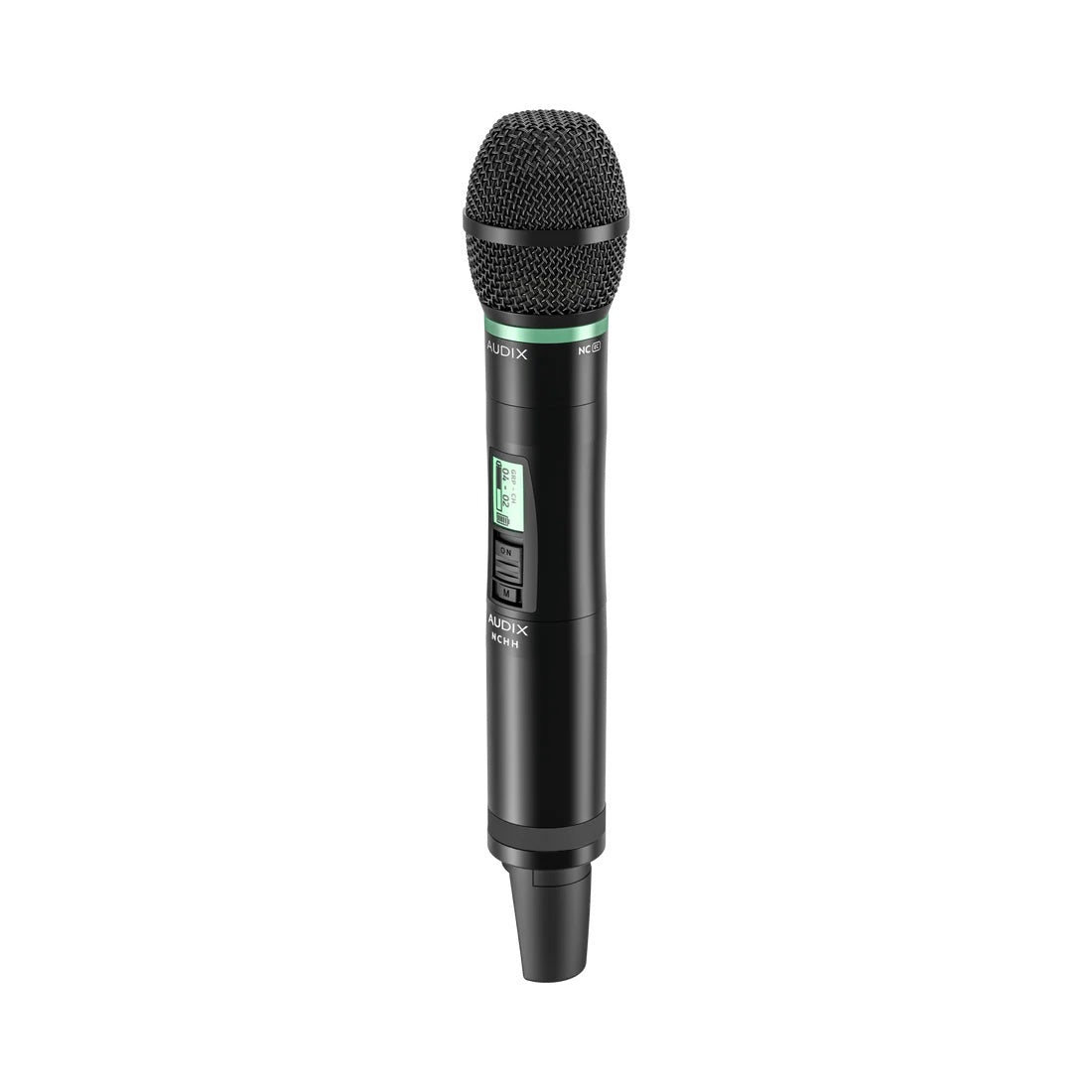

  • NCHHEC handheld wireless transmitter three-quarter front view with ON and M control buttons below the display, Audix

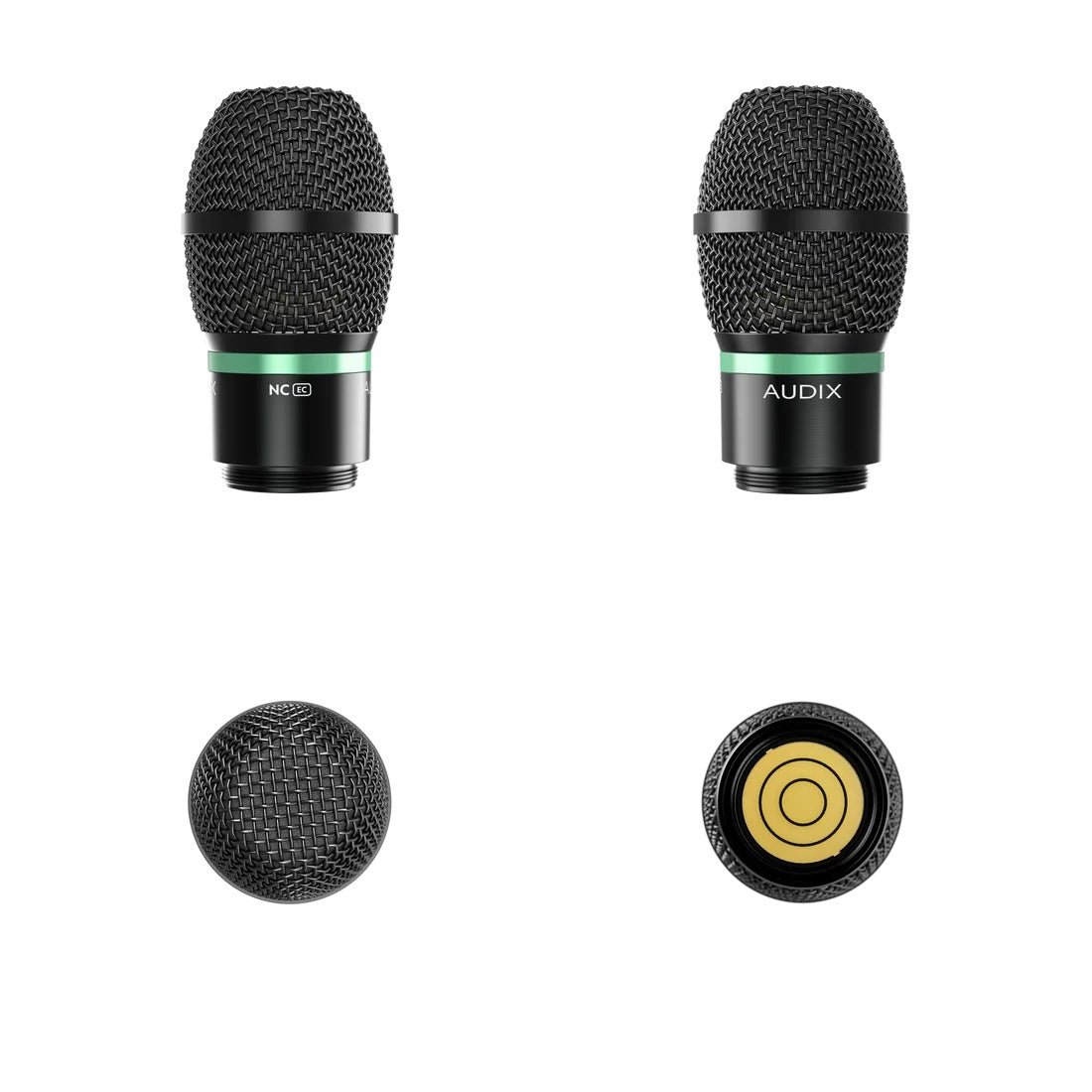

  • NCEC capsule detail views showing mesh grille, green ID ring and gold-plated threaded contact base, Audix

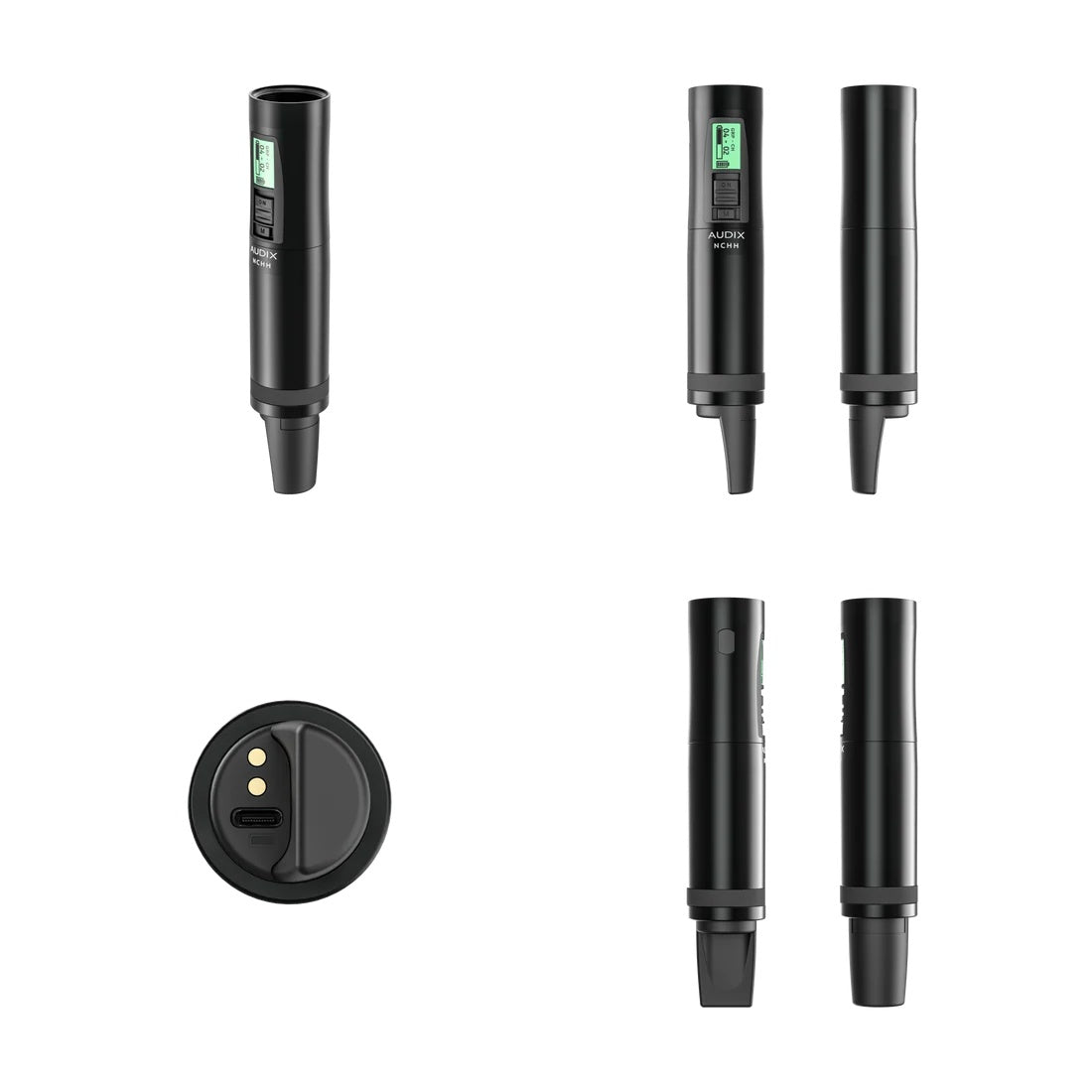

  • NCHH transmitter body multiple views including bottom contacts with USB-C charging port, Audix
1 5

Audix NCHHEC Novacore Digital Handheld Transmitter With NCEC Capsule

Audix NCHHEC Novacore Digital Handheld Transmitter With NCEC Capsule

SoundPro Item: 204538 | Part Number: NCHHEC

$349.00
$419.00 $349.00
Your Price Sold out
MSRP: $419.00 | MAP: $349.00

Usually ships in 5-7 business days

  • NCEC Extended Cardioid Pattern Delivers Even Coverage With Strong Transient Response
  • VLM Capsule Technology Voiced From The Audix OMX Series For Natural Vocal Clarity
  • AES-256 Encrypted Digital Transmission Secures RF Signal In Broadcast And Theater
  • One-Touch IR Sync Pairs To Any Novacore Receiver Quickly Without Menu Navigation
  • Switchable RF Output Power Adapts Transmission Strength To Venue Size And Density
  • Three Selectable Mute Modes Give Engineers Precise Control Over Stage Mute Behavior
  • Standard S-Thread Mount Allows Tool-Free Capsule Swaps For Different Polar Patterns
  • USB-C Charging Built Into Transmitter Body Supports Both Rechargeable And AA Batteries
Log in or register for YOUR best price

The Audix NCHHEC is a performance-ready wireless handheld system built for working vocalists, presenters, and touring engineers who need professional-grade digital audio without a lengthy setup process. It combines the NCHH UHF digital transmitter and the NCEC extended cardioid capsule into a single bundle that ships ready for the stage. The NCEC capsule draws its voicing from the same proprietary VLM capsule technology used in the Audix OMX series of stage microphones, delivering consistent off-axis rejection and strong transient response across live sound and house-of-worship environments where natural vocal reproduction matters more than heavy coloration.

The NCHH transmitter operates across a 48 MHz UHF tuning range with AES-256 encrypted digital transmission and less than 3 ms latency, making it suitable for broadcast, theater, and any application where secure, low-latency RF is a hard requirement. One-touch IR sync pairs to any Novacore receiver quickly, and the front-panel LCD with controls beneath the battery cover gives engineers access to variable input gain, low-cut filter, limiter, switchable RF output power, and three mute modes without hunting through menus. USB-C charging is built into the transmitter body, and the system runs on standard AA alkaline batteries when a dedicated charging infrastructure is not available.

The NCEC capsule mounts via the standard S-thread system, so engineers can swap to the NCTH tight hypercardioid capsule at any time without tools, extending the system's utility across different room acoustics and performance contexts. For integrators and rental houses stocking a unified Audix Novacore ecosystem, the NCHHEC provides a predictable, consistent baseline that scales alongside receiver and capsule investments already in the inventory.

Downloads

View full details

Specifications

Transmitter
Model
NCHH
Type
UHF Digital Handheld Transmitter
RF Frequency Range
494-542 MHz (country dependent)
RF Bandwidth
48 MHz
Encryption
AES 256-bit
Latency
< 3 ms
Modulation Type
Audix Proprietary Digital
Occupied Bandwidth
< 200 kHz
RF Output Power
1 mW / 10 mW switchable
Antenna Type
Integrated single band helical
Display
LCD: displays group/channel, battery status, RF signal strength, and settings menu
Control Interface
Sync sensor, settings buttons, lock switch, mute button
Audio Control
Variable gain: 0 dB, +3 dB, or +6 dB; low cut; limiter
Mic Input Configuration
Unbalanced
Maximum Input Level
1760 mVrms (@ 1% THD)
Compatible Capsules
Audix NCEC, NCTH, other S-thread
Capsule Mount
1/4-28 UN thread pitch, S-Type
Materials/Finish
Aluminum / Black Finish
Transmitter Dimensions and Weight
Dimensions
278 x 50 mm (L x D) with capsule
Weight
0.36 kg / 0.8 lbs (with capsule, no battery)
Capsule
Model
NCEC
Transducer Type
Dynamic
Polar Pattern
Cardioid
Capsule Technology
VLM
Frequency Response
50 Hz - 14 kHz (-6 dB)
Sensitivity
1.5 mVrms/Pa @ 1 kHz / @ 0.25 m
Capsule Impedance
280 Ohms
Off-Axis Rejection
> 25 dB
Maximum SPL
144 dB SPL
Polarity
Positive pressure on diaphragm produces positive voltage on center ring pad relative to outer ring pad
Materials/Finish
Aluminum / Black Finish
Weight
188 grams
Height
88.5 mm
Width
1.98"
Power
Battery Options
(1) NCLB Li-ion 1500 mAh or (2) AA alkaline
Runtime
9+ hours
Charging
USB-C (built-in) or Audix NCC1 / NCC2 charging station
Included Items
Transmitter Body
NCHH Novacore UHF Digital Handheld Transmitter
Capsule
NCEC Novacore Extended Cardioid Wireless Capsule
Charging Cable
NCCC 20" USB-A to USB-C
