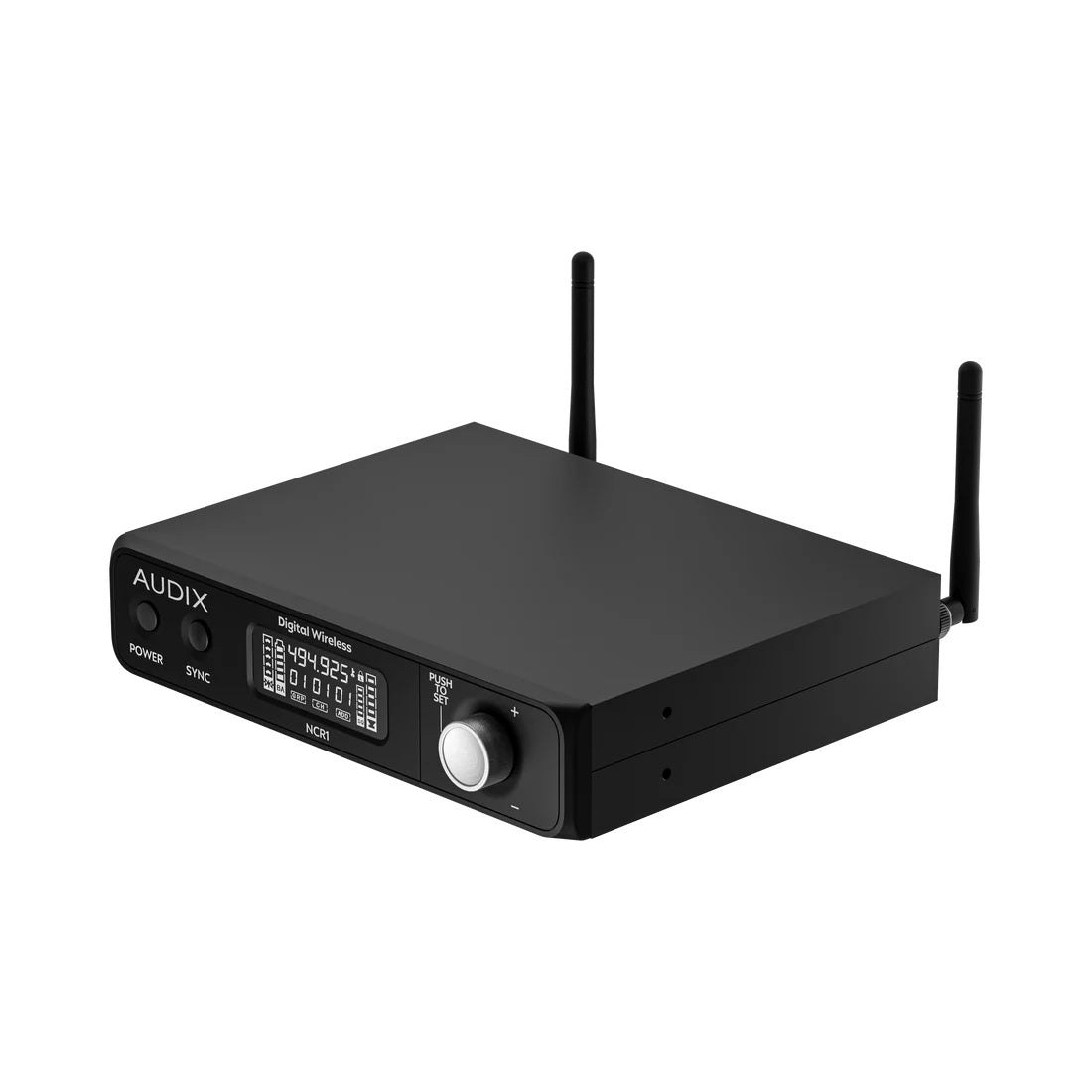

• NCR1 Novacore single-channel UHF digital wireless receiver three-quarter front view with dual antennas raised and 494.925 MHz shown on the LCD, Audix

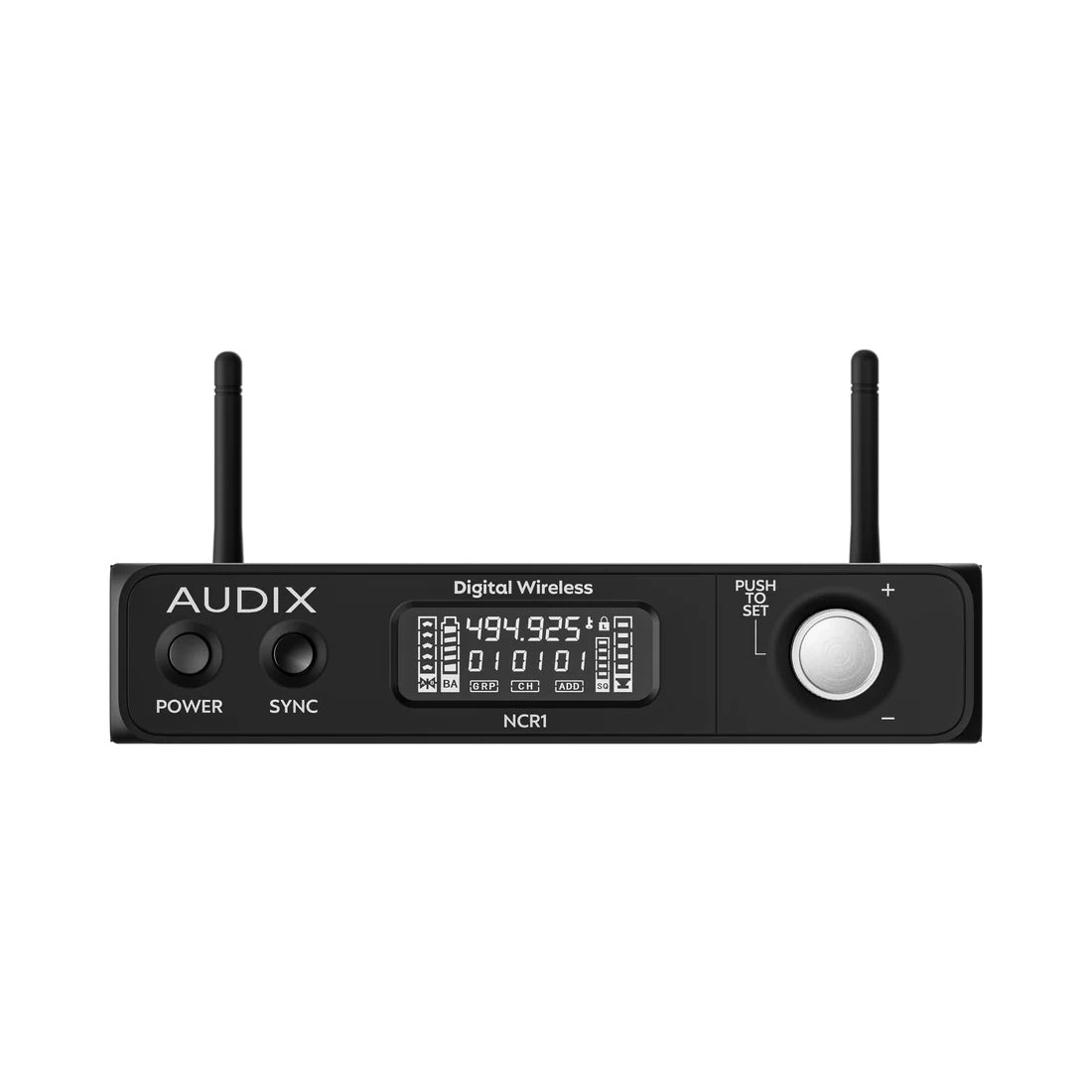

  • NCR1 front panel straight-on view showing Power and Sync buttons, backlit frequency display and Push To Set encoder, Audix

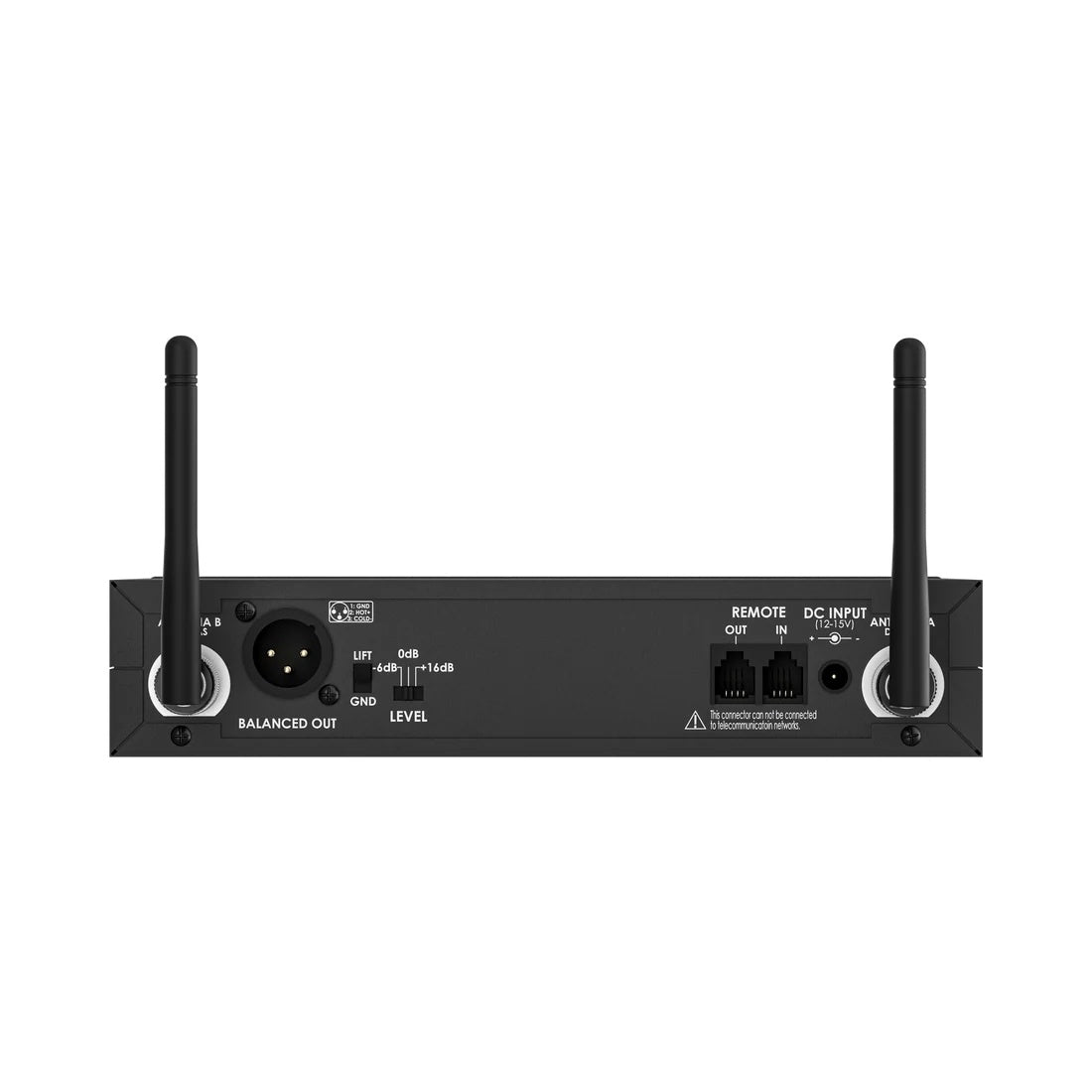

  • NCR1 rear panel with balanced XLR output, ground lift and -6/0/+16 dB level switches, remote in/out jacks and 12-15V DC input, Audix

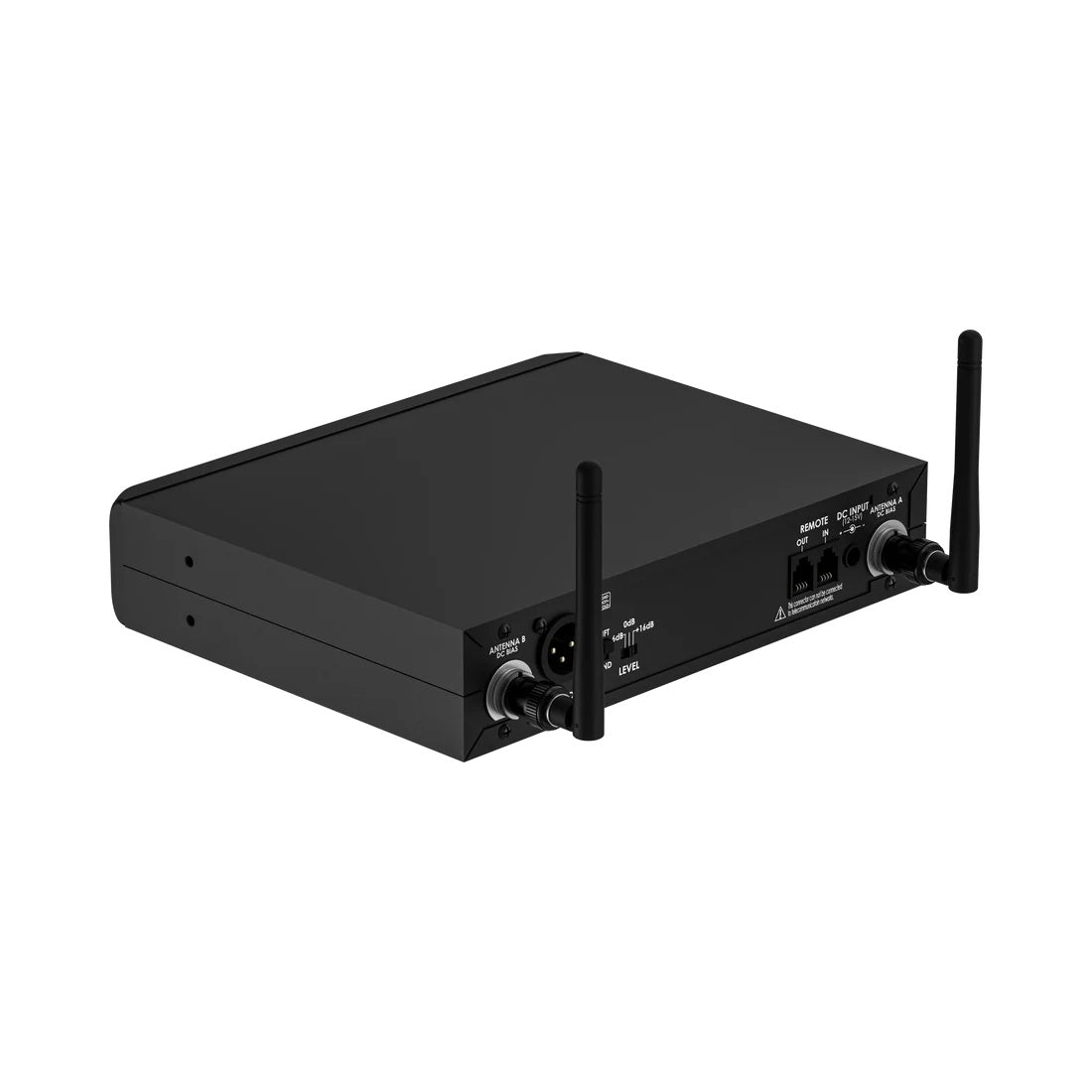

  • NCR1 three-quarter rear view showing antenna A BNC connector, DC input and remote ports on the chassis, Audix

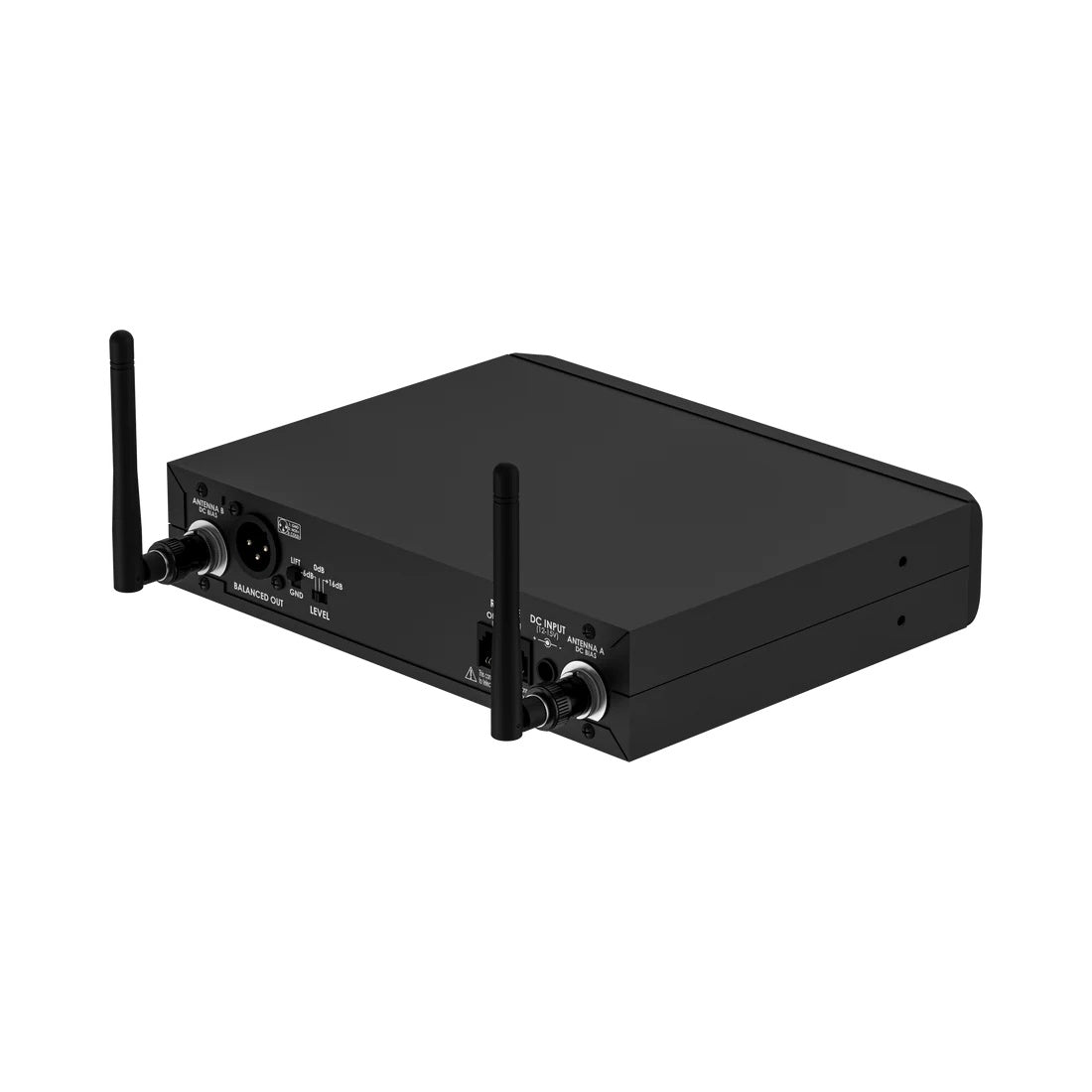

  • NCR1 angled rear view showing balanced XLR out, level switches and both BNC antenna A and B connectors, Audix

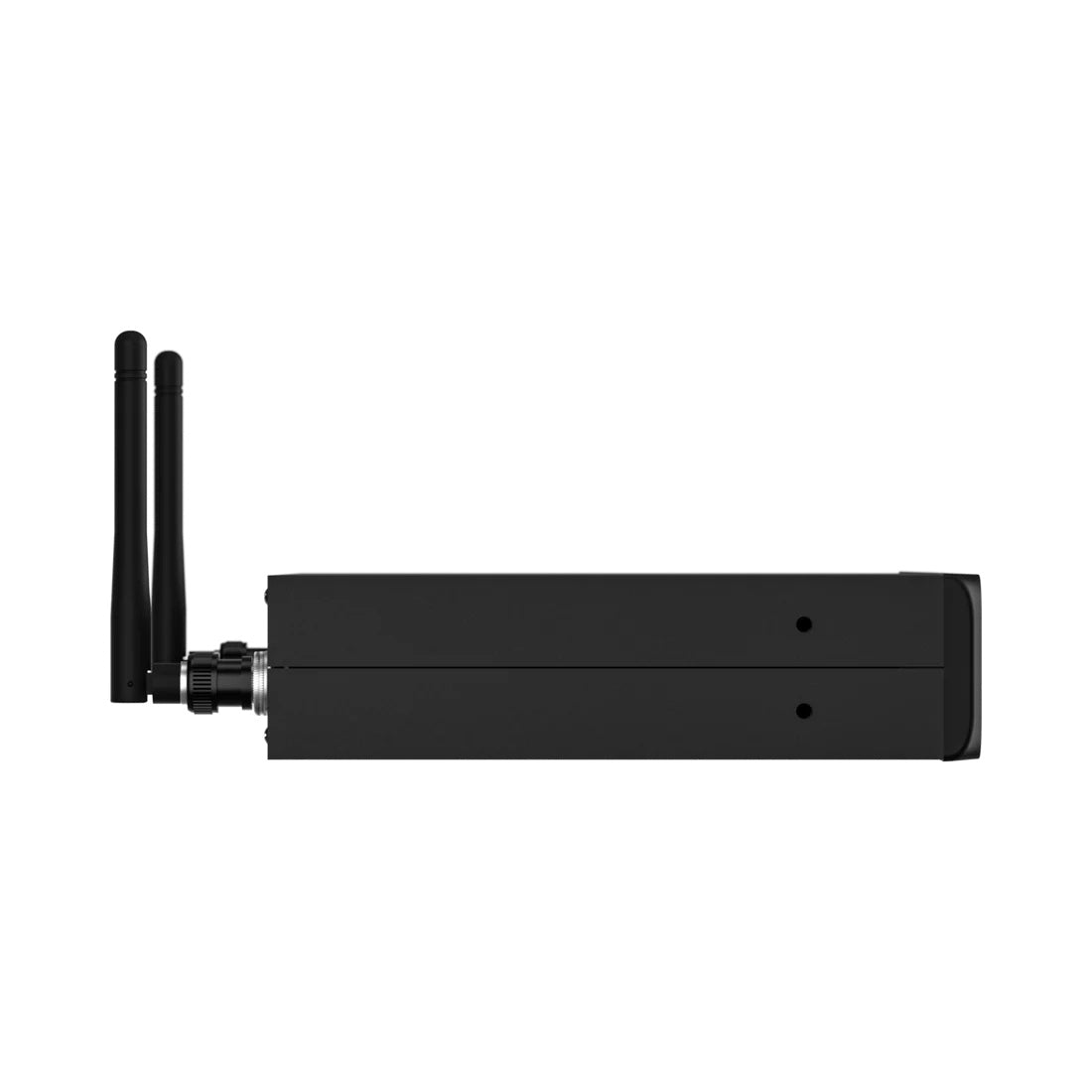

  • NCR1 left side profile showing half-rack chassis depth and rack-ear mounting holes with antennas angled forward, Audix

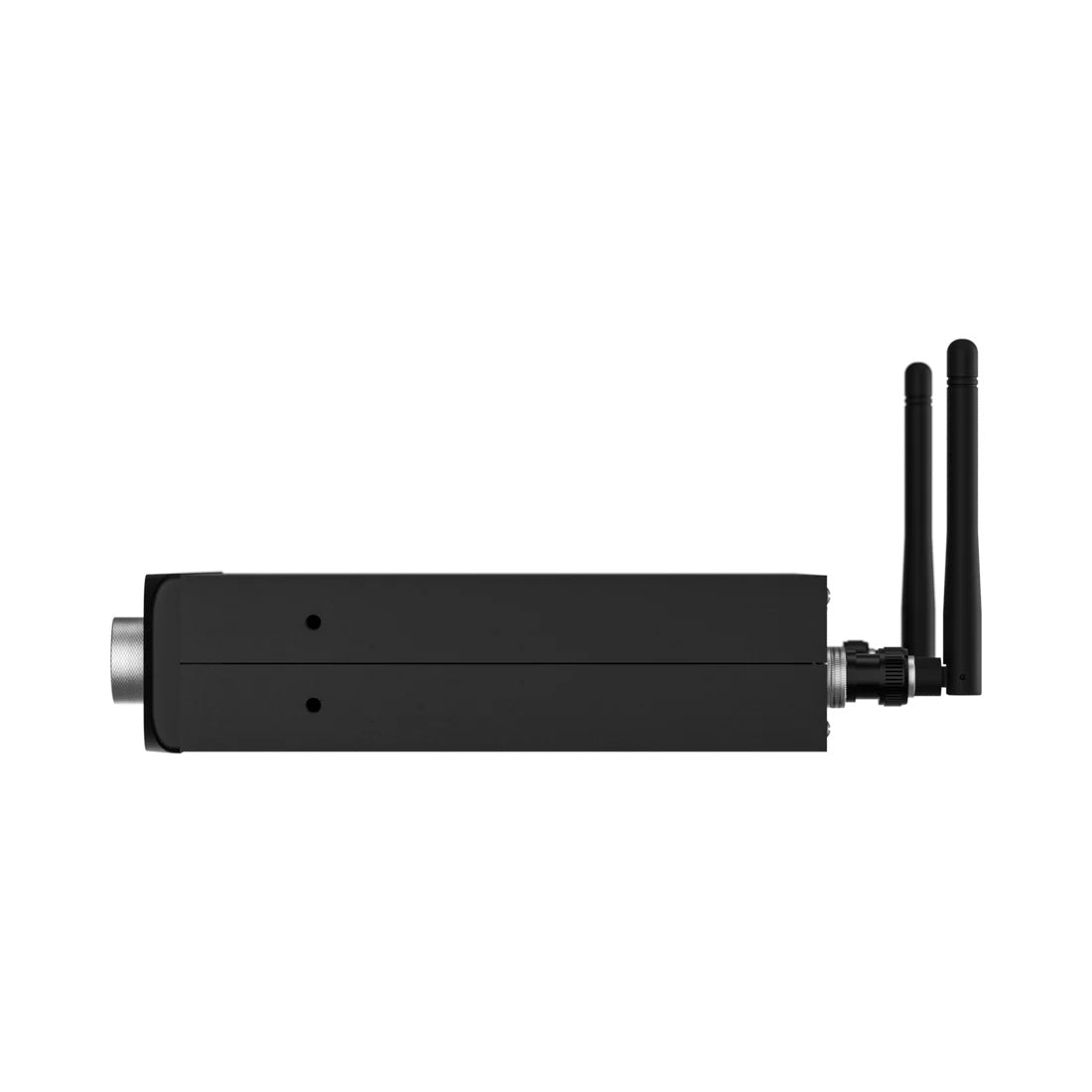

  • NCR1 right side profile with BNC-mounted antennas at the rear and front panel knob visible at the edge, Audix

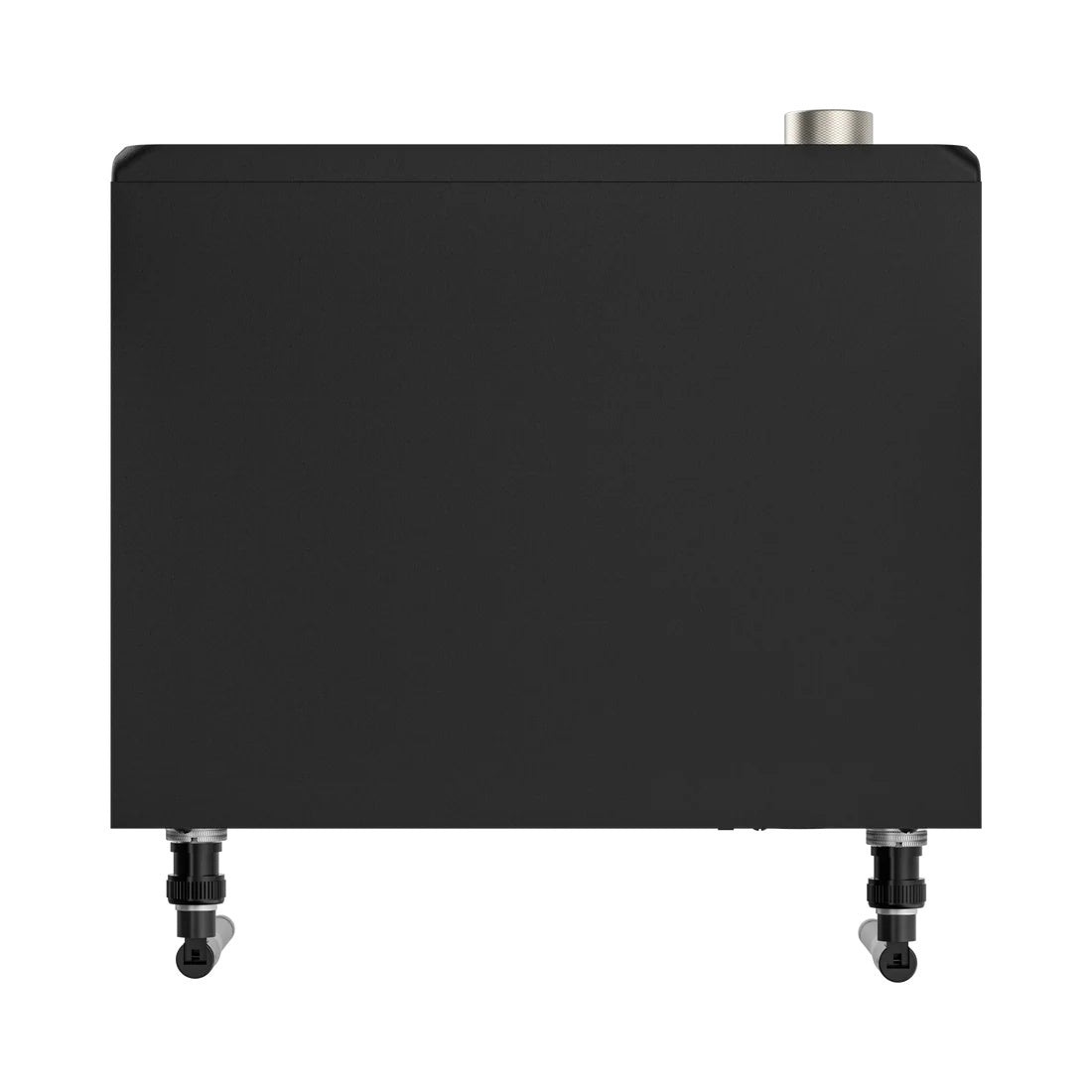

  • NCR1 bottom view showing flat half-rack enclosure with rear BNC antenna connectors protruding, Audix

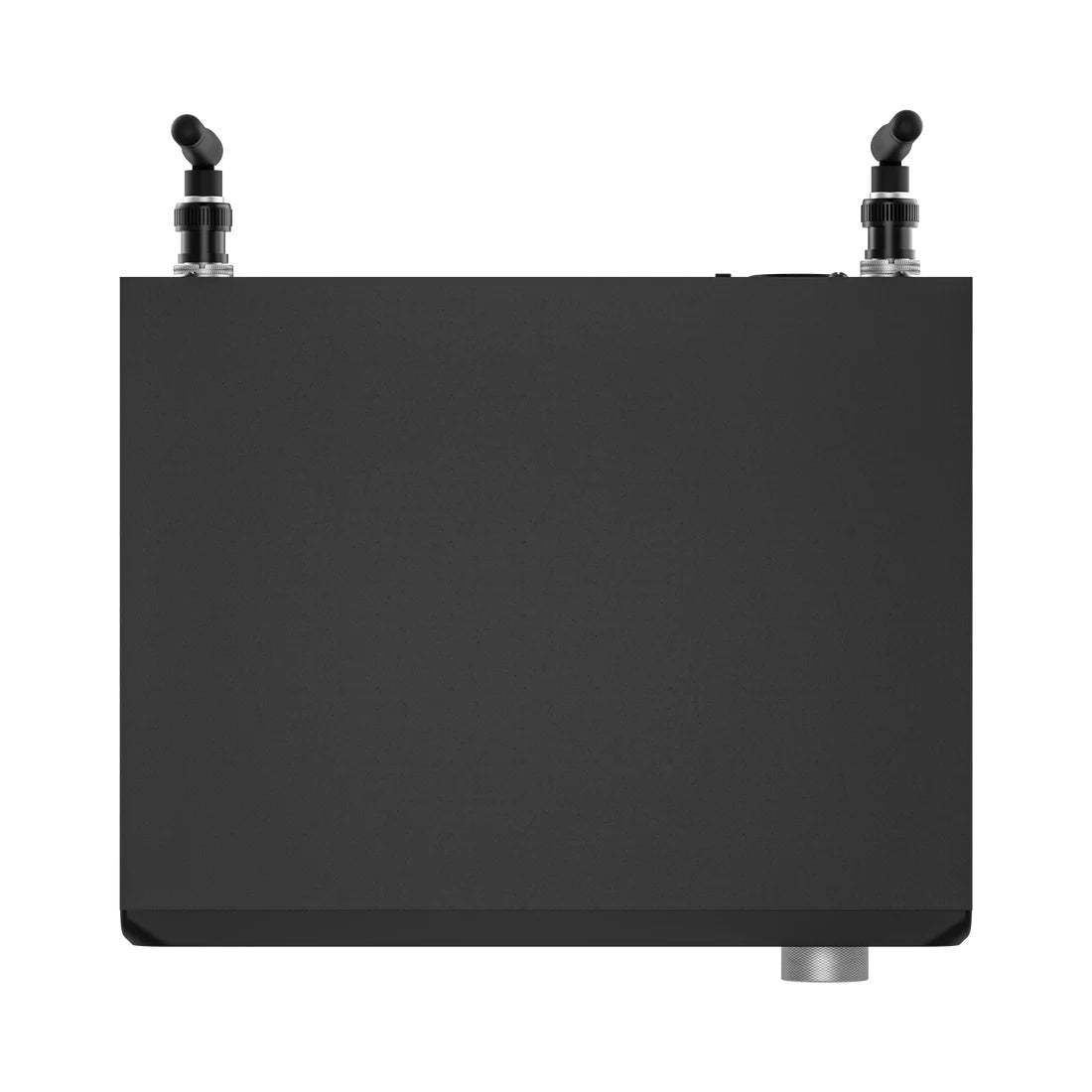

  • NCR1 top view showing plain black chassis lid with both antennas angled from the rear BNC jacks, Audix

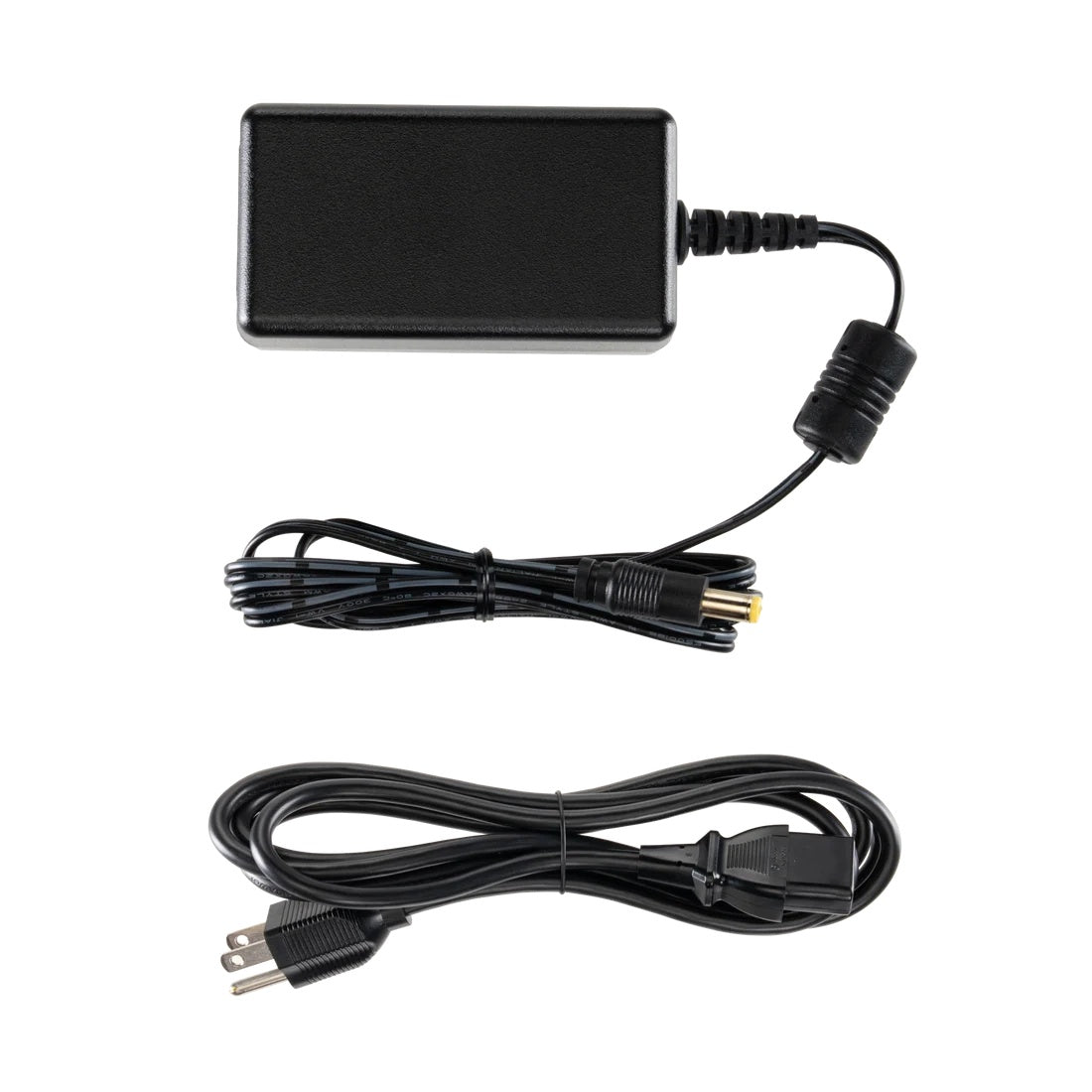

  • NCR1 included accessories: external 12-15V DC power supply with barrel connector and detachable IEC AC cord, Audix
1 10

Audix NCR1 Novacore Single-Channel UHF Digital Wireless Receiver

Audix NCR1 Novacore Single-Channel UHF Digital Wireless Receiver

SoundPro Item: 204537 | Part Number: NCR1

$399.00
$419.00 $399.00
Your Price Sold out
MSRP: $419.00 | MAP: $399.00

Usually ships in 5-7 business days

  • AES-256 Encryption Keeps Audio Transmissions Private And Secure
  • One-Touch IR Sync Pairs Instantly With Novacore Handheld And Bodypack Transmitters
  • Supports Over 30 Simultaneous Independent Systems In Dense RF Environments
  • Dual RJ11 Daisy-Chain Ports Enable Direct Software Control Without A Network Switch
  • Front LCD Displays RF Levels, Diversity Status, Battery, And Squelch In Real Time
  • Balanced XLR Output With Switchable Pad And Ground Lift For Clean Console Integration
  • Compact Half-Rack Metal Chassis Fits Standard Rack Infrastructure Via Optional Mount Kit
Log in or register for YOUR best price

The Audix NCR1 is a single-channel UHF digital wireless receiver built for sound engineers and AV integrators who need professional-grade encrypted audio in a compact, half-rack chassis. Operating across a 48 MHz tuning range in the UHF band, it supports over 30 simultaneous independent systems, making it viable for multi-system live sound rigs, corporate AV installs, and house-of-worship deployments where RF congestion is a real concern. One-touch IR sync with Novacore handheld and bodypack transmitters reduces setup time at load-in, and the front-panel LCD delivers real-time monitoring of RF levels, audio levels, diversity status, battery condition, and squelch without diving into menus.

The NCR1 differentiates itself from analog alternatives through AES-256 encryption and less than 3 ms latency, addressing both security and timing requirements in broadcast and corporate environments. Dual rear RJ11 ports enable direct daisy-chaining to Audix Frequency Coordination software, eliminating the need for a network switch in multi-receiver racks. The balanced XLR output includes a switchable pad and ground lift, giving engineers clean integration into any console or snake. Because the NCR1 shares the same RF platform as the NCR2 and NCR4, it can coexist in mixed-receiver deployments as a system grows, protecting the initial investment for integrators building scalable wireless infrastructure.

Downloads

View full details

Specifications

Audio
Frequency Response
20 Hz-20 kHz (< -2 dB)
Latency
< 3 ms
Audio Processing
44.1 kHz / 24-bit digital sampling
Dynamic Range
> 110 dBA
Encryption
AES 256-bit
RF
Frequency Range
UHF 494-542 MHz (country dependent)
RF Bandwidth
48 MHz
Receiving Mode
Digital Diversity
Spurious Rejection
> 80 dB
Antenna Type
1/4-wave; adjustable
Connectivity
RF Connector
Detachable BNC Female; 50 Ohm; bias for antenna systems
Antenna Sensitivity
12 dBuV @ S/N > -85 dBm
Audio Output Connector
XLR; Balanced (1 = ground, 2 = audio +, 3 = audio -)
Audio Output Impedance
600 Ohm (XLR Line Level)
Audio Output Level
+18 dBV
Output Level Switch
-6 dB, 0 dB, +16 dB
Ground Lift Switch
Ground / Lift
Networking
RJ11 x 2 for PC software control
Recommended Network Distance
< 100 meters
Controls
Control Interface
Power button, Sync button, Jog dial
Display
LCD
Electrical
Power Requirements
12 VDC @ 300 mA (external power supply, tip positive)
External Power Supply Input
100-240 VAC / 50/60 Hz universal
Construction
Chassis
1U Half-rack (9.5")
Materials
Steel
Finish
Black
Dimensions
Product Dimensions (W x H x D)
210 x 44 x 163 mm
Product Width
8.27"
Product Length
6.42"
Product Height
1.73"
Weight
Product Weight
2 lbs / 0.9 kg (without antennas)
Included Items
Receiver
NCR1 Novacore Single-Channel Digital Receiver
Antennas
2x BNC Detachable Antennas
Power Supply
PS12V 12 VDC External Power Supply (100-240 VAC / 50/60 Hz universal)
