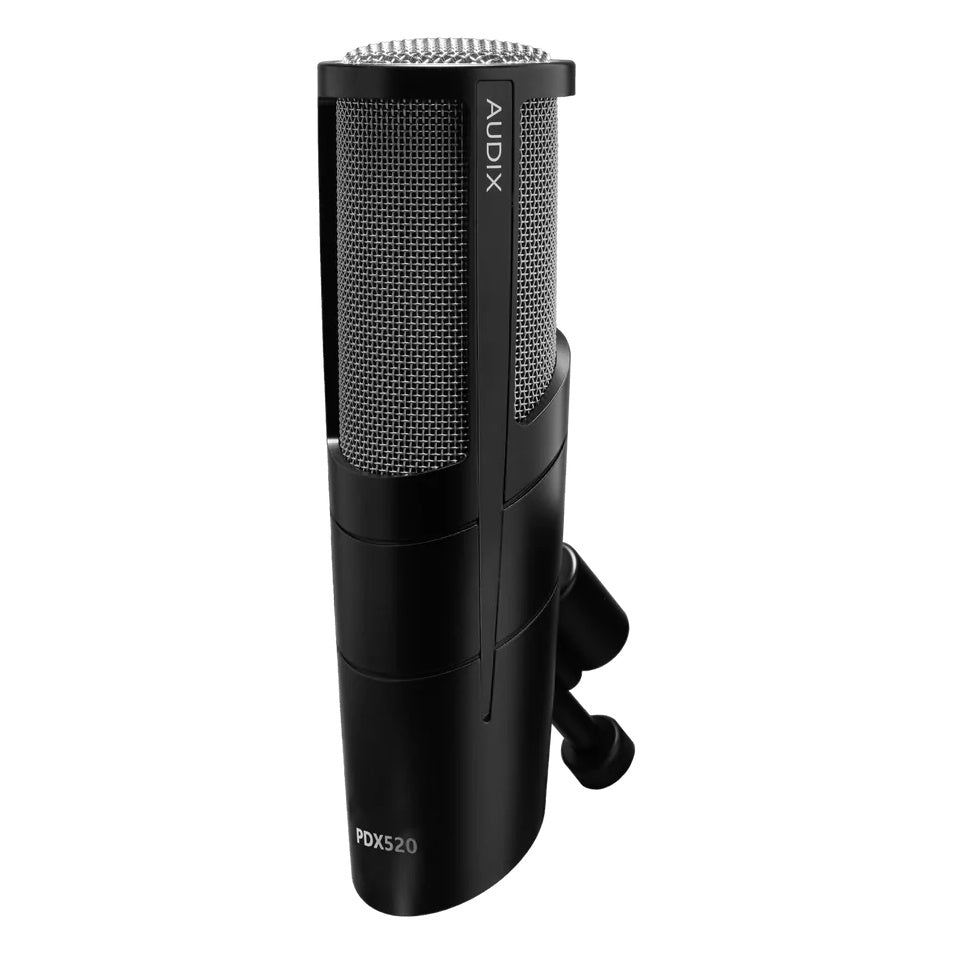

• PDX520 side view standing upright with AUDIX logo on the grille frame, PDX520 label on the body and mounting clamp at the rear, Audix

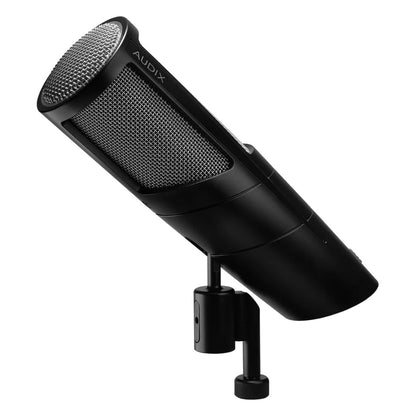

  • PDX520 angled view mounted on a desk-style stand clamp, showing the side-address mesh grille and AUDIX logo, Audix

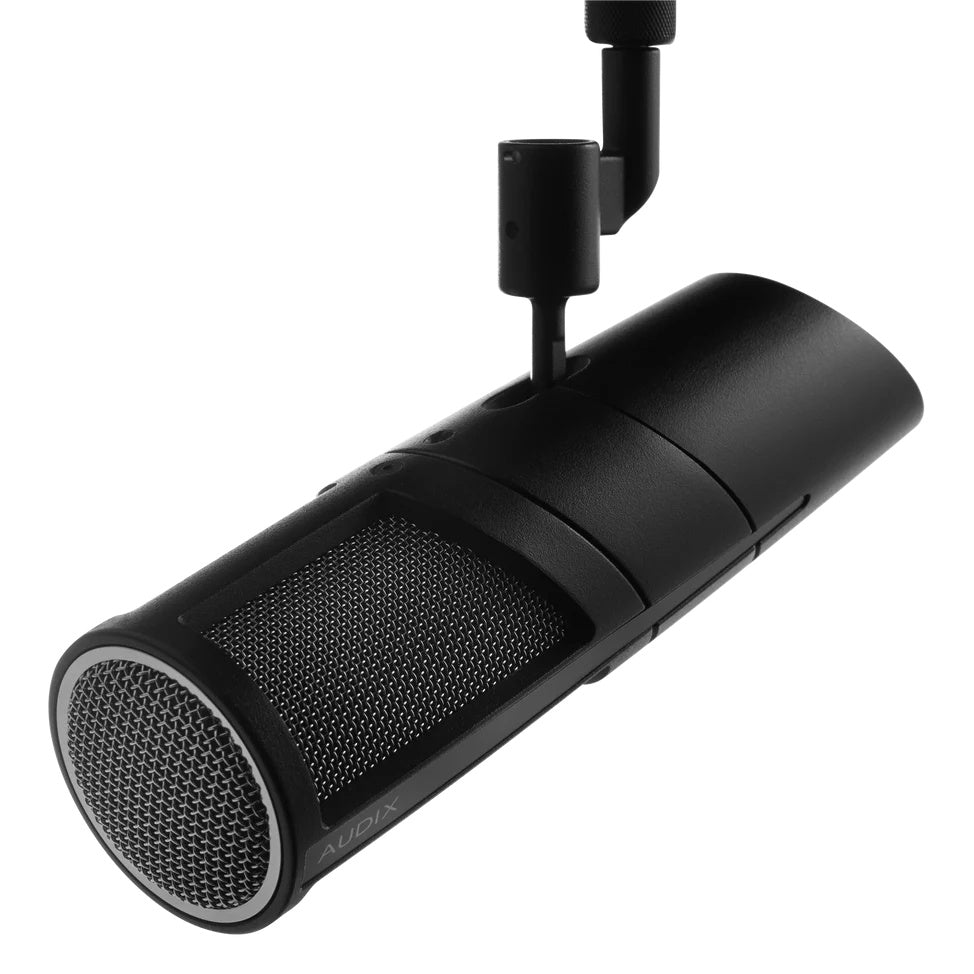

  • PDX520 suspended from above on a boom-style mount, showing the front grille, side mesh window and segmented black body, Audix

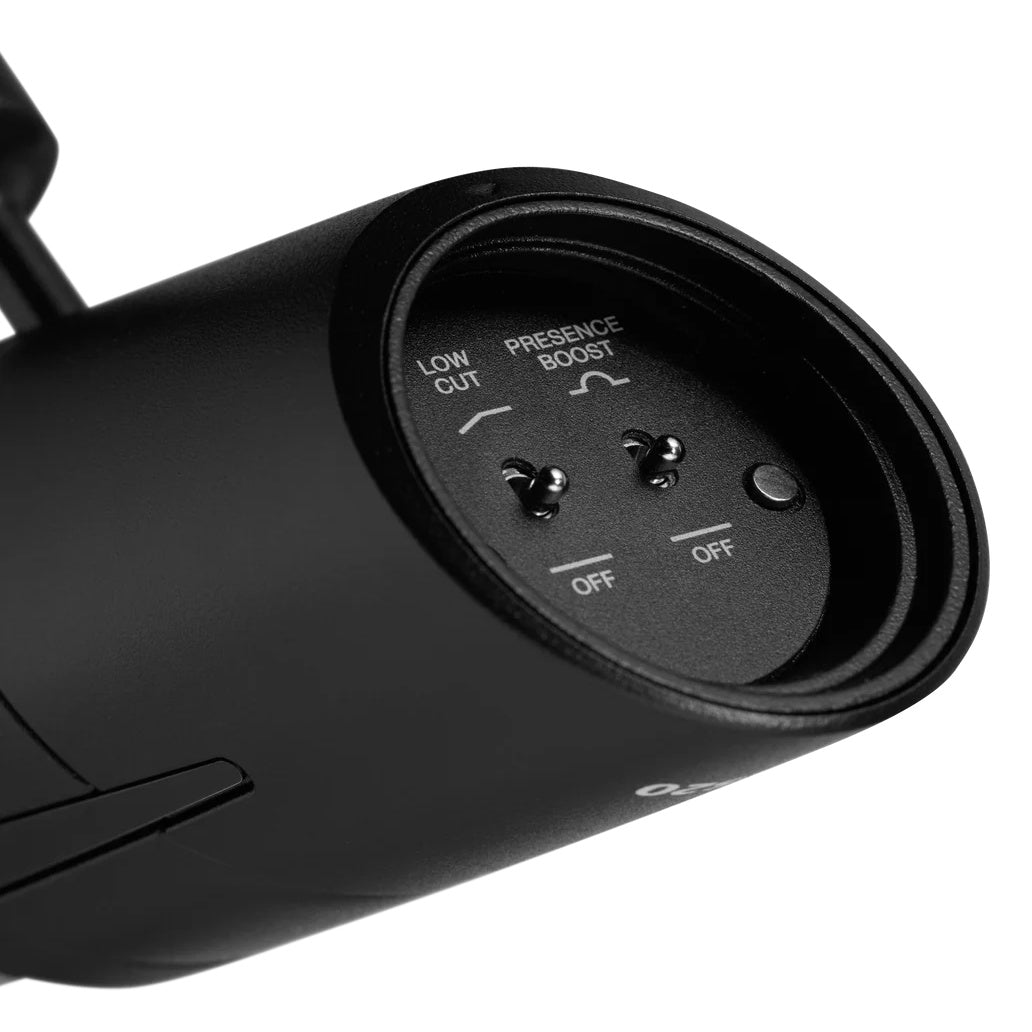

  • PDX520 rear end detail showing Low Cut and Presence Boost toggle switches in the off position next to the XLR connector end, Audix

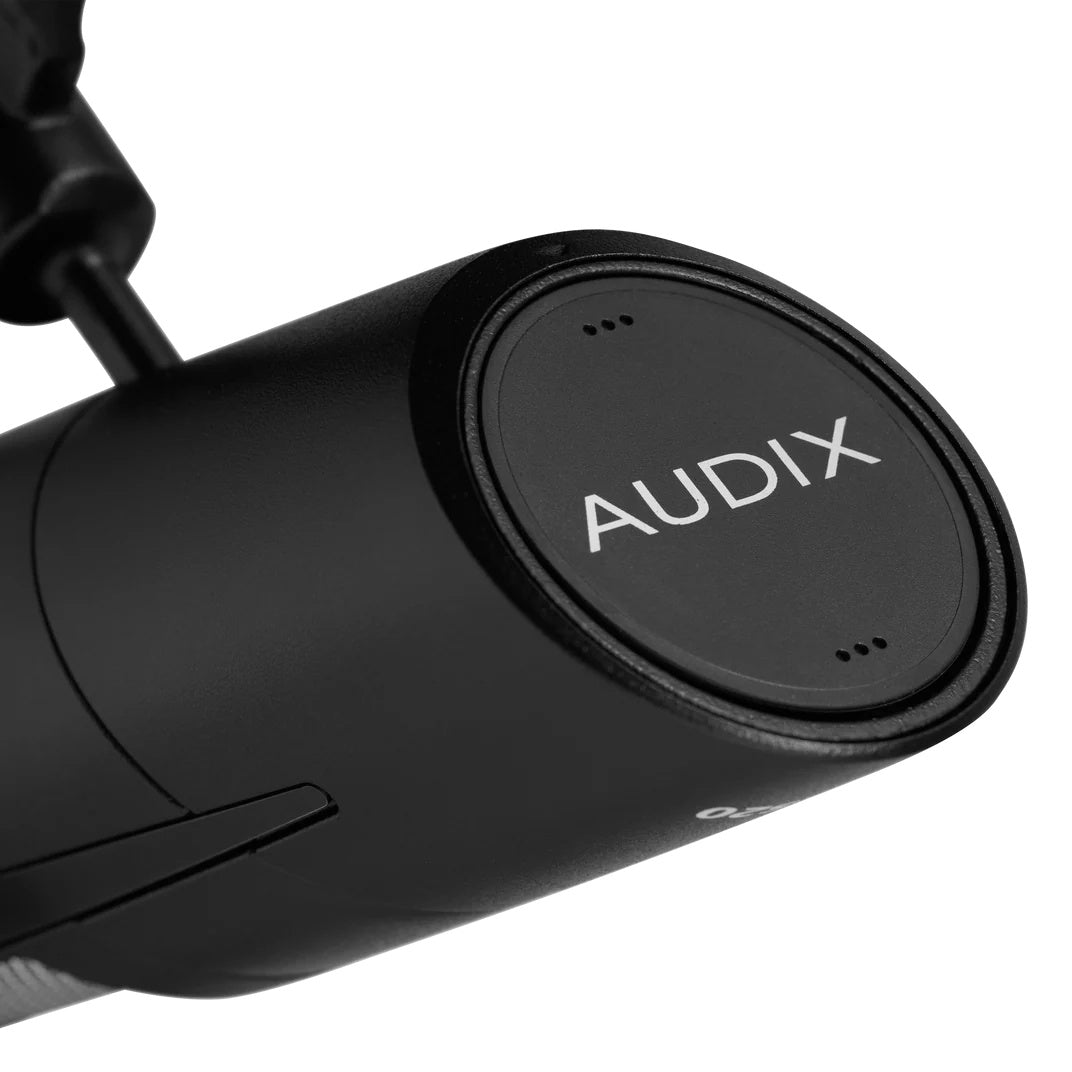

  • PDX520 bottom end cap with white AUDIX logo and small vent dots, shown next to the stand mount bracket, Audix

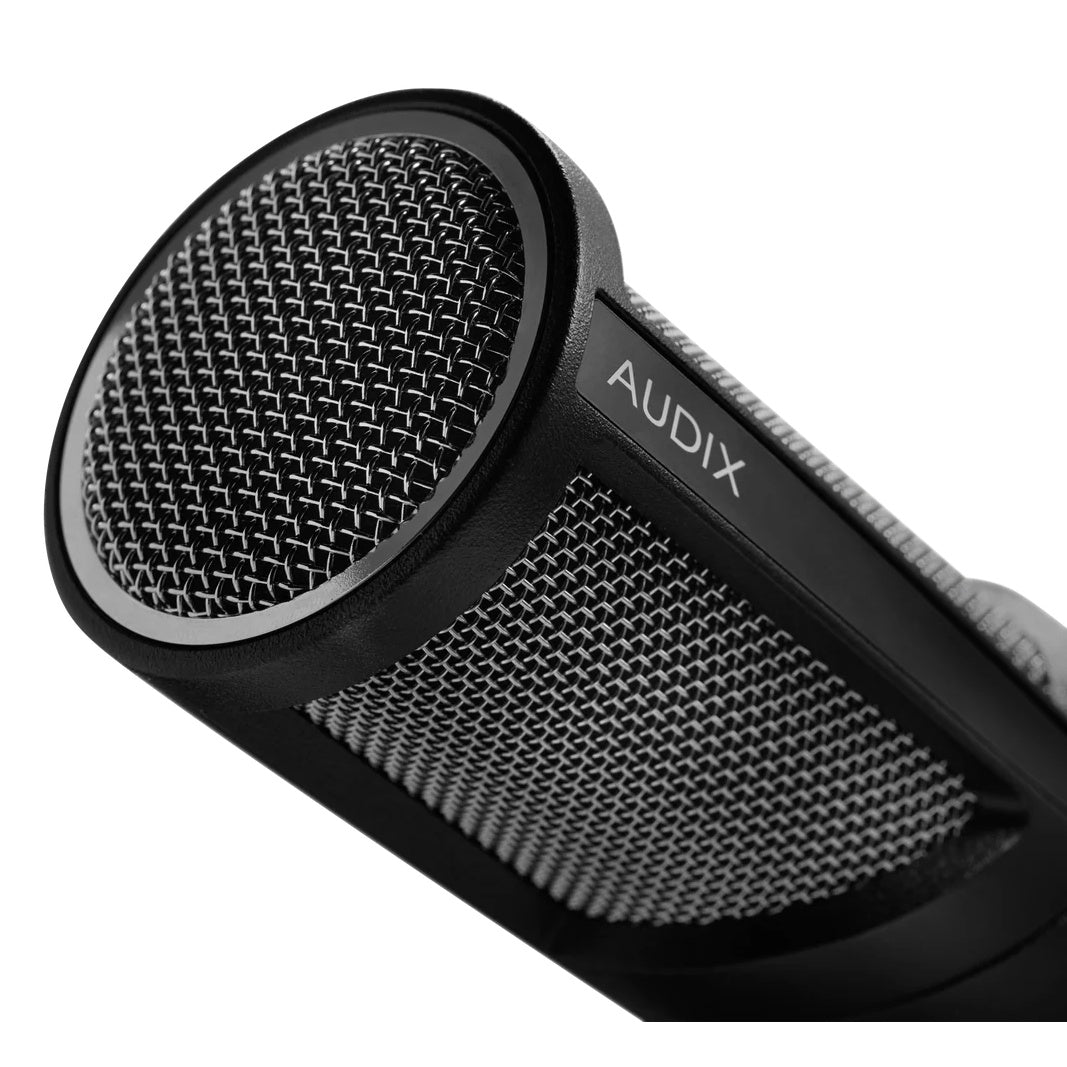

  • PDX520 close-up of the front steel mesh grille and side mesh window with AUDIX logo plate, Audix

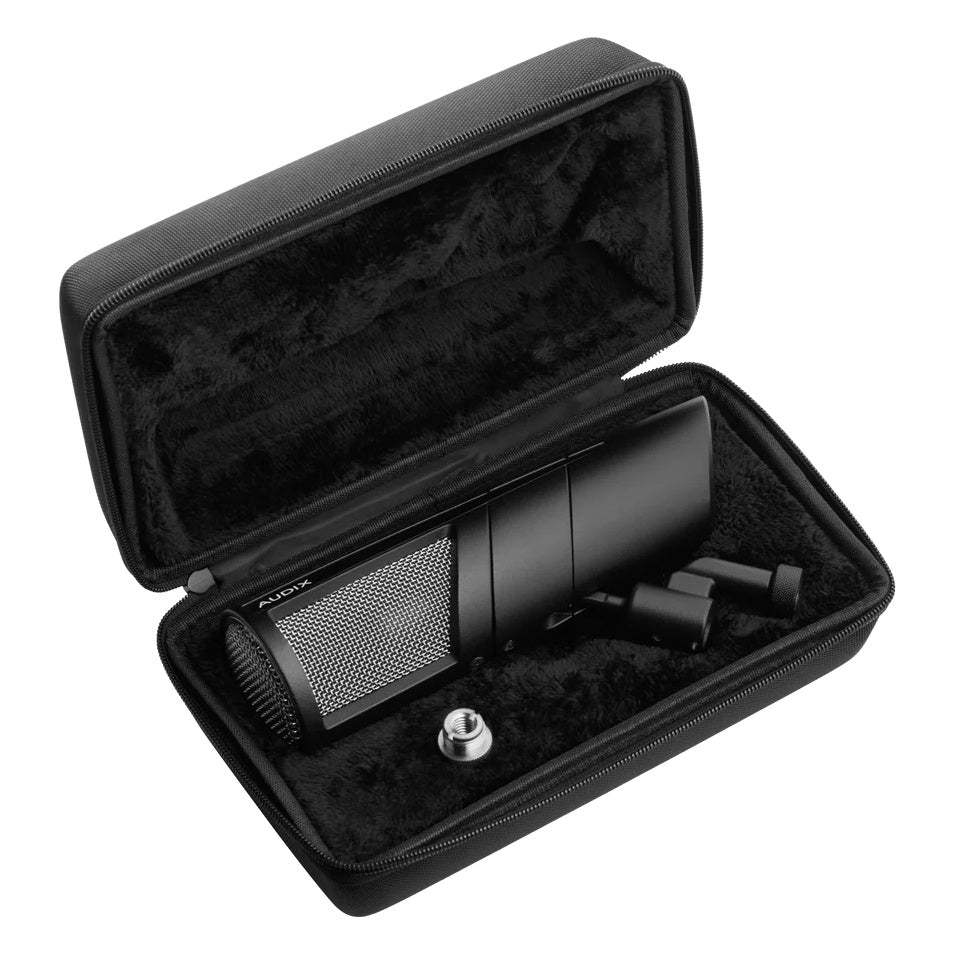

  • PDX520 microphone in its black zippered carry case with plush lining, shock-style stand mount clamp and thread adapter included, Audix
1 7

Audix PDX520 Dynamic Vocal Microphone For Broadcast And Podcasting

Audix PDX520 Dynamic Vocal Microphone For Broadcast And Podcasting

SoundPro Item: 214028 | Part Number: PDX520

$399.00
$479.00 $399.00
Your Price Sold out
MSRP: $479.00 | MAP: $399.00

Usually ships in 5-7 business days

  • Cardioid Pickup Pattern Improves Isolation In Untreated Or Imperfect Rooms
  • Low Cut Switch Tames Rumble Without Outboard EQ
  • Presence Boost Switch Adds Speech Clarity Without Extra Processing
  • Strong Default Gain Removes The Need For Preamp Boosts Or Cloud Lifters
  • Internal Capsule Vibration Dampening Helps Limit Mechanical Noise
  • Solid Metal Body With Integrated Attachment Arm Handles Daily Studio Use
Log in or register for YOUR best price

The PDX520 is built for engineers, producers, and content teams who spend hours behind a voice mic and need speech that stays comfortable to listen to. The tonal balance is warm and natural, which suits narration, interviews, talk radio, voiceover, and long-format podcast production where intelligibility matters more than hype. As part of Audix's PDX line of premium dynamic microphones, it gives rooms that are not acoustically ideal a dynamic option for clean spoken word capture.

Setup time matters in busy control rooms and remote kits. This mic delivers usable level at the preamp without added boost, so there is less gain staging to manage before a session starts. Two switches on the body let talent or operators shape the low end and upper midrange at the source, which cuts cleanup time in the edit. The two-position switches are simple to explain to guest talent and easy to set the same way from room to room.

The design draws on the PDX720 and pairs a solid metal body with a built-in mounting arm, so it holds up in fixed broadcast suites, edit bays, and shared studios where gear gets used all day. Designed and crafted in the USA.

Downloads

View full details

Specifications

Dimensions
Diameter
2.6"
Length
8.4"
Product Weight
30.7 oz
Audio
Microphone Type
Large Diaphragm
Element Type
Dynamic
Polar Pattern
Cardioid
Sound Field
Mono
Orientation
Side Address
Circuitry
Solid-State
Frequency Response
40 Hz to 16 kHz -6 dB
Maximum SPL
144 dB
Sensitivity
1.6 mV/Pa (at 1 Hz)
Connectivity
Analog Output Connector
1x XLR 3-Pin Male (Locking)
Power Sources
No Power Required
Operating Voltage
No Power Required
Construction
Color
Black
Mounting Thread Size
5/8"-27 Female (3/8"-16 Female with Included Adapter)
Controls
Controls
Low Cut/HPF, Presence Boost
Low Cut Frequency
80 Hz
Low Cut Slope
6 dB/octave
Presence Boost Range
1 kHz to 5 kHz
Shipping
Package Weight
3.105 lbs
Package Length
11.3"
Package Width
6.1"
Package Height
4.5"
