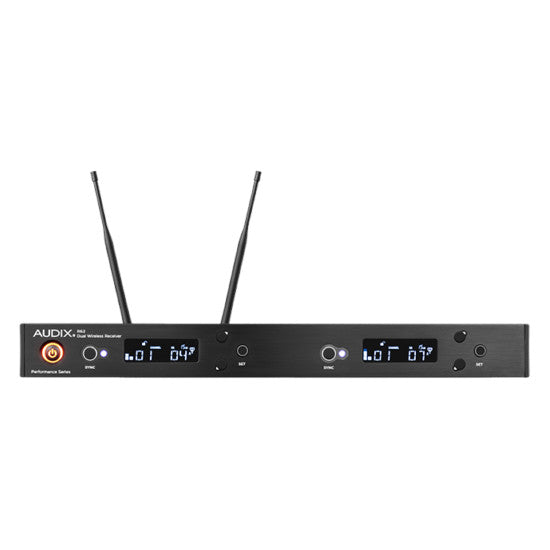

Audix R62 KIT 2-Channel True Diversity Wireless Receiver
Audix R62 KIT 2-Channel True Diversity Wireless Receiver
SoundPro Item: 77633 | Part Number: R62 KIT
Usually ships in 5-7 business days
- 64 MHz Wide spectrum tuning receiver
- 207 Pre-coordinated frequencies for quick, easy, and reliable set up
- One-touch auto scan searches for clear channel
- One-touch sync links transmitter to the receiver via infrared beam
- 2560 tunable frequencies
With the R62 Kit, a variety of combination packs can be tailored to a specific application depending on what type of transmitter and mics are needed.
It's a two-channel true diversity receiver including antennas, power supply, rackmount, and BNC cables for front mounting antennas. With the addition of the ADS48 antenna distribution system, a total of four R42 systems (8 channels of wireless) will fit compactly into just 5 rack spaces and run off of one set of antennas.
- Frequency Range 522 MHz – 586 MHz
- Bandwidth 64 MHz
- Compatible Systems Up to 24 systems (R61) / 12 systems (R62) simultaneous use
- Switchable Frequencies 207 Pre-coordinated frequencies
- Manual Mode 2560 Tunable frequencies (spaced 25 kHz apart)
- Frequency Response 45 Hz – 18 kHz
- Compander System 2:1
- Pilot Tone 32 kHz
- Receiving System Dual tuner, true diversity
- Signal-to-Noise Ratio 112 db at 30 kHz deviation (A-weighted)
- Total Harmonic Distortion ≤0.4% (33 kHz deviation at 1 kHz)
- Sensitivity 5 dBμV (S/N 60 dB at 25 kHz deviation, A-weighted)
- Audio Output (Level=6)
- Balanced: -12 dbv @ 25 kHz deviation, 600 ohm load
- 1/4": -18 dbv @ 25 kHz deviation, 10 k ohm load
- Output Connectors 1/4", XLR
- Audio Level Adjustment -12 to +9 in 3 db steps
- Range 450' (137 m)
- Power Supply 100 - 240V / 50 - 60 Hz, 12V DC, 1A
- Dimensions (WxDxH)15.95x8.23x1.73" (406x209x44)
- Net Weight4.75 lbs (2.1 kg)
