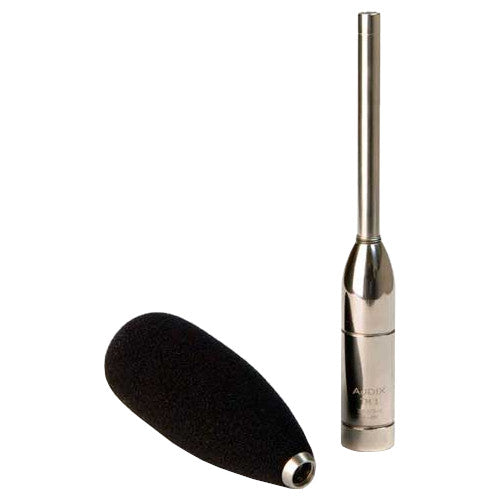

• Audix TM1 Omni Condenser Measurement Microphone with windscreen
1 1

Audix TM1 Omni Condenser Measurement Microphone

Audix TM1 Omni Condenser Measurement Microphone

SoundPro Item: 47318 | Part Number: TM1

$259.00
$311.00 $259.00
Your Price Sold out
MSRP: $311.00 | MAP: $259.00

Usually ships in 5-7 business days

  • 6mm pre-polarized condenser capsule
  • Hi SPL response
  • Precision machined brass housings
  • Low noise electronics
  • Replaceable electronics and capsule
  • 3 year warranty
  • Includes Mic Clip and Carrying Pouch
Log in or register for YOUR best price

The TM1 is a 6 mm pre-polarized condenser microphone known for its linearity, accurate response and consistency. Used for test and measurement applications, the TM1 condenser microphone is equipped with a uniformly controlled omnidirectional polar pattern designed to capture acoustic measurements for room analysis software programs, real time analyzers and other sound control devices. With a flat frequency range of 20 Hz-20 kHz, the TM1 microphone is an excellent tool for sound engineers, sound companies and recording enthusiasts.

Requiring 24-48 Volts phantom power for operation, the TM1 condenser mic features a precision machined 4-stage brass body and capsule housing, nickel plate finish, Switchcraft® or Audix XLR, shock absorbent O-rings and heavy duty snap to the mic clip. The TM1 omnidirectional test and measurement microphone is designed, machined, assembled and tested by Audix in the USA.

The TM1 Omni Condenser Microphone is great for:

  • Test and measurement
  • Real time analyzers
  • Room analysis software programs
  • Ambient room miking
View full details
  • Transducer TypePre-polarized Condenser
  • Frequency Response20 Hz – 20 kHz +/-2 dB
  • Polar PatternOmni
  • Output Impedance200 ohms
  • Sensitivity6 mV / Pa @ 1k
  • Equivalent Noise Level28 dB (A weighted)
  • Signal to Noise Ratio66 dB
  • Maximum SPL130 dB with distortion <1% 140 dB Max
  • Power Requirements24 – 48 V Phantom
  • Power Consumption8.9 mA @ 48 Volts
  • ConnectorSwitchcraft® or Audix male XLR
  • PolarityPositive pressure on diaphragm produces positive voltage on pin 2 relative to pin 3 of output XLR connector
  • Materials / Finish4 piece precision machined brass / Nickel Finish
  • Weight132 g / 4.7 oz
  • Length150 mm / 5.9 in
