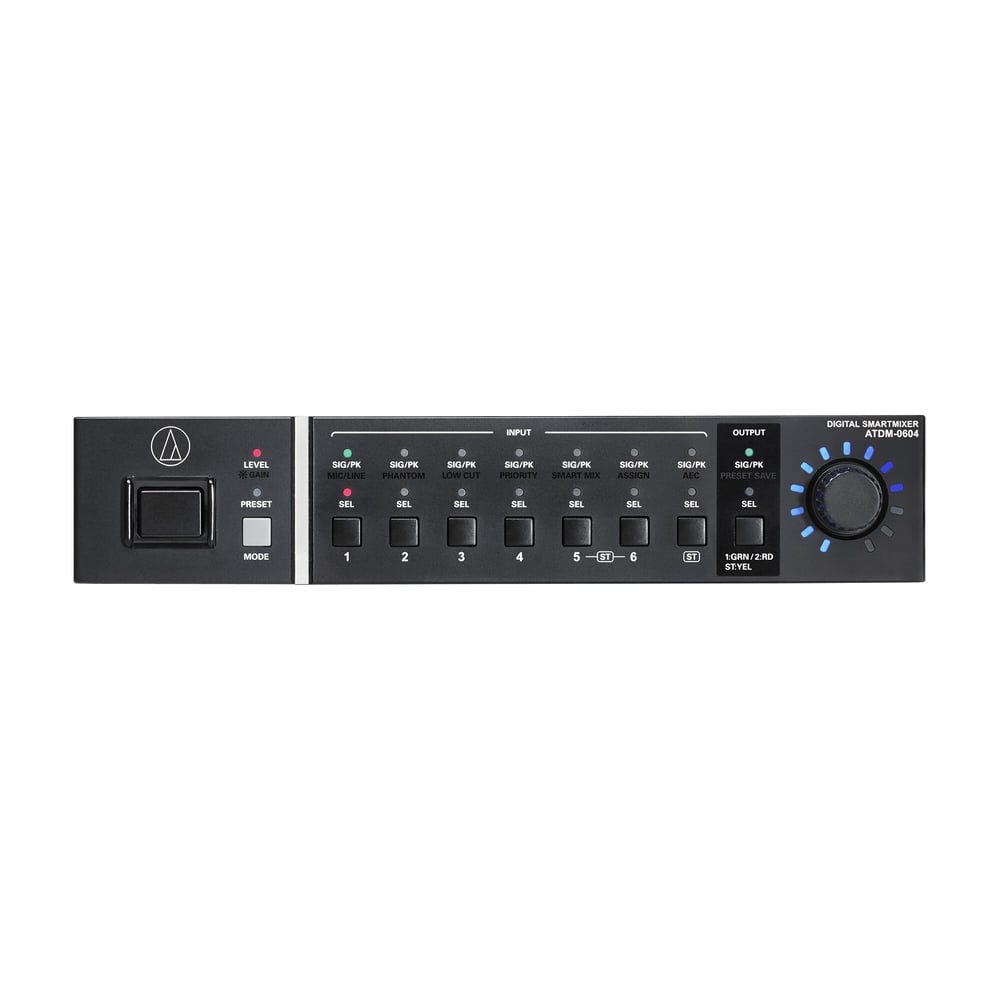

Audio-Technica ATDM-0604A 6-Channel Digital Smart Mixer

Audio-Technica ATDM-0604A 6-Channel Digital Smart Mixer

SoundPro Item: 135858 | Part Number: ATDM-0604A

$1,399.00
$2,099.00 $1,399.00
Your Price Sold out
MSRP: $2,099.00 | MAP: $1,399.00

Usually ships in 5-7 business days

  • 6 mic/line inputs and 1 unbalanced stereo input
  • 2 balanced outputs and 1 unbalanced stereo output
  • USB audio input/output (1 stereo input, 1 stereo output)
  • Remote LED control of ES954 hanging microphone arrays using the GPO terminal
  • SmartMixer® with selectable gain sharing or gate mode
  • High-performance echo canceler for each input channel
  • Noise cancellation that can be assigned to any output channel
  • Built-in 4-band EQ and compressor/de-esser for each input channel
  • Eight 8-band feedback suppressors that can be assigned to mic/line inputs and any output channel
  • Built-in 12-band PEQ, compressor, and limiter for each output channel
  • Compatible with the Barco ClickShare Conference?
Log in or register for YOUR best price

The ATDM-0604 automatic mixer is ideal for meetings, conferences, soft codec applications, courtroom proceedings, radio and TV broadcasts, and other applications involving the use of multiple microphones or other media inputs. Audio-Technica's SmartMixer® technology allows channels to be mixed automatically in gate or gain sharing mode, ensuring consistent, high-quality audio output from all inputs in a setup, without the introduction of feedback, excessive ambient noise, or comb filtering. Controls and LED indicators on the mixer's front panel allow users to easily adjust input/output and gain levels, set and recall presets, turn on/off phantom power, low-cut filter, automatic mixing and acoustic echo cancellation (AEC), change IP configuration (Auto or Static), and more. The ATDM-0604 also includes Web Remote functionality, which allows users to handle the aforementioned adjustments from a Windows-based PC, Mac, iOS, or Android device, plus make additional changes to the input and output settings, select gate or gain sharing mode when using Smart Mix, and adjust other advanced settings. The mixer is equipped with four balanced microphone inputs, two balanced Mic/Line inputs, and one unbalanced stereo input, along with two balanced and two unbalanced outputs. Network (Cat5e or better) and USB ports are also included, as are A/B Audio-Technica Link ports that let users connect six ATDM-0604 mixers via Cat5e cable for simultaneous use within an expanded setup. The ATDM-0604 is compatible with the Barco ClickShare Conference.

View full details

Specifications

'General Information
Manufacturer
Audio-Technica U.S., Inc
Manufacturer Part Number
ATDM-0604A
Brand Name
Audio-Technica
Product Line
SmartMixer
Product Model
ATDM-0604A
Product Name
SmartMixer ATDM-0604A Audio Mixer
Product Type
Audio Mixer
Technical Information
Number of EQ Bands
4
Platform Supported
PC
Mac
iOS
Android
Interfaces/Ports
Microphone
Yes
USB
Yes
Power Description
Input Voltage
120 V AC
230 V AC
Maximum Power Consumption
17 W
Physical Characteristics

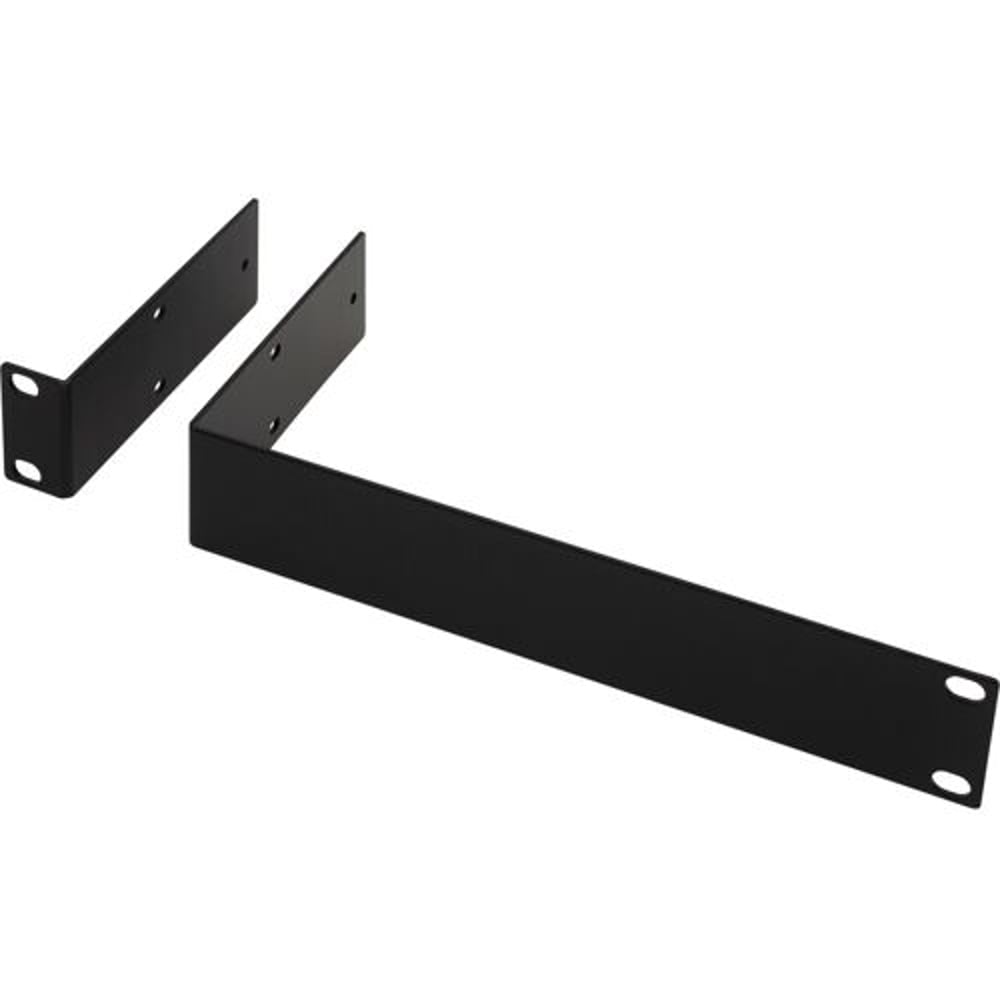

Mount Type
Rack Mountable
Miscellaneous
Additional Information
Maximum Gain: 64 dB Frequency Characteristics: 20 Hz to 20 kHz (MIC -16 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (MIC -60 dBu): +1.0 / -2.0 dB 20 Hz to 20 kHz (LINE 24 dBu): +1.0 / -1.0 dB 20 Hz to 20 kHz (LINE -40 dBu): +1.0 / -2.0 dB Dynamic Range: 110 dB or higher, A-weighted/ST S/N Ratio: 90 dB or higher, A-weighted/ST Headroom: 20 dB or higher Input Referred Noise:-126 dBu or less, Rs = 150 ohm, DIN Common-Mode Rejection Ratio: 80 dB or higher, 1 kHz Residual Noise: -86 dBu or less, A-weighted Channel Separation: -80 dB or less, 1 kHz unity Total Harmonic Distortion: 0.03% or less, 1 kHz unity Analog Input: MIC 1 to 6 max.: 0 dBu MIC 1 to 6 unityï1/4š -40 dBu LINE 1 to 4 max.: +10 dBV LINE 1 to 4 unity: -10 dBV LINE 5 to 6 max.: +24 dBu LINE 5 to 6 unity: +4 dBu / 0 dBV / -10 dBV / -20 dBV ST max.: +10 dBV ST unity: -10 dBV / -20 dBV Analog Output: UNBAL max.: +10 dBV / -13 dBV UNBAL unity: -10 dBV / -33 dBV BAL 1/L, 2/R max.: +24 dBu / +20 dBV / +10 dBV BAL 1/L, 2/R unity: +4 dBu / 0 dBV / -10 dBV Power Supply: 100 to 240 V AC (50/60 Hz) Power Consumption: 17 W Operating Temperature: 0 to 40°C (32 to 104°F) Operating Humidity Range: 25 to 85% (with no condensation)
Application/Usage
Meeting
Conferencing
Device Supported
Radio
Warranty
Limited Warranty
2 Year
