Audio-Technica ATDM-1012DAN 10X12 Smart Mixer W/Dante
Audio-Technica ATDM-1012DAN 10X12 Smart Mixer W/Dante
SoundPro Item: 143471 | Part Number: ATDM-1012DAN
Usually ships in 5-7 business days
- High-quality mic/line inputs with discrete amplifiers and remotely controllable mic preamps
- Up to two ES954 Hanging Microphone Arrays (sold separately) can be integrated with the mixer.
- Full-matrix mixer with flexible input/output assignments.
- USB audio I/O (1 stereo input and 1 stereo output).
- Acoustic Echo Cancellation (AEC) and Noise Cancelling (NC) for use with up to 10 mic inputs.
- Audio-Technica LINK support for cascading up to 8 ATDM devices.
- Dante-compatible model (ATDM-1012DAN) available.
- 1U design is 19" rack compatible
The ATDM-1012 Digital SmartMixer is a flexible and easy-to-use solution for a wide variety of installed audio applications where mix-minus operation or audio pickup from specific zones within a space is required. Its powerful feature set makes it ideal for hospitality, corporate or demanding courtroom settings, and many more.

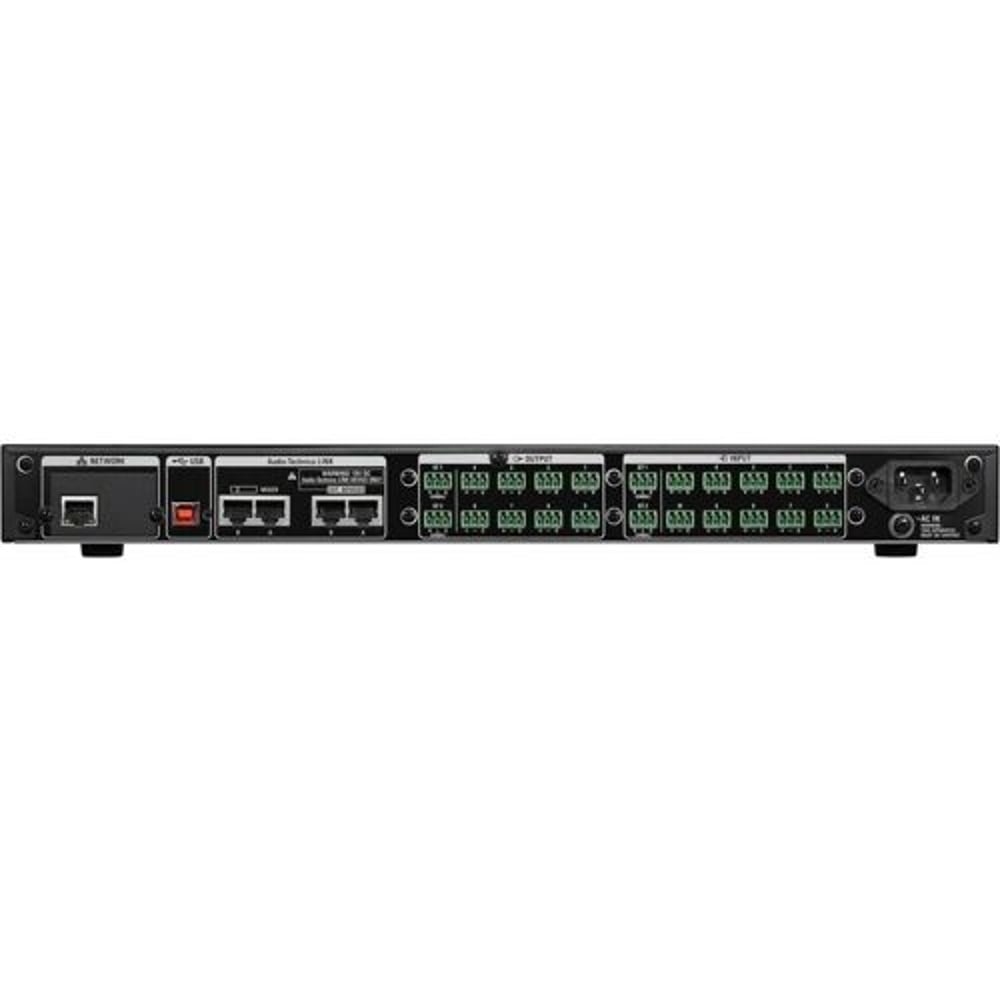

The ATDM-1012 is a 14 input / 12 bus matrix mixer featuring 10 mic/line inputs with high-quality preamps, two stereo line inputs, USB audio I/O, eight balanced outputs and two unbalanced stereo outputs. Ten additional digital inputs can be added either via an AT-LINK digital connection or over Dante - available with the Dante-enabled ATDM-1012DAN version.
Each input channel is equipped with phase inversion, low-cut filter and a four-band parametric EQ. Inputs can be routed through the routing matrix to any of the 12 busses, which each feature independent volume settings. The ATDM-1012's smart mixing capabilities offer four mixing groups that can either be gain sharing or gating mixers. Additionally, ten Acoustic Echo Cancellation (AEC) processors, ten compressors/de-essers and eight feedback suppressors can be freely assigned to any of the input or output channels to ensure maximum audio quality at all times.

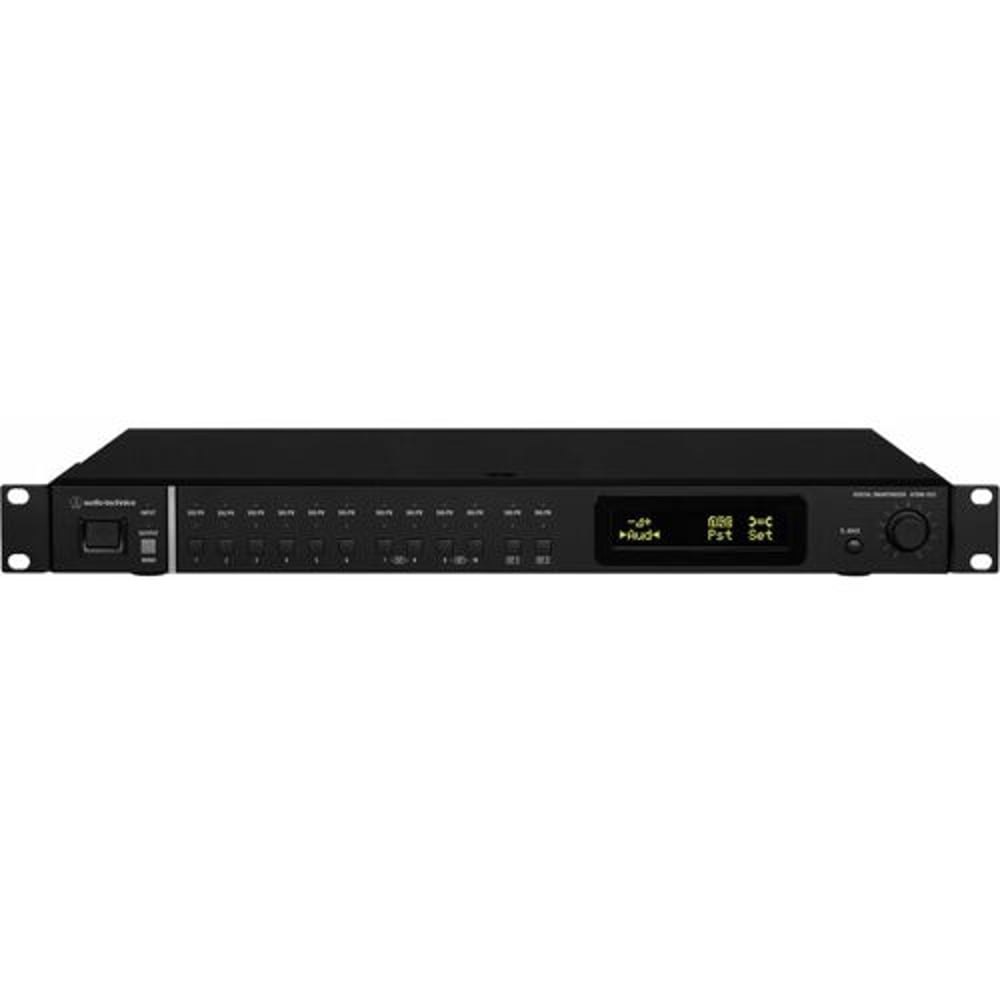

The ATDM-1012's versatile, highly configurable nature is complemented by its ease of operation; audio input/output settings can be made from the front panel, with full control achieved via the Web Remote Manager software application. In addition, the mixer can be accessed remotely over IP via a web browser, adding further flexibility.
Specifications
