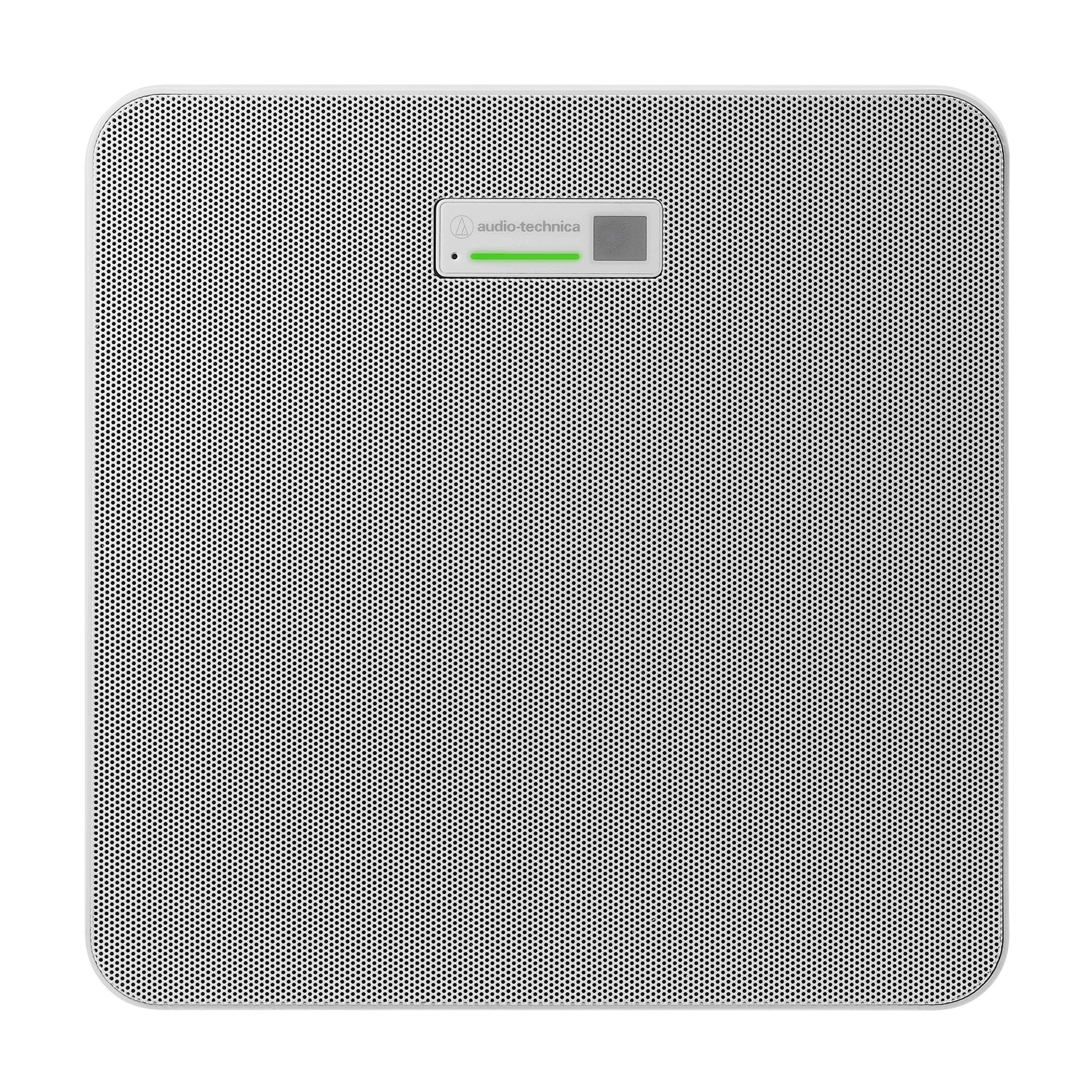

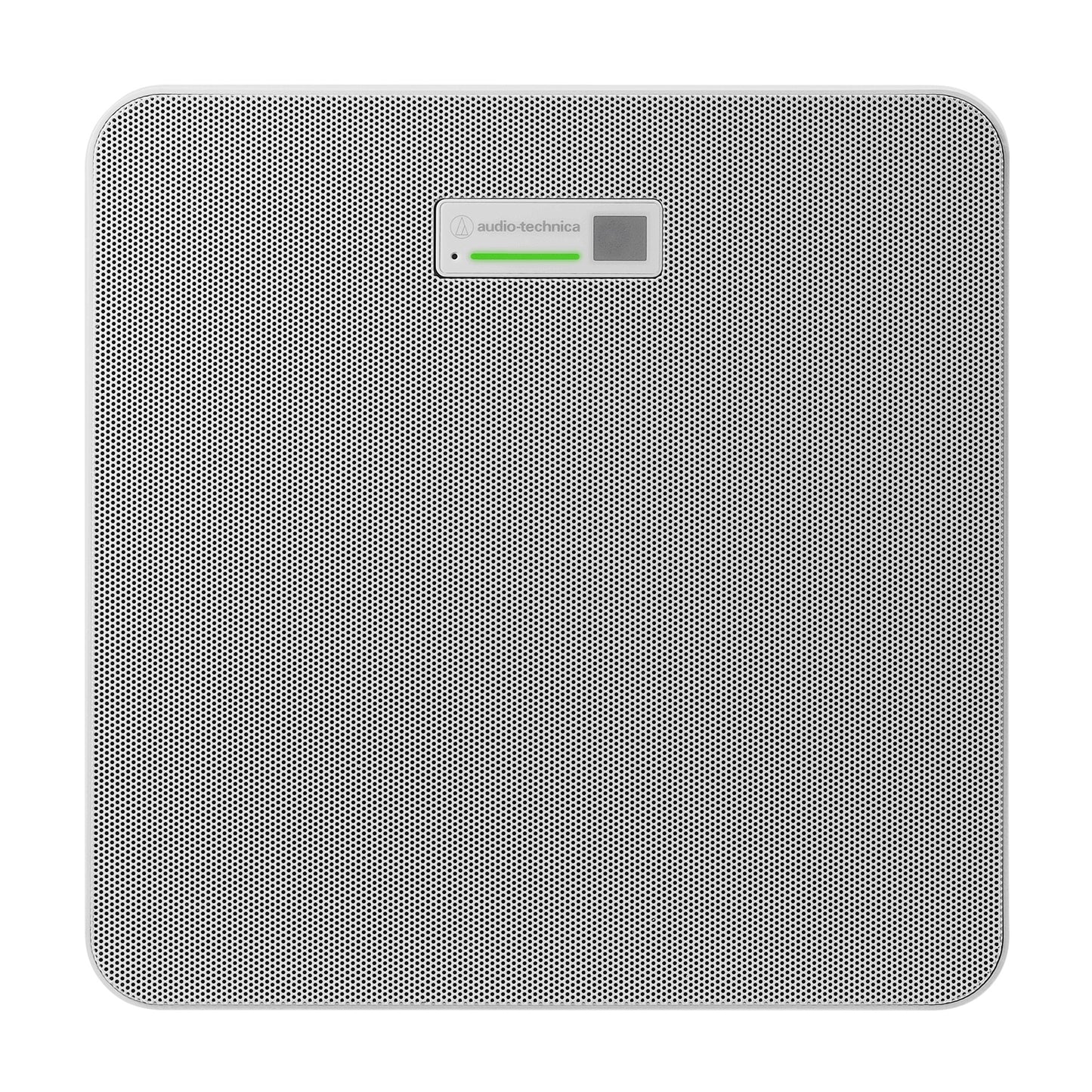

Audio-Technica ATND1061DAN Dante Beamforming Ceiling Array Microphone

Audio-Technica ATND1061DAN Dante Beamforming Ceiling Array Microphone

SoundPro Item: 130016 | Part Number: ATND1061DAN

$3,229.00
$4,844.00 $3,229.00
Your Price Sold out
MSRP: $4,844.00 | MAP: $3,229.00

Usually ships in 5-7 business days

  • Advanced Beamforming Precisely Captures Voices While Suppressing Ambient Noise
  • Integrated DSP With Automix, Acoustic Echo Cancellation, And 4-Band EQ
  • Up To 32 Customizable Pickup Zones Across Six Audio Output Channels
  • Voice Lift Technology Ensures Equal Intelligibility Throughout Large Spaces
  • Voice Activity Detection And Exclusion Zones Reduce Unwanted Environmental Noise
  • Flush-Mount, Surface-Mount, And VESA-Compatible Installation Options
  • Dante Network Integration With Dual-Port Redundancy And VISCA Over IP Support
Log in or register for YOUR best price

The ATND1061DAN brings professional-grade audio clarity to corporate conference rooms, boardrooms, classrooms, and hybrid work environments. Its advanced beamforming array intelligently captures participant voices while reducing background noise and reverberation, making it ideal for rooms of all sizes where clear, natural speech reproduction is critical for meetings, recordings, and video conferencing integration.

Built-in digital signal processing eliminates the need for external DSP hardware. Automix, acoustic echo cancellation, noise reduction, automatic gain control, and 4-band EQ are all onboard. The microphone supports up to 32 customizable pickup zones across six audio output channels, enabling Coverage Zones for general participants and Priority Zones for known speaker locations. Voice lift technology ensures participants seated far from the microphone sound equally present, while voice activity detection and exclusion zones suppress unwanted noise like HVAC systems and paper shuffling.

Installation is straightforward with flush-mount, surface-mount, and VESA options, all UL 2043 compliant for plenum spaces. The Dante-enabled model (ATND1061DAN) ships with two network ports, dual-mode networking, and is certified for Microsoft Teams Rooms, Zoom Rooms, and Google Meet in Q-SYS environments. The package includes all necessary mounting hardware, tile bridges, safety wiring, IR remote control, and Digital Microphone Manager software for intuitive configuration of single or multiple units.

Downloads

View full details

Specifications

Microphone Audio
Beam Width
90 degrees
Polar Pattern
Beam Pattern
Frequency Response (Microphone)
60 Hz to 18,000 Hz
Maximum Input Sound Level
102 dB SPL
Sensitivity
−8 dBFS (1 kHz, 94 dB SPL)
Dynamic Range (Microphone)
89 dB (A-weighted)
Signal-to-Noise Ratio (Microphone)
61.5 dB (A-weighted)
Self-Noise
25 dB SPL (A-weighted)
Analog Audio
Frequency Response (Analog)
20 Hz to 20 kHz (±1.0/−2.0 dB)
Dynamic Range (Analog)
100 dB (A-weighted)
Signal-to-Noise Ratio (Analog)
80 dB (A-weighted)
Headroom
20 dB
Residual Noise
−75.8 dBu (A-weighted)
Total Harmonic Distortion
<0.1% (1 kHz, unity)
Microphone Input Maximum
−30 dBu
Microphone Input Unity Gain
−50 dBu
Line Input Maximum
+12.2 dBu
Line Input Unity Gain
−10 dBV (switchable)
Output Maximum
+19.2 dBu
Output Unity Gain
+4 dBu/−10 dBV/−33 dBV (switchable)
Phantom Power (Analog Input)
12 V
Connectivity
Network Ports
2 × RJ-45 (Dante)
Network Speed (Dante)
1 Gbps
Network Speed (IP Control)
100 Mbps
Analog Input
Euroblock 3-pin
Analog Output
Euroblock 3-pin
GPI Connection
Euroblock 3-pin
Digital Audio
Sampling Rate
48 kHz
Bit Depth
24 bit
Latency (Microphone to Channel Output)
47 msec
Latency (Automix Channel)
79 msec
Latency (Dante)
Min. 250 µsec, Max. 5 msec
Dimensions & Weight
Exterior Width
9.0"
Exterior Depth
9.0"
Exterior Height
1.2"
Weight
1.28 lbs
Environmental
Operating Temperature Range
32°F to 104°F (0°C to 40°C)
Operating Humidity Range
25% to 85% (non-condensing)
Electrical
Power Source
PoE (IEEE 802.3af Class 0)
Power Consumption (Maximum)
7 W
Certifications
UL Standard
UL 2043 (Plenum Installation)
Microsoft Teams Rooms
Certified
Zoom Rooms
Certified
Google Meet
Certified
TAA Compliant
Yes
