Audio-Technica ATW-1423/L System 20 PRO Dual Wireless Microphone

Audio-Technica ATW-1423/L System 20 PRO Dual Wireless Microphone

SoundPro Item: 201591 | Part Number: ATW-1423/L

$1,179.00
$1,651.00 $1,179.00
Your Price Sold out
MSRP: $1,651.00 | MAP: $1,179.00

Usually ships in 5-7 business days

  • Digital 24-Bit/48 kHz Audio Ensures Professional Sound Quality And Reliability
  • 2.4 GHz License-Free Operation Eliminates Interference And Regulatory Coordination
  • Standard And HD Modes Optimize Latency Or Channel Density Per Venue Requirements
  • Remote Receiver Mounting Via Ethernet Extends Coverage Up To 328 Feet Away
  • AES128 Encryption With Wireless Manager Software Provides Centralized Security
  • Hypercardioid Handheld And Dual-Input Body-Pack Enable Dual-Source Coverage
  • Water And Sweat-Resistant cW-Style Connector Ensures Reliable Lavalier Connection
Log in or register for YOUR best price

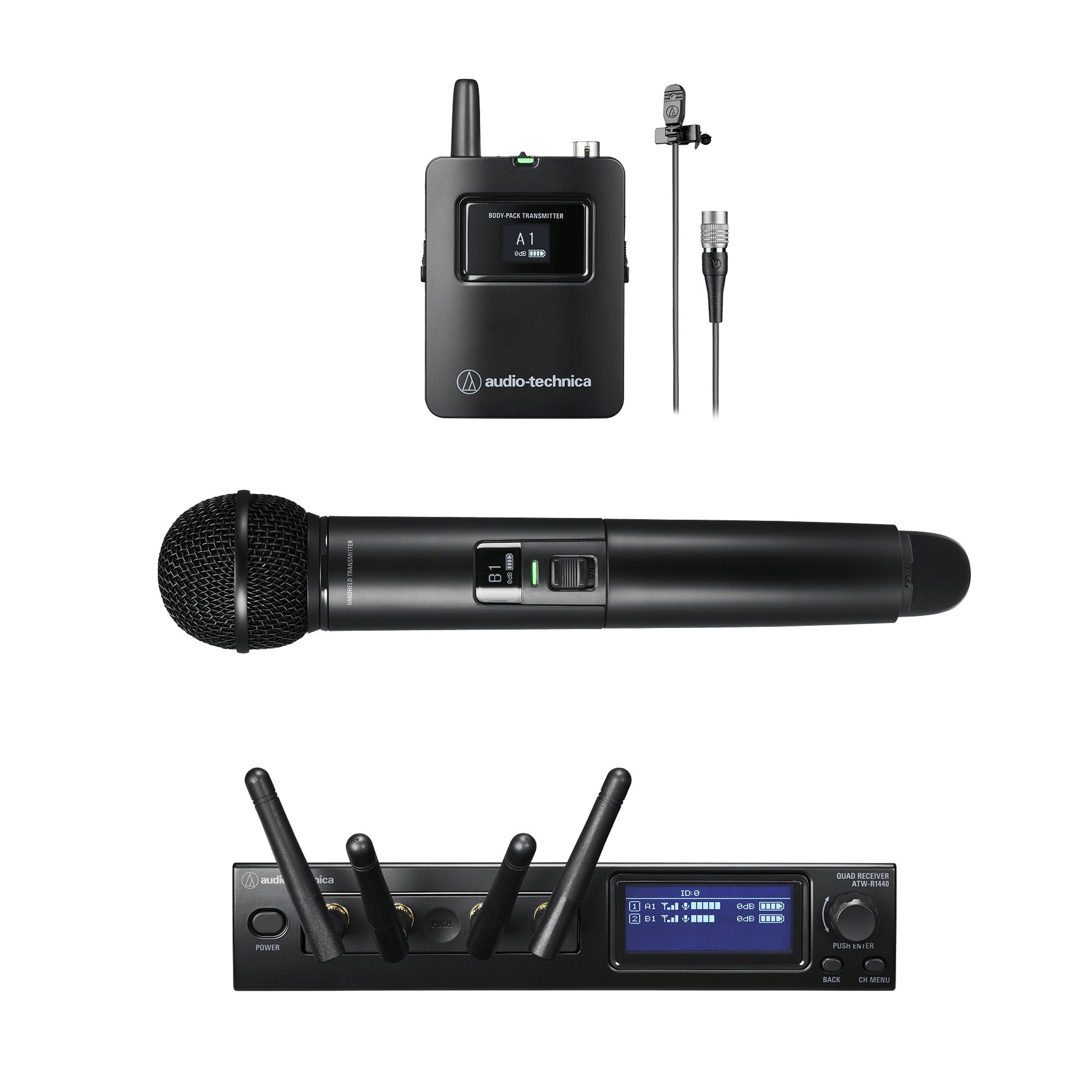

The Audio-Technica ATW-1423/L is a complete wireless microphone system designed for touring sound engineers, installed AV integrators, and production teams who need simultaneous handheld and lavalier coverage without carrier frequency conflicts. The System 20 PRO platform delivers 24-bit/48 kHz digital audio across the license-free 2.4 GHz ISM band, eliminating RF coordination overhead and TV interference concerns. Operators can toggle between Standard mode (10 channels, 2.8 ms latency) and HD mode (20 channels, 6.7 ms latency) to prioritize either low-delay performance or maximum simultaneous users within a single venue.

The chassis architecture supports up to five linked units, remote receiver mounting via Ethernet up to 328 feet away, and flexible transmitter pairing—each receiver channel accepts up to four transmitters, enabling rapid talent swaps during live events or staged presentations. AES128 encryption and Wireless Manager software integration provide security and centralized control across multi-receiver deployments. Both the handheld (ATW-T1402) and body-pack (ATW-T1401) transmitters run on AA batteries with extended life on lithium cells, while the system's OLED displays and auto-lock function reduce setup errors in high-pressure environments.

Downloads

View full details

Specifications

Overall System
Operating Frequencies|2,402 to 2,480 MHz
Maximum Simultaneous Channels (Standard Mode)|10
Maximum Simultaneous Channels (HD Mode)|20
Latency (Standard Mode)|2.8 ms
Latency (HD Mode)|6.7 ms
Audio Sampling Rate|24-bit/48 kHz
Frequency Response|20 to 20,000 Hz
Dynamic Range|120 dB (A-weighted)
Total Harmonic Distortion|<0.05%
Encryption Method|AES128
Receiver Chassis
Dimensions (W x D x H)|8.3" x 6.5" x 1.7"
Weight|26 oz
Power Supply|12 V DC, 0.5 A (AC adapter)
Power Consumption|3.7 W
Operating Temperature Range|0°C to +40°C
Output Level (Line Max)|+22 dBu
Output Level (Line Unity)|-20 dBu
Output Level (Mic Max)|-12 dBu
Output Level (Mic Unity)|-50 dBu
NetConnectivity|RJ45 Fast Ethernet, RJ12 Link In/Out, RJ45 External Port
Remote Receiver Unit
Dimensions (W x D x H)|3.4" x 2.8" x 0.74"
Weight|2.7 oz
RF Output Power|10 mW EIRP
RF Sensitivity|-90 dBm
Antenna|1/2 Wave Dipole True Diversity
Modulation|GFSK
Handheld Transmitter
Dimensions (W x H)|10" x 2.1"
Weight|11 oz (without batteries)
Battery Type|2 x 1.5 V AA
Battery Life (Alkaline)|Approx. 18 hours
Battery Life (Ni-MH)|Approx. 16.5 hours
Battery Life (Lithium)|Approx. 35 hours
Microphone Type|Dynamic
Microphone Polar Pattern|Hypercardioid
RF Output Power|10 mW EIRP
RF Sensitivity|-90 dBm
Antenna|True Diversity
Modulation|GFSK
Operating Temperature Range|5°C to +40°C
Body-Pack Transmitter
Dimensions (W x D x H)|2.5" x 0.89" x 4.2"
Weight|2.8 oz (without batteries)
Battery Type|2 x 1.5 V AA
Battery Life (Alkaline)|Approx. 15 hours
Battery Life (Ni-MH)|Approx. 14.5 hours
Battery Life (Lithium)|Approx. 29 hours
Input Connector|Four-Pin Locking cW-Style
RF Output Power|10 mW EIRP
RF Sensitivity|-90 dBm
Antenna|True Diversity
Modulation|GFSK
Operating Temperature Range|5°C to +40°C
