Audio-Technica ATW-CHG3AAD Two-Bay Charging Station With AC Adapter

Audio-Technica ATW-CHG3AAD Two-Bay Charging Station With AC Adapter

SoundPro Item: 201599 | Part Number: ATW-CHG3AAD

$296.00
$416.00 $296.00
Your Price Sold out
MSRP: $416.00 | MAP: $296.00

Usually ships in 5-7 business days

  • Two-Bay Simultaneous Charging Supports Multiple Transmitter Models
  • Automatic Battery Detection Protects Against Alkaline Or Damaged Cells
  • Maintenance Charging Mode Preserves Battery Capacity During Extended Dock Time
  • Daisy-Chain Up To Five Stations With Single AC Adapter Via Link Kit
  • Automatic Transmitter Power Control Eliminates Manual On-Off Cycling
  • LED Power And Charging Status Indicators For Real-Time Monitoring
Log in or register for YOUR best price

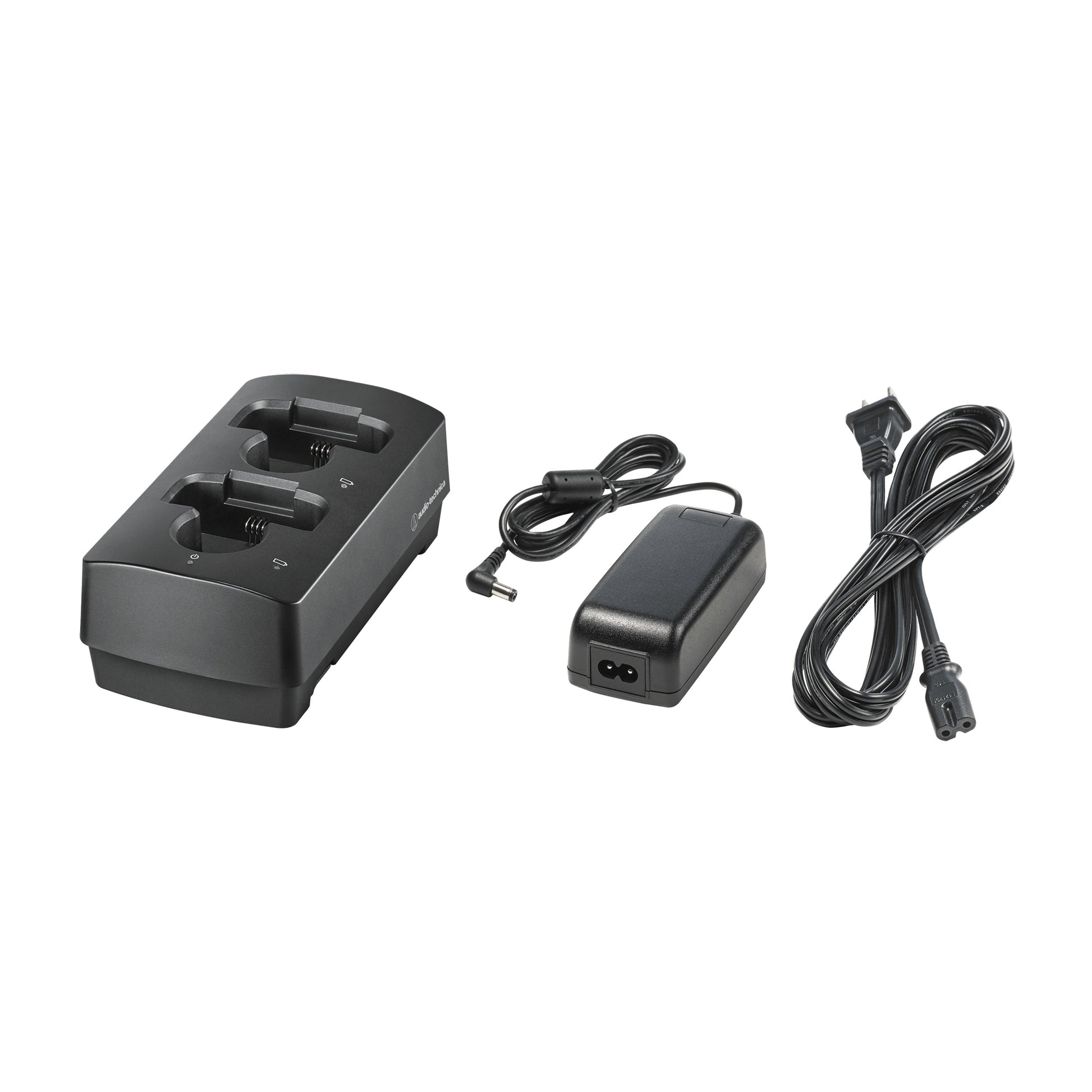

The Audio-Technica ATW-CHG3AAD is a dedicated charging solution for touring sound engineers, church installers, and broadcast teams deploying 3000 Series wireless systems at scale. This bundle pairs the ATW-CHG3A two-bay charging station with the required AD-SA1230XA AC adapter, eliminating the need for separate purchasing. Transmitters power off automatically when docked and power on when removed, reducing user error and extending battery life through intelligent charge cycling.

Compatible with 3000 Series handheld and bodypack transmitters, 3000 Series IEM receivers, and System 20 PRO transmitters, the station charges NiMH batteries while they remain housed in the units—no battery extraction required. Built-in safety detects alkaline or damaged cells and cuts charging immediately, protecting both batteries and transmitters in high-turnover rental or institutional environments. Maintenance charging mode keeps fully charged batteries at peak capacity for as long as transmitters sit in the dock.

For larger deployments, up to five ATW-CHG3A stations can be daisy-chained using AT8687 link kits and powered from a single adapter, consolidating AC connections and wall space in wireless racks or road cases. LED indicators display power and charging status at a glance, critical for live production and rental operations where downtime must be minimized.

Downloads

View full details

Specifications

Electrical
Input Voltage|12V DC
Input Current|3.0 A
Charging Output|3.6V DC 500 mA (x2)
Power Consumption (2 Transmitters Charging)|4.9 W
Power Consumption (5 Units Linked, 10 Transmitters Charging)|27.4 W
Performance
Charging Time|Approximately 6.5 hours (1,900 mAh battery)
Operating Temperature Range|0°C to 40°C (32°F to 104°F)
Dimensions
Charger Width|7.28"
Charger Depth|3.90"
Charger Height|2.70"
Weight
Charger Net Weight|14.1 oz
Compatibility
Works With|3000 Series Transmitters, 3000 Series IEM Receiver, System 20 PRO Transmitters
Battery Type|NiMH (Not Included)
Daisy-Chain Capability|Up To 5 Units (Using AT8687 Link Kits)
