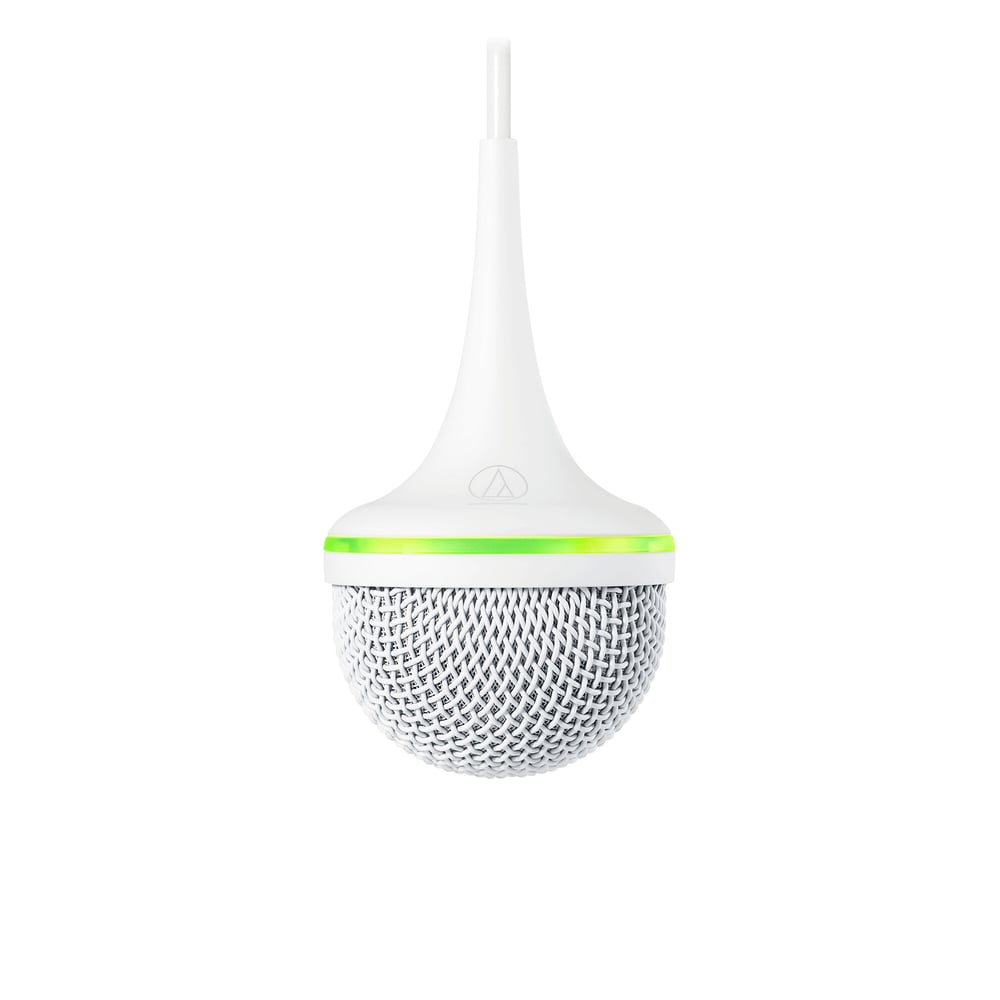

Audio-Technica ES954 Hanging Microphone Array
Audio-Technica ES954 Hanging Microphone Array
SoundPro Item: 54249 | Part Number: ES954
Usually ships in 5-7 business days
- Cost-effective microphone system ideal for conference rooms and meeting spaces of all sizes
- Quad-capsule microphone array designed for use with the ATDM Series Digital SmartMixer® and other compatible mixers
- Limitless coverage with control of hypercardioid and cardioid directionality in 30-degree increments when used with a compatible mixer
- Proprietary audio matrixing technique (patent pending) for 360-degree capture of every voice in the room
- Mixer-controlled tilt function for vertical operation to accommodate different ceiling heights

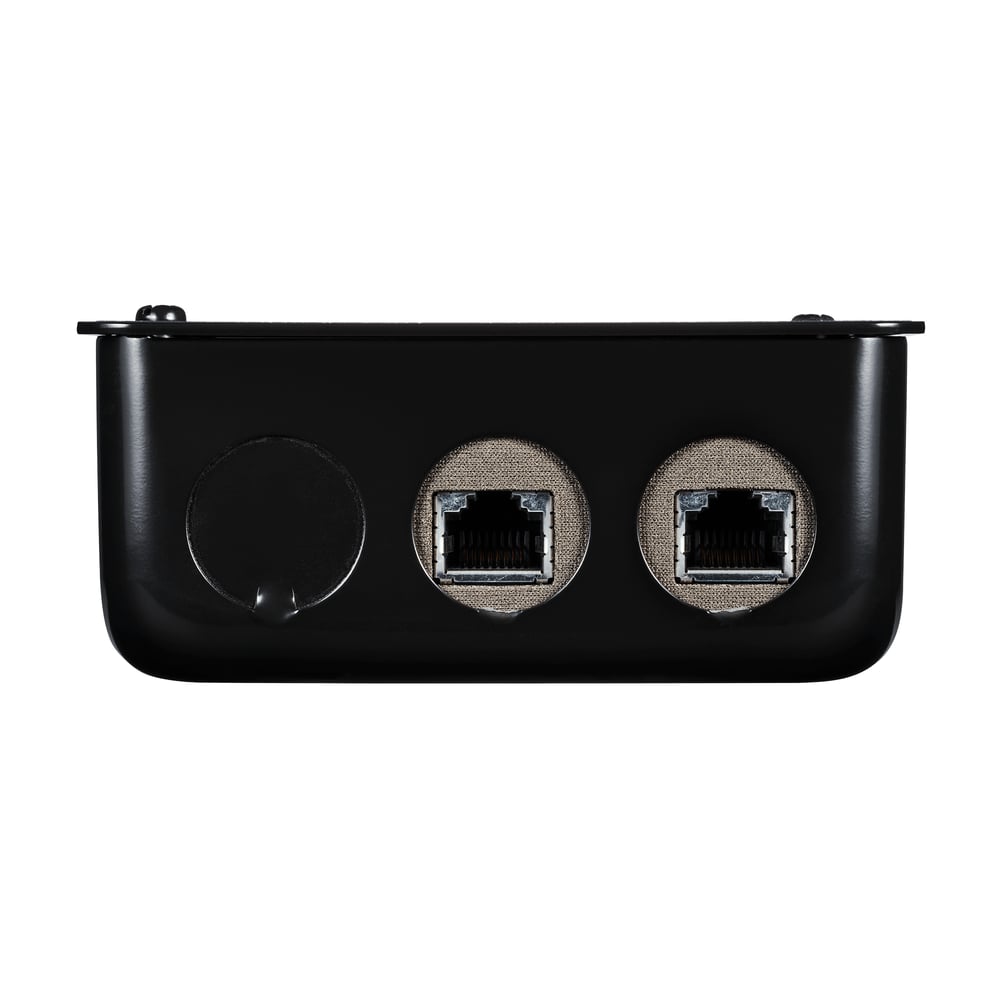

- Two RJ45 connectors and push-type wire terminals for use with the AT8554 Ceiling Mount

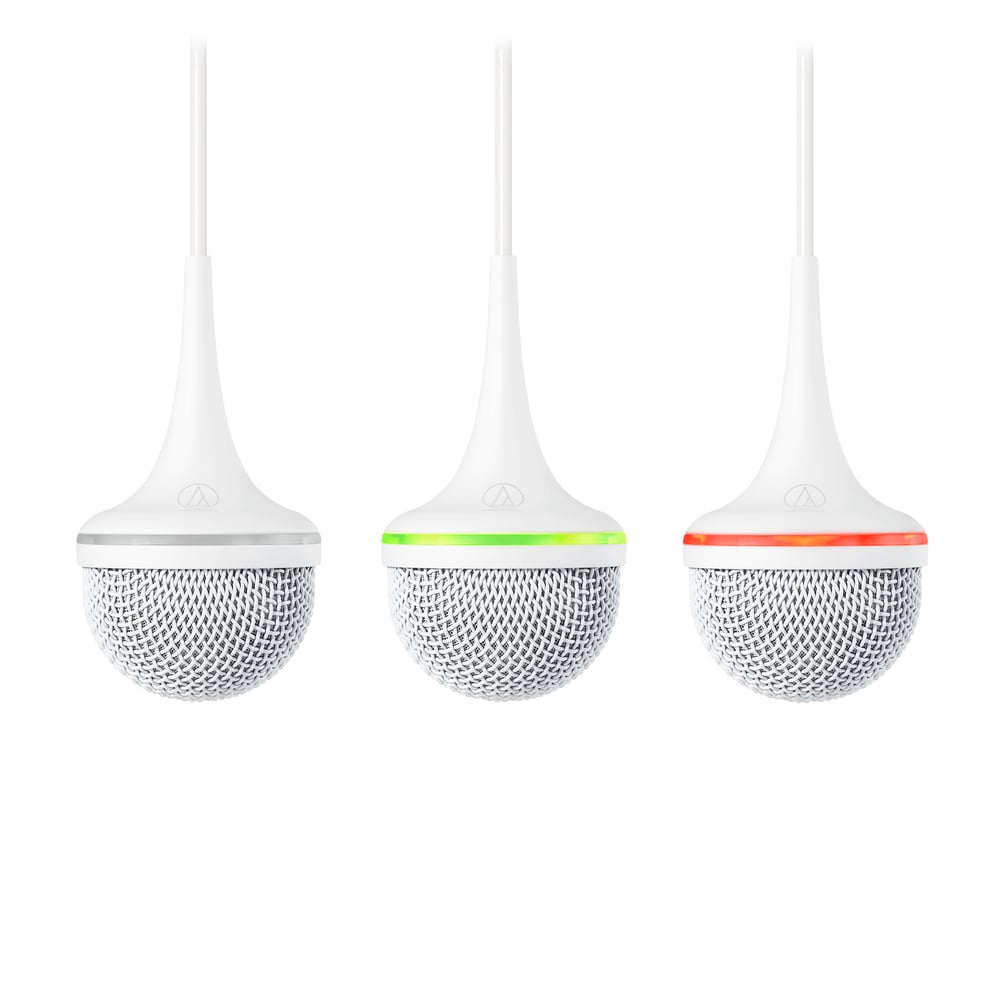

- Logic-controlled LED provides a visual indication of mute status to the end user
- High-output design that can suppress noise from air conditioners and other sources for natural-sounding voices in online meetings, remote lectures, and other applications
- Low-reflective white finish to match most ceiling tile designs

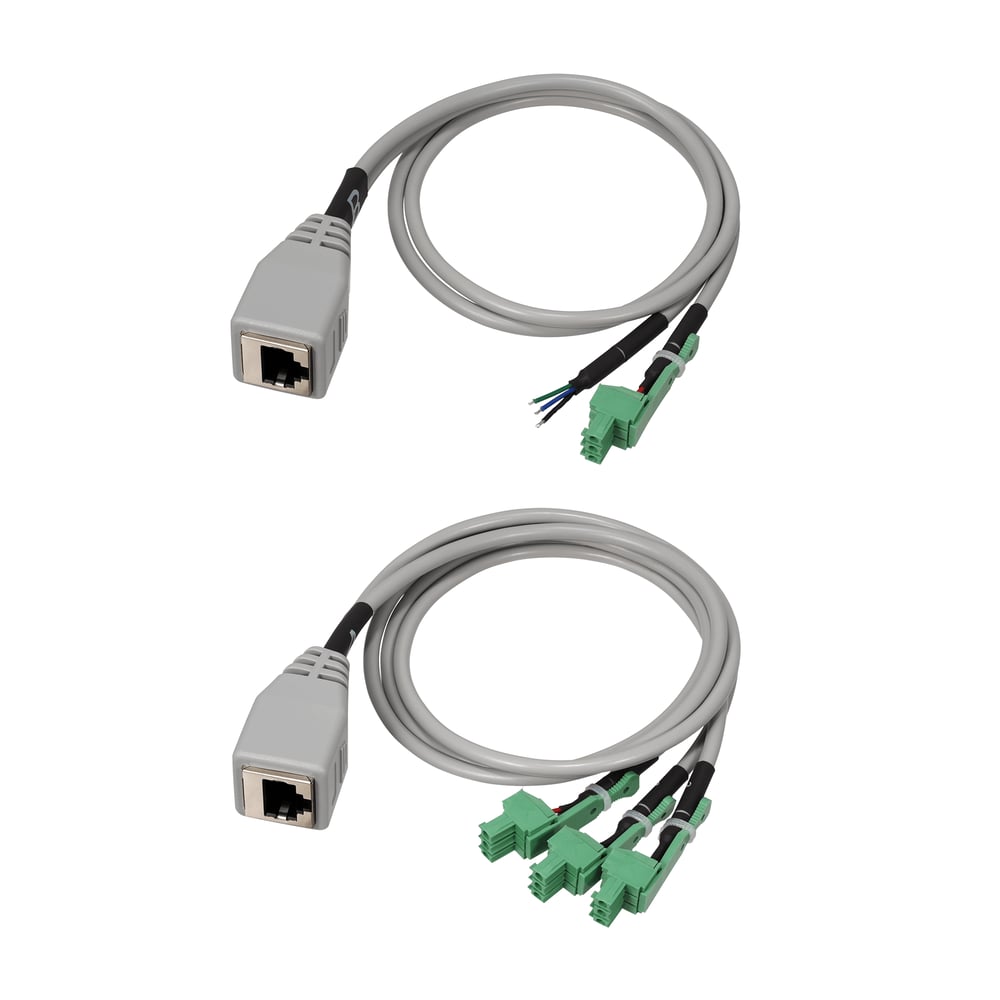

- Includes two 46 cm (18") breakout cables: RJ45 (female) to three 3-pin Euroblock connectors (female); RJ45 (female) to 3-pin Euroblock connector (female) and unterminated LED conductors

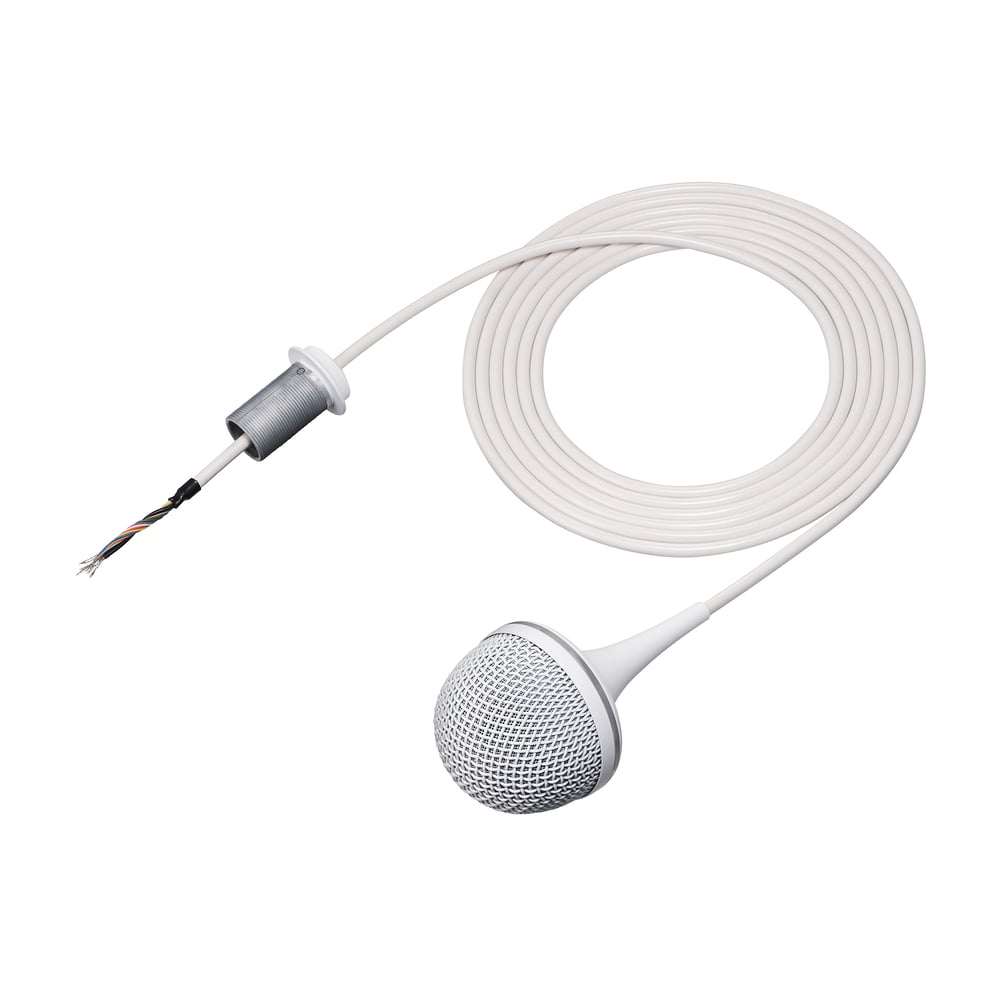

- Includes a 3.0 m (9.8') microphone cable secured at the ceiling tile with a locking grommet for quick microphone height adjustment
- Proprietary shielding technology that protects the audio signals from radio frequency interference (RFI)
- Compatible with 11 to 52 VDC phantom power supplies

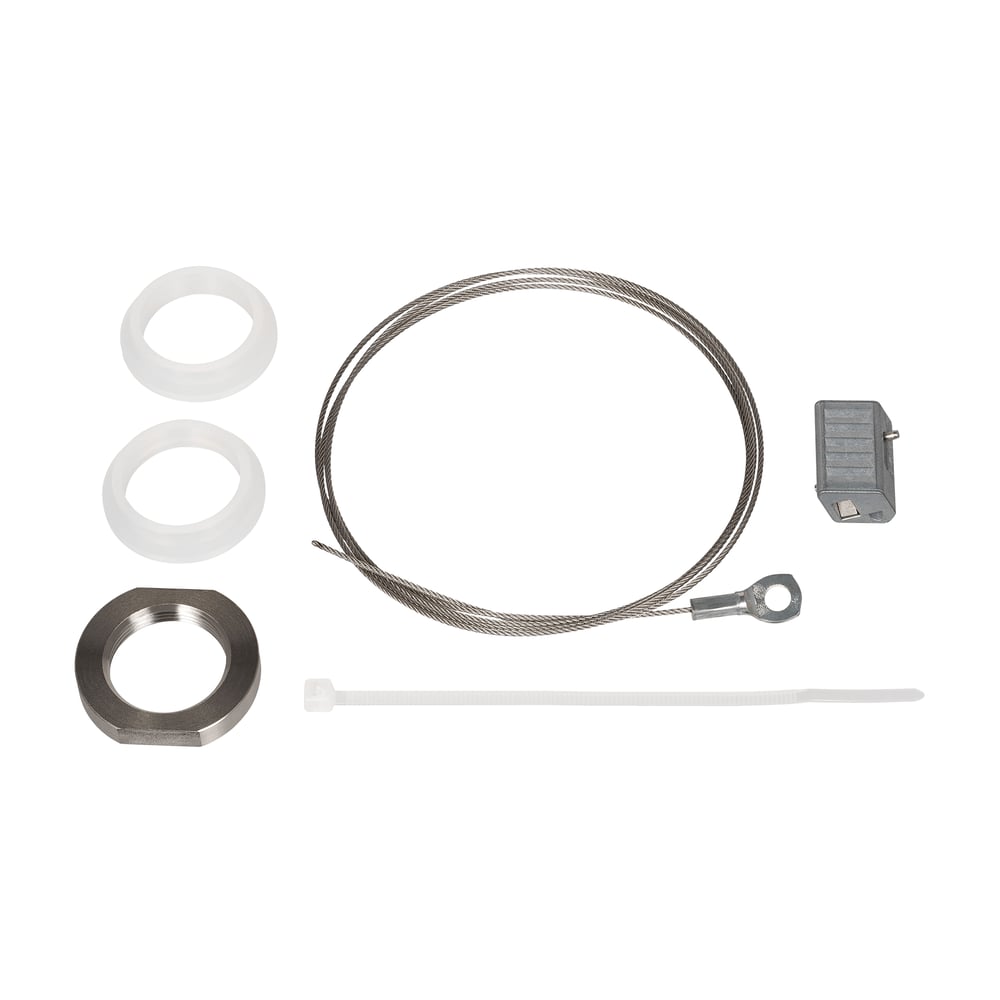

- Includes seismic cable for safe installation

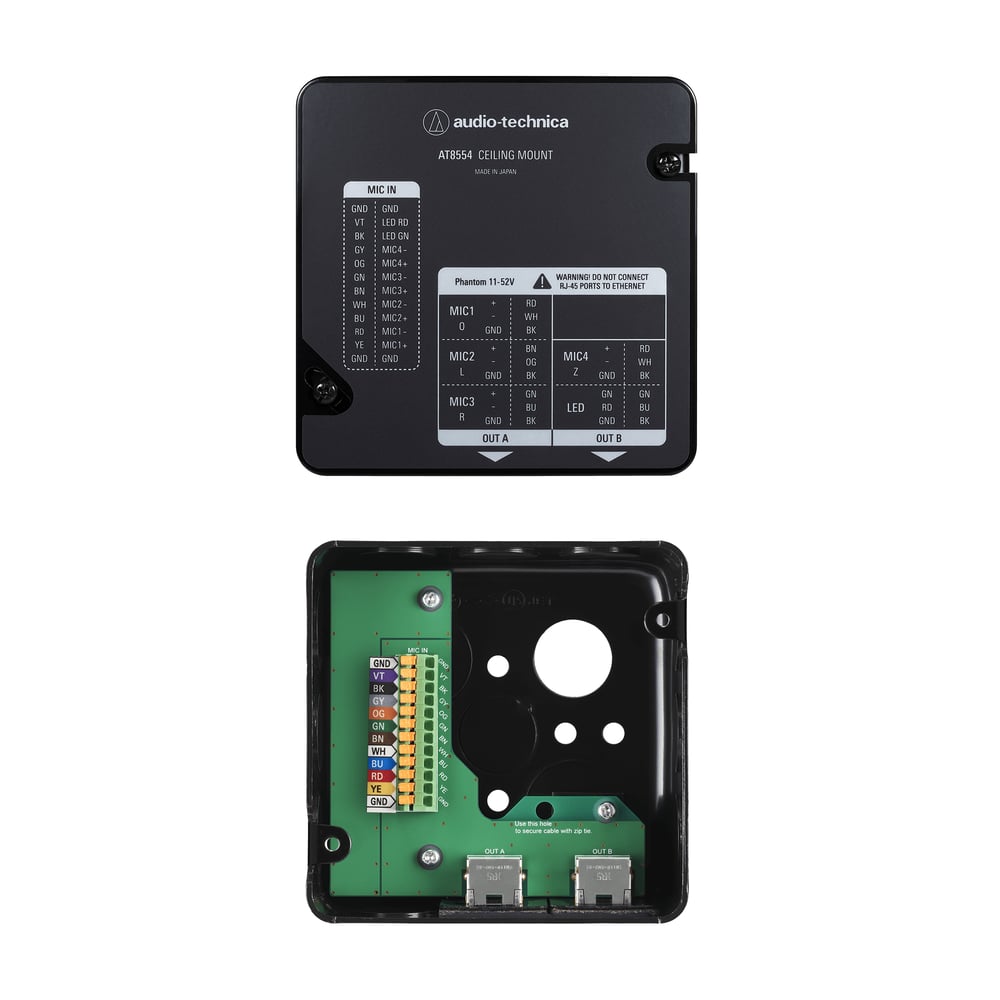

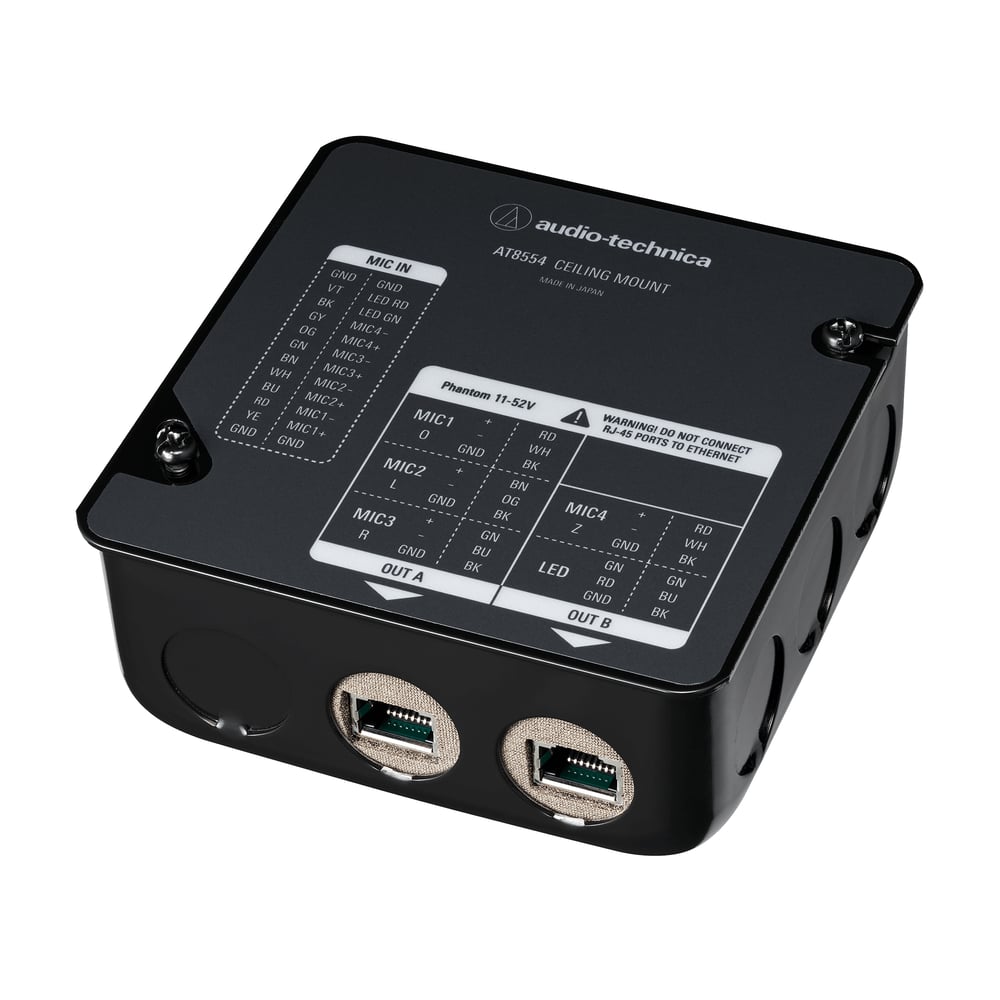

- Plenum-rated (UL 2043) Ceiling Mount (AT8554) for ceiling installation
- Partner certification for use with system devices from other companies
The ES954 Hanging Microphone Array is an ideal, cost-effective solution for huddle rooms, conference rooms and other meeting spaces. Intended primarily for videoconferencing applications, the ES954 may be used singly or in multiples to capture every person speaking in a room, with the total number of channels restricted only by the capacity of the mixer or DSP device controlling the system. When controlled by the ATDM-0604 Digital SmartMixer, the four-capsule microphone array provides 360-degree coverage through virtual hypercardioid or cardioid outputs, which can be steered horizontally and tilted vertically. The intuitive graphic interface of the ATDM-0604 enables control of the width and orientation of each virtual polar pattern, which may be steered in 30-degree increments, with a tilt function accommodating differing ceiling heights and users who are sitting or standing. The ES954 comes with a plenum-rated AT8554 Ceiling Mount with RJ45 connectors and push-type wire terminals for simple, secure installation. The included seismic cable secures the ceiling mount to a drop ceiling grid. The microphone array connects to the mixer over a pair of standard category cables with the two included RJ45 breakout cables enabling connection to the mixer's mic inputs and LED control. The microphone's permanently attached 1.2 m (4') cable features a locking grommet for easy height adjustment, and its UniGuard RFI-shielding technology offers outstanding rejection of radio frequency interference (RFI). An integral, logic-controlled 360-degree red/green LED ring provides clear indication of call and system status.
Specifications
