Specifications
Certifications
Approvals
CE, FCC, cETLus (Control #3069848)
Dimensions
Product Dimensions
28.7" x 16.7" x 16.3" / 728 x 425 x 414mm
Weight
Product Weight
42 lbs. / 19.1 kg.
Electrical
Power Input
120V/60Hz or 240V/50Hz (country specific)
Power Consumption
400W
Audio
Amp Power
1200W Peak
LF Amplifier Class
Class D
HF Amplifier Class
Class AB
LF Amplifier Power (RMS)
350W
HF Amplifier Power (RMS)
50W
Frequency Range
45Hz-20kHz
Nominal Coverage
90 degrees x 60 degrees
Peak SPL @ 1M
124dB
LF Driver
15-inch woofer with 2.5-inch voice coil
HF Driver
1.35-inch HF Compression Driver

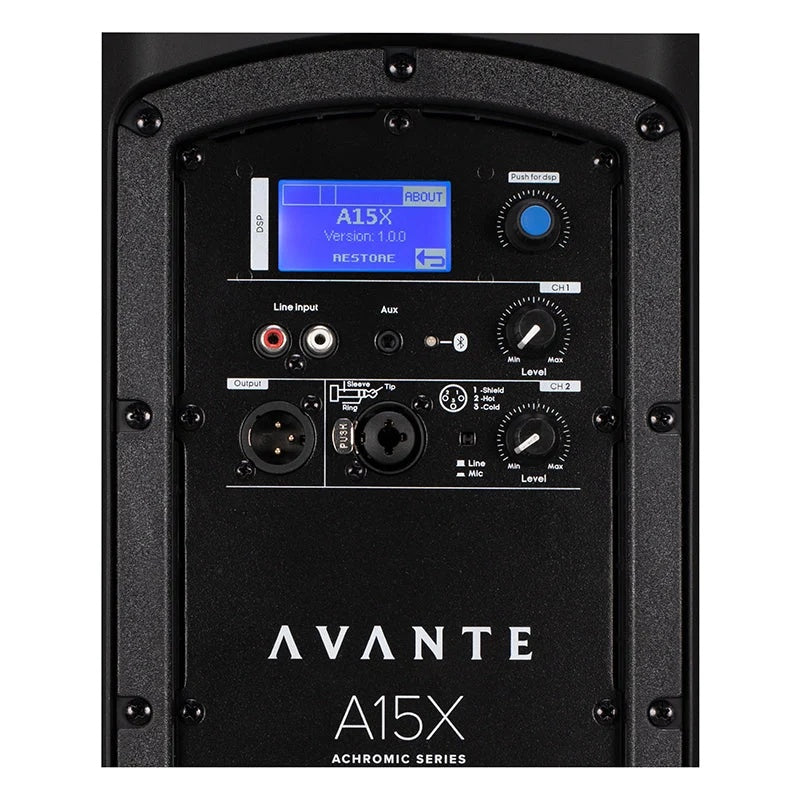

Connectivity
Inputs
Balanced Female XLR 1/4-inch combo jack, 2x RCA (phono)
Output
Balanced Male XLR
Construction
Enclosure
H-PP Molded
Grill
1.2mm Steel
Handles
1 on top, 1 on side
Fly Points
2 on top, 1 on back

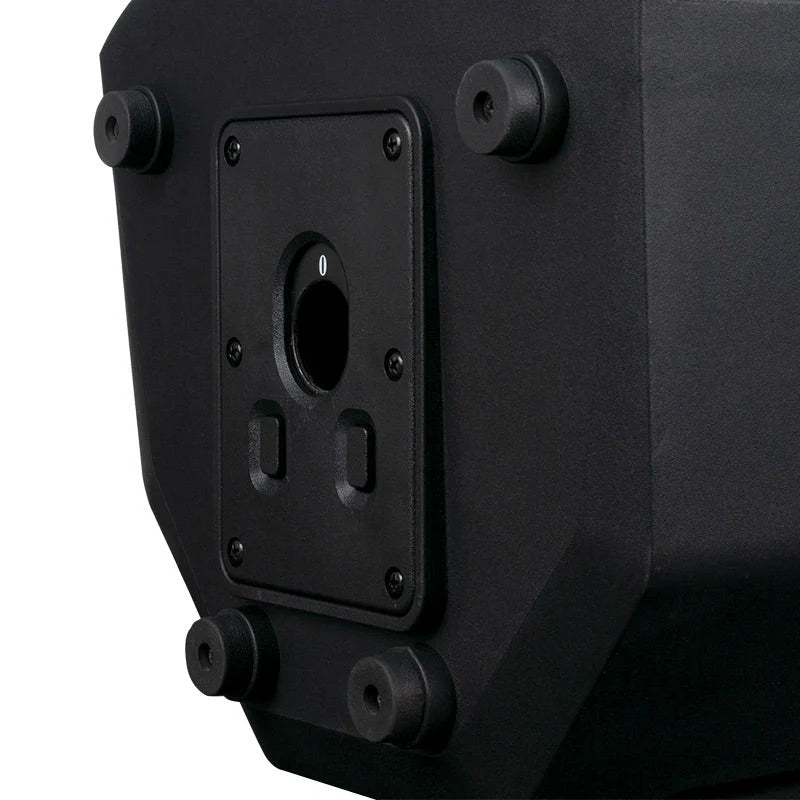

Pole Mounting
Dual position 0-degrees or 7.5-degrees
