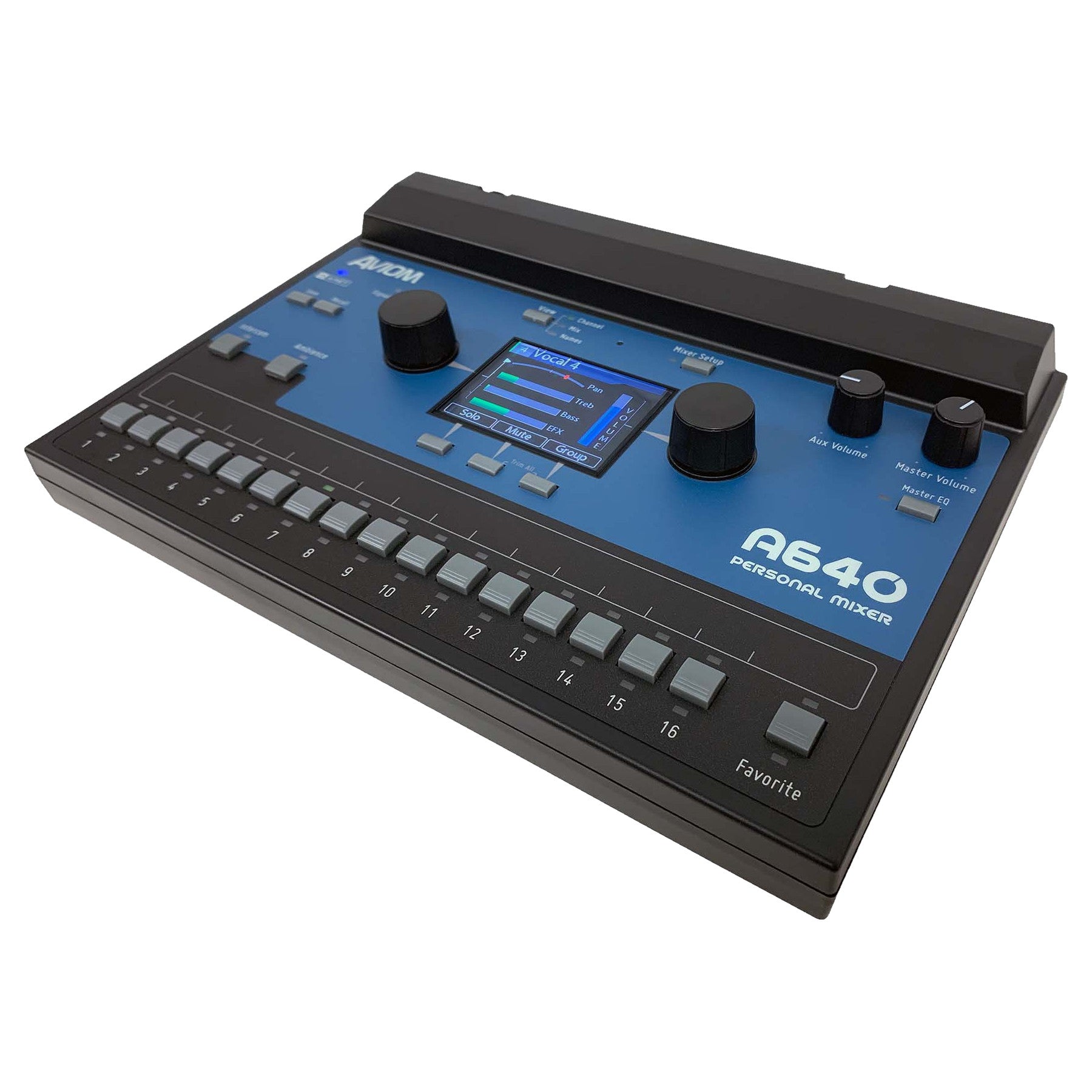

• Aviom A640 Personal Mixer

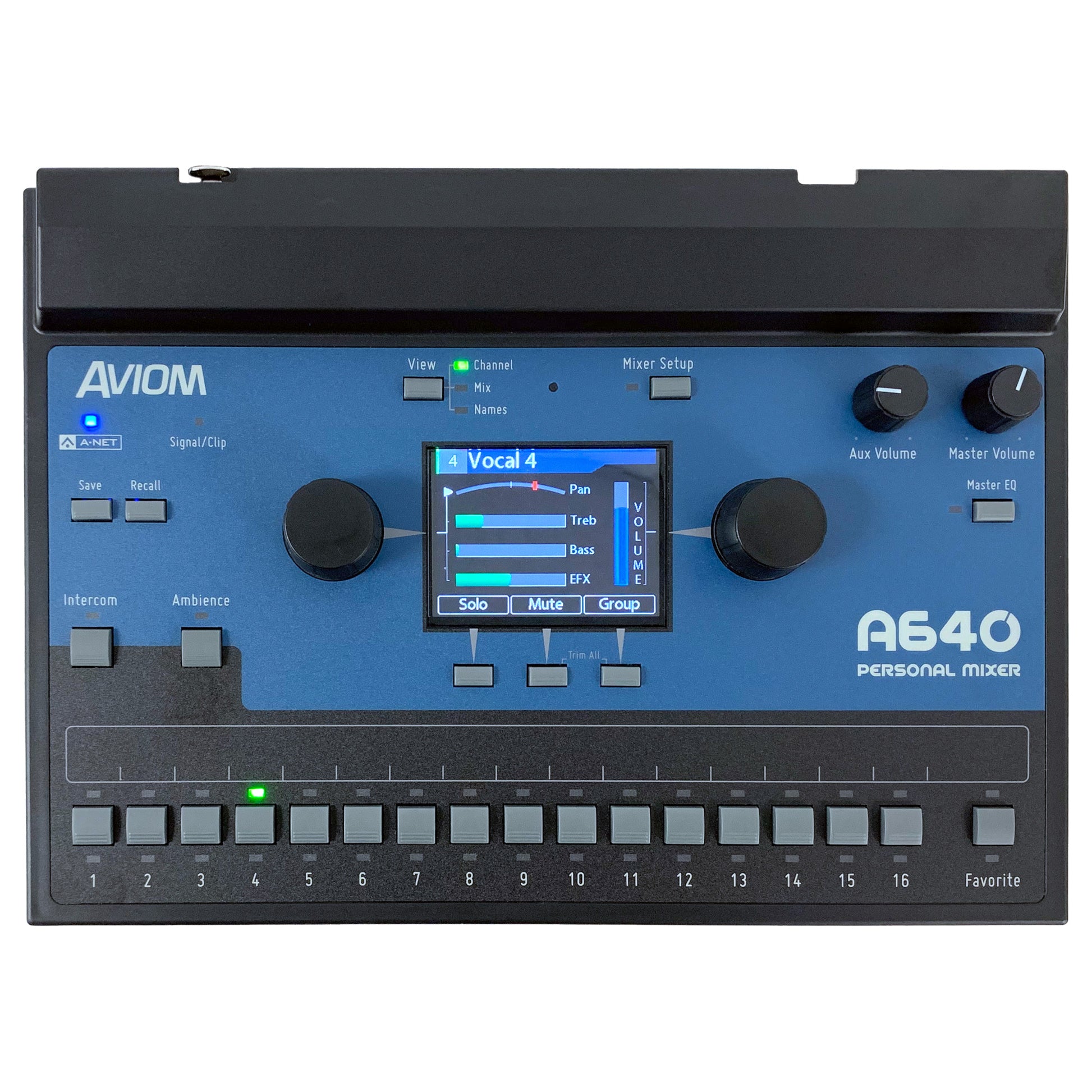

  • Aviom A640 Personal Mixer front

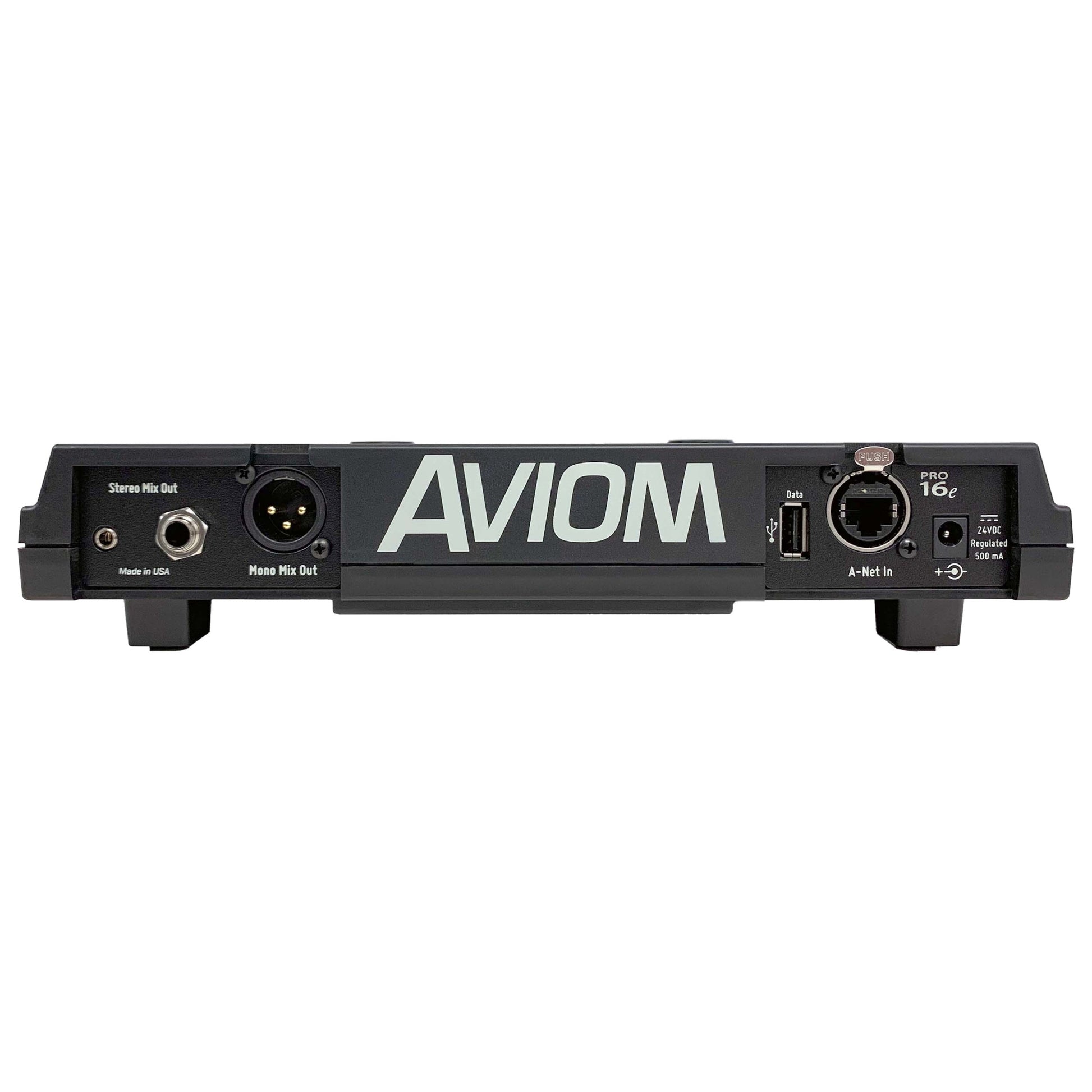

  • Aviom A640 Personal Mixer back
1 3

Aviom A640 Personal Mixer

Aviom A640 Personal Mixer

SoundPro Item: 129387 | Part Number: A640

$949.00
$999.00 $949.00
Your Price Sold out
MSRP: $999.00 | MAP: $949.00

Usually ships in 5-7 business days

  • Intuitive user interface featuring high-res color multi-mix-view display
  • Customizable channel selection from up to 64 network channels
  • 36-channel mix engine for up to 18 mono or stereo sources
  • Per-channel volume, treble, bass, reverb, and pan plus Master EQ with Enhance
  • One-Touch Ambience™ using network audio or the internal mic
  • Intercom for communicating with other A640 users
  • Favorite Channel holds each musician's most important channel
  • USB for easy archiving and loading custom mixer configurations
  • 1/4" and 1/8" stereo mix out plus XLR mono Aux mix out
  • Support for Network Mix Back™ (requires a D800, sold separately)
Log in or register for YOUR best price

The A640 Personal Mixer brings an unparalleled level of control, performance, and fidelity to personal mixing that exemplifies Aviom’s core brand sensibilities.

Aviom's Personal Mixers are the worldwide industry-standard for personal mixing on stage and in the studio. With more mix channels, powerful features, and an intuitive, streamlined user-interface, the A640 helps musicians hear better than ever before. It's compatible with all existing Aviom systems using Dante networking, digital console cards, or analog inputs, and can be used simultaneously with the A360, A320 and/or A-16II Personal Mixers.

View full details
  • Audio Output
    • 1/4" TRS stereo, headphone or line level
    • 1/8" TRS stereo, headphone or line level
    • XLR balanced mono, line level
  • Stereo Mix Outputs, Headphone/Line Tip: Audio Left; Ring: Audio Right; Sleeve: Ground
  • Mono Mix Output Pin 2: Hot, Pin 3: Cold; Pin 1: Ground
  • A-Net
    • 1 A-Net In, locking RJ45 connector
    • Supports Power Over A-Net
  • D/A Conversion 44.1/48kHz, 24-bit
  • Stereo Operation
    • Stereo Link, per mixer channel and A-Net channel pair
    • Set at the input device
    • Variable pan per mono channel or pan/spread per stereo channel pair
  • USB Storage
    • Save/load mix configuration data and mixer presets
    • Firmware updates
    • Requires USB compliant mass storage device, formatted for PC
  • Headphone Output 1.0 watt at 100 ohms (Line/Headphone output)
  • Output Impedance 32 ohms
  • Frequency Response 2-22kHz +0.2dB/-3dB
  • THD+N < 0.003%
  • Signal to Noise (unweighted) -106dB (measured with zero data into all channels)
  • Latency <0.680 msec (measured from analog input to analog output)
  • A-Net Cables
    • Use unshielded Cat-5e UTP (or better) cable
    • Maximum 400 ft (122 m) between devices
  • Power Supply: Optional
    • Input Voltage: 24 VDC, 0.5 amp
    • Plug Size: 2 mm
  • Dimensions (WxDxH)10.76x7.6x2.212" (273.3x193.04x56.18mm)
  • Weight2 lbs (0.907 kg); packaged weight 3 lbs (1.36 kg)
