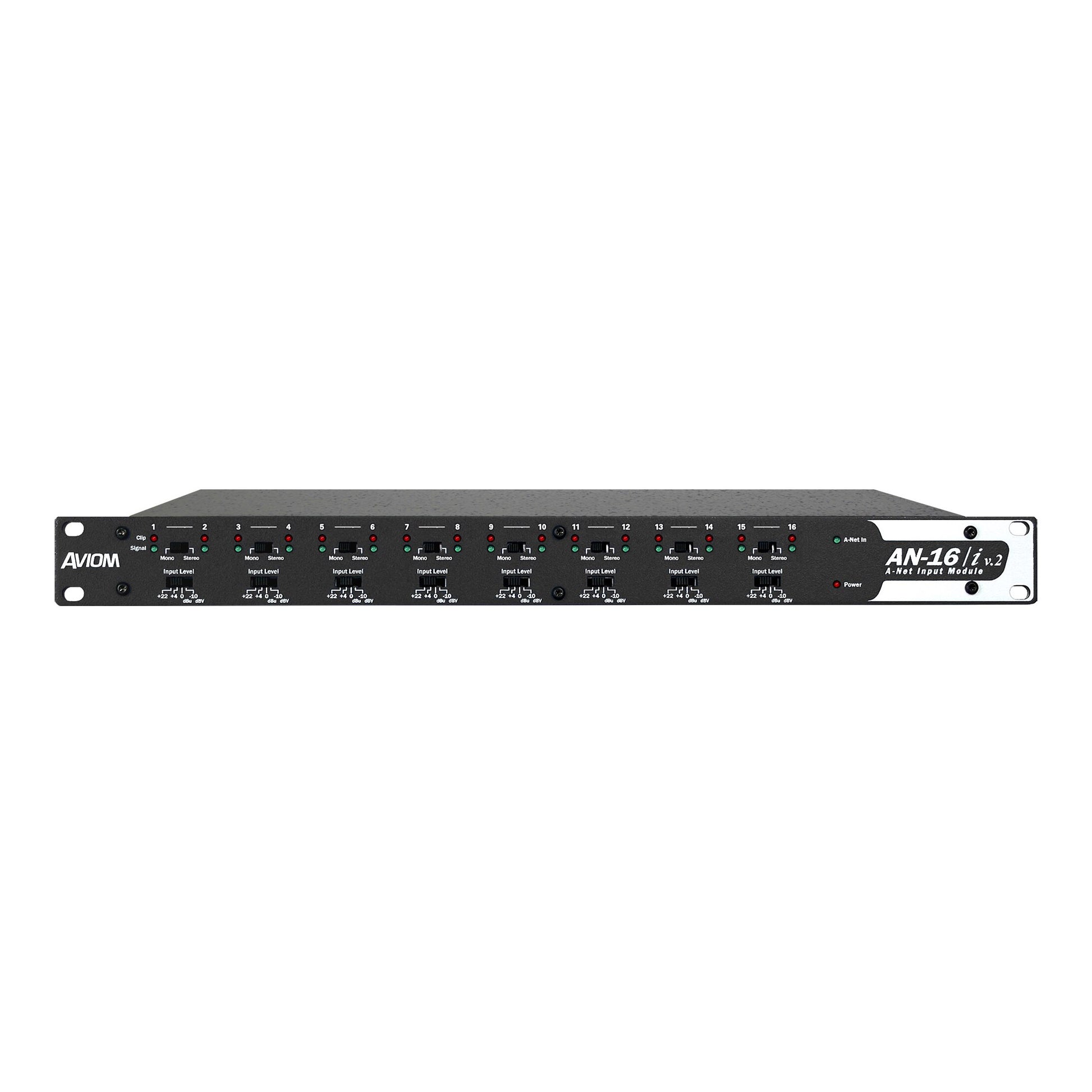

Aviom AN-16/i v.2 16-Channel Line-Level Input Module

Aviom AN-16/i v.2 16-Channel Line-Level Input Module

SoundPro Item: 41666 | Part Number: AN-16/i v.2

$1,399.00
$1,599.00 $1,399.00
Your Price Sold out
MSRP: $1,599.00 | MAP: $1,399.00

Usually ships in 5-7 business days

  • Sixteen balanced audio inputs (¼-in TRS connectors)
  • Sixteen balanced Thru connectors (TRS)
  • A-Net In with four-position slot range selector switch
  • Stereo Link switches for each channel pair
  • Four-position gain switches (+22, +4, 0, -10dB)
  • Signal present and clip LEDs per channel
Log in or register for YOUR best price

The AN-16/i v.2 Input Module connects 16 balanced line-level inputs from a mixing console's direct outputs, insert points, and more to a personal mixing system. When used alone, one AN-16/i v.2 can generate a single 16-channel A-Net signal.

The A-Net In on the AN-16/i v.2 allows multiple Pro16 input devices (including console cards, AN-16/i-M, and the original AN-16/i) to be connected together to generate the higher channel count Pro16e™ version of A-Net used by the A360 Personal Mixer and A320 Personal Mixer.

View full details

Specifications

Dimensions
Plug Size
18-24 VDC, 0.5 amp
Dimensions
19" (482.6 mm) wide x 5.75" (146 mm) deep; 1U high
Electrical
THD +n
< 0.003%
Audio
Audio Inputs
16, balanced line-level, 1/4-inch TRS connector
Frequency Response
4Hz-22kHz
Maximum Input Level
+22dBu
Input Impedance
17.8k ohm
Crosstalk
-90dB
Output Voltage
100-240 volts, 50/60Hz, 30VA
Connectivity
Inputs
Tip: Audio +; Ring: Audio -; Sleeve: Ground
Line Inputs
Impedance: 48k ohms
Digital Outputs
A-Net: 1; RJ45 connector
Shipping
Weight
6.8 lb (3.08 kg)
General
TRS Thru
Impedance matched output
Analog to Digital Conversion
48kHz sample rate, 24 bit
A- Net in
One Category 5 (RJ45 connector), Four-position slot range selector switch for use with Pro16e A-Net
A-Net Out
One Category 5 (RJ45 connector), Gain Settings Four-position switch, -10dBv, 0dBu, +4dBu, and +22dBu
Channel LED Indicators
Signal Present and Clip, per channel
Metering
LEDs; green: Signal Present, red: Clip; per channel
Stereo Operation
Stereo Link, per channel pair;, Two-position switch (Normal, Link)
Freq. Response
4Hz-22kHz +0.2dB/-3dB
Bit Error Rate (BER)
10(-12)
Signal to Noise (unweighted)
90dB typical, A/D to D/A, Measured from AN-16/i to AN-16/o Output Module
Pro16e A-Net
Use unshielded Cat-5e UTP (or better) cable
Power Supply
2 mm
Audio Performance
Latency
<0.880 msec (measured from analog input to analog output)
Power
Input Voltage
External, DC, universal switching type
Power
18-24 VDC, 500mA
